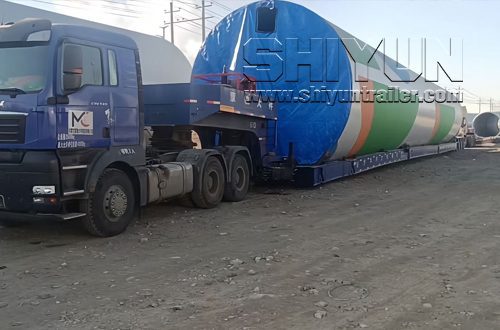

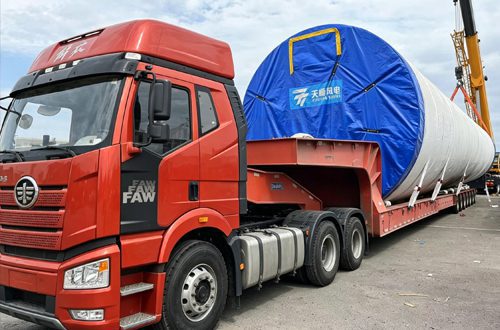

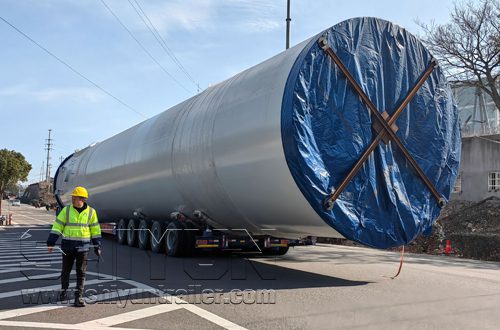

This trailer is not only suitable for transporting wind turbine towers, but also capable of carrying various oversized large tank bodies, such as chemical industrial storage tanks and pressure vessels.

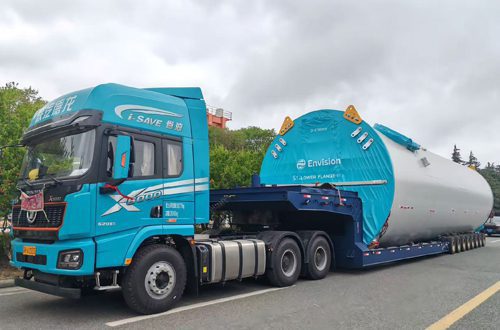

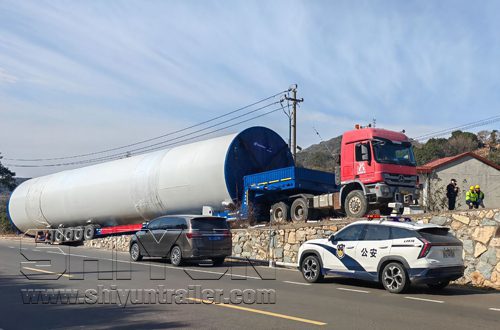

With the widespread popularization and large-scale application of wind power generation technology, SHIYUN, a leading top brand in wind power transportation vehicles, keeps pace with industrial development and continuously upgrades special transport vehicles for wind power equipment.Wind turbine towers are mostly steel conical cylinders that are wider at the bottom and narrower at the top, assembled in sections via flanges. Featuring large overall height and heavy self-weight, they need to be transported by heavy-duty low-bed trailers or hydraulic modular vehicles.Due to the large diameter of the wind turbine tower, the over-limit height is a major challenge to be solved during road transportation.Wind turbine towers adopt a detachable and modular structure, which can be divided into multiple sections for separate transportation and assembled on site, effectively reducing the cost of empty return trips.
SHIYUN has been deeply involved in the wind power transportation field for two decades, providing comprehensive support for wind power transportation projects. Through continuous product upgrades and technological innovation, our product performance has achieved a qualitative leap, and our core quality and overall strength remain firmly at TOP 1 in the domestic industry for more than 20 years .
In the future,SHANDONG SHIYUN will continue to focus on innovative research and development, iterate and upgrade special wind power transportation equipment, benchmark international advanced standards, strive to manufacture high-quality wind power transport vehicles, and boost the high-quality and international development of the industry.
In the field of wind power logistics and transportation, our company provides full-category transportation services for wind turbine nacelle, wind turbine blades and wind tower , offering integrated and complete logistics solutions covering the entire wind power industry chain.

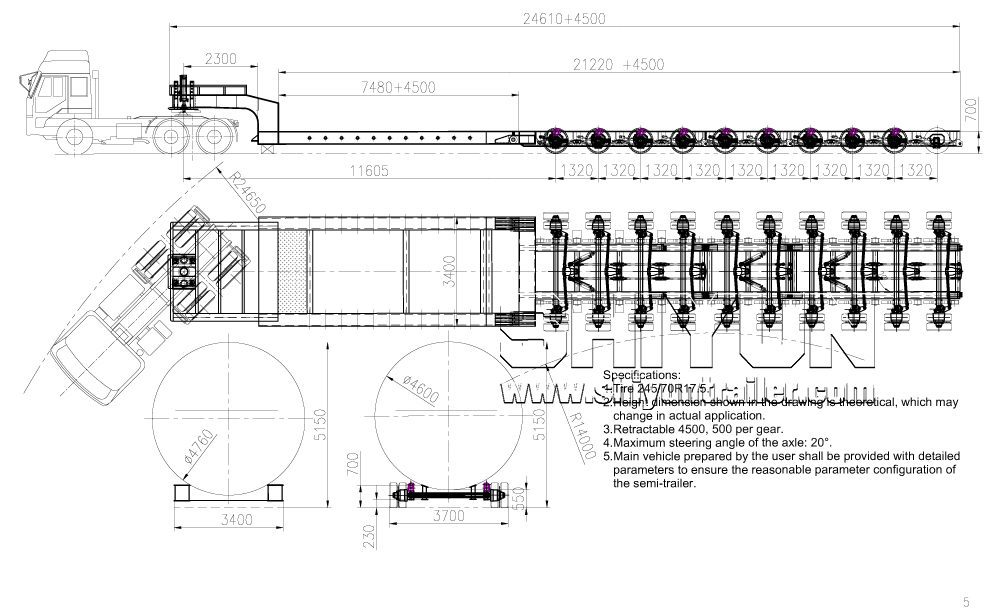

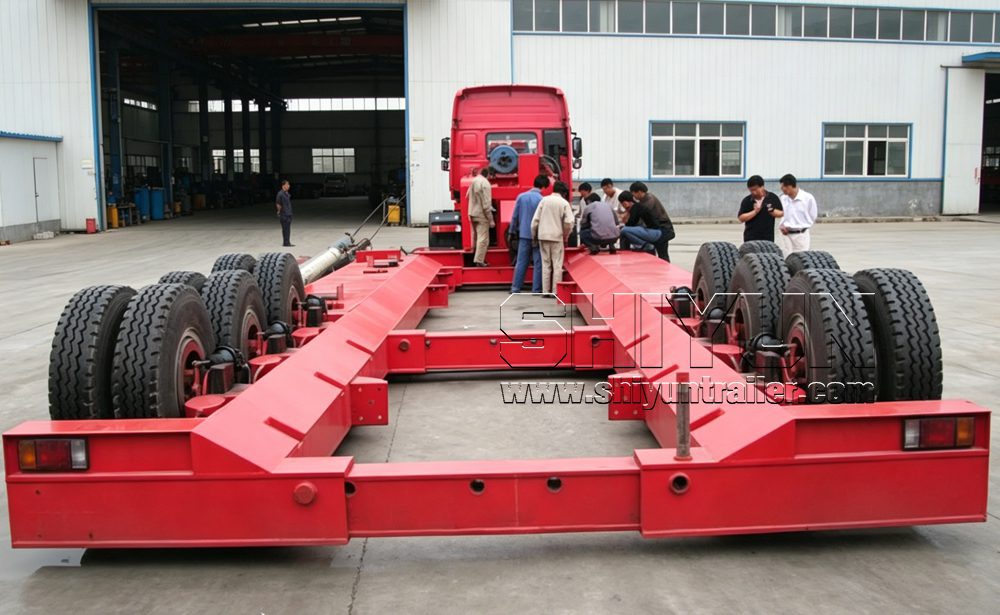

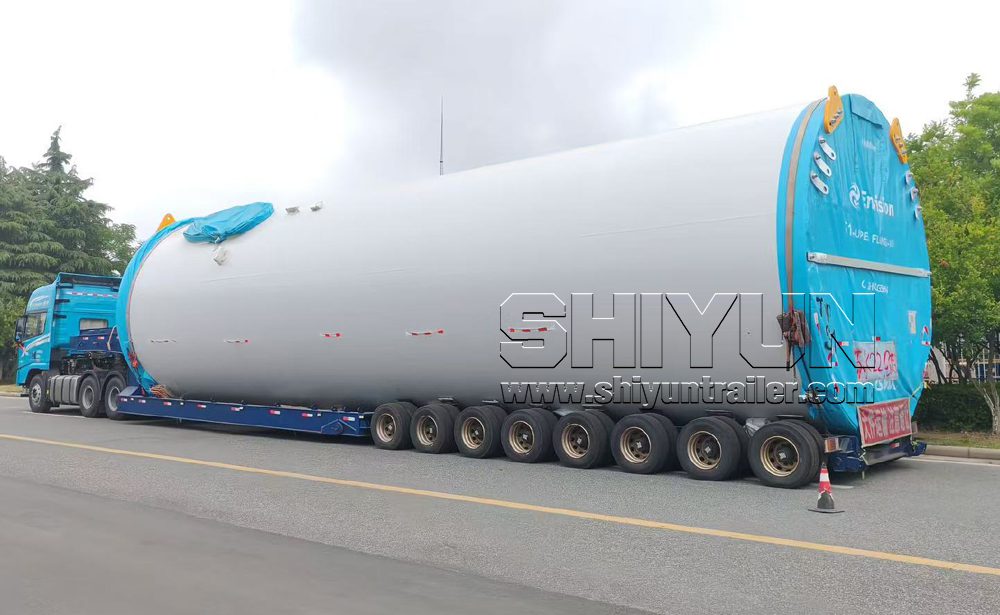

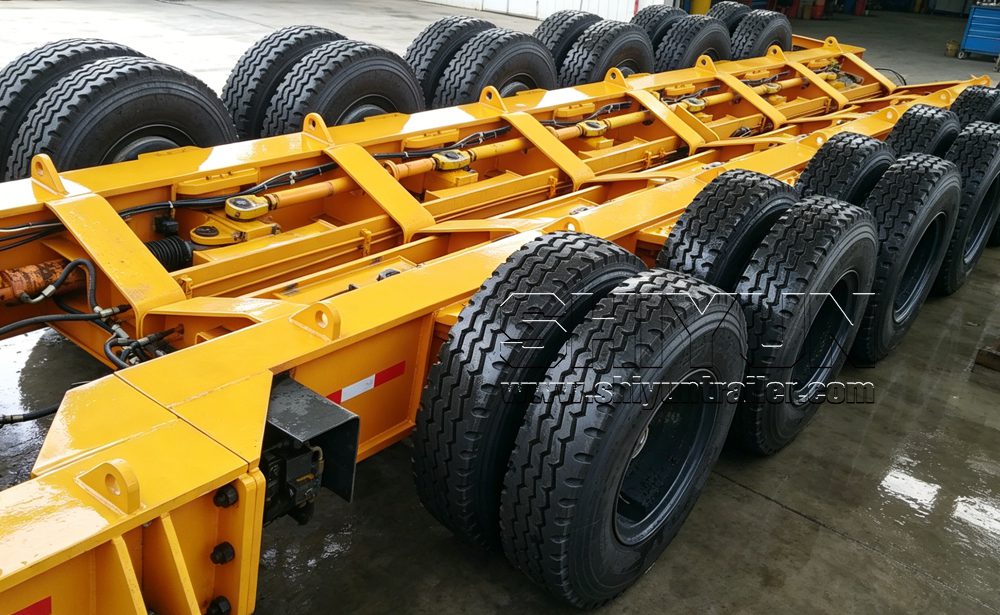

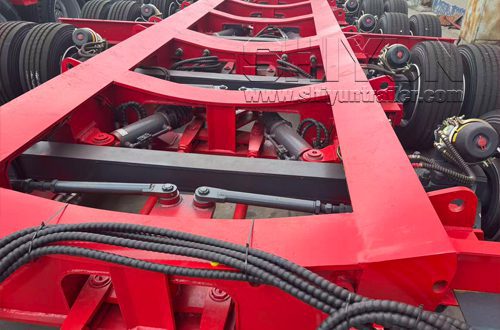

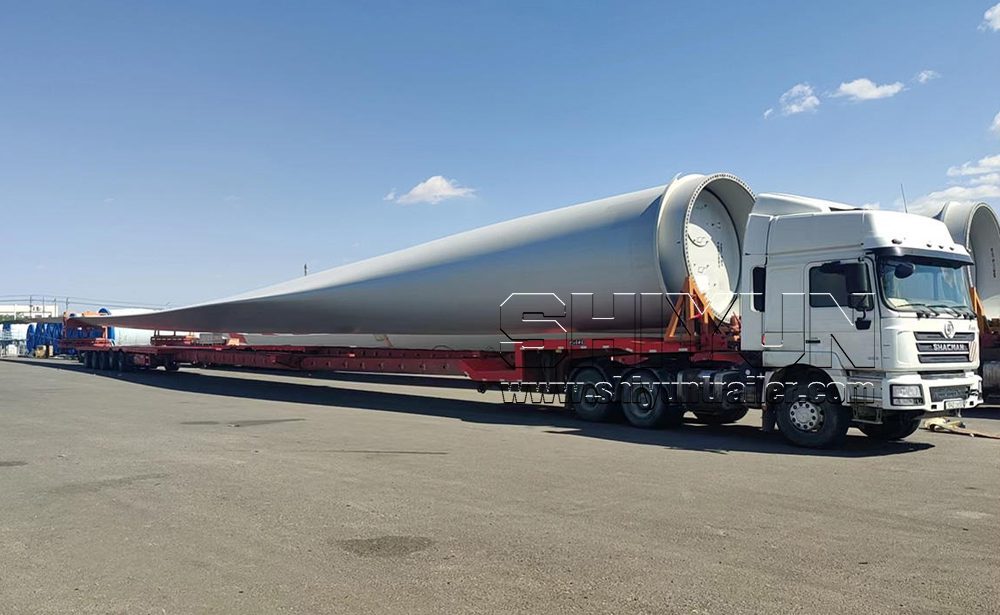

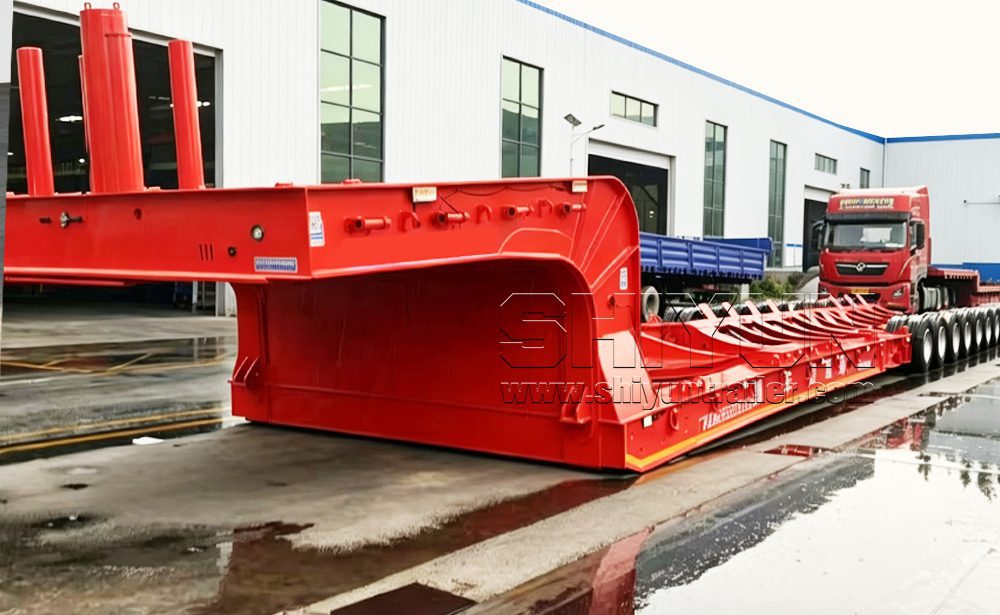

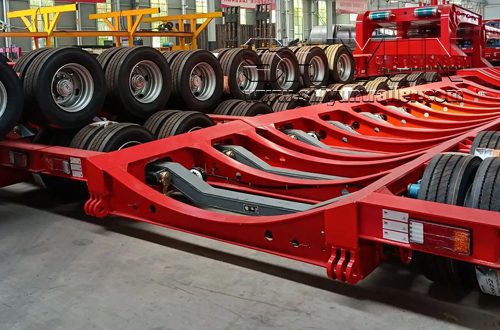

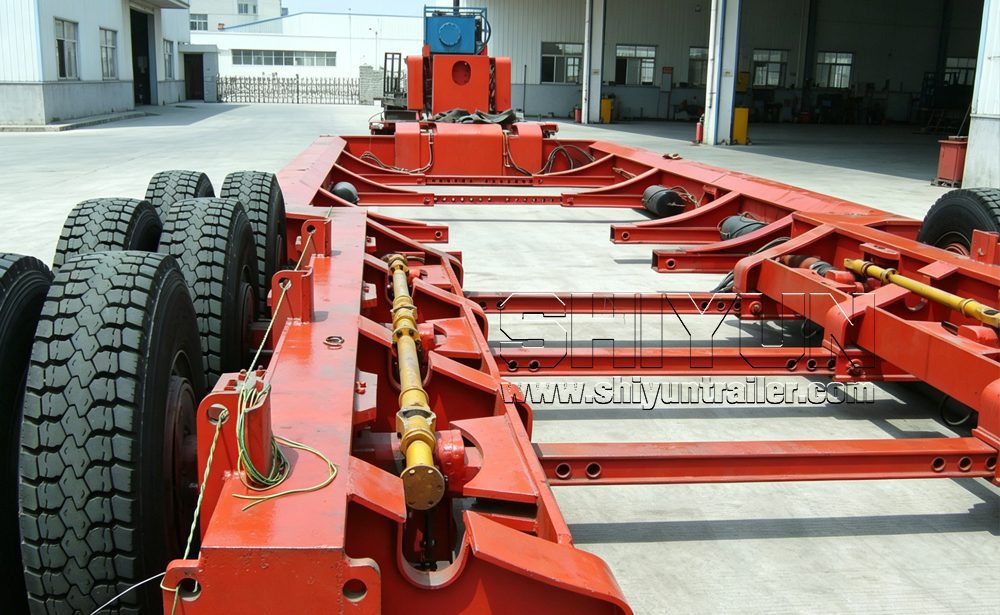

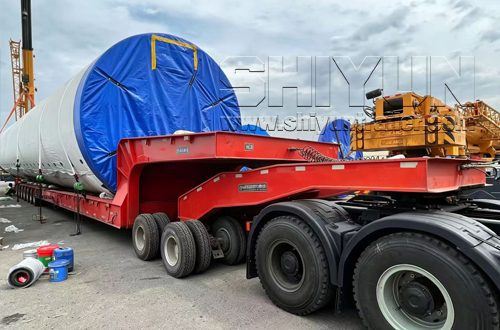

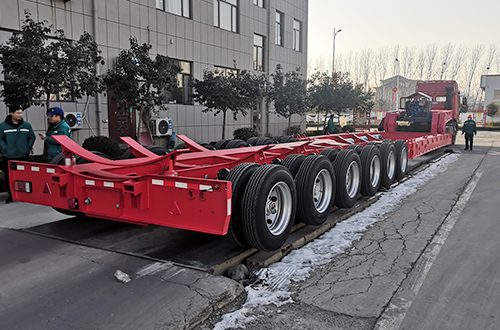

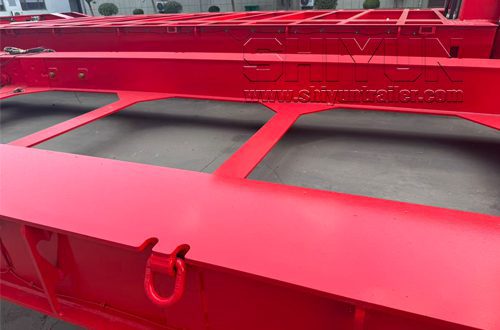

This long-haul telescope extendable trailer for wind rotor turbine tower transportation is equipped with through-type axles and a turntable hydraulic steering system.With outstanding heavy-load capacity, SHIYUN trailer is fully optimized for the long-haul transportation of large, heavy windmill turbine blades in complex mountainous regions.Equipped with flexible dimension tuning capability, it delivers universal compatibility with wind towers across a wide range of sizes and all mainstream brands.
| Item | Specifications |
|---|---|
| Material | High strength Carbon steel HG60 and Q550 |

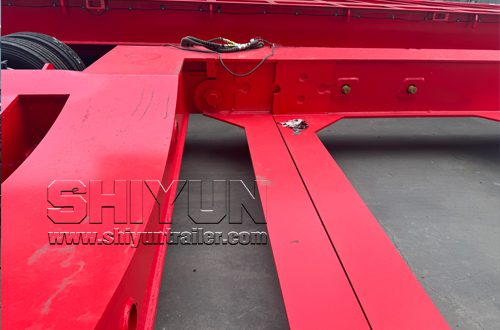

| Main beam | Telescope extendable beam |
| Axles | AN, CTC or GT Brand straight axles or concave axles optional |

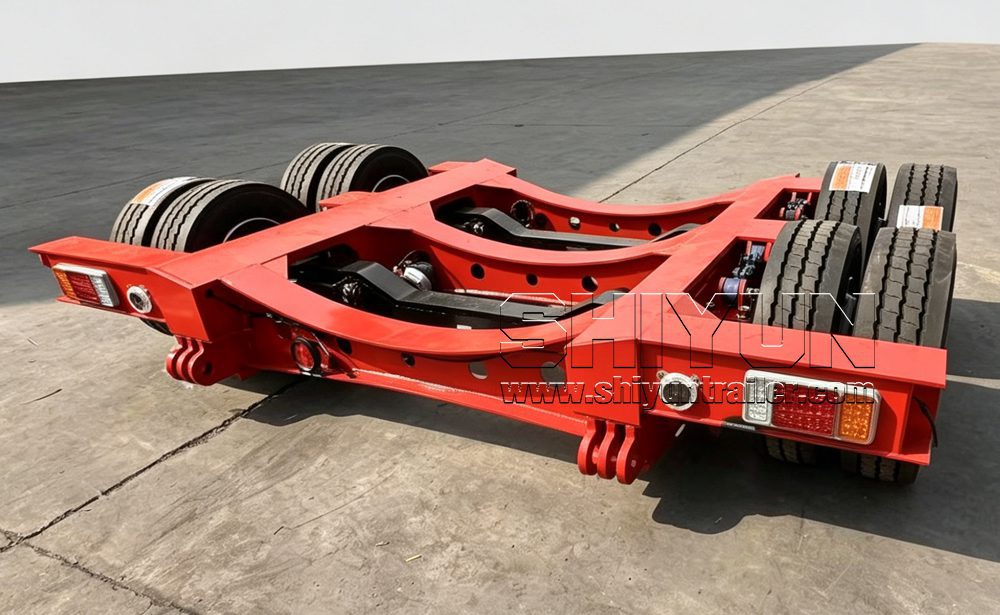

| Suspension | Bogie suspension with steering axles optional |
| Power pack | 12KW engine |

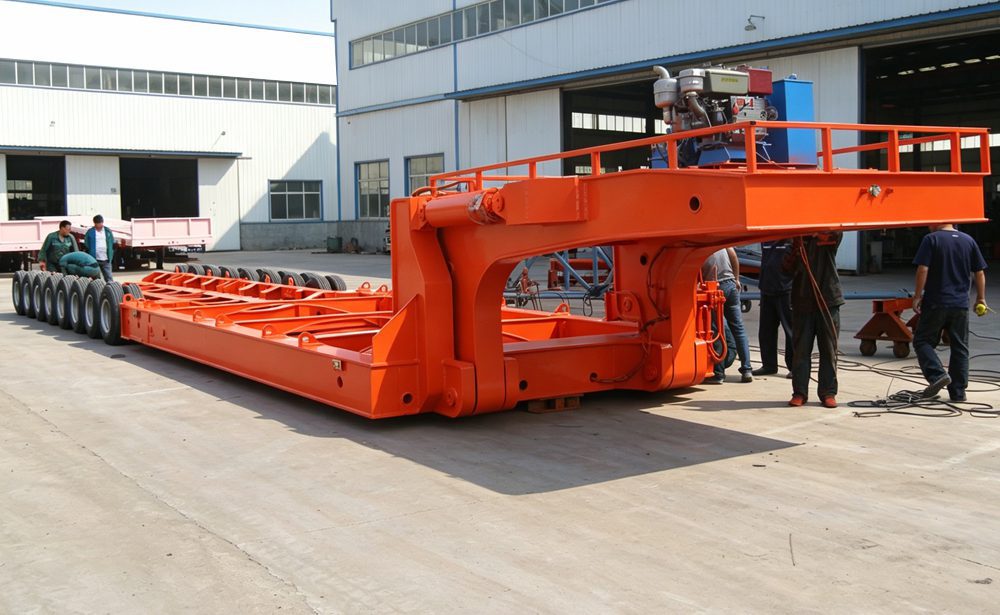

| Gooseneck | Fix or hydraulic optional, a concave platform can be reserved at the top of the gooseneck |
| Tire | 245/70R17.5 Other size and brand optional |
| King pin | 2” / 3.5” bolt type, SAE standard |

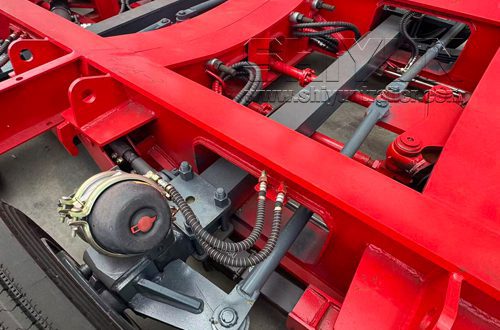

| Braking system | Dual line brake system, Double air chamber, brake valve, 40L air tanks, ABS optional |
| Electrical | LED light, 7 ways, 24V |
| Painting | Blasting and clean rust, 1 coat of prime painting, 2 coat of finish painting |
| Accessory | Tool box, oil tank, spraying system optional |

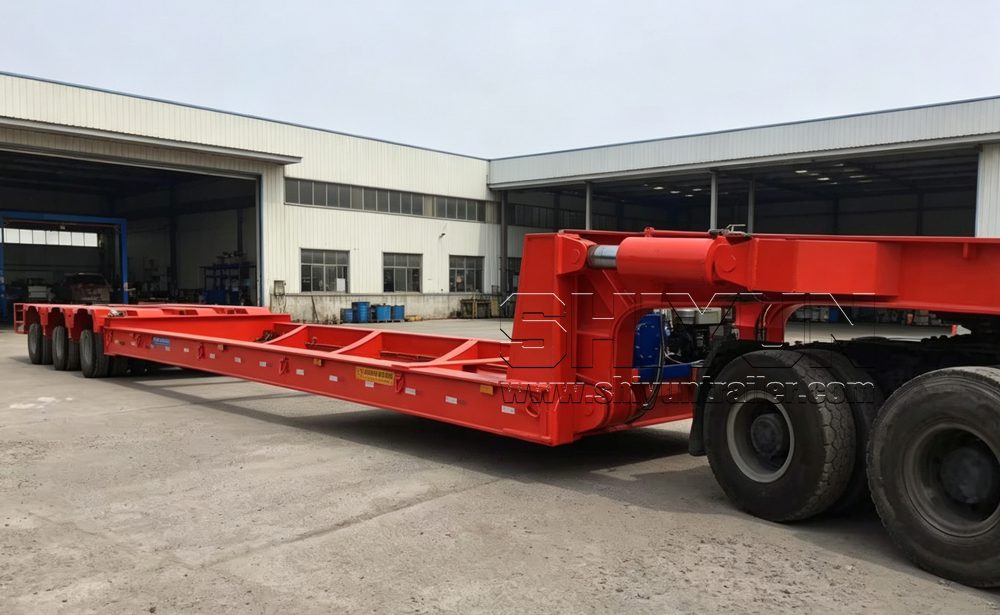

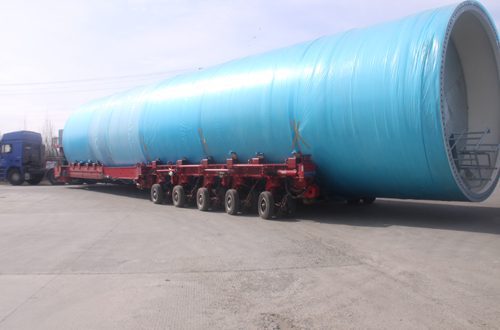

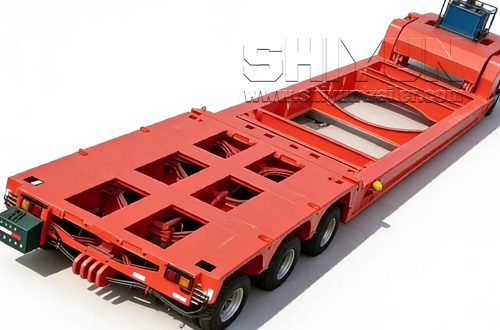

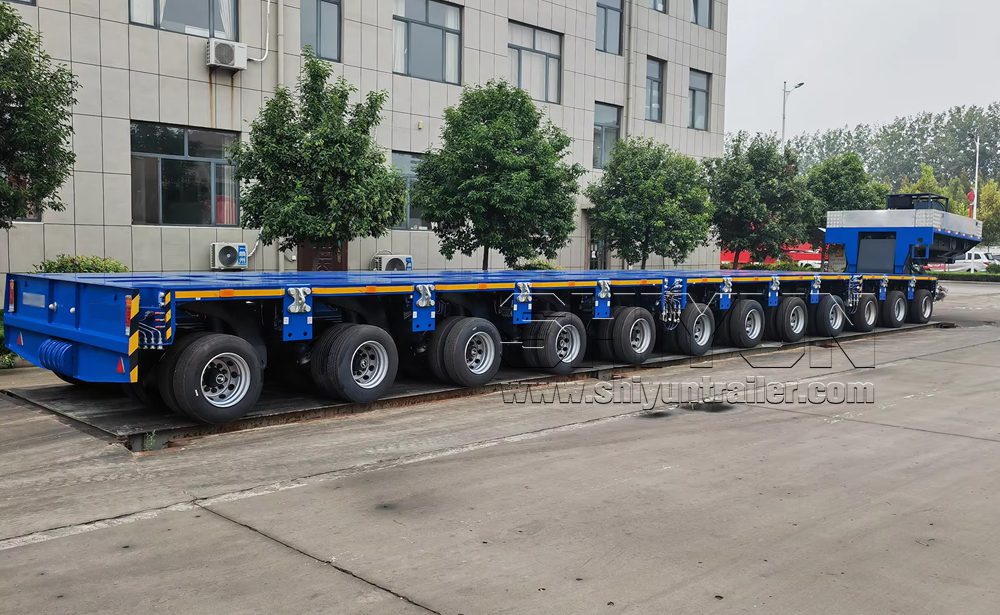

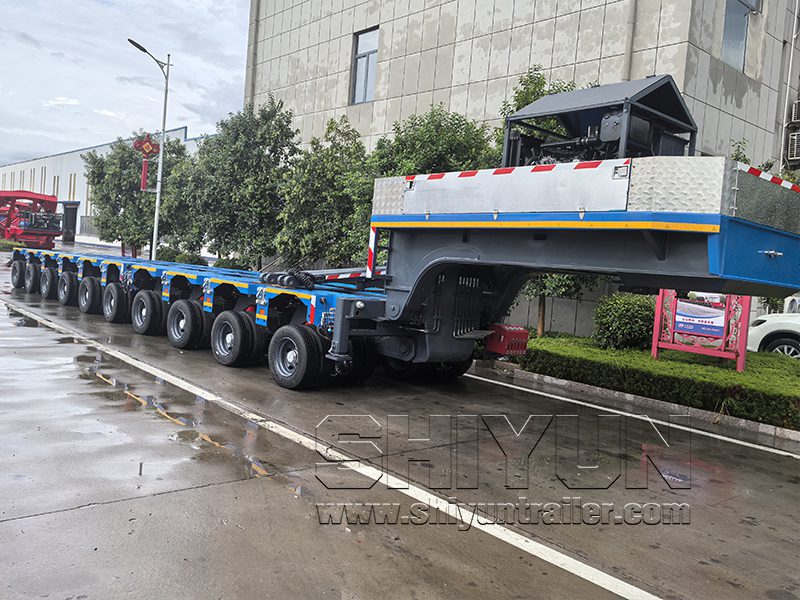

The hydraulic modular axle vehicle is highly suitable for large wind tower transportation. With excellent maneuverability, it is especially ideal for transporting large-sized, large-diameter and heavy-weight wind tower sections.

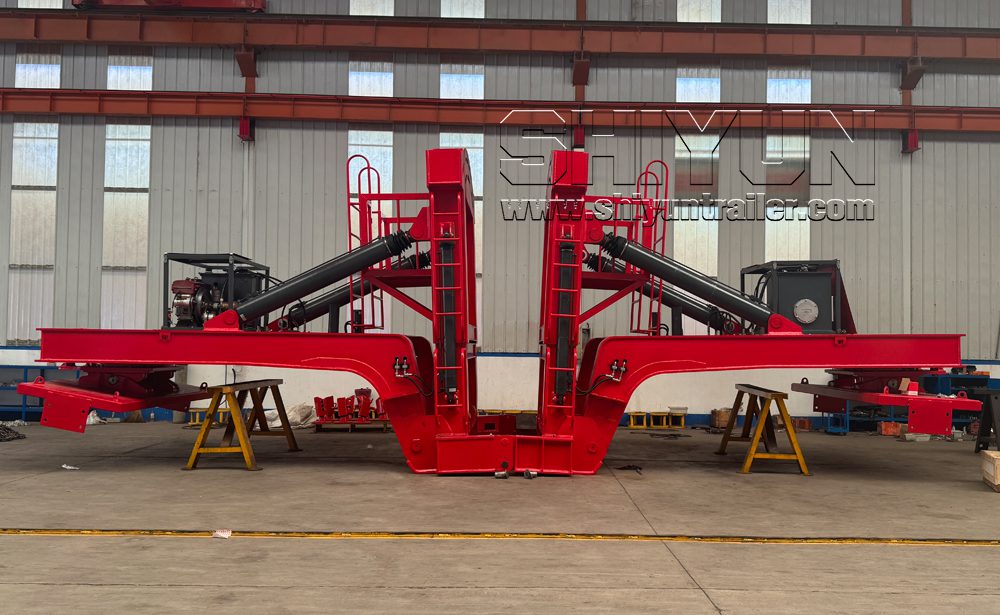

SHANDONG SHIYUN VEHICLE also produces heavy-duty vessel bridge, engineered for compatibility with Goldhofer hydraulic trailers. They can be seamlessly interfaced with other heavy-haul specialist trailers such as Scheuerle and Nicolas units. Designed to link the gooseneck and rear axles, these beams also provide robust top-surface load-bearing capacity.

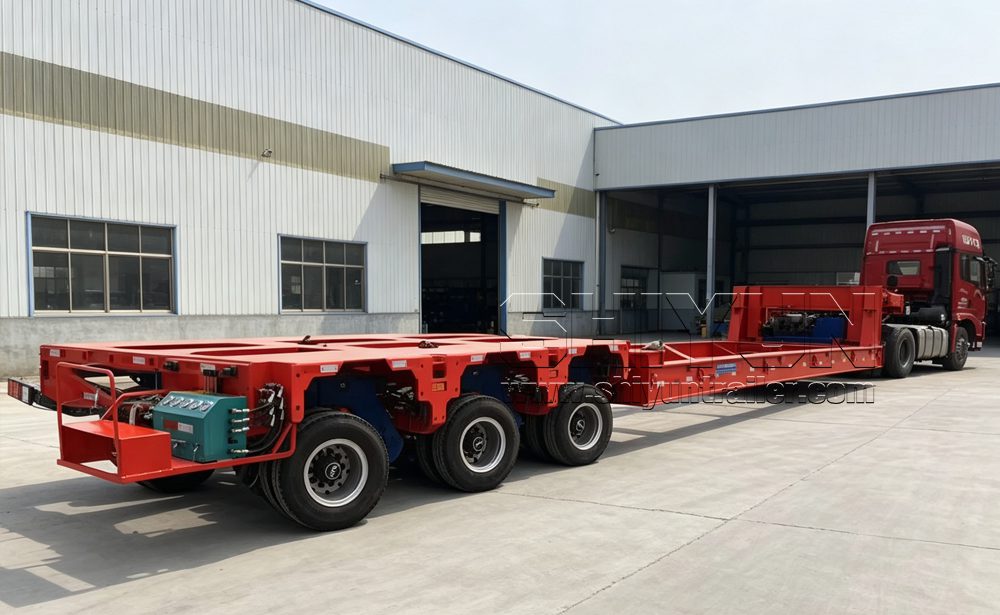

Adopting a hydraulic modular design, it features higher flexibility compared with conventional through axles. It can be equipped with hydraulic axle-line suspension, and the whole vehicle supports hydraulic lifting and steering.

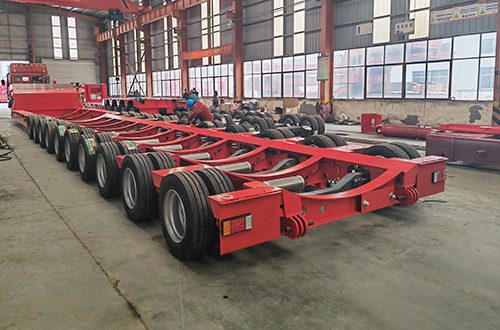

The multi-axle tires greatly enhance the vehicle’s load capacity.

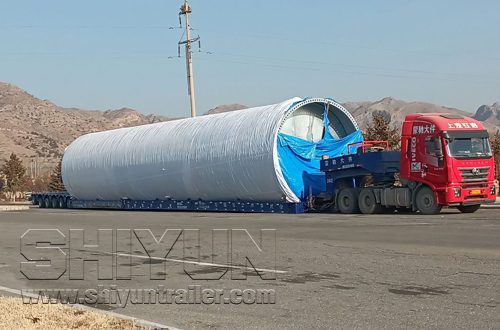

The vessel beam is detachable and connectable to different modular trailers to realize multi-functional transportation.After the modular trailer is separated from the extendable spacer unit, it can also be used independently for transporting other cargoes.In addition, if there is no height restriction under the local regulations of the destination country, the wind tower can be directly placed on the modular axle vehicle for transportation.

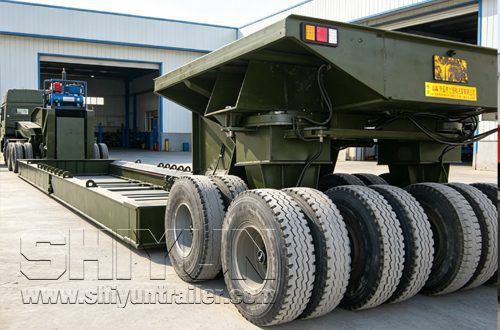

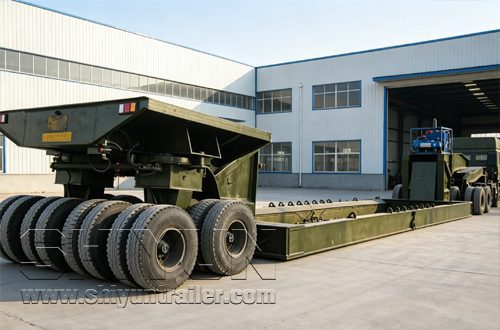

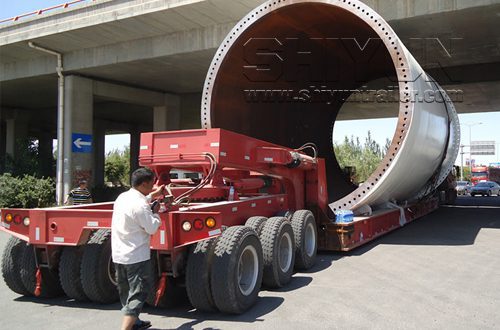

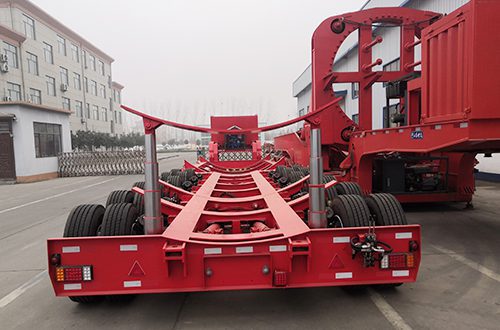

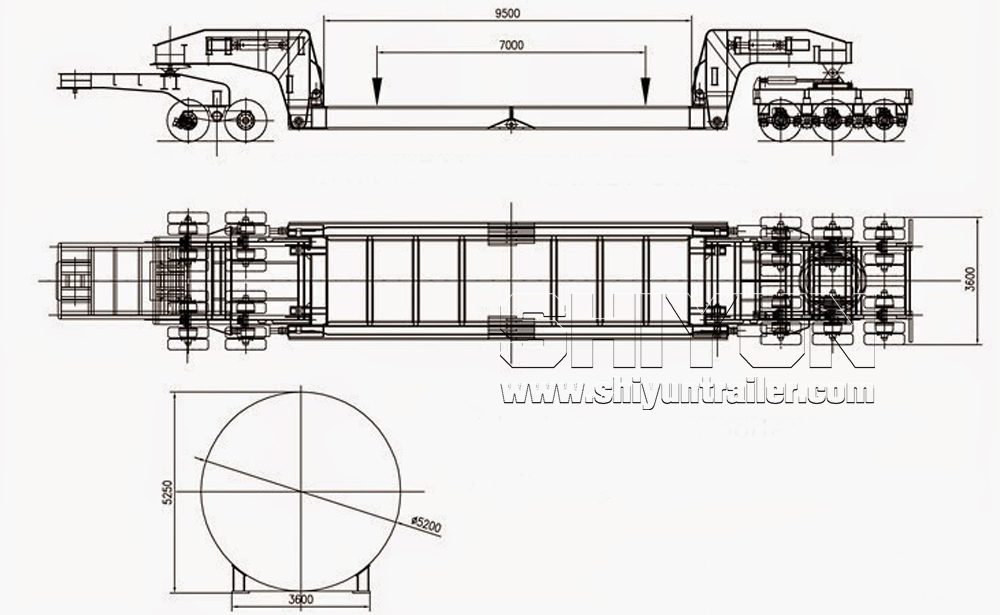

It can also adopt the front and rear load-bearing structure to carry the Vessel Bridge for transporting wind turbine towers and other Huge tanks.We called it Dolly heavy lift trailers.It is generally equipped with hydraulic modular axle or cantilever axis lines, all fitted with hydraulic slewing turntables for steering .Load distributing beams are arranged on both sides of the Vessel Bridge, which are equipped with hydraulic lifting cylinders to realize the lifting of the entire cargo.
Our clients have long been professionally engaged in cargo transportation for well-known domestic wind turbine blade brands, including Sinoma Blade, Times New Material, Titan Wind Energy, Aeolon Technology, Shuangyi Tech, Sinoma Lianzhong, AVIC Huiteng, Guangwei Composites, Goldwind, Mingyang Smart Energy, Sany Renewable Energy, Envision Energy and Dongfang Electric. With rich experience in oversized wind power equipment transportation, we provide efficient, safe and fully controllable logistics transportation services for major wind turbine blade manufacturers on a stable basis.
