Bulk Cement Tank Trailer

Power material tank trailer

The powder material transport semi-trailer is referred to as the powder tank trailer, and is also known as bulk cement discharging trailer or bulk cement tank trailer. It can also be called powder material transporting semi-trailer or powder material tank semitrailer.
This type of vehicle is mainly used for transporting powdery goods. It is suitable for the bulk transportation of dry powdery and granular materials with a particle diameter no more than 0.1 mm, such as bulk cement, fly ash, lime powder, ore powder and granular alkali.
It is primarily applied in cement plants, cement warehouses and large construction sites, which can greatly save packaging materials as well as loading and unloading labor.
For edible powder such as flour, we recommend dedicated food-grade tank trailers, which are generally made of aluminum alloy or stainless steel
Classified by tank structure and usage, powder tank semi-trailers are divided into the following 6 types:

Bulk cement tank trailer

Flour tank trailer

Vertical Powder Tank Trailer

Tipping bulk cement trailer

Bucket-type Powder Tank Trailer

Feed trailers

1. PARAMETERS

Item	Specifications	Remark
Tank body	5mm with end plate 6mm	Other thickness optional
Tank material	Carbon steel / stainless steel / alloy
Man holes	500mm
Axles	2/3/4 × 13 ton capacity	Brand optional
Discharge	Engine and air compressor optional
Suspension	Mechanical suspension with leaf springs	Air suspension / bogie optional
Tire	12R22.5, 315/80R22.5, 8/12/16 pcs	Other size optional
Rim	9.00-22.5, 8/12/16 pcs	Other size optional
King pin	2” / 3.5” bolt type
Landing gear	28 Ton two speed
Braking system	Double air chamber, brake valve, 40L air tanks	ABS optional
Electrical	LED light, 7 ways, 24V
Painting	Blasting and clean rust, 1 coat of prime painting, 2 coat of finish painting

Above date can be customized per your local regulation and requirement

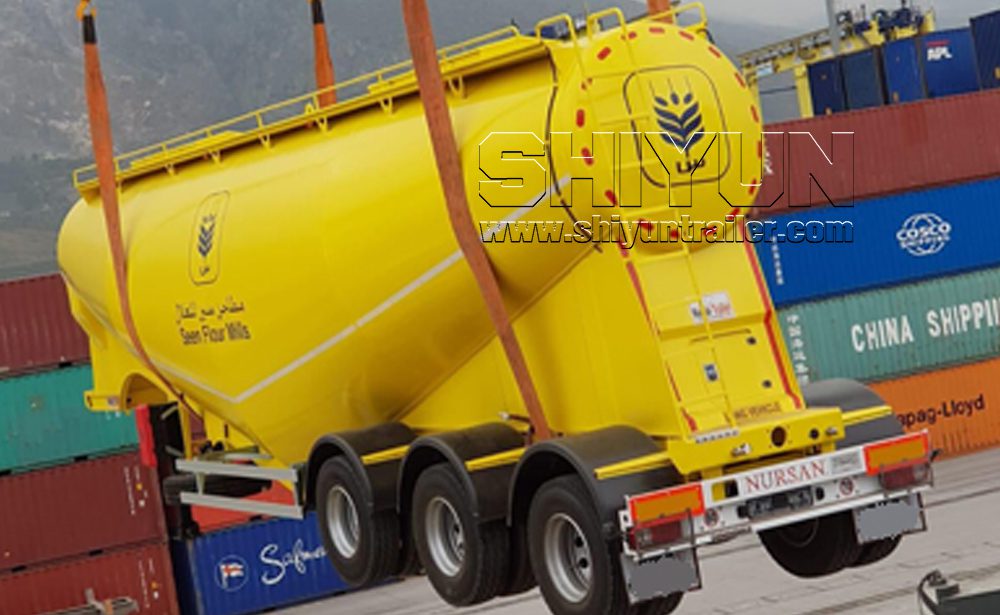

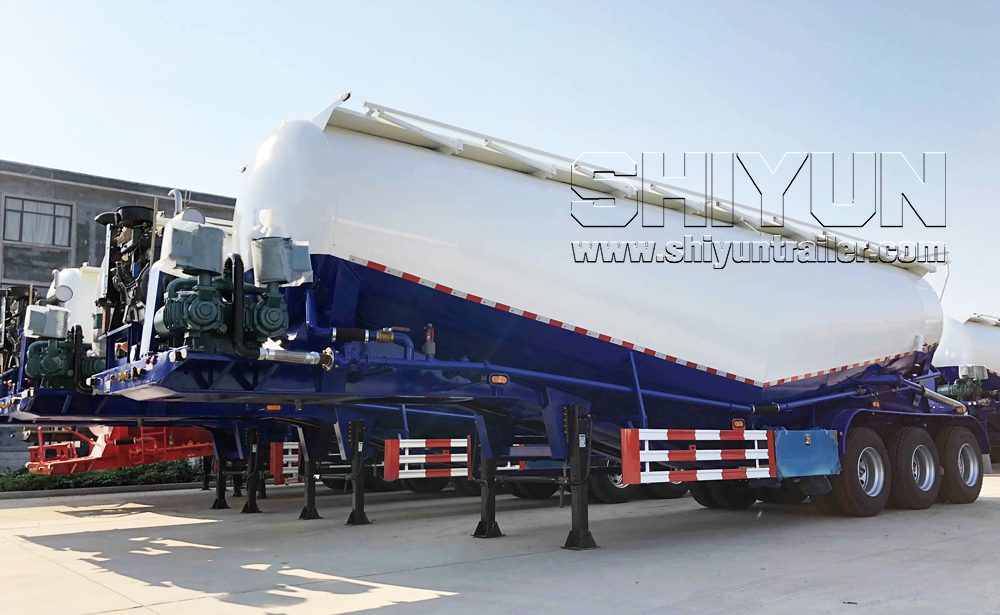

1. BULK CEMENT TANK TRAILERS

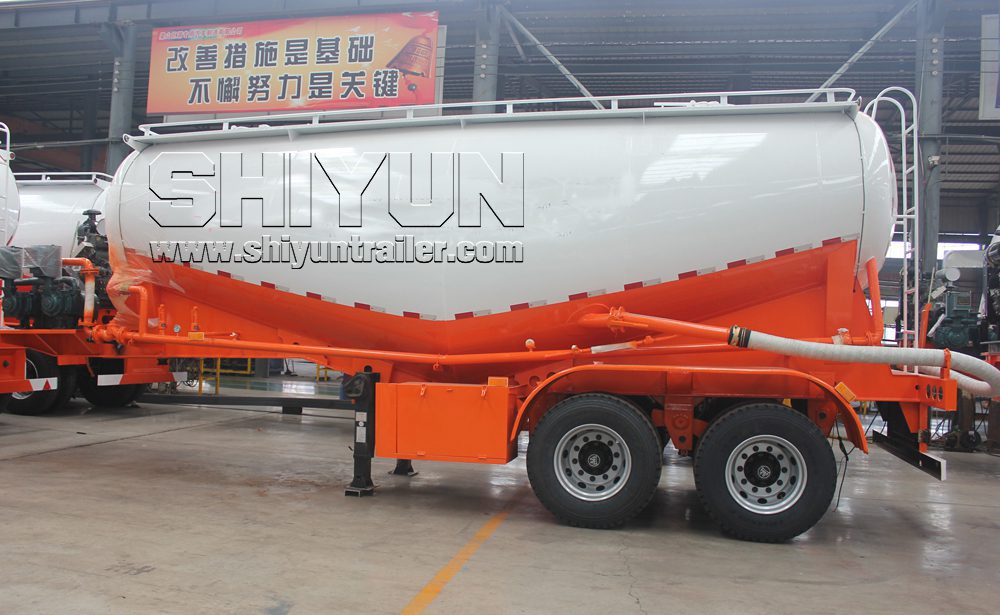

2 axles bulk cement tank trailer

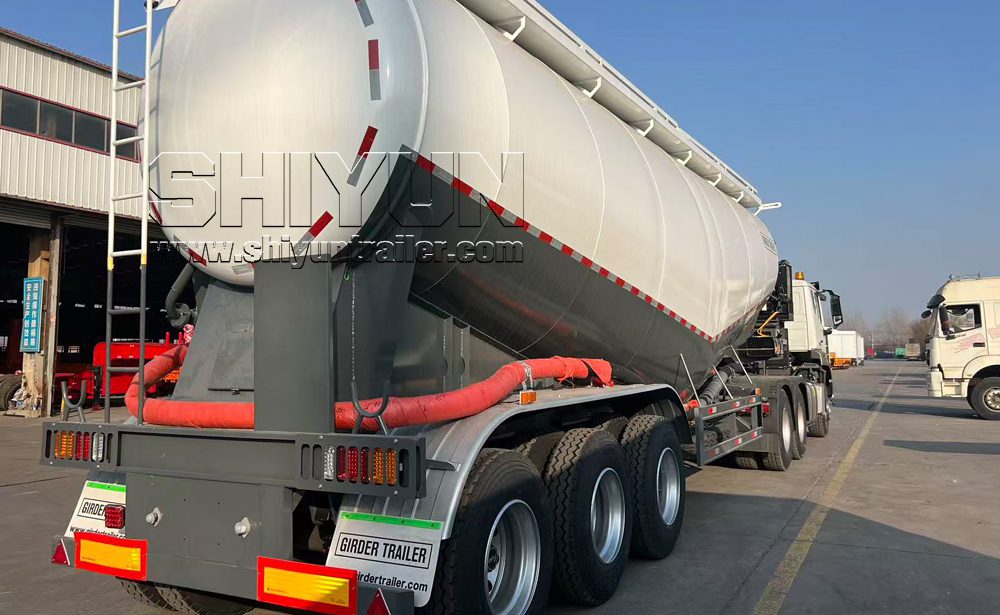

3 axles bulk cement tank trailer

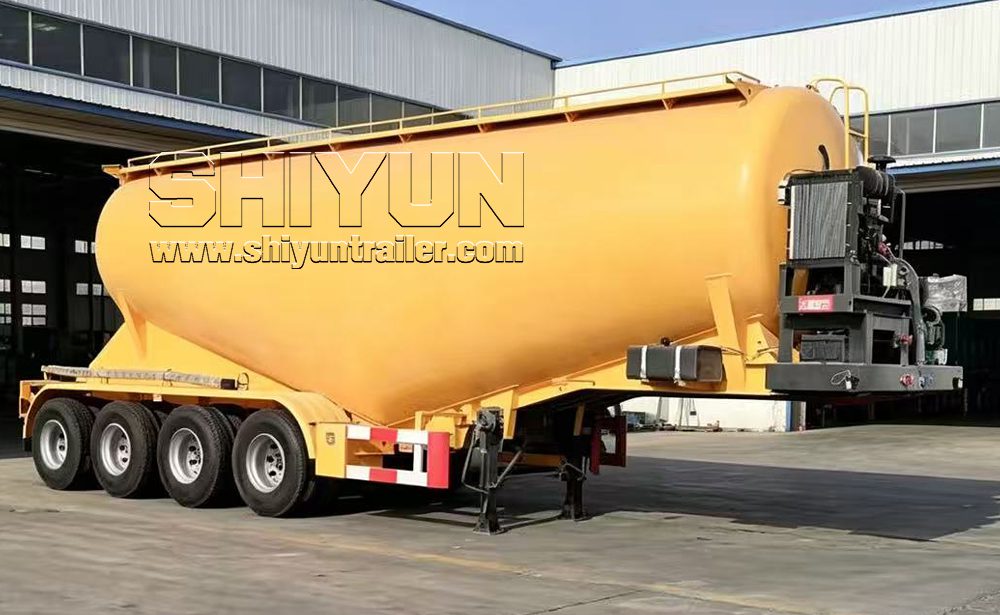

4 axles bulk cement tank trailer

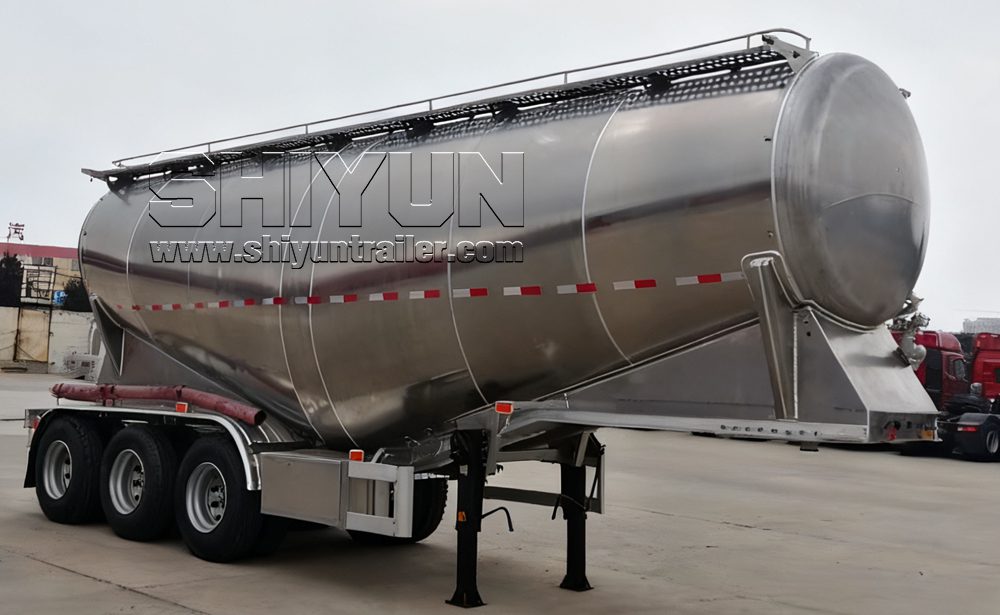

Aluminum bulk cement tank trailer

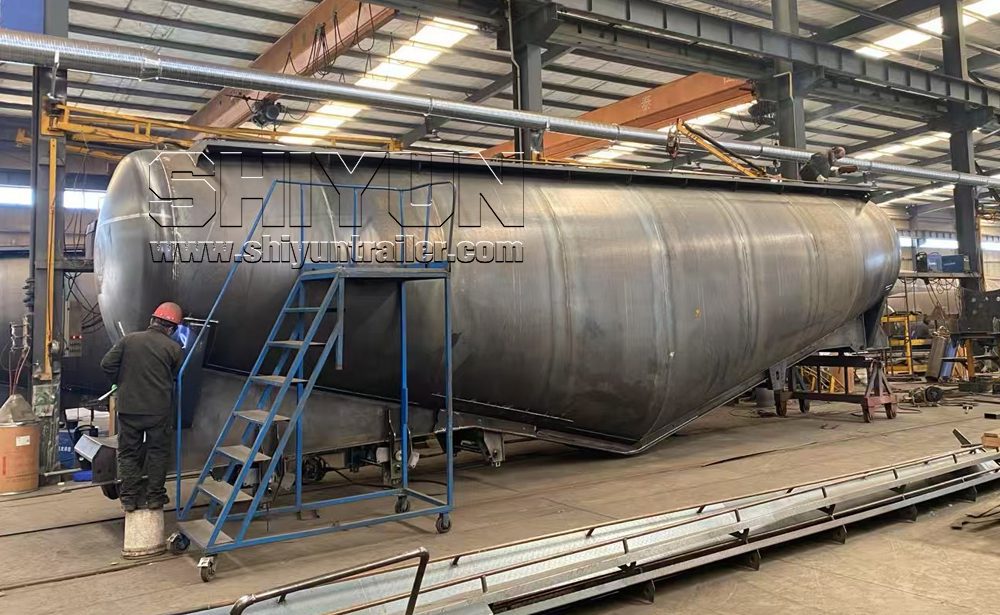

For current powder and granular material transportation, 80% choose bulk cement tank semi trailers.The center line of the tank is arranged horizontally. The tank can be a single compartment or divided into two compartments.This type features simple structure, easy operation, stable discharging for powder materials with good fluidization performance.

The vehicle’s own power drives the air compressor, delivering compressed air through pipelines to the air chamber at the lower part of the sealed tank. This fluidizes the powder and granular materials on the fluidized bed into a fluid state. When the pressure inside the tank reaches the rated value, the discharge valve is opened, and the fluidized materials are conveyed through pipeline flow.

FEATURES

Adopting a well-optimized structural design, it features a larger effective tank volume and higher loading capacity.
Equipped with a mature running gear structure, it effectively prevents abnormal tire wear and remarkably cuts down daily operating and maintenance costs.
Reasonably designed with a low center of gravity, it delivers excellent driving stability and overall travel safety.
Compact and simple overall structure, bringing convenient daily operation and easy routine maintenance.
Excellent fluidization and discharging performance ensures fast unloading speed and higher transport operation efficiency.
Optimized internal flow path design realizes ultra-low material residual rate inside the tank.
The bulk powder semi-trailer is equipped with various valves such as intake and discharge valves. Meanwhile, it can be fitted with an extended discharge pipe for longer-distance unloading.
Axles number can be 1,2,3,4 axles or superlink axles for transporting different weight power material.

MAIN STRUCTURES

- TANK MATERIALS

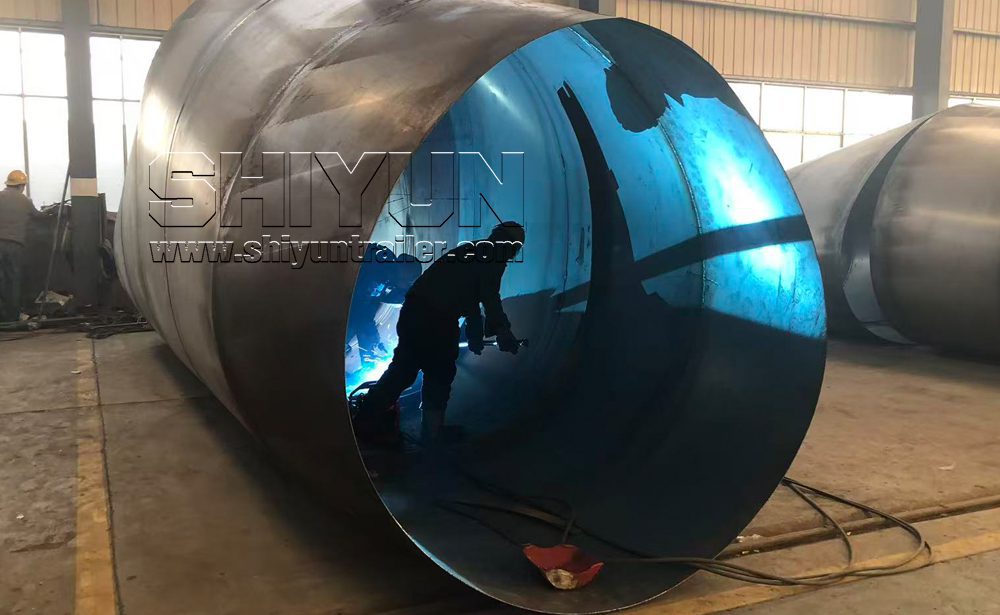

Materials available include high manganese carbon steel Q235, high-strength carbon stee 620JJ,T700, stainless steel and aluminum alloy. Different materials can be selected as per customer requirements.
- TANK SIZE
The volume ranges from 10 to 80 cubic meters. Common specifications are between 35 and 60 cubic meters, with 40 cubic meters as the standard size. Custom volumes are available upon request.Saves substantial packaging and handling costs compared to bagged transportation.

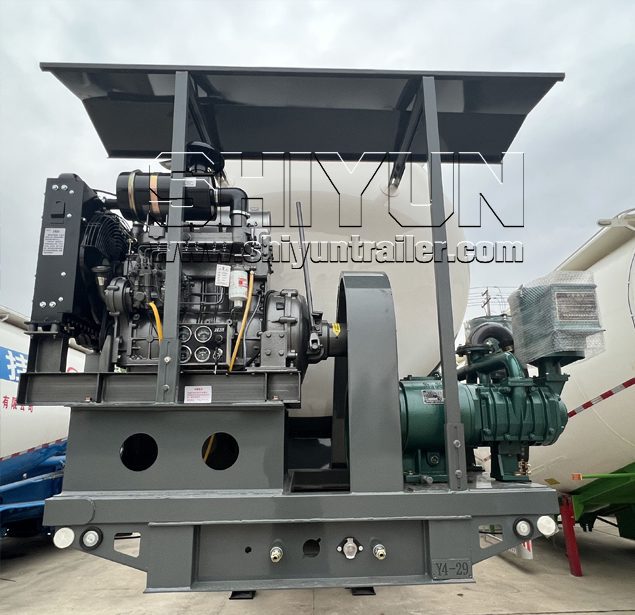

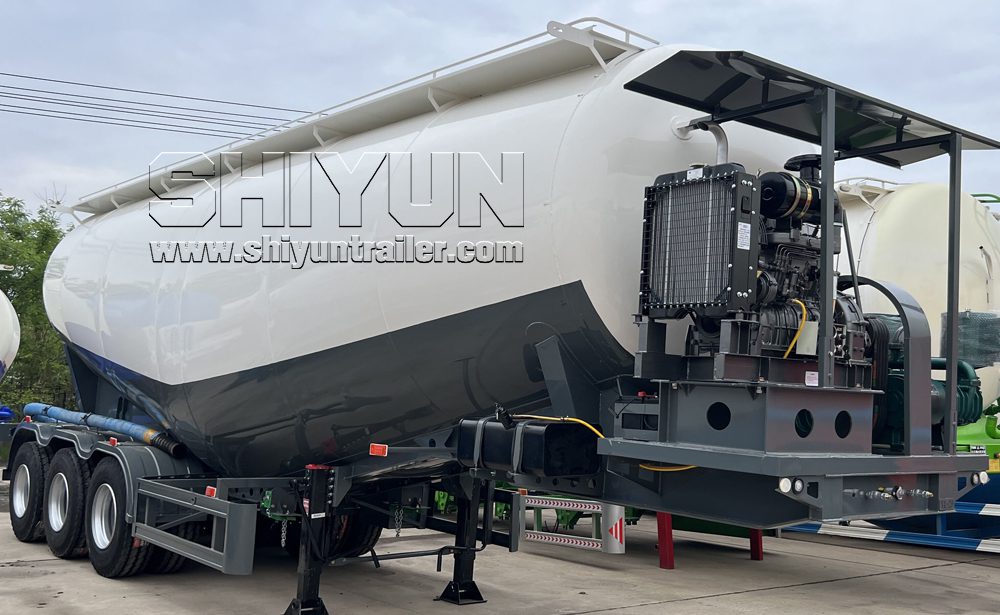

- Air supply system
The air supply system of powder tank truck can be driven by power take-off air compressor or diesel engine. Our company can provide relevant supporting equipment, mainly supplying diesel engine driven air compressors.The semi-trailer is equipped with a diesel engine or an electric motor to drive the air compressor via belts.The diesel engines are models 4102 and 4104 manufactured by Weichai.C-type belts are adopted, and the displacement of the air compressor is 12t/min or 14t/min.

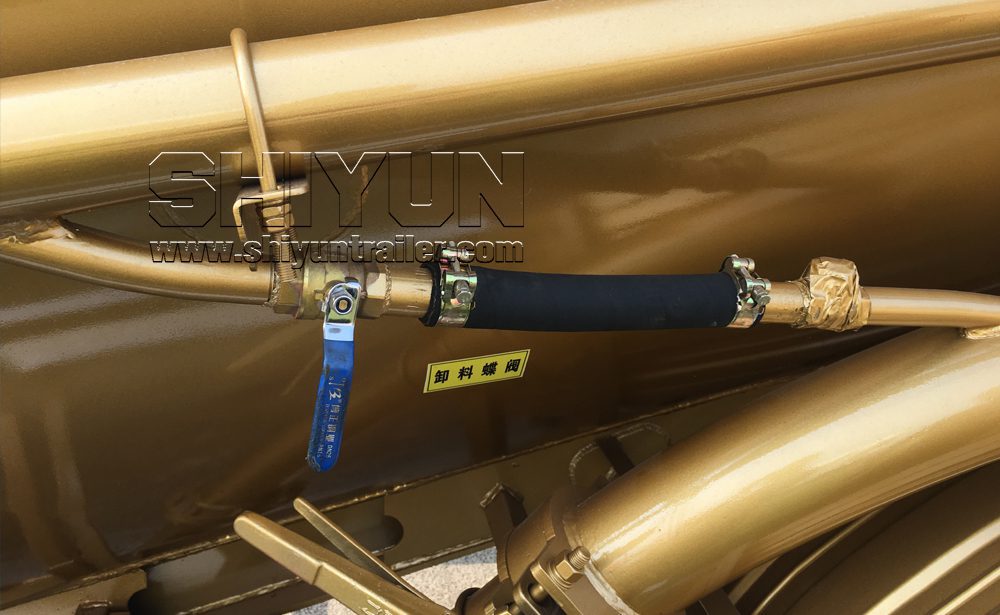

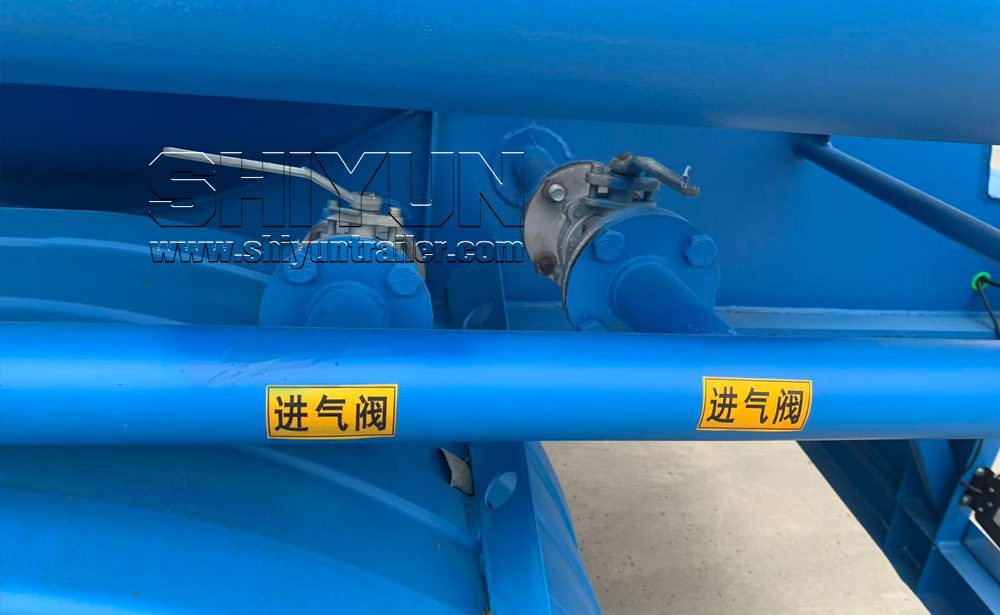

- Air intake pipeline

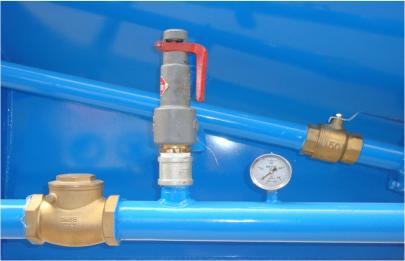

Air from the air compressor flows through check valves and ball valves into the tank silo. Swing type brass check valves are adopted, with safety valves installed in front to protect the compressor from excessive pipeline pressure, set at 0.22 MPa.The auxiliary blowing pipeline connects to the discharge pipeline to assist unloading. Check valves prevent powder backflow. An air release valve is mounted at the rear of the tank to release residual pressure before opening the cover or suspending unloading.

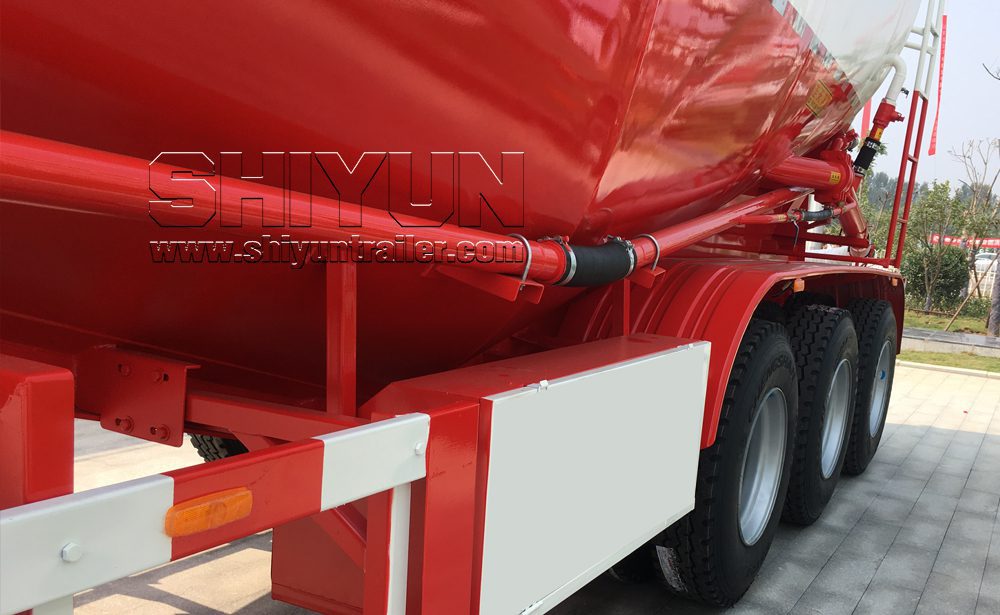

- Discharge Pipeline
The discharge pipeline consists of discharge butterfly valve, rubber hose and pipe joints.
The installation of discharge outlet is critical. Higher mounting position brings faster discharging speed yet more residual materials. Tilted or offset outlet will also increase residue.
The standard discharge hose length ranges from 6m to 12m.

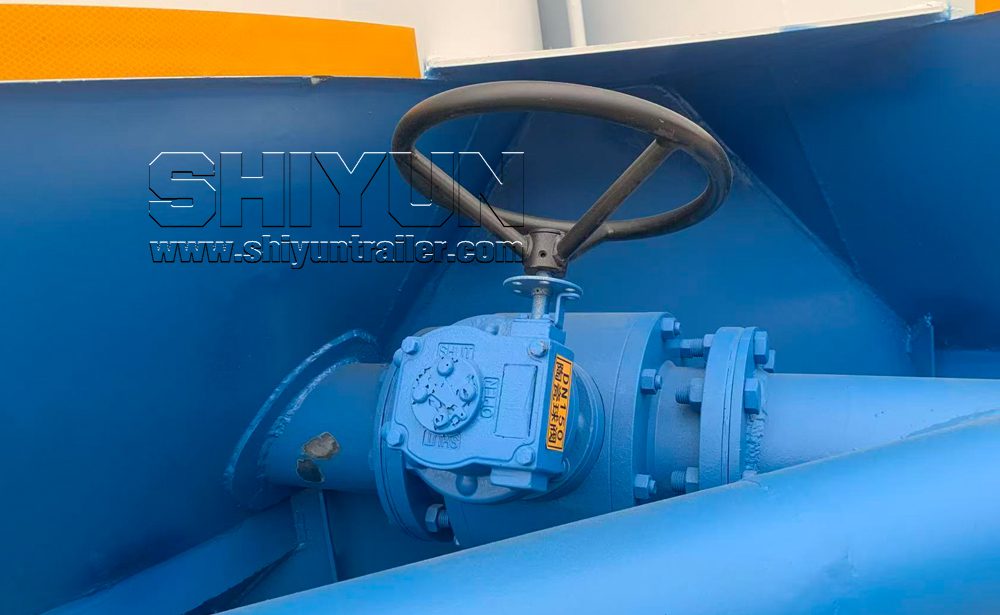

Butterfly valve controls opening and closing with rubber ring sealing. Worn sealing rings are replaceable separately instead of the whole valve, which reduces costs.

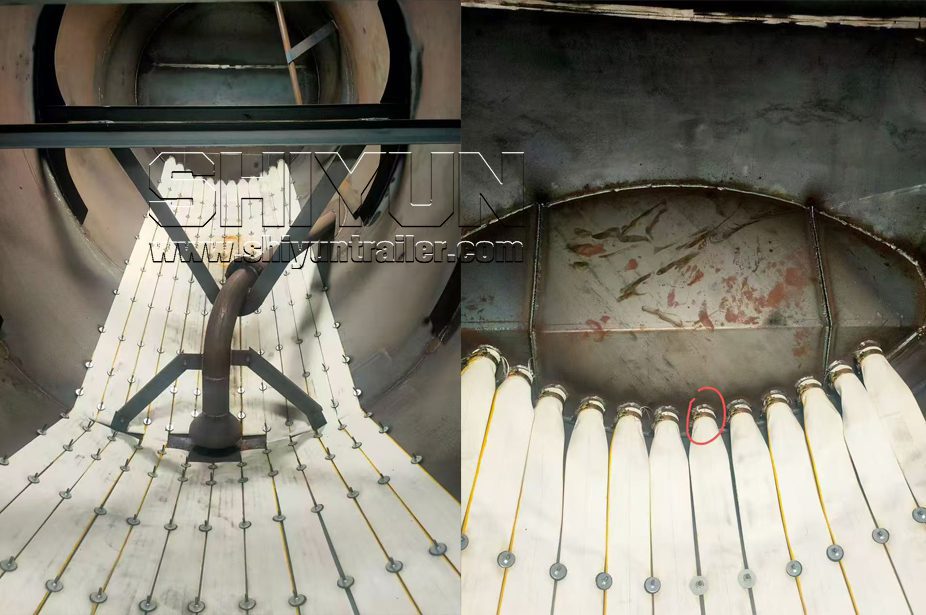

Fluidization System

The fluidization system consists of air permeable bags, side slide plates, support plates, pressure plates and bolts. The air permeable bags and side slide plates are installed at a certain angle to the horizontal plane.

Seamless steel pipes of 25mm are used to connect the side slide plates with the air chamber sealing plates, keeping the pressure inside the tank balanced with the pressure at the bottom of the slide plates. This avoids abnormal noise of the tank during loading and unloading.

Air Chamber Baffle

The front, rear and middle air chamber baffles inside the tank are all formed by one-time bending, replacing the traditional welded structure. It improves overall structural strength and avoids welding defects

Internal Tank Discharge Outlet

The internal tank discharge outlet adopts an adjustable structure. By adjusting the vertical distance between the discharge outlet and the tank bottom, the optimal clearance is set, which effectively ensures excellent discharging speed and low material residual rate

Instruments

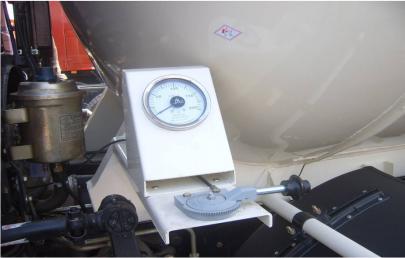

Each cement tank trailer is equipped with a magnetoelectric tachometer to monitor the rotational speed of the air compressor. Adjusting the throttle controller can change the engine throttle opening, thereby regulating the rotating speed of the air compressor.

A shock-resistant pressure gauge is installed on the pipeline to monitor the air pressure change inside the tank and guide the discharging operation.

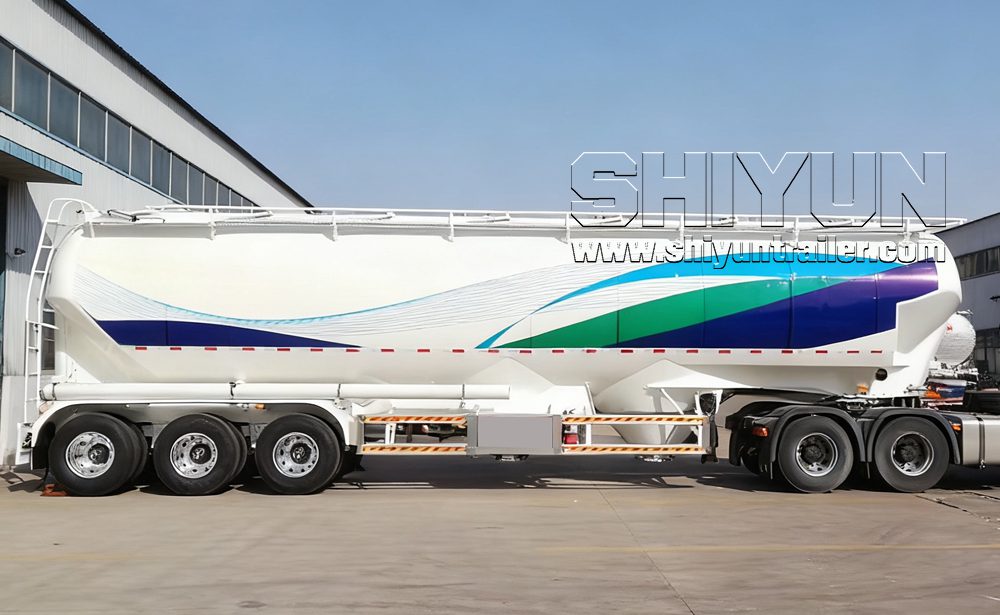

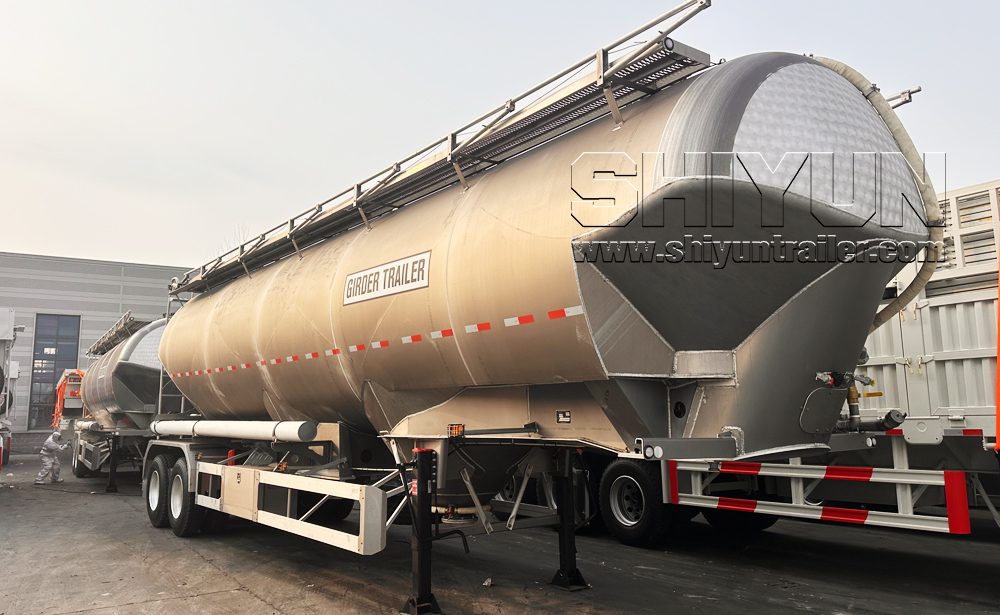

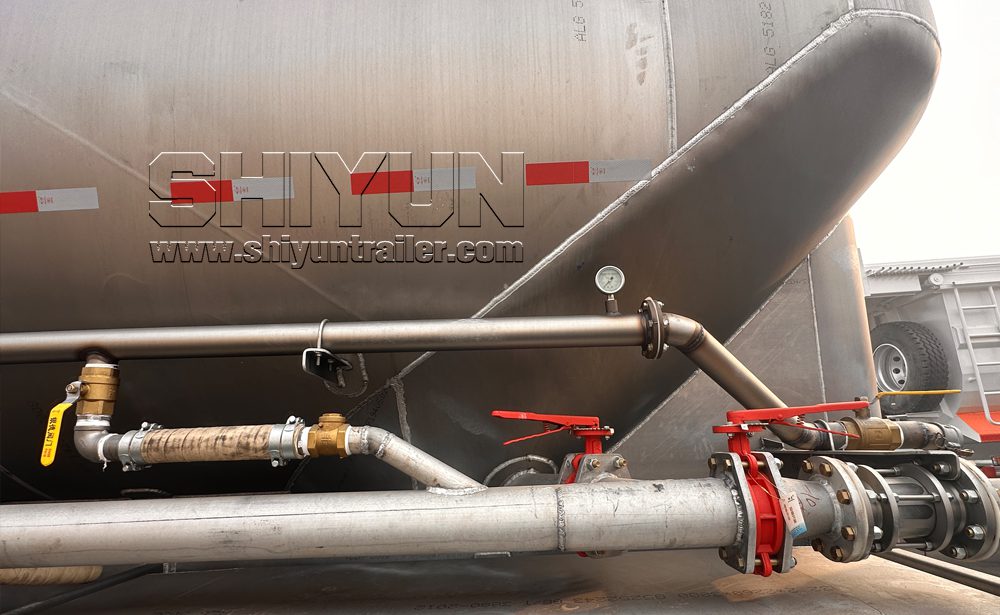

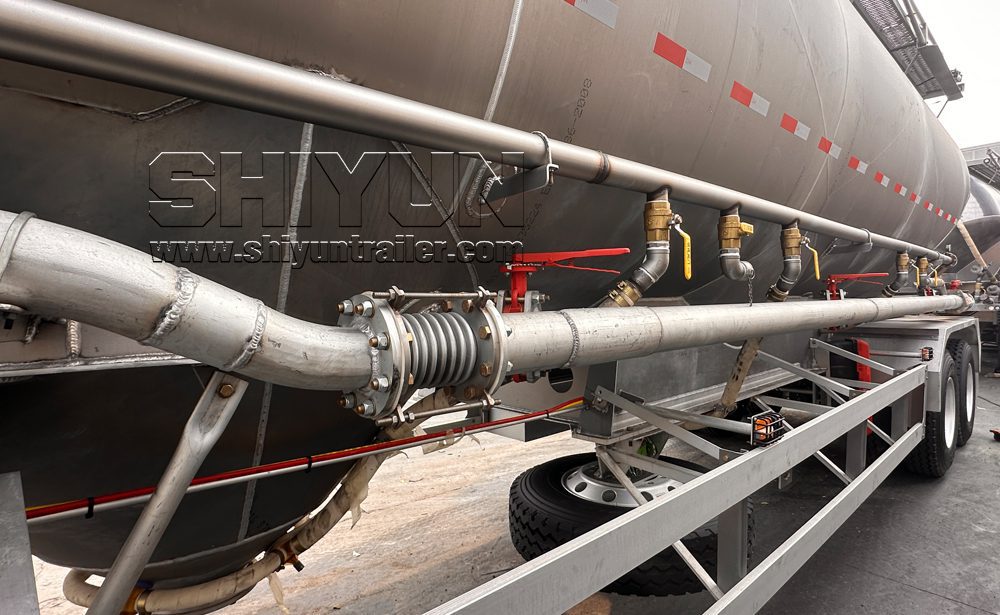

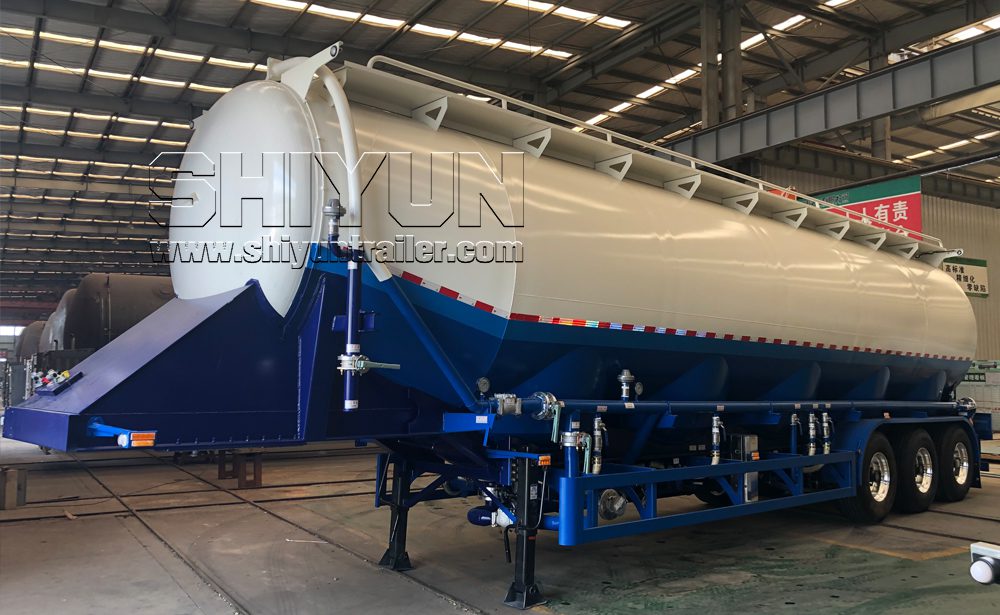

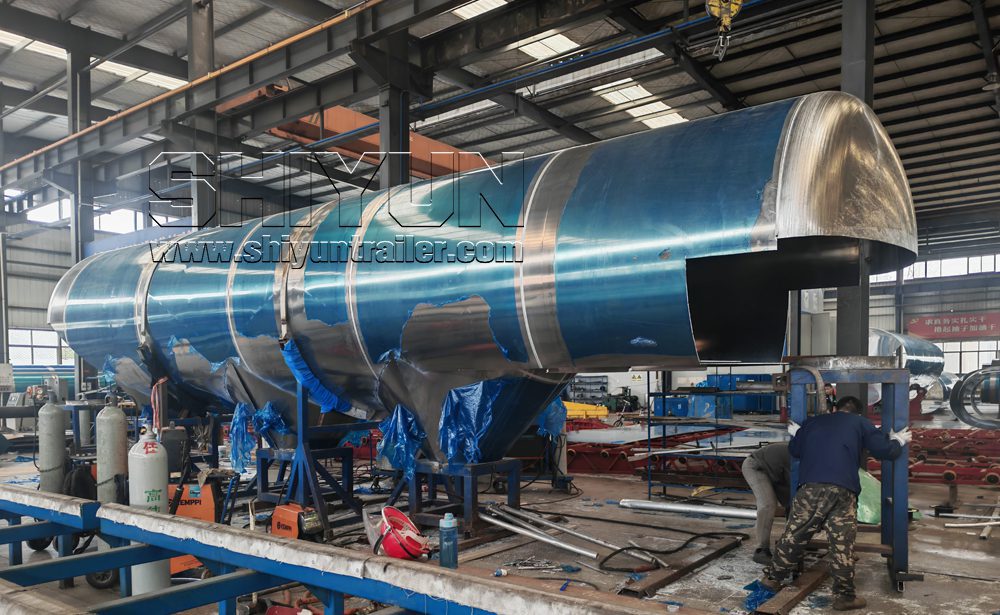

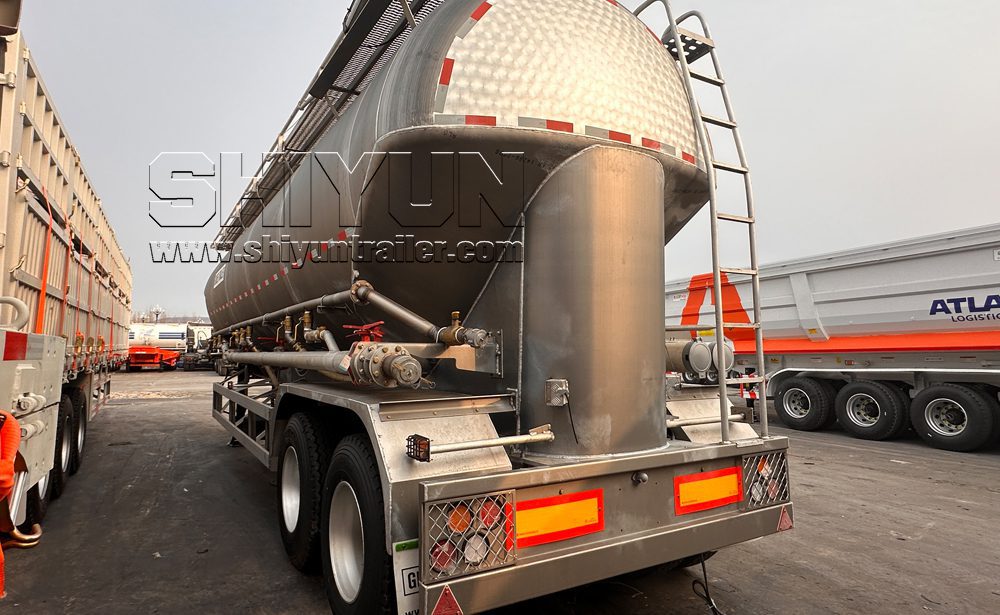

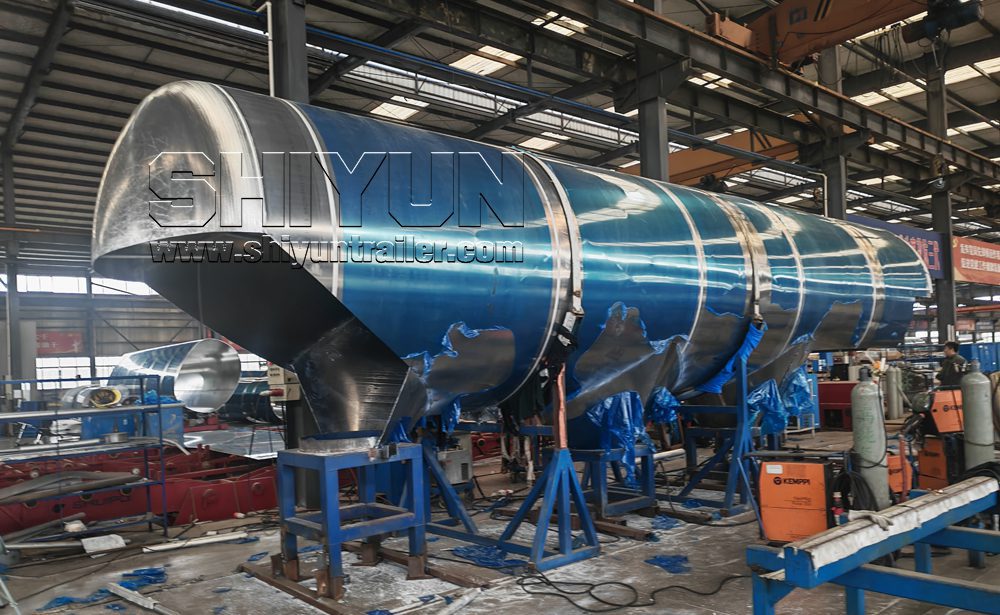

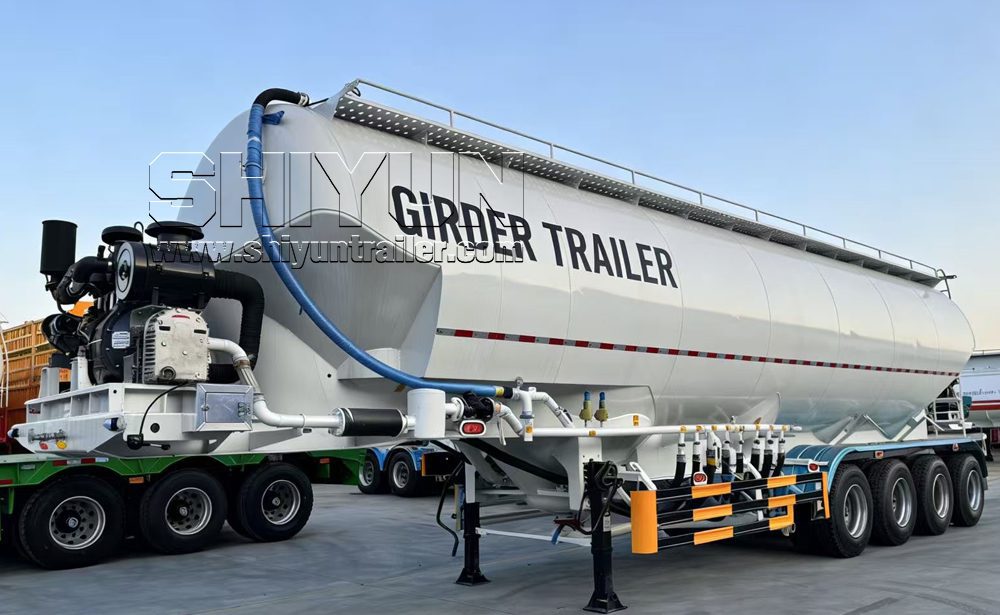

2. FLOUR TANK TRAILER

Flour tank semi-trailer is a special vehicle dedicated to transporting bulk edible flour and other food-grade granular materials. Its design and structure fully take hygiene safety, transportation efficiency and material characteristics into consideration.Application scenarios: Distribution from flour mills to bakeries, transfer between storage silos and bulk flour logistics transportation

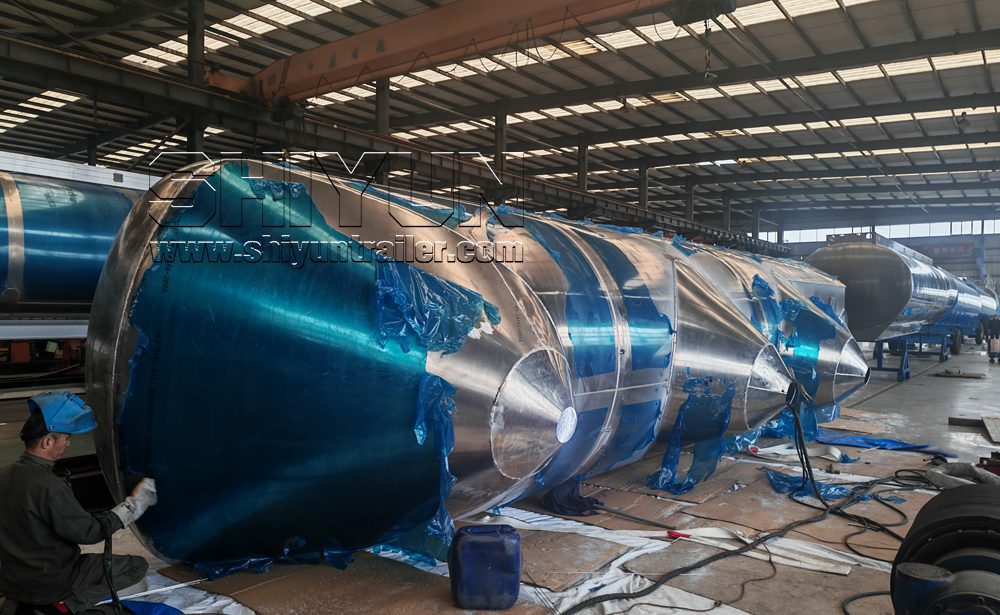

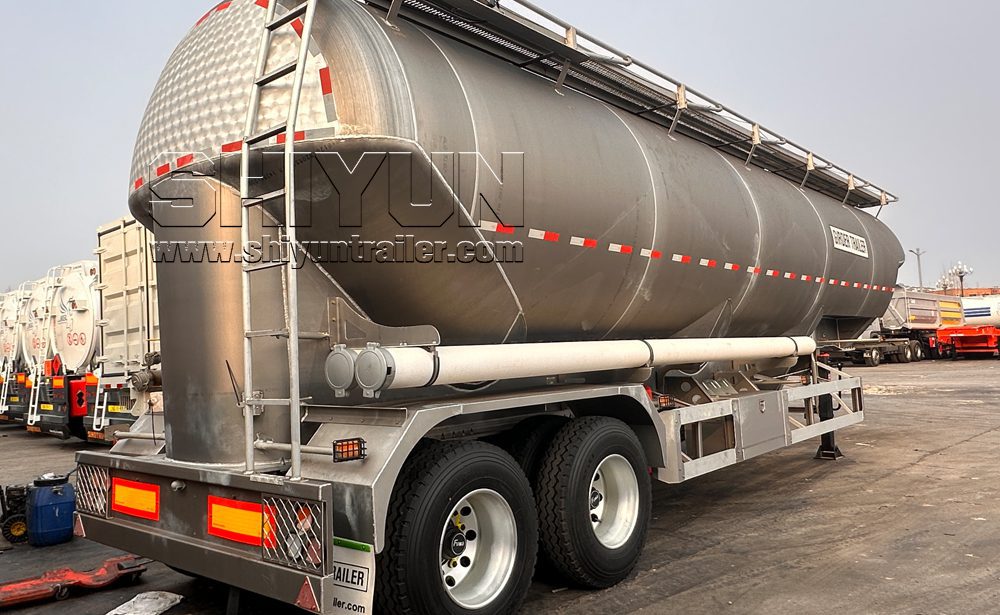

Food-grade transport vehicles are mostly made of 304 stainless steel or food-grade aluminum alloy with polished inner walls to avoid contamination and material residue. Ordinary carbon steel is also available for cost reduction.
The tank adopts conical structure with 3,4,5 or 6 cones for thorough discharge of residual materials. Fluidized bed is installed at the bottom to fluidize materials, realizing high-efficiency unloading with minimal residue.
Sealing & Safety Configuration.Equipped with manhole, walkway and pressure safety valve. The standard top filling opening is 500mm, enabling convenient loading and unloading with dustproof and moistureproof performance.
Materials are fluidized by air compressor with unloading speed up to 1~1.6 tons per minute. Screw type or food-grade swing air compressors are generally equipped.High-quality air compressors prevent flour from being contaminated by diesel odor.
Fast discharging speed with low residue rate.Under optimal working conditions with dry flour, clean filter elements and short pipelines, the full-load unloading time is usually 30-60 minutes.
An observation window is installed at the end of discharge pipe to monitor unloading condition and check for blockage.
Wide range of application. It is suitable for flour, milk powder, soybean powder, cocoa powder and other dry non-corrosive food powders.

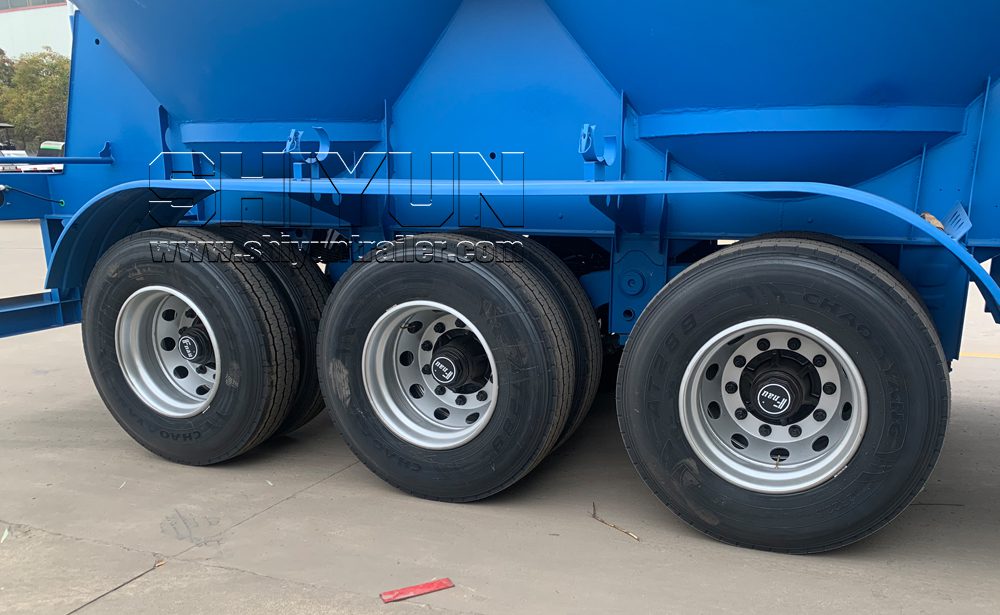

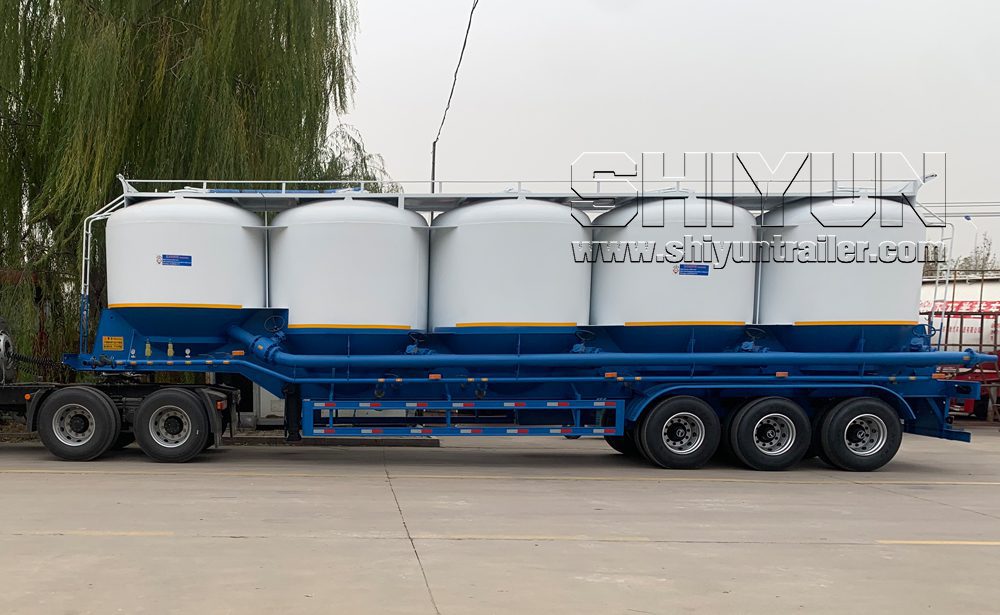

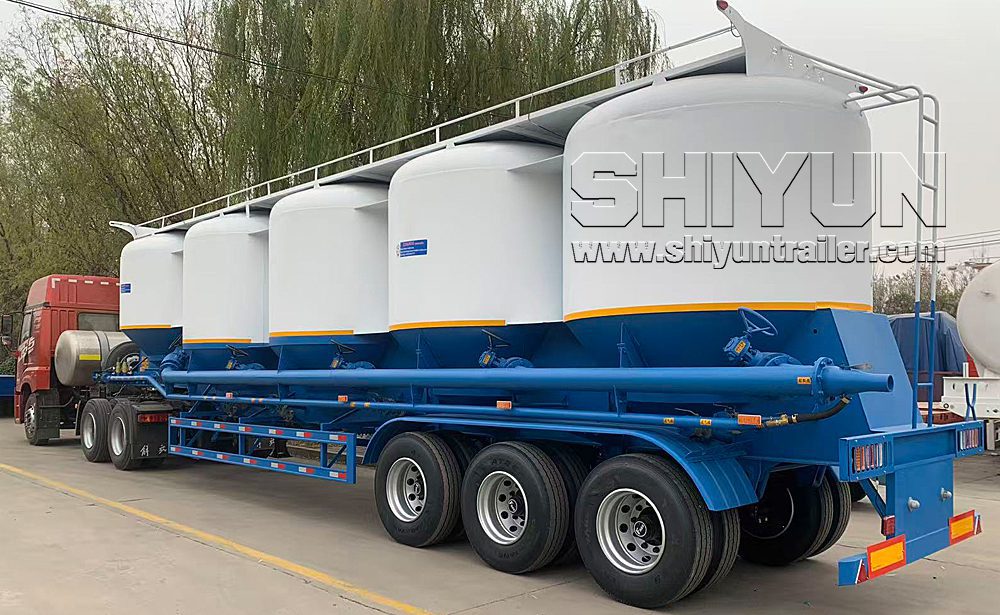

3.Vertical Powder Tank Trailer:

The vehicle can be equipped with one or multiple vertical tanks. Vertical powder tank trailers feature a wide range of applications and are suitable for the bulk transportation of various powdery and granular materials.

Flexible compartment design with independent cabins, capable of transporting different powder and granular materials in one vehicle, such as flour & starch, cement & lime.
Adopts vertical multi-cone structure. The tank consists of upper cylinder and lower four cones with cone angle above 45°, exceeding material angle of repose, ensuring no discharge dead corners and less material adhesion.
Extremely low residue rate. Small fluidized beds are equipped at cone bottoms. Combined with gravity and pneumatic conveying, residue is nearly zero, less than 10kg per cone.
It has a higher center of gravity than box-type powder tank trailers with slightly poorer driving stability.
Each compartment requires separate pressure discharging, leading to longer unloading time than standard powder tank trailers.
when fitted with multiple tanks, the structure becomes complicated, and the manufacturing cost is also higher.

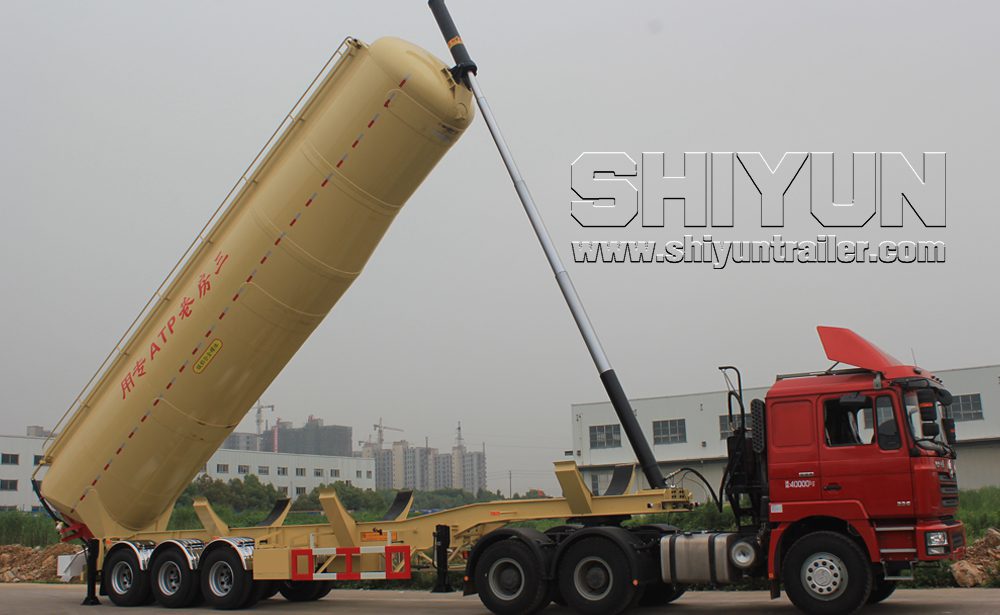

4.Tipping bulk cement trailer:

Lift-type Powder Tank Trailer — When loading and traveling, the center line of the tank remains horizontal. During discharging, the lifting mechanism raises the front end of the tank to an inclined state. Under the effect of gravity, powder materials slide down automatically and gather at the discharge outlet for unloading.
This type of tank trailer features a simple structure, high volume efficiency and a wide scope of application. It is often used to transport powder materials with poor fluidization performance. However, the additional lifting mechanism leads to more complicated operation and maintenance.

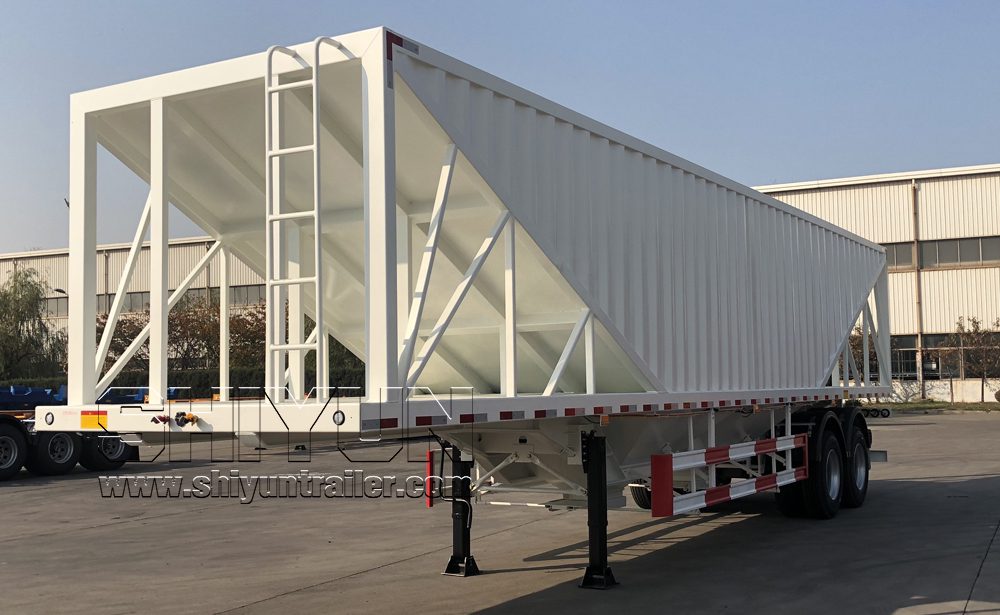

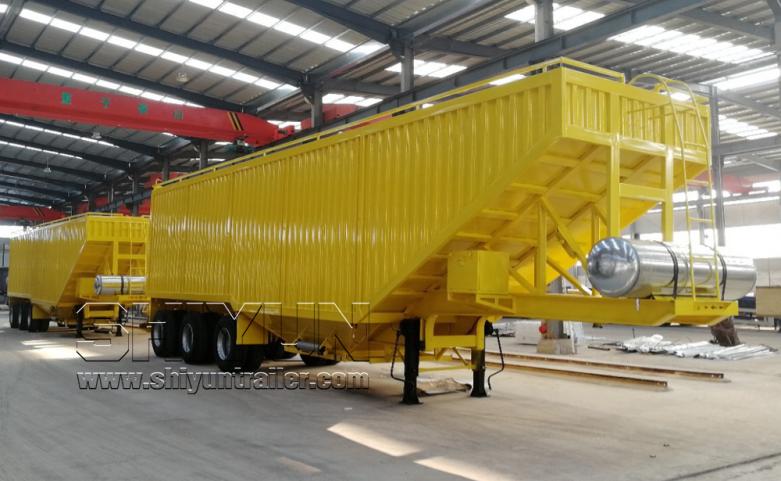

5.Hopper type Powder Tank Trailer

Bucket-type Powder Tank TrailerThe tank of the bucket-type powder tank trailer is composed of a horizontal straight cylinder or rectangular cylinder combined with a conical cylinder perpendicular to the center line.
Generally, there is no fluidized bed inside the tank, or the fluidized bed area is relatively small. It relies entirely on the gravity of powder materials for self-unloading.
This model features a wide application range, low material residue, and easy tank internal cleaning. Its disadvantages are complex structure and low volume efficiency.

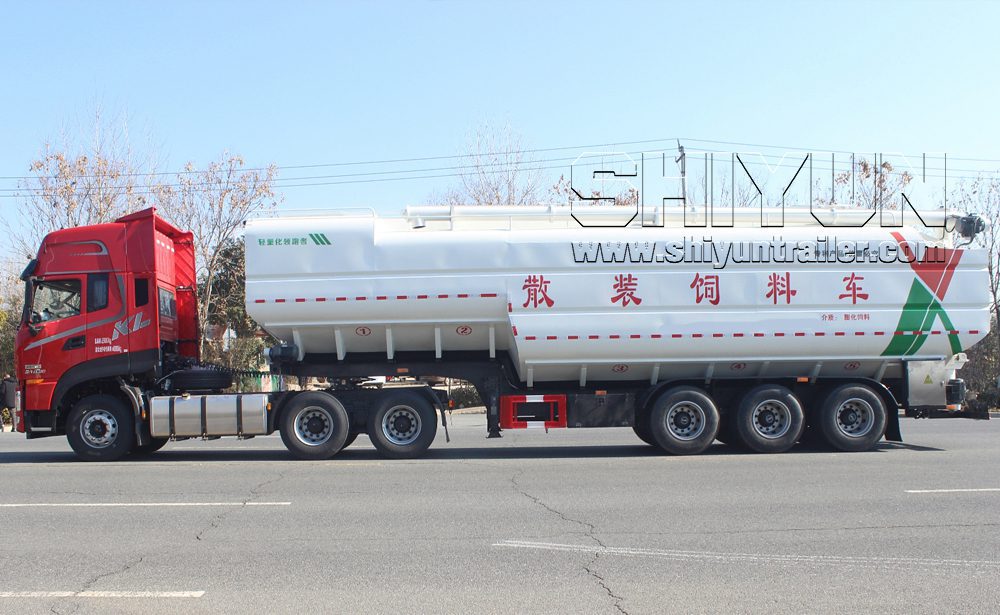

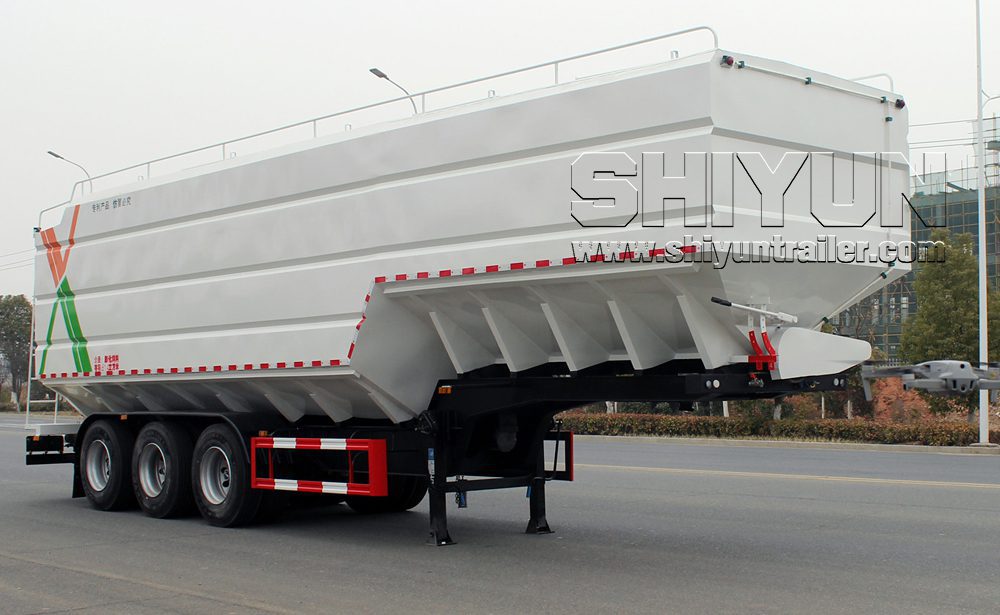

6.Feed trailers

Effective tank volume: 56.8-60 cubic meters
Compartment quantity: 5 (optional)
Rated conveying height: 8m
Rated conveying distance: 9m (optional)
Discharging speed: 600-800Kg/min
Total unloading time: 25-40min
Rotary angle of movable discharging auger: ±180°
Residue rate: ≤0.02%
The tank is driven by external 380V power supply, equipped with 4 sets of 5.5kW imported Siemens three-phase asynchronous motors. External power feeding features low vibration, low noise, waterproof and dustproof performance.
Electrical configuration: 4 imported Siemens motors and Chint electric control system, with interlock protection functions of phase loss, under voltage and reverse rotation prevention.
Auger structure adopts patented intermediate support bearing, maintenance-free. Lifting auger steering is optional with wireless remote control.
Painting process: Full-automatic shot blasting and powder coating baking, meeting European double 1000 standard, 1000-hour salt spray resistance and 1000-hour aging resistance, featuring strong adhesion, excellent corrosion resistance and high gloss finish.
Compartment door: Pneumatic combined door or automatic door for option.
Tank body adopts lightweight high-strength steel from Anyang Iron & Steel. Side panel integral forming ensures high strength and elegant appearance. Inclined top design improves filling efficiency and safety factor. Strict welding technology guarantees reliable quality.

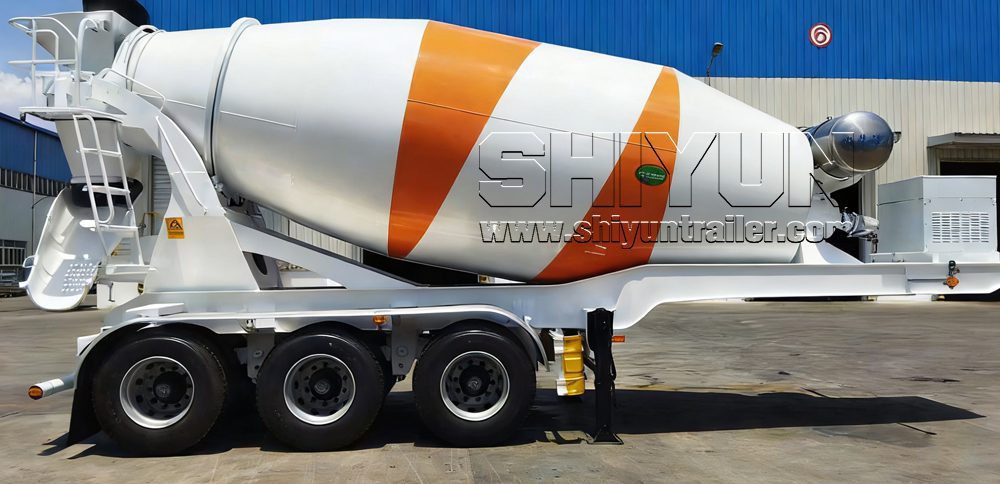

7.Concrete mixer trailers

Split structure, high vehicle utilization
Large tank capacity, high transportation efficiency，normally 5-15cbm
Continuous mixing to keep concrete uniform
Lightweight design, strong load capacity and stable driving
Reliable braking system with high safety
Compliant for road use, cost-effective for long-distance transport

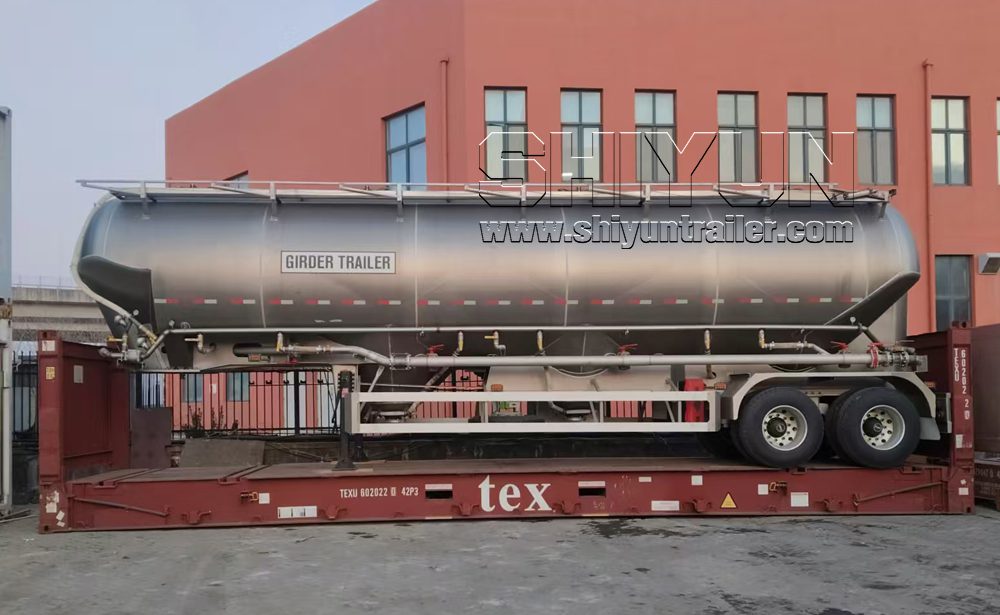

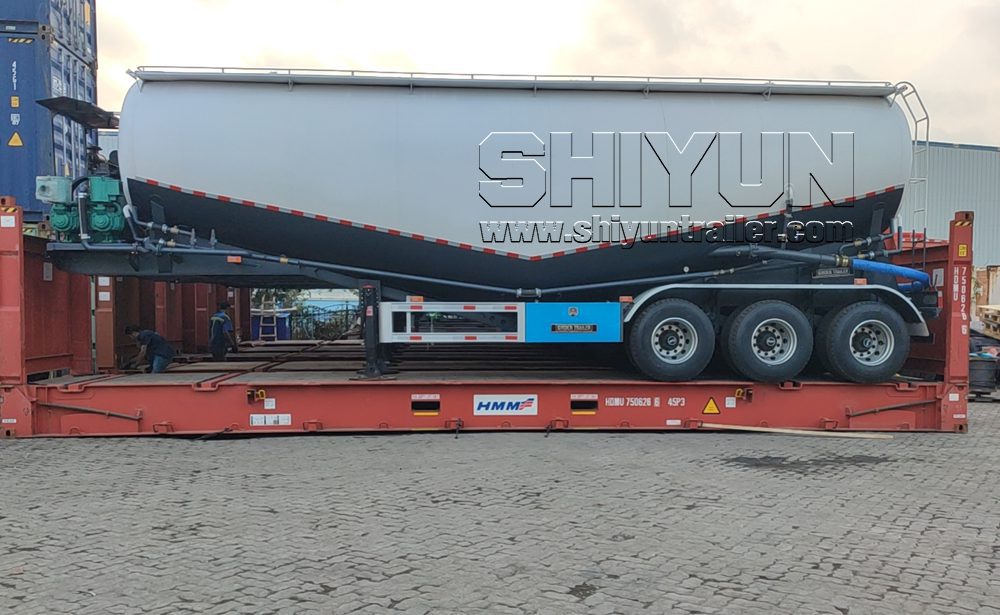

SHIPMENT

The shipping modes of tank trailers mainly by 40ft flat rack container, loosecargo bulk ship and ro-ro ship transportation.
