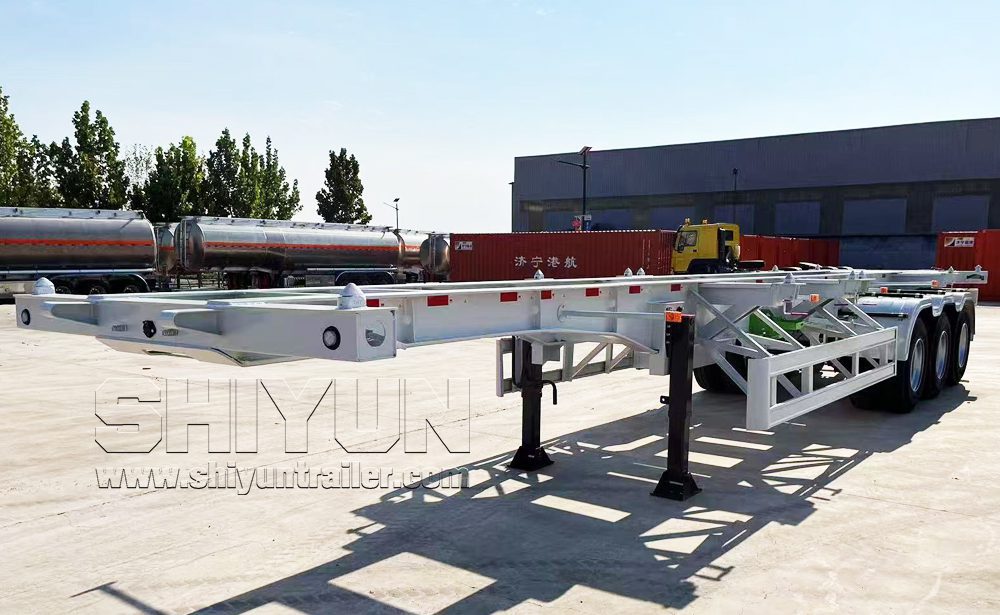

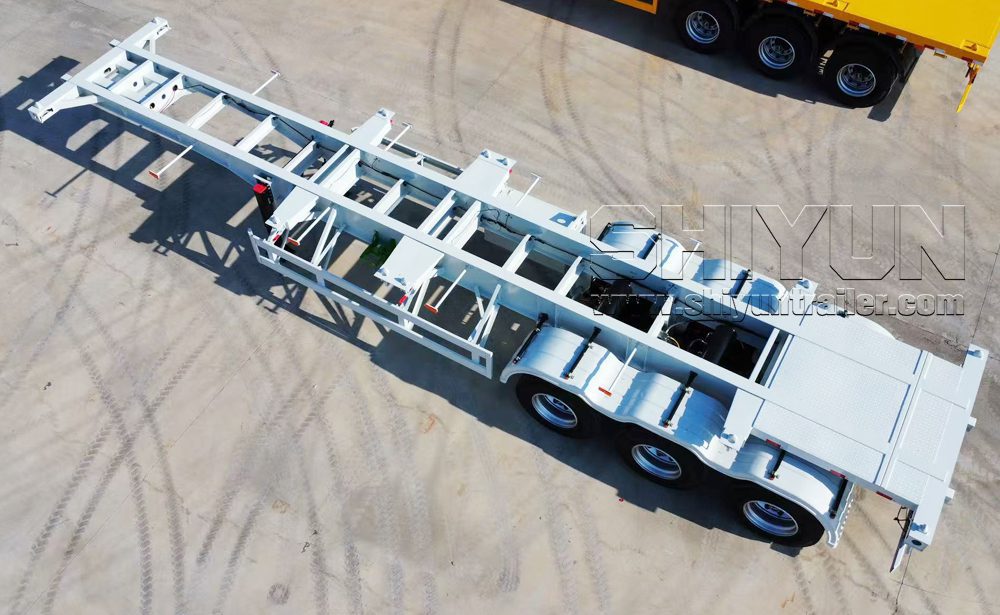

To meet the transportation requirements of standard shipping containers, SHIYUN TRAILER usually use skeletal semi-trailers or flatbed container semi-trailers for transshipment.Standard shipping containers come in a variety of sizes, including 20ft, 30ft, 40ft, 45ft, 48ft and 53ft. Among them, 20ft and 40ft containers are the most commonly used.The number of axles can be configured according to different load capacity requirements.With a general load range of 20 to 60 tons, SHIYUN usually use two, three or four axles to ensure safe transportation of various containers.For skeleton container semi-trailers, we also sometimes refer to them as trailer container chassis.A trailer chassis is a type of semi-trailer specially designed for transporting containers.
Container twist locks are the most prominent feature of this model, and also an indispensable component of container transport semi-trailers.SHIYUN trailers are compatible with both standard Dry Containers and Reefer Containers. For customers transporting reefer containers, we offer special pre-installed configurations to facilitate the installation of generator sets.Of course, this skeletal semi-trailer can also be used with various custom-built containers manufactured by our company.
| Item | Specifications | Remark |
|---|---|---|
| Material | High strength Carbon steel T700 or manganese steel Q345B | |
| Main beam | H beam | beam extendable optional |

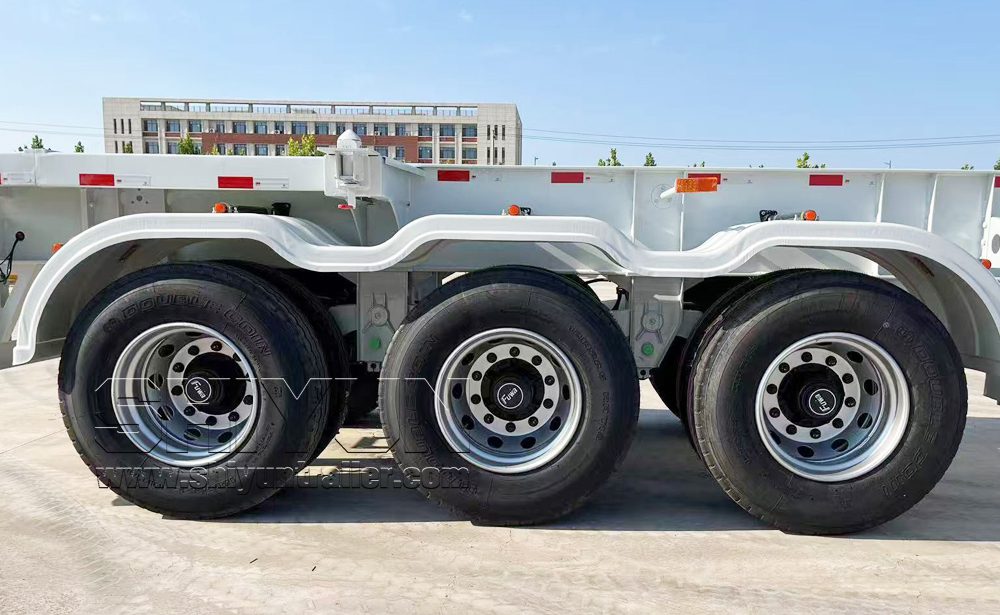

| Axles | 11.5 ton, 13 ton (16 ton, 20 ton) capacity | FUWA, BPW, AN, CTC or GT Brand |

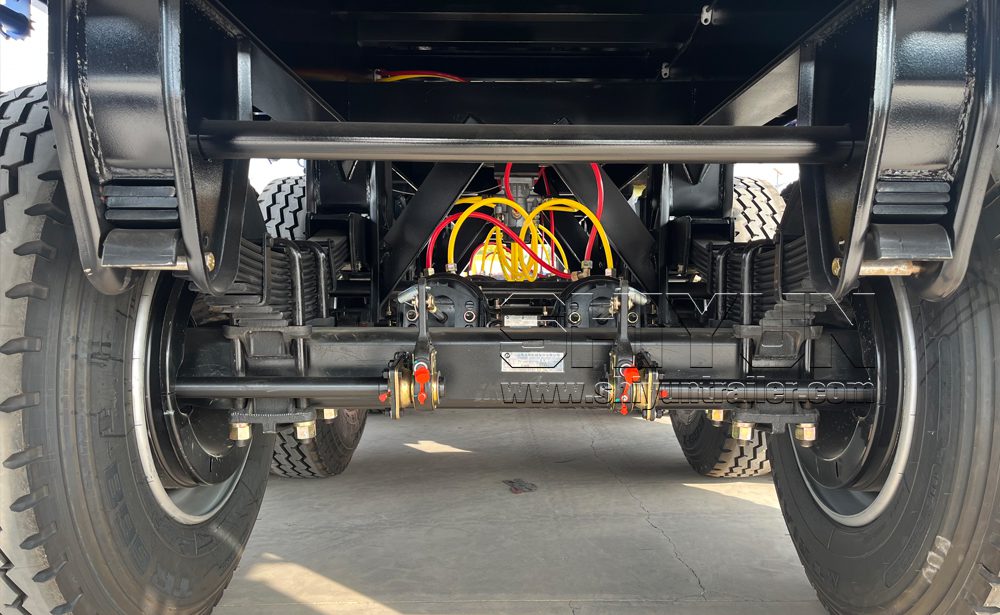

| Suspension | Mechanical suspension | Air suspension optional |
| Leaf spring | Leaf spring | Air bag lifting optional |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, 385/65R22.5 | Other size and brand optional |
| King pin | 2” / 3.5” bolt type, SAE standard | Welding on type optional (JOST) |
| Landing gear | 28 Ton two speed | JOST or equivalent brand |
| Platform | Checked plate 3mm | Other thickness optional |
| Twist locks | 4–14 pcs | |
| Braking system | Dual line brake system, double air chamber, brake valve, 40L air tanks | ABS optional |
| Electrical | LED light, 7 ways, 24V | |
| Painting | Blasting and clean rust, 1 coat of prime painting, 2 coat of finish painting | |
| Accessory | Tool box, oil tank, spraying system optional |
Above date can be customized per your local regulation and requirement

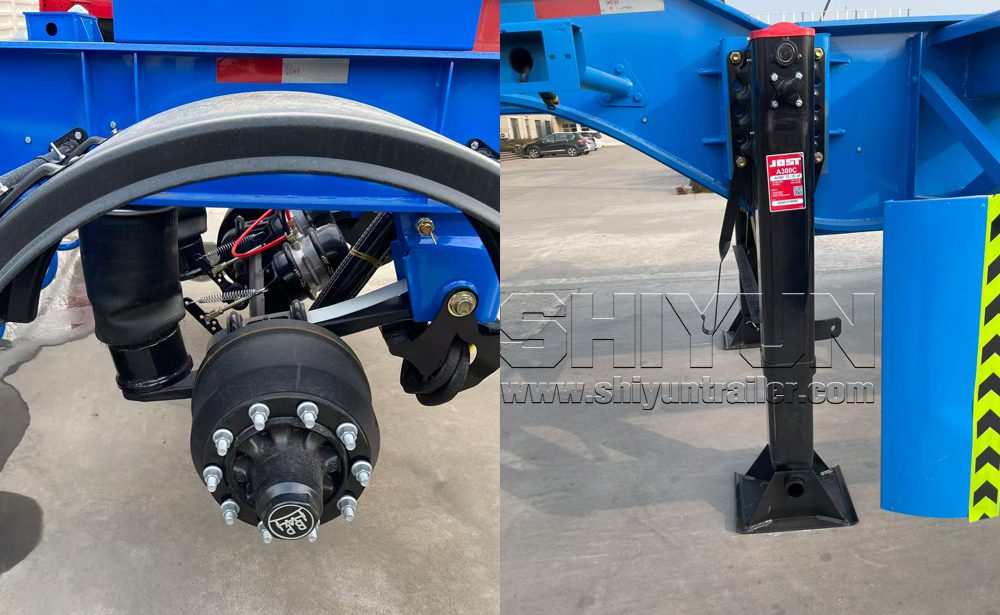

All the fittings and spare parts on SHIYUN container skeletal semi-trailers are high-standard quality parts, such as BPW axles, Fuwa axles, Jost landing legs, triangle or Dounle coin tires, etc. We can also customize skeletal semi-trailers at corresponding price levels according to your requirements.
According to the dimensions of ISO standard containers, the most common lengths for container skeleton semi-trailers are 20ft, 40ft and 45ft. Classified by different functions and design features, container skeletal carriers can be divided into the following categories.:

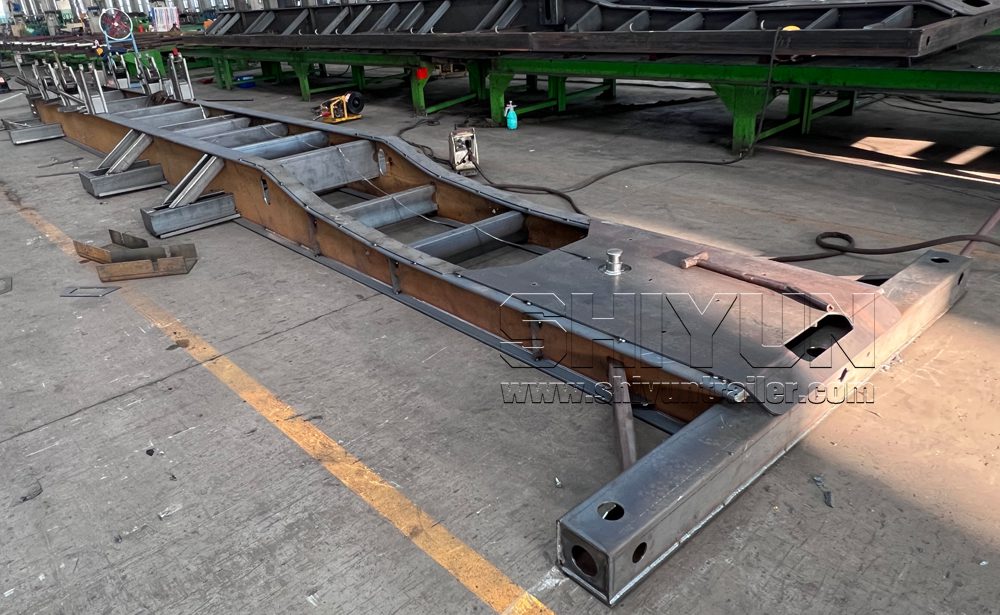

For 20ft containers, straight-beam skeletal container semi-trailers were more popular in the past, but gooseneck skeletal trailers offer better performance and greater advantages.They lower the platform height effectively, making them more suitable for passing bridges and areas with height restrictions.SHIYUN 20ft container skeletal semi-trailers chassis are standardly equipped with two axles, and tri-axle versions can also be manufactured according to customers’ special requirements.

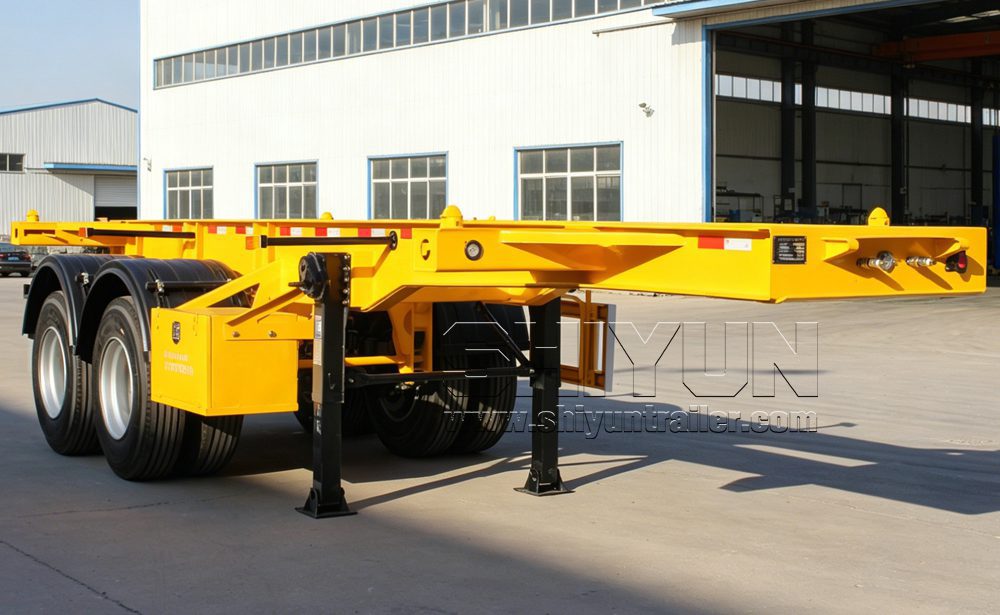

Straight beam 20 footer container skeletal semi trailer

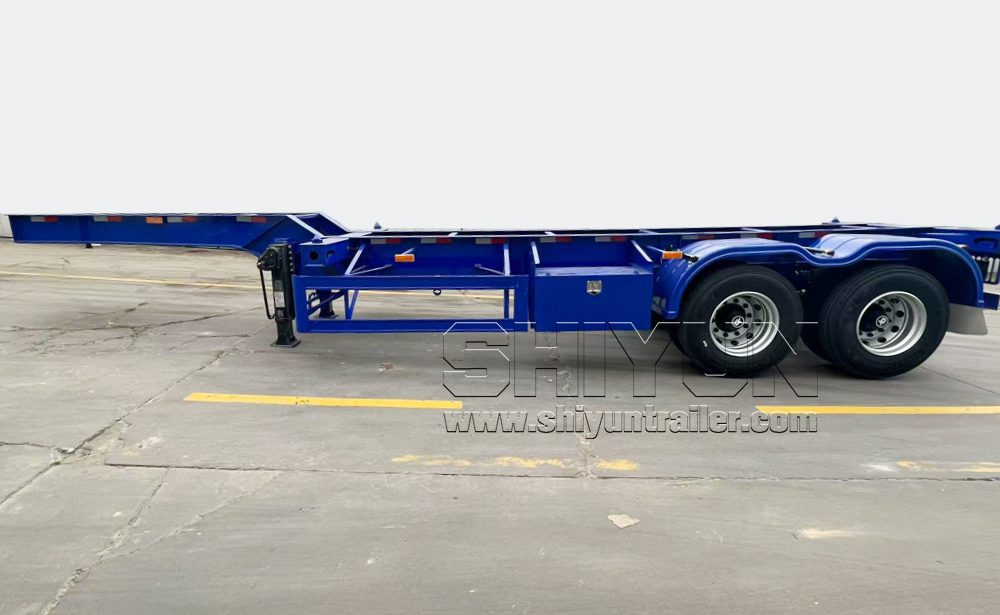

Gooseneck 20 footer container skeletal semi trailer
For 40ft and 45foot container skeletal semi-trailers, we also offer two designs: straight beam and gooseneck. The gooseneck type also effectively lowers the platform height.A 40feet skeletal trailer can carry either one 40ft container or two 20ft containers at the same time, and is generally equipped with 4 to 14 twist locks.To reduce the overall weight, many customers also choose single-tire 385/65R22.5 skeleton trailer container chassis or aluminum alloy material skeleton trailer container chassis.

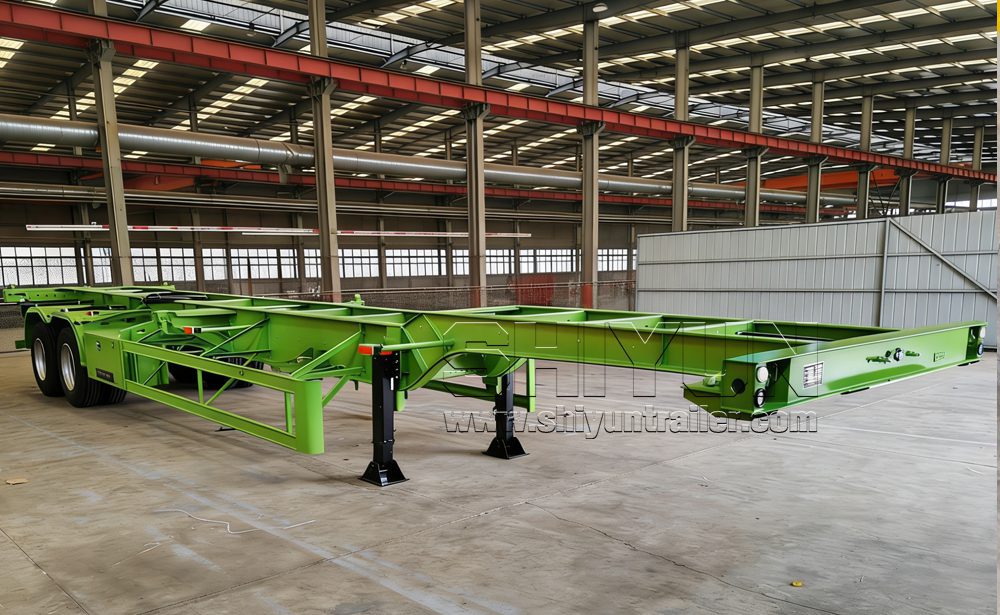

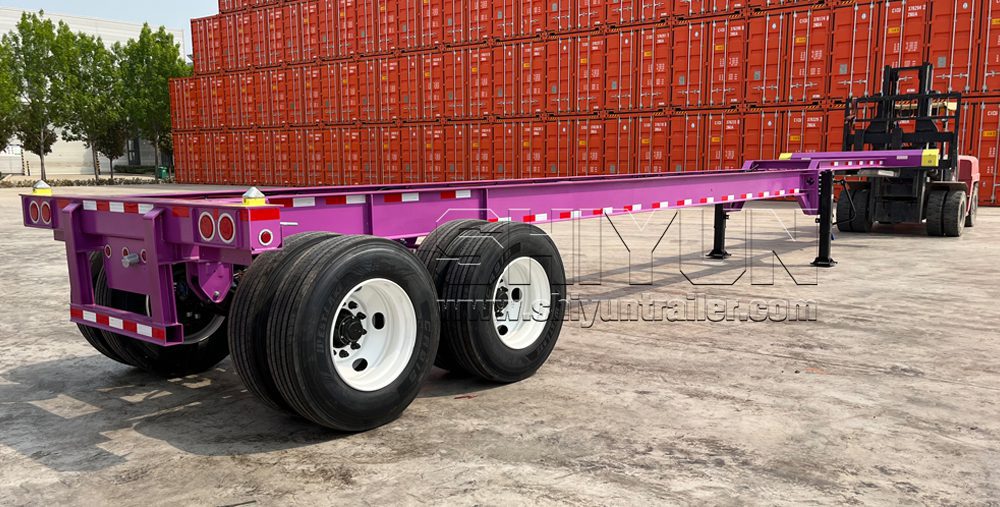

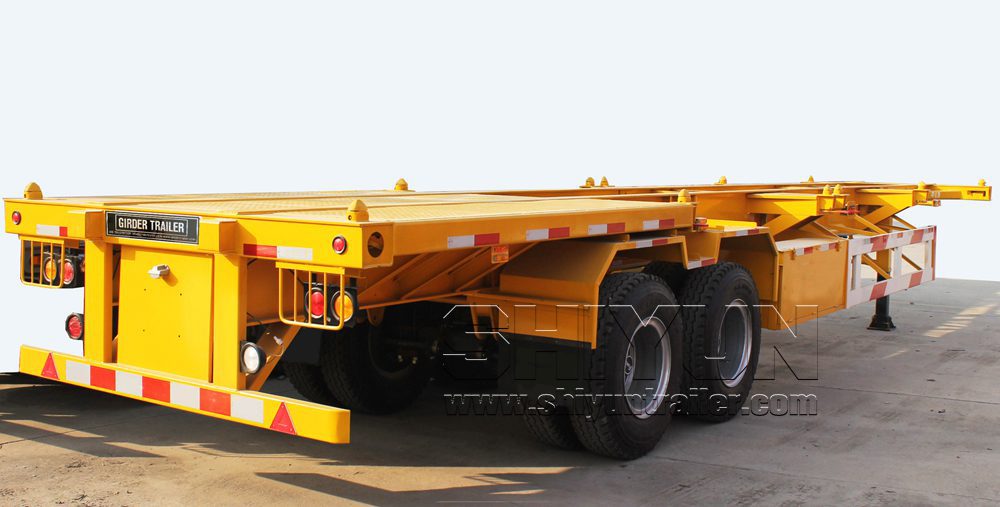

Straight beam 2 axles 40 footer container skeleton trailer
Small gooseneck 2 axles 40 footer container skeleton trailer

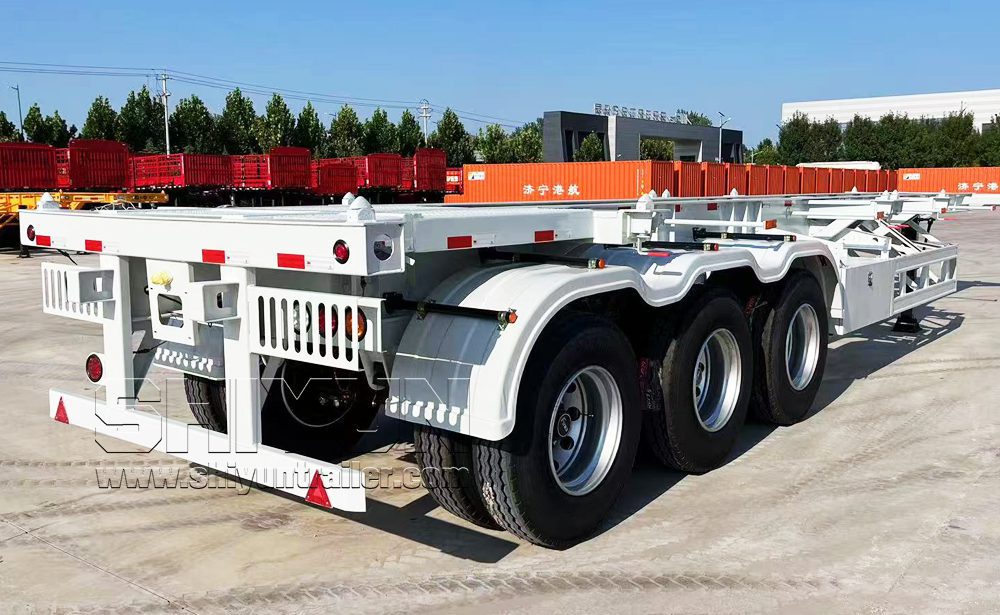

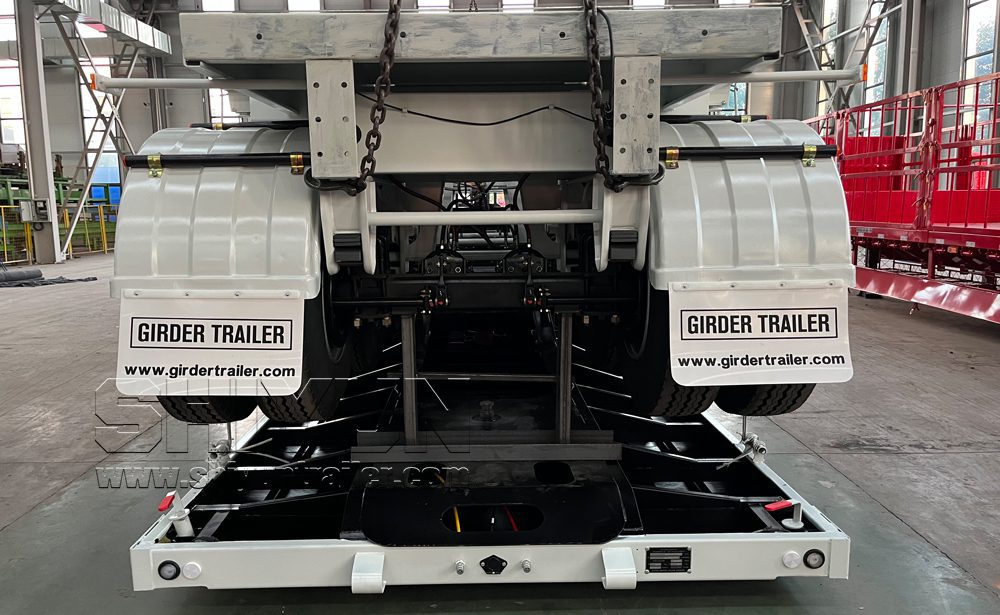

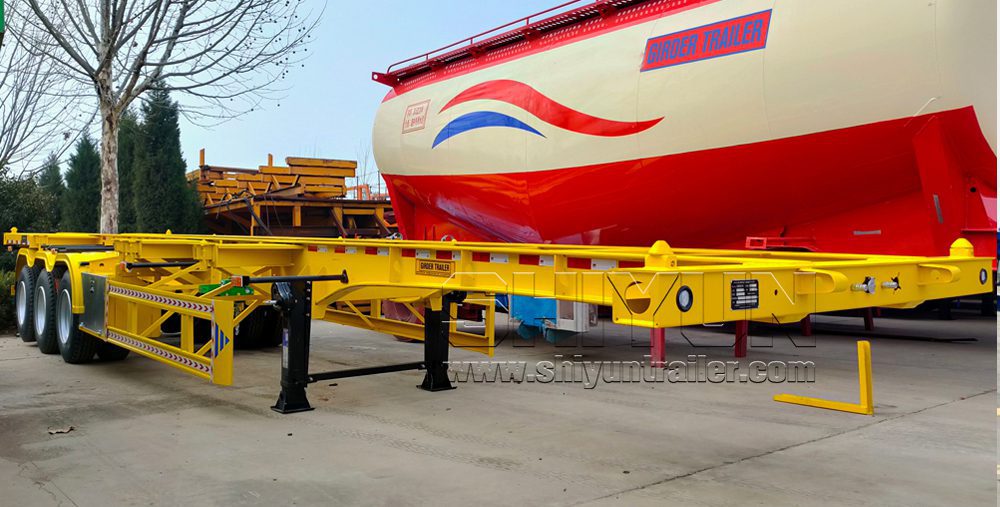

Straight beam 3 axles 40 footer container skeleton trailer

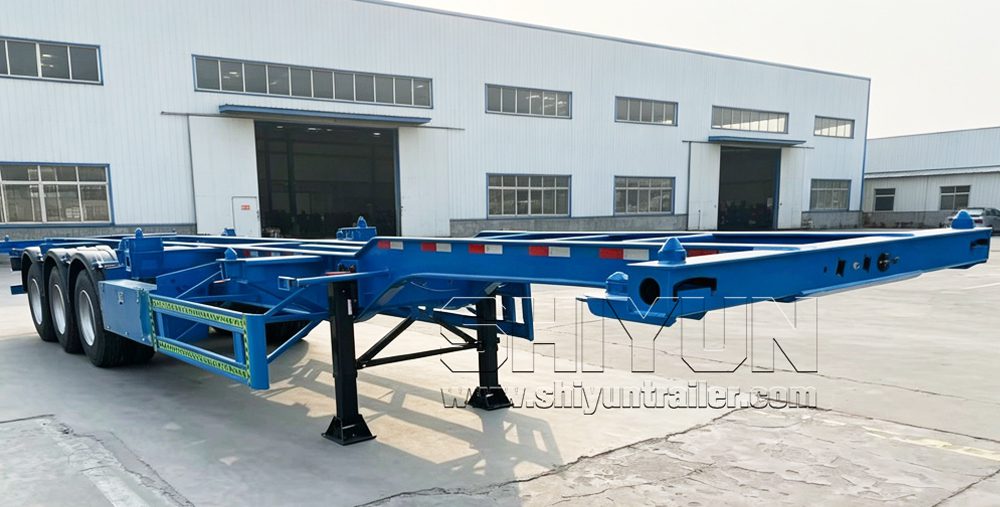

Small gooseneck 3 axles 40 footer container skeleton trailer

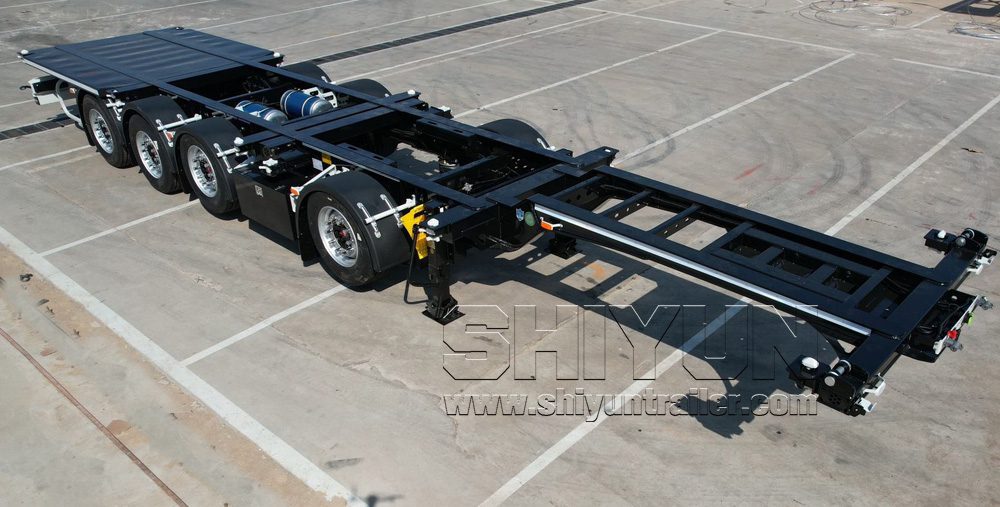

4 axles 40ft skeleton trailer with 1st axles lifting

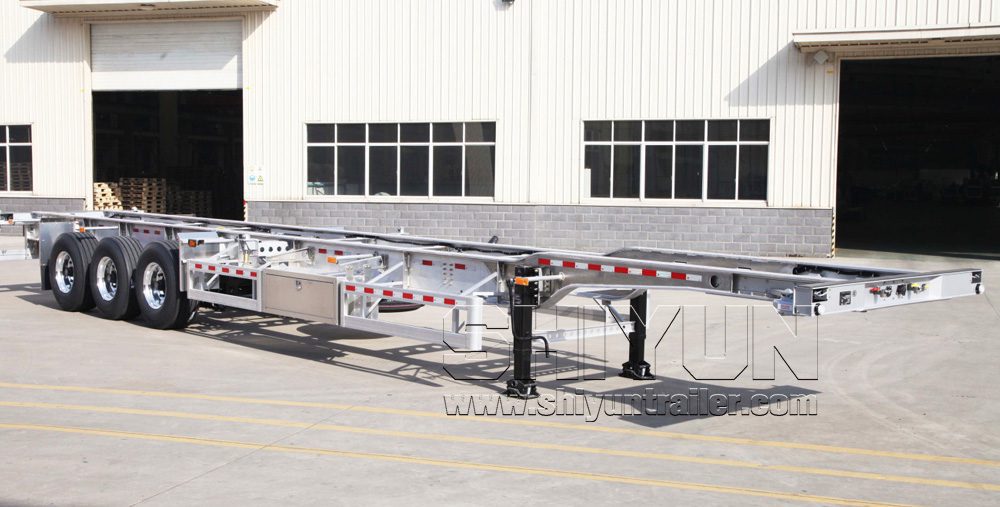

Aluminum skeleton container semi trailer

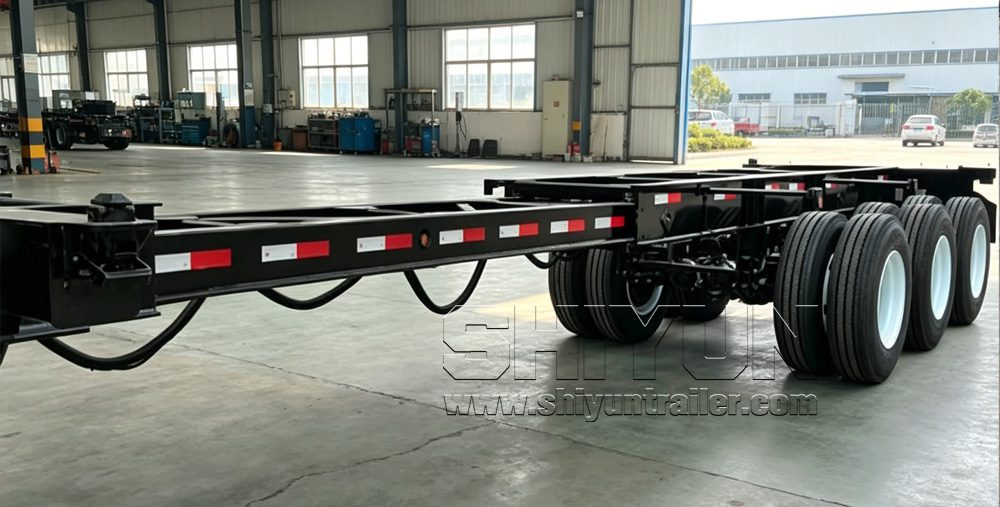

Length extendable telescopic container trailer chassis

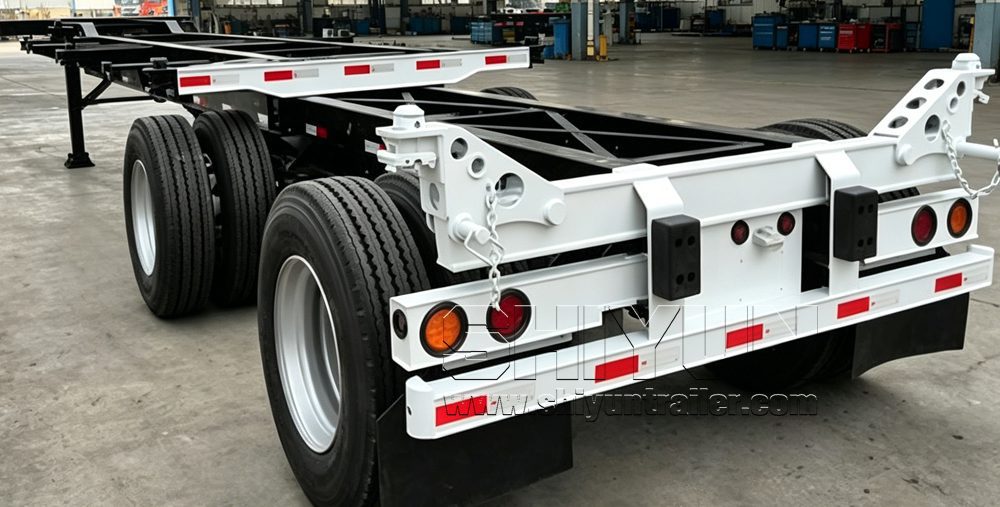

Length extendable sliding container trailer chassis

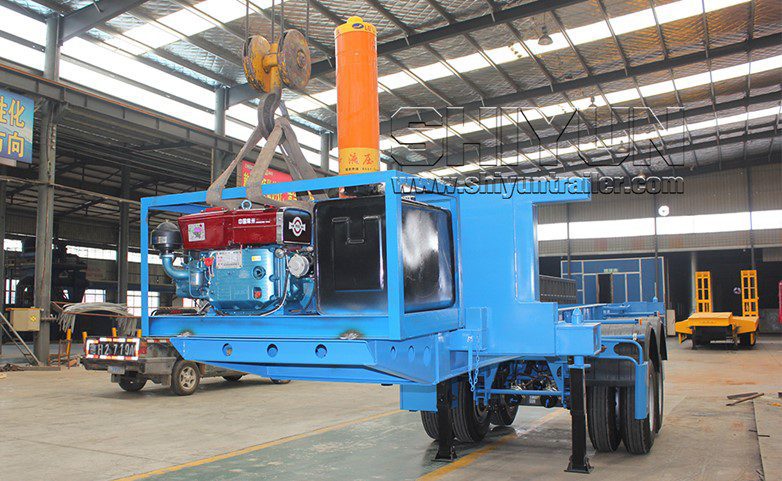

2 axles 20ft skeleton dump trailer

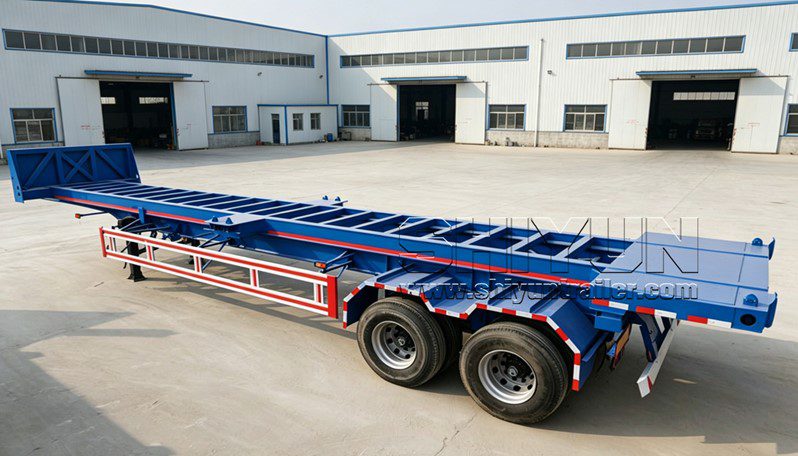

2 axles 40ft skeleton dump trailer

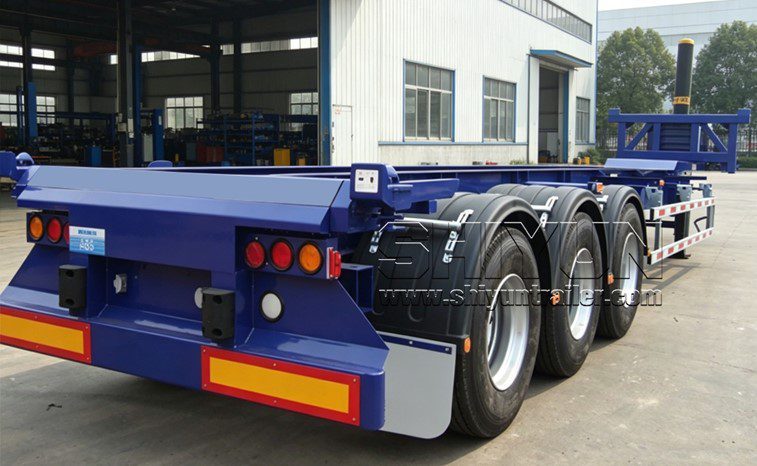

3 axles 40ft skeleton dump trailer

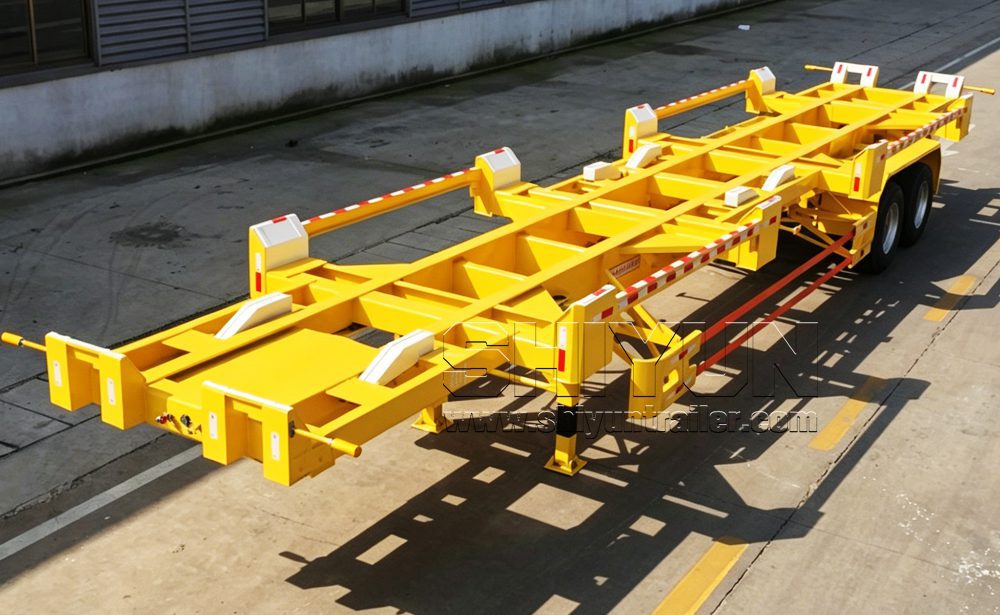

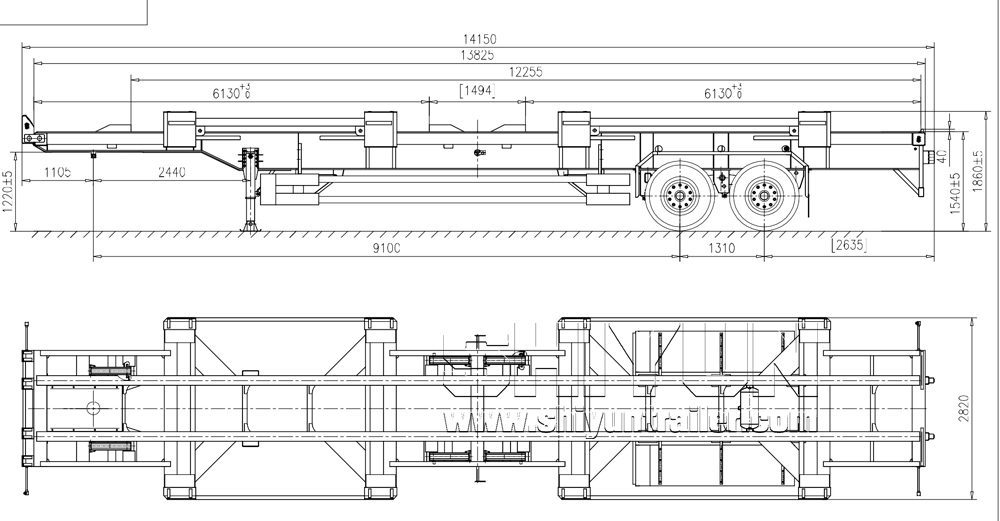

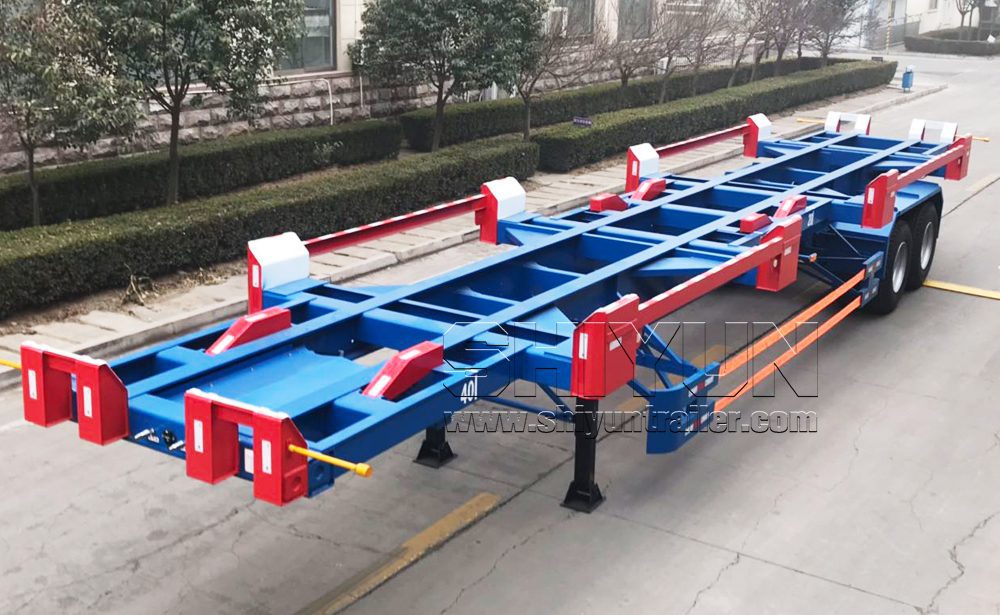

To meet the specific requirements of some port companies, we can also provide terminal trailer, which is Special Trailer With Container Guide For Shuttling Within Container Terminal .They are generally 45 feet in length and can carry two 20ft containers, one 40ft container or one 45ft container with stoppers equipped.Our design is very precise and rigorous with strong load capacity.
Cornerless Frame Design with Front and Rear Angled Buffers. And the terminal trailer equipped with heavy Duty Outer Container Guides.The bomb cart Center Container Stops are Spring Loaded and Designed to Accommodate Different Container Sizes and Twin Twenty Spacing Hands Free.SHIYUN Terminal trailer is equipped with a twist-lock free design, enabling fast loading and unloading as well as highly efficient transportation throughout the terminal area.
Coastal regions have high humidity, so paint coating and surface treatment are also very important requirements and standards.As this semi-trailer is frequently used at ports, it is subject to frequent impacts from containers. Therefore, high-strength materials and heavy-duty design are the key features of this model.

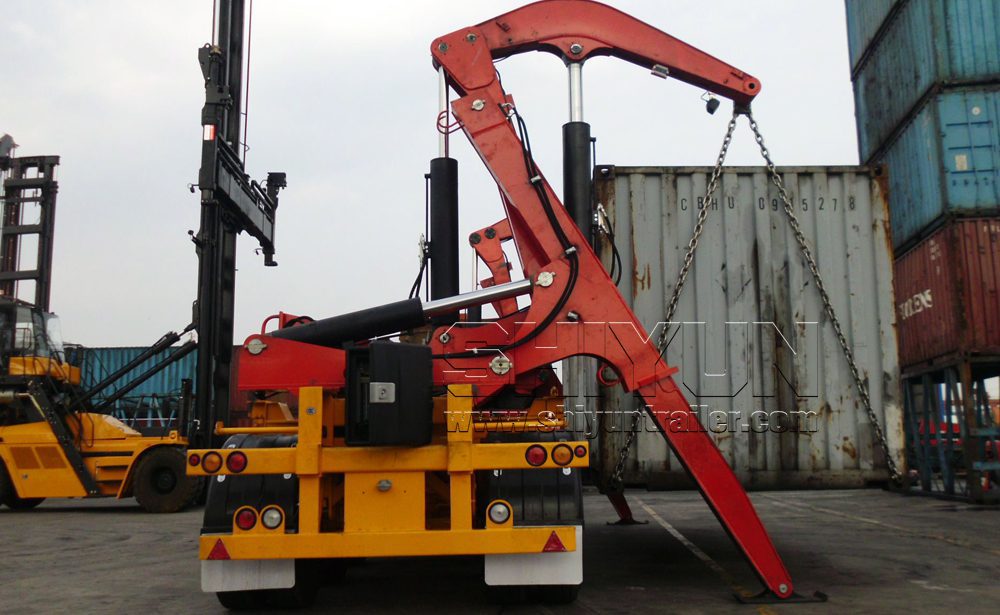

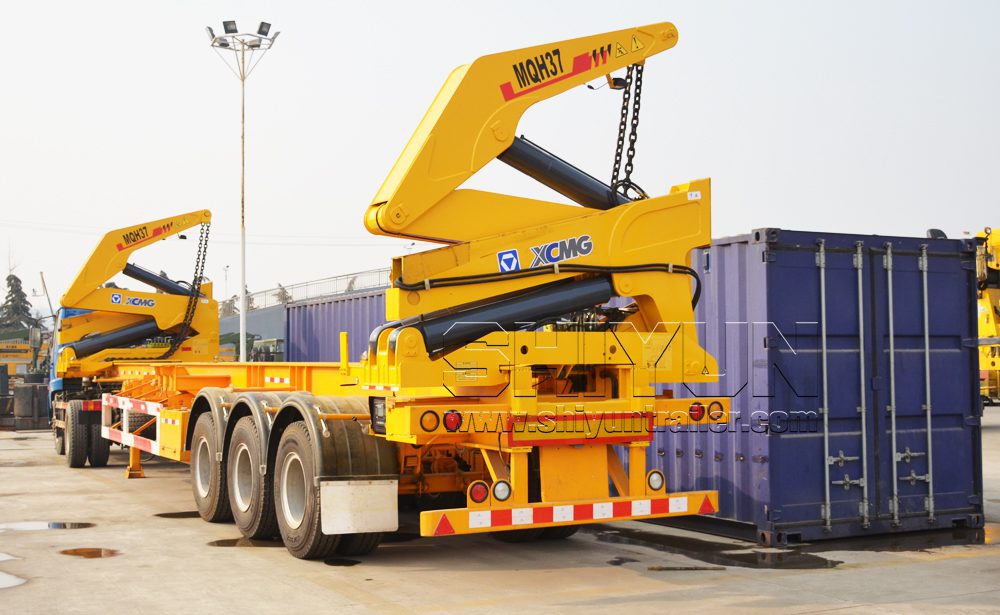

Self Loading And Unloading Side loader container trailer are widely used in ports, stations, and yards for handling and transit of containers. The skeleton trailer Equipped with XCMG MQH37 lifting crane, these trailers can load and unload containers without additional lifting equipment, enabling more efficient container transshipment.The loader is applicable for handling stacking, and transporting containers of 20, 40, or other sizes. With this equipment, containers can be handled and stacked up to 2 layers for one line,
improving working efficiency and equipment utilization. SHIYUN TRAILER has achieved several patented technologies, such as, container side load technology, dual-pump and dual-loop technology, advanced electro-hydraulic proportional control technology, intelligent safety protection technology and wireless remote control technology. With its reliability, high-efficiency and safety SHIYUN Self Loading And Unloading Side loader is trusted by customers worldwide.ntegrating lifting, handling, and transit, it facilitates the side loading of containers and other cargoes.

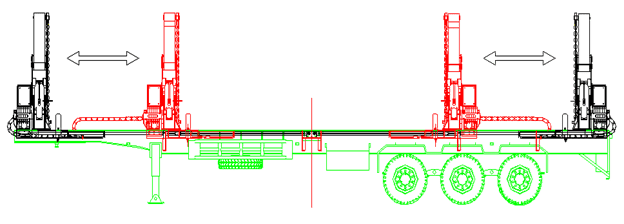

Middle hanger slides separately and matches front and rear hangers to handle empty or full containers of 20, 40 or other cargoes. This allows our Container Side loading Truck to be used in various capacities and provides our customers with high-efficient equipment.Handling and stacking of containers up to 2 layers can be carried out by hanging. This enhances working efficiency and overall utilization of machine.Only one operator is needed. The advanced operation control system allows close or remote operation.Equipped with wireless remote controller, SHIYUN Trailer can control its legs and hanger within 30m.Kubota is optional for the power engine .
With professional design, reliable quality and complete configurations, we provide global customers with efficient, safe and durable container skeletal semi-trailers. Whether for standard transportation, port routes, cold chain logistics or intermodal transport, we can offer customized solutions based on your actual needs to help improve efficiency and reduce costs. Choosing us means choosing stable quality, attentive service and a long-term trusted partner.

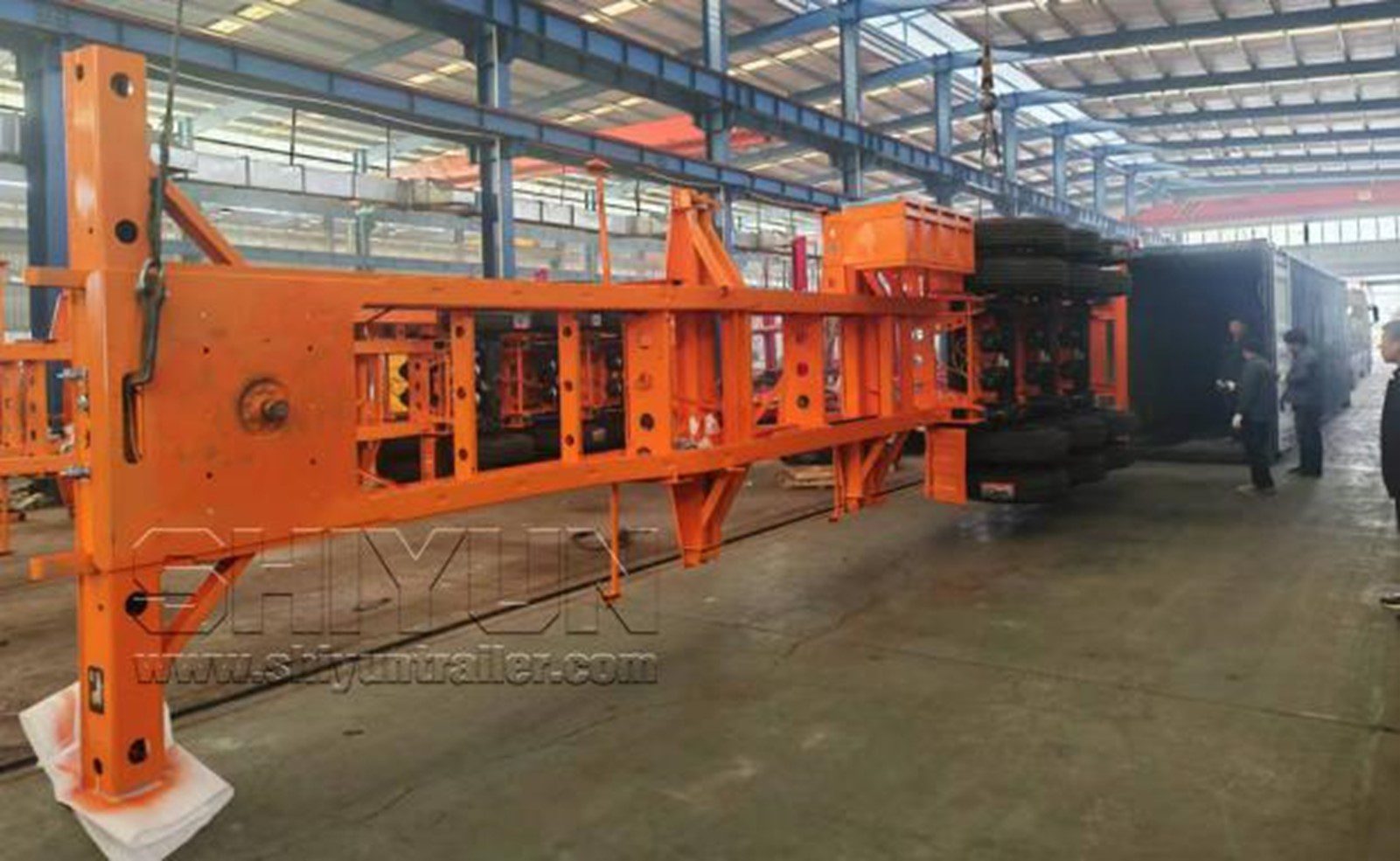

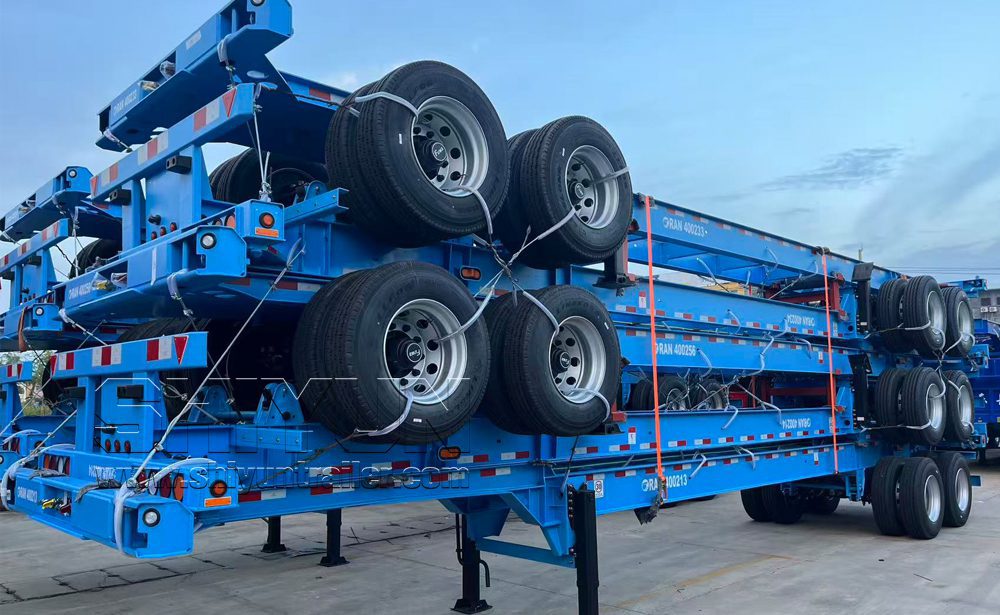

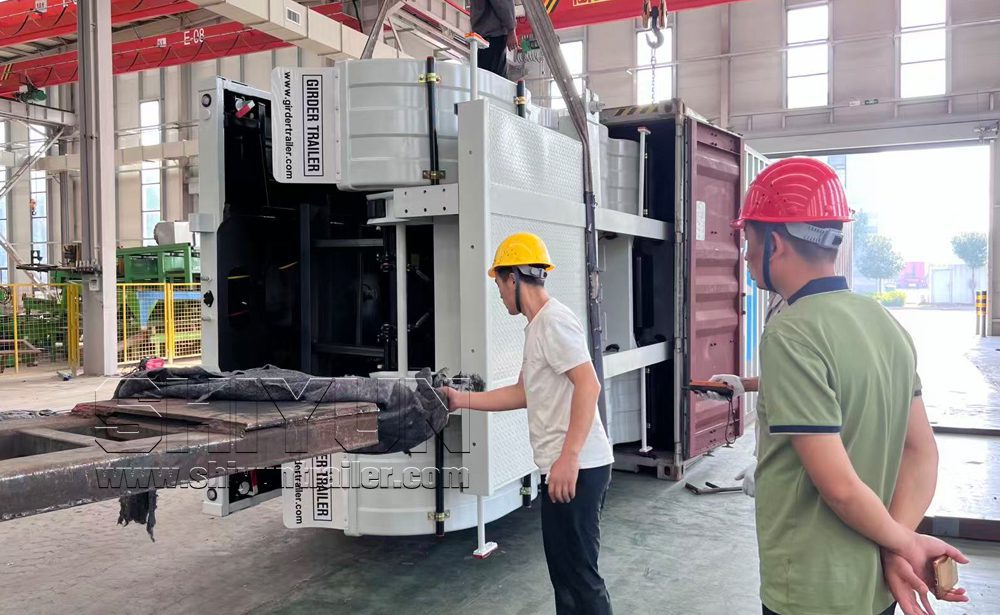

As the external dimensions of a skeletal semi-trailer exceed those of a standard 40-foot shipping container, it cannot be fully loaded into a 40-foot container under normal conditions. We generally use three methods to ship skeletal semi-trailers:

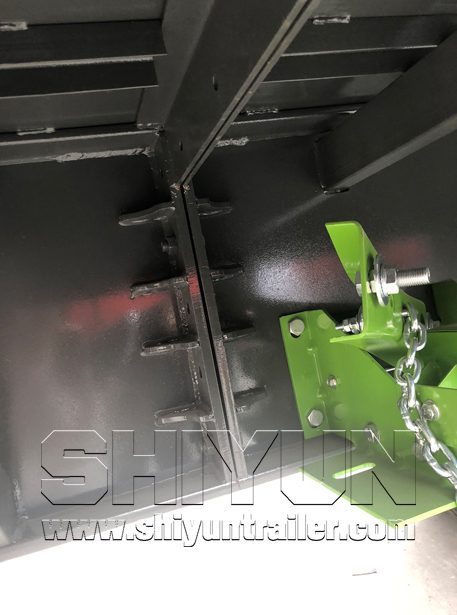

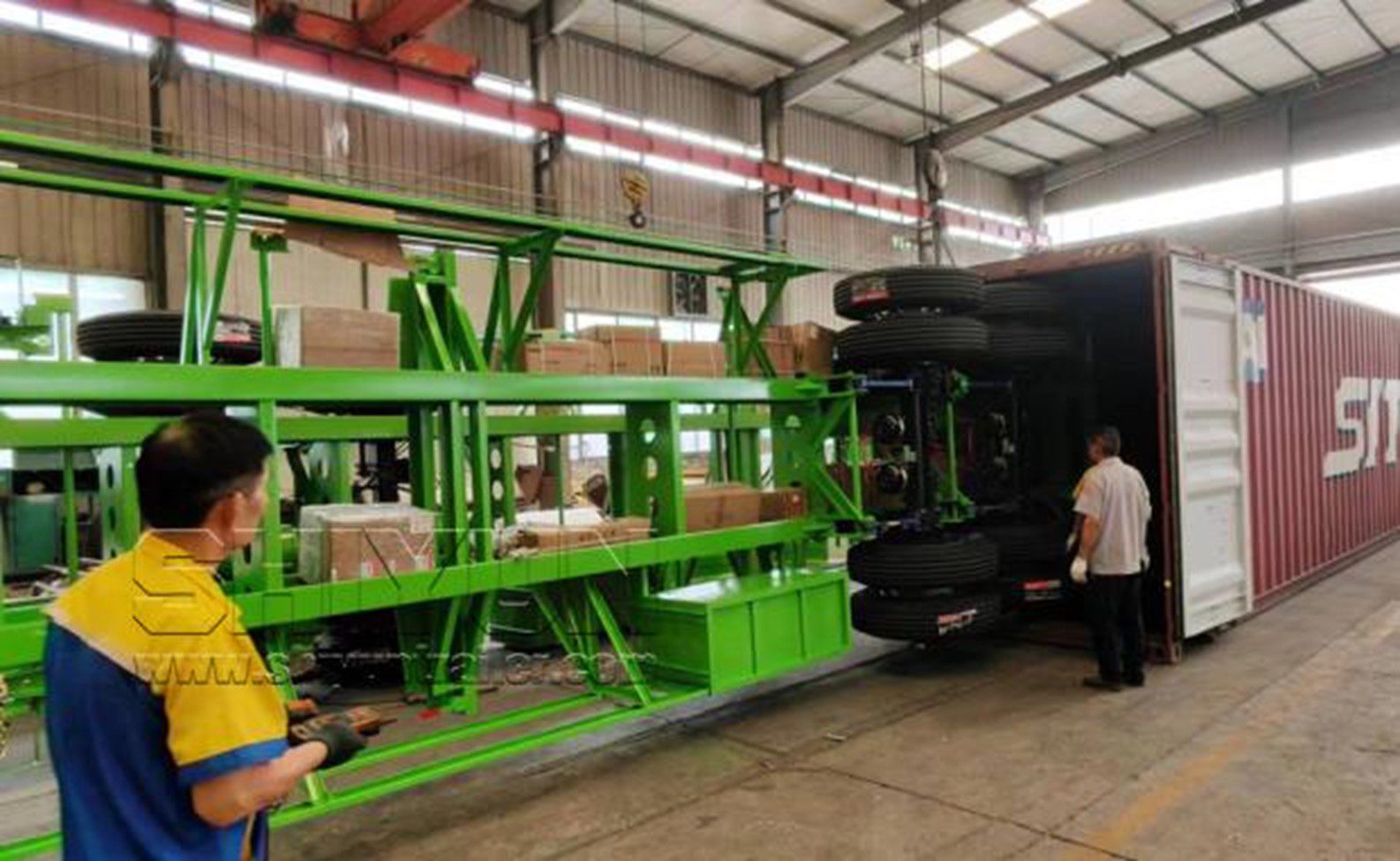

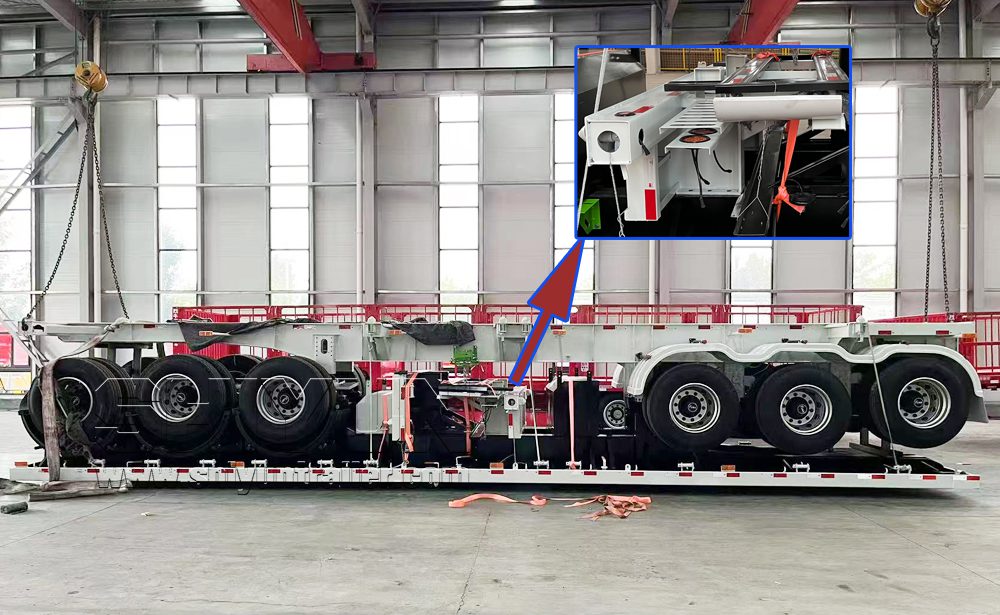

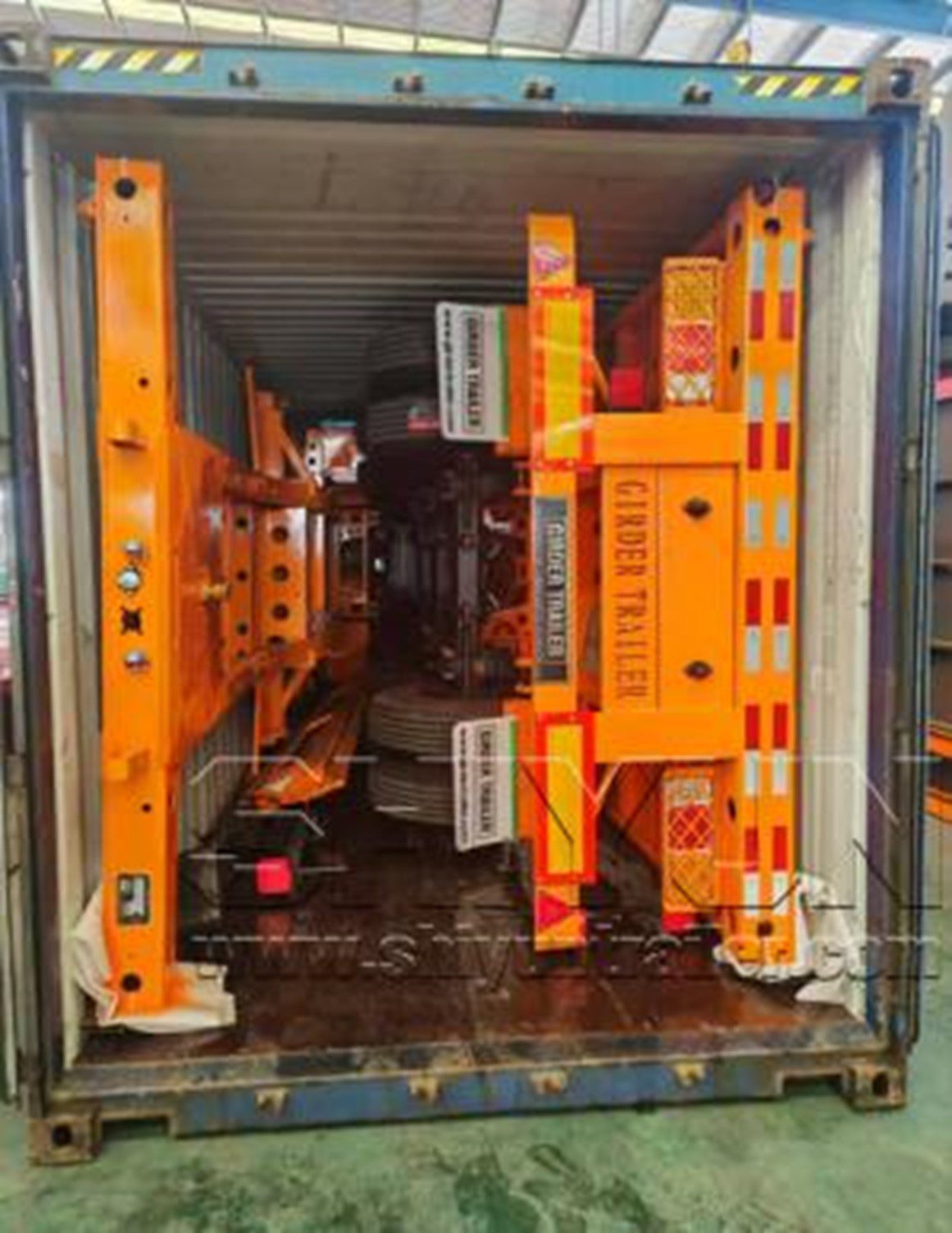

3.1 40-foot container shipping: The rear section of the semi-trailer must be cut off. After the customer receives the goods, they can reattach the rear section using high-strength bolts provided by us. One 40-foot container can hold 2 to 4 semi-trailers.
3.2 45-foot container shipping: If the customer accepts higher ocean freight, this is a better option, as no cutting of the trailer rear is required and you will receive a complete, intact unit. One 45-foot container can hold 2 to 4 semi-trailers.

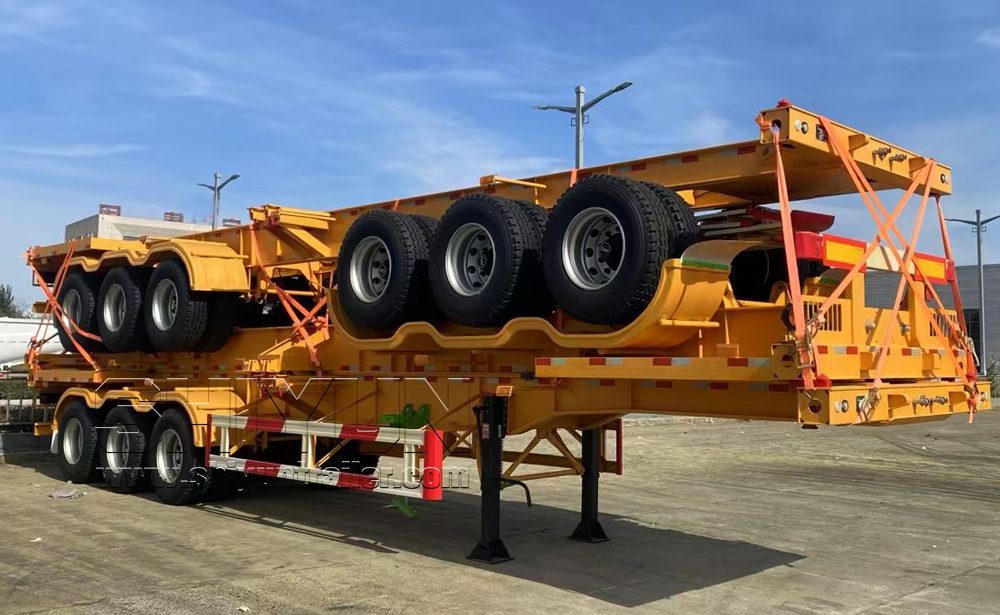

3.3 Roro ship / bulk carrier shipping: Some customers also choose to transport the vehicles to the destination port via roll-on ships or bulk cargo ships.
