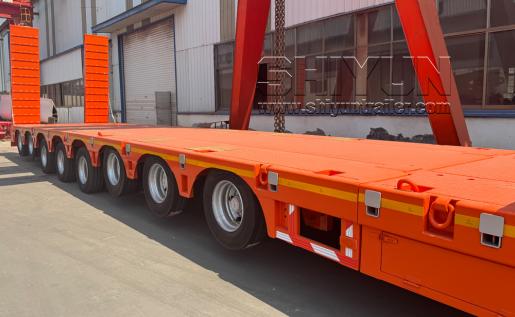

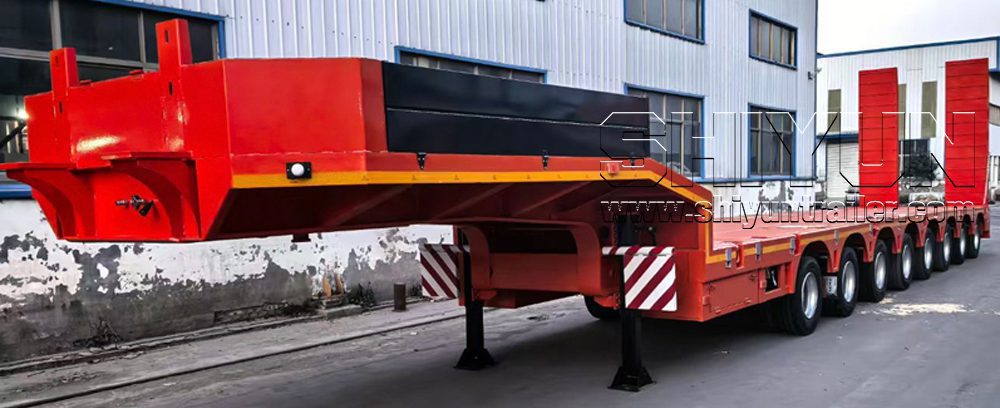

MULTI AXLES LOWBED SEMI TRAILER

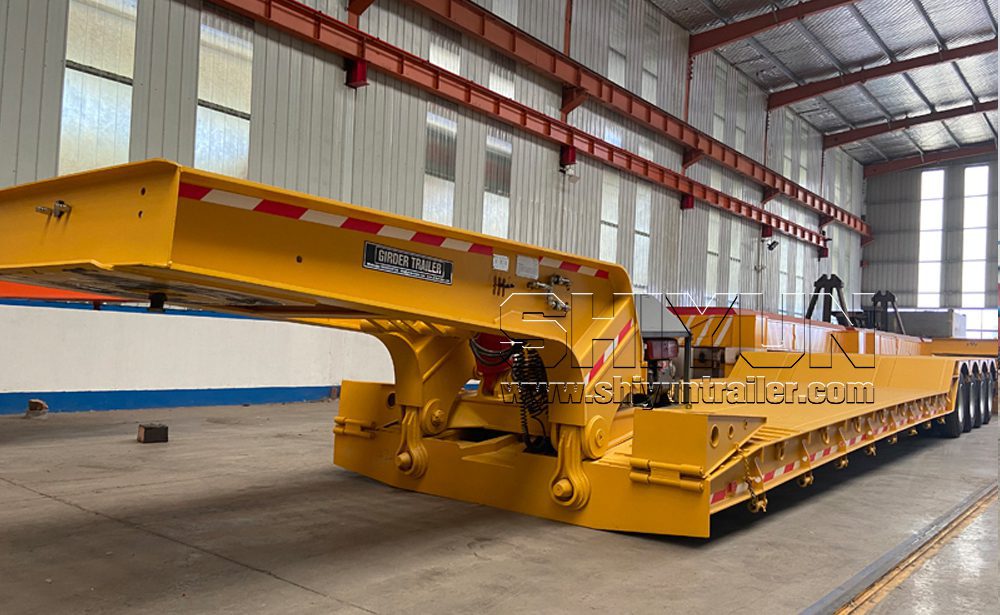

A low bed semi-trailer is designed with an low cargo loading platform, namely the drop deck. Platform height is typically 0.8–1.2m, providing an extremely low center of gravity for enhanced driving stability and reduced rollover risk.Its low-profile configuration grants superior road adaptability for navigating bridges and tunnels, and reduces the center of gravity (COG) of loaded goods.With its recessed drop deck positioned beneath the front gooseneck and rear wheel sets, this trailer is structurally equipped with an integrated gooseneck, hence its widely adopted name: low bed semi trailer.In some countries, lowbed semi trailers are also referred to as lowboy semi trailers or low loader semitrailers.Standard load rating from 20 to 100 tons, with multi-axle versions capable of over 300 tons.

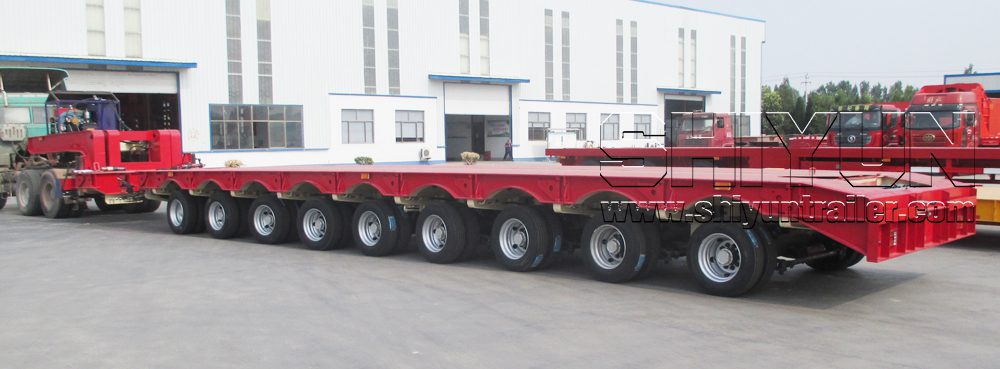

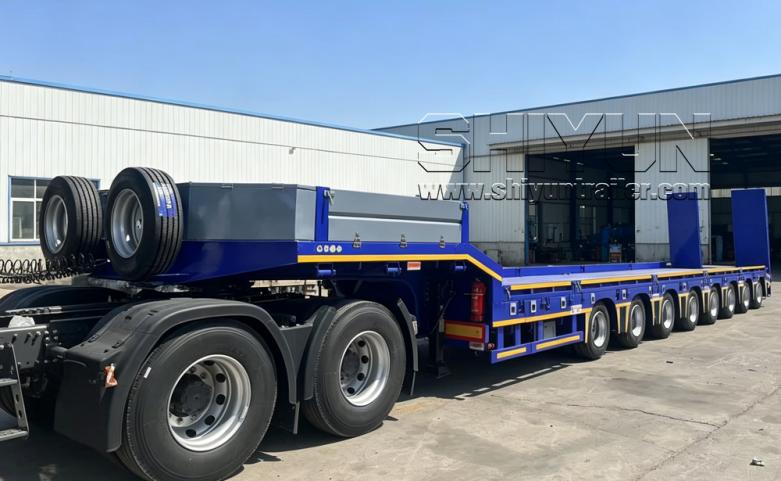

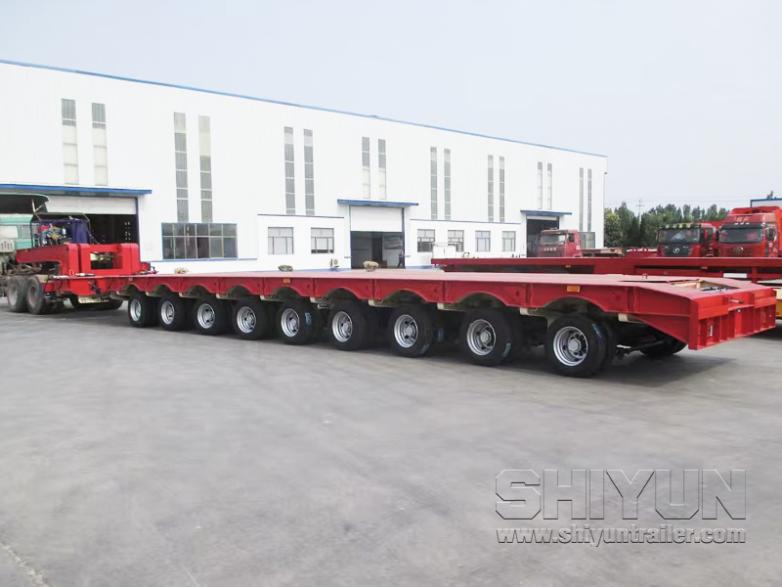

Multi-axle low-bed semi-trailers generally refer to those with more than 4 axles. The reason why multi-axle low-bed trailers are required in some countries is that local road regulations impose restrictions on per-axle load capacity. For instance, in some Central Asian countries, the load limit per axle is no more than 8 tons. Therefore, to transport 100-ton heavy cargo, it is necessary to adopt 6 axles ,7 axles ,8-axles,9 axles or 10 axles low-bed semi-trailers.

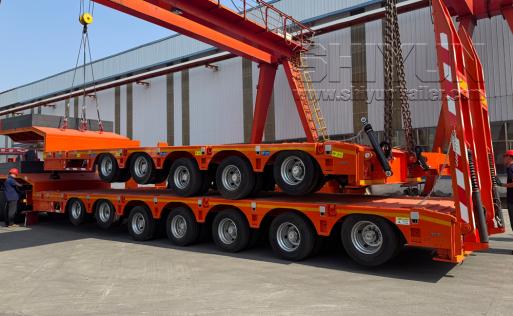

Shiyun has extensive experience in manufacturing multi-axle low-bed semi-trailers.
Our products feature heavy load capacity, flexible traveling performance, agile steering and easy operation. With solid structure and great durability, they enjoy a high reputation both at home and abroad.This model of semi-trailer has been exported to Central Asia and South America for a long time.

1. PARAMETERS

Item	Specifications	Remark
Material	High strength Carbon steel Q550
Main beam	Heavy duty H beam with beam extendable optional
Axles	11.5 ton, 13 ton (16 ton, 20 ton) capacity	FUWA, BPW, AN, CTC or GT Brand
Suspension	Mechanical suspension / Air suspension / Hydraulic lifting steering optional
Tire	245/70R17.5, 245/70R19.5, 12R22.5, 11.00R20	Other size and brand optional
King pin	2” / 3.5” bolt type, SAE standard	Welding on type optional (JOST)
Landing gear	28 Ton two speed JOST or equivalent brand
Platform	Checked plate 4mm / 5mm or wood deck	Other thickness optional
Ladder	1 pair spring mechanical ladder	Hydraulic ladder or hydraulic folding ladder optional
Side beam	I beam or U channel
Braking system	Dual line brake system, Double air chamber, brake valve, 40L air tanks	ABS optional
Electrical	LED light, 7 ways, 24V
Painting	Blasting and clean rust, 1 coat of prime painting, 2 coat of finish painting
Accessory	Tool box, oil tank, spraying system optional

Above date can be customized per your local regulation and requirement

2.Functions:

Lowbed semi trailers feature a low center of gravity, high load capacity, stable performance and convenient loading/unloading, specially designed for transporting large construction machinery, heavy equipment and oversized cargo such as：

Transportation of construction machinery (excavators, bulldozers, road rollers, etc.)
Heavy equipment, tanks, wind power components, transformers and oversized goods
Heavy-duty trucks, buses and special vehicles
Steel products, structural parts and other heavy loads

3.Classification：

When there are a large number of axles, fixed axles cannot meet the turning and passing requirements.
If all axles adopt the fixed type, the overall turning radius will be too large, leading to poor practical use performance.
To solve this problem, SHIYUN offers multi-axle low-bed semi-trailers with two different suspension types for customers to select according to their actual needs.

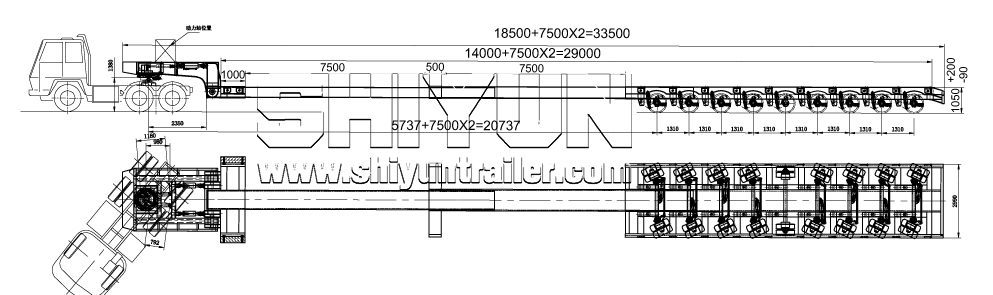

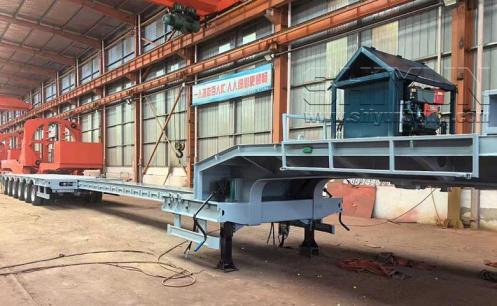

3.1 Multi axles low bed trailer with hydraulic lifting steering suspension

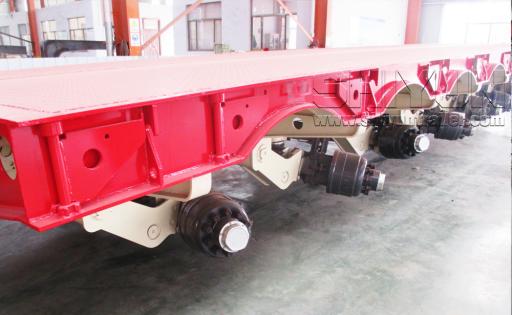

This SHIYUN lowbed semi-trailer is equipped with a hydraulic lifting and steering suspension. It realizes synchronous steering of all axles via the front fifth wheel hydraulic turntable. The suspension system enables both integral lifting of the entire trailer platform and independent lifting of a single axle.
The system achieves elastic support and attitude control through the pressure regulation of hydraulic oil. Its core functions include buffering road bumps, absorbing vibration and impact to protect the vehicle structure and cargo safety, precisely adjusting the vehicle height to adapt to different loading conditions and complex road conditions, improving driving stability and handling smoothness, and also enabling functions such as quick leveling and lifting.
Its core function is to reduce steering resistance and reduce driver workload through the hydraulic power amplification effect, while improving steering response speed and accuracy. This ensures maneuverability under heavy loads, low speed operations (such as port loading and unloading, site construction) or complex road conditions, reduces steering deviation, enhances driving stability, and adapts to the high steering load requirements of heavy equipment.This hydraulic cylinder is mainly used to adjust the vehicle height. By regulating the height, it greatly improves the trafficability under complex road conditions.

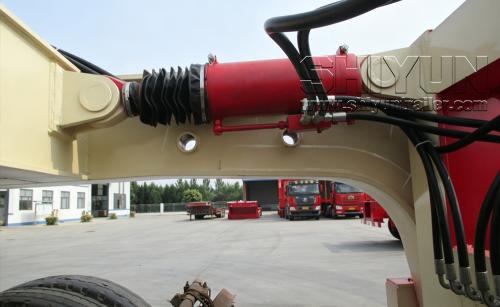

Lifting Hydraulic cylinder：As the core actuator of a hydraulic system, it converts hydraulic energy into mechanical energy to achieve linear motion, providing high-thrust, high-precision power output for heavy-duty trailers and other equipment. It is typically used for vehicle suspension support, attitude adjustment (such as vehicle height adjustment), or power control of chassis components.
For steering：This low-bed semi-trailer is generally designed with fixed axles and hydraulically steerable other axles, which enables it to achieve splay-angle steering.It is equipped with steerable axles, with a maximum steering angle of up to 55 degrees.

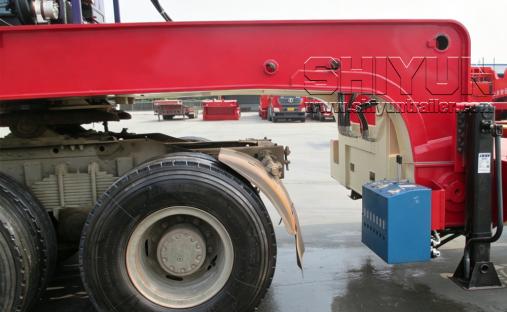

The steering function can be realized by equipping a hydraulic power unit and operating control valves.

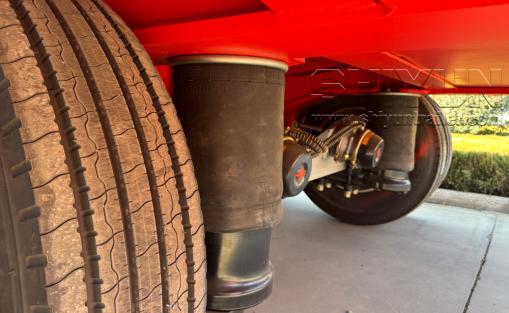

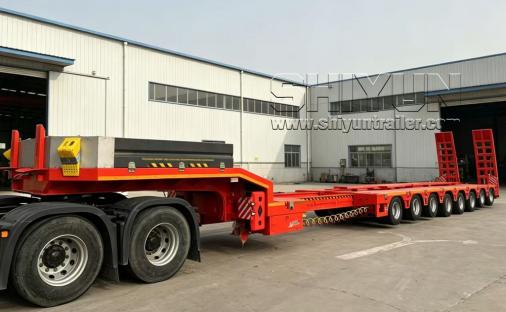

3.2 Multi axles low bed trailer with air bag suspension

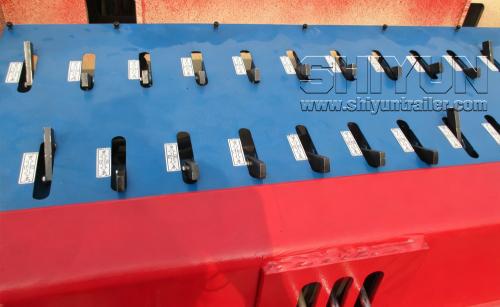

Hydraulic lifting and steering multi-axle low-bed trailers come with a relatively high cost. As an alternative model, the multi-axle low-bed trailer with liftable air suspension is a more economical option.Air suspension can be equipped with WABCO lifting control handles,The whole vehicle is generally equipped with air suspension, which enables both integral lifting of the entire platform and independent lifting of each single axle.When turning, to reduce the turning radius, the tires of the front three or four axles can be lifted to achieve a smaller turning radius.In addition, 1 to 2 follow-up steering axles can be added to further minimize the turning radius and deliver more flexible traveling and steering performance.

4.Features

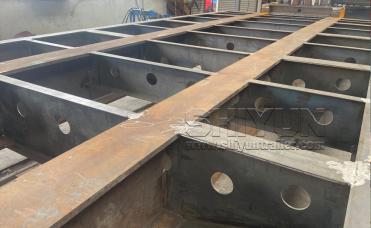

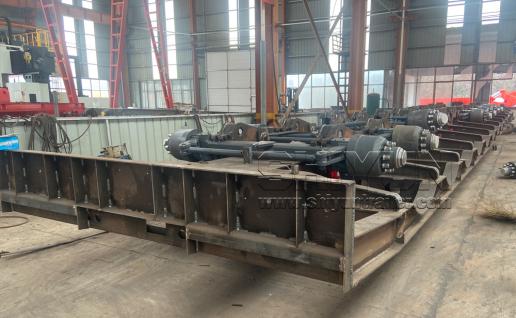

SHIYUN lowbed semi-trailers are mainly constructed from high-strength structural steel Q550 or Q460, with a yield strength> 620MPa.Compared with ordinary Q345 steel used for semi-trailers, our steel features higher strength and better durability, which greatly improves load capacity and life time while effectively reducing the overall weight.Reasonable structural design and precise camber fabrication have earned SHIYUN lowboy trailers a broad market and excellent reputation.

SHIYUN lowbed semi-trailers can be designed with various widths to meet different requirements.The standard minimum width is 2 meters, while most customers choose a width between 2.5 meters and 3 meters.We can also customize trailers with a maximum width of up to 6 meters as per your needs.In addition to fixed-width designs, we can equip extendable brackets to achieve flexible conversion between different loading widths.

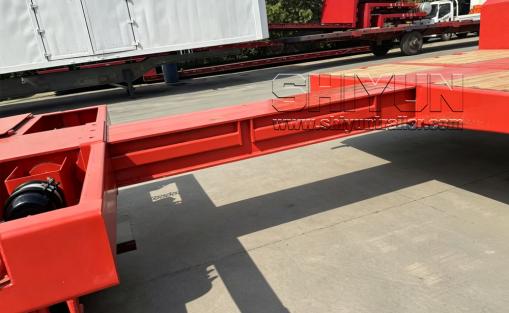

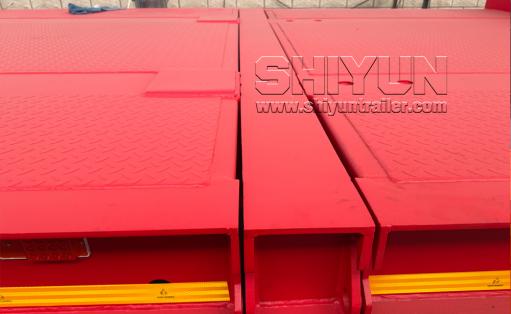

Due to the overall long length of multi-axle low-bed semi-trailers, equipped with a length telescopic structure can greatly improve the vehicle’s turning performance.The telescopic mechanism adopts pneumatic control pins. The pneumatic locking pins are used to adjust the telescopic length and fix the positioning. It supports single-section telescopic movement, as well as single and double-section combined telescopic operation.For the main beam, both double-beam telescopic type and single-beam telescopic type are available.The perfect telescopic extendable beam design is another key advantage of SHIYUN low bed semi-trailers.Unlike structures made of conventional Q345 steel, we use high-strength steel plates Q550, ensuring the telescopic beams resist deformation, extend and retract smoothly and efficiently, and completely eliminate the risk of failing to retract after extension.

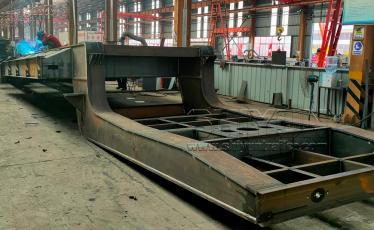

Double beam extendable trailer

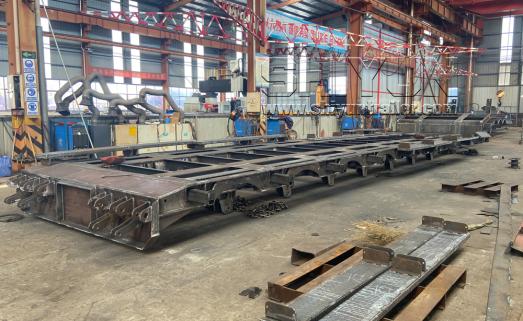

Double section extendable trailer

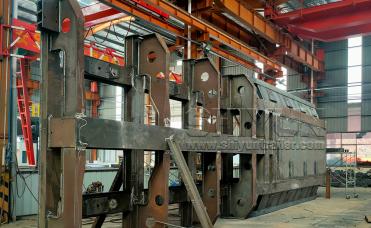

Single beam extendable trailer

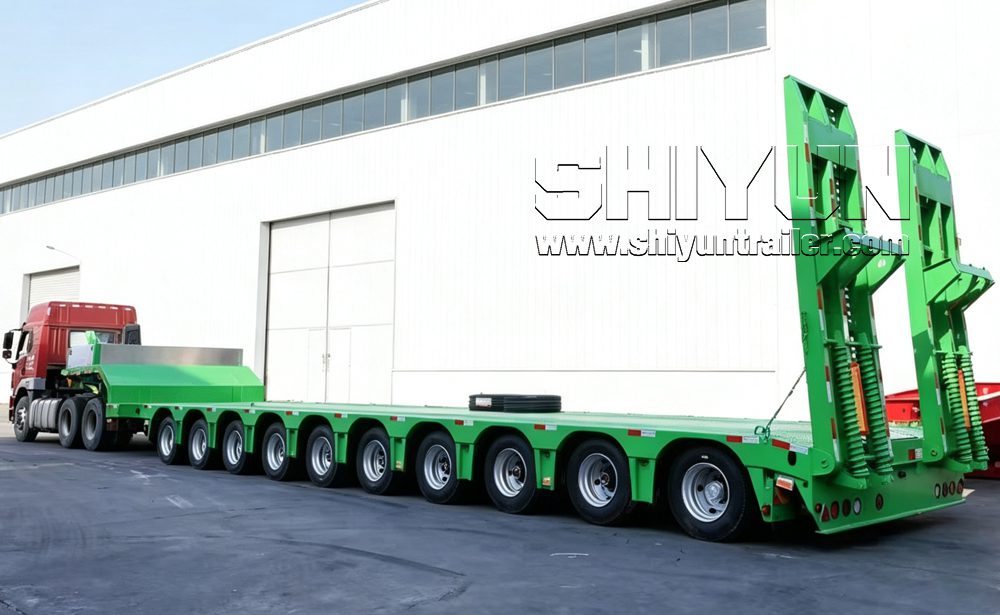

Various types of ramps are available,Allows self-propelled equipment such as excavators and bulldozers to drive and climb on and off directly. Including mechanical ramps, hydraulic ramps and hydraulic folding ramps.Mechanical ramps are equipped with assist springs, while hydraulic ramps come with an independent power unit, control buttons and a remote controller, which greatly improves customers’ loading, unloading and transportation efficiency.

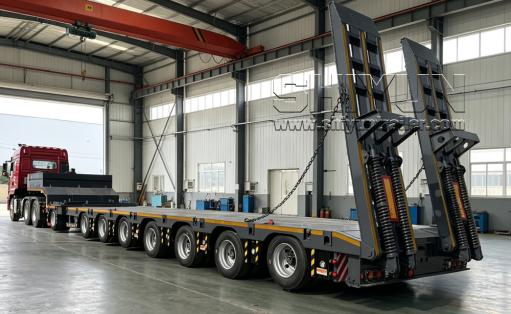

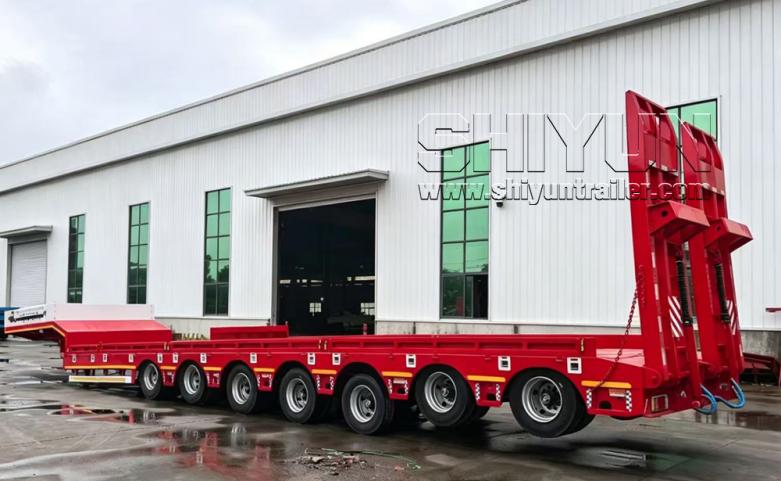

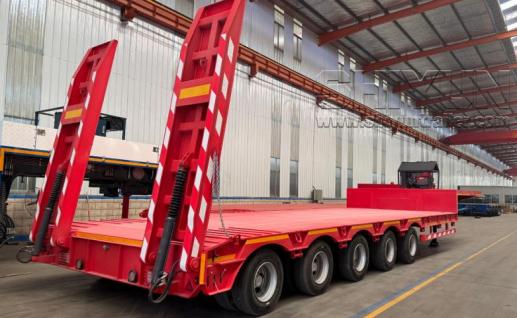

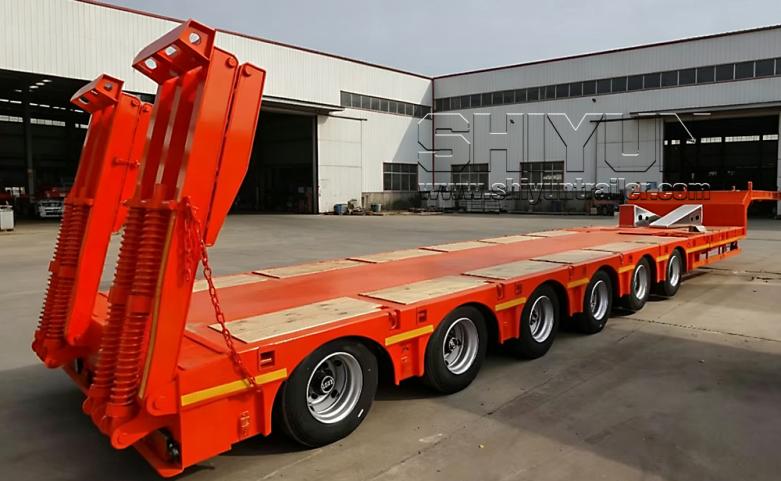

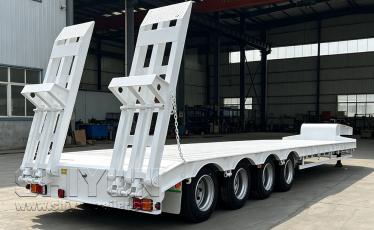

Mechanical ramp

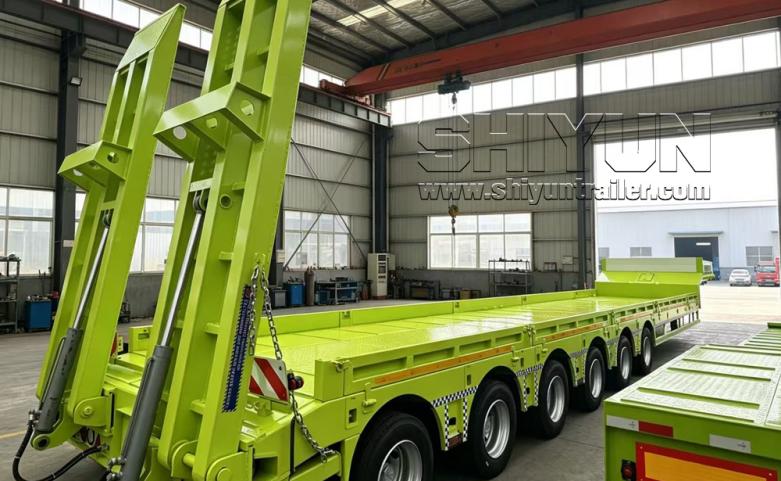

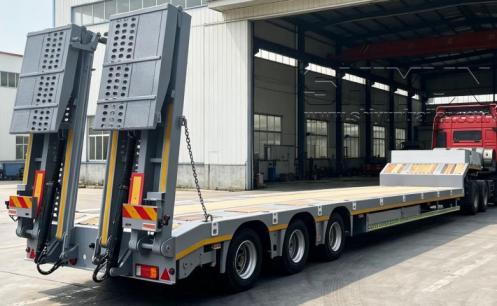

Hydraulic ramp

Hydraulic folding ramp

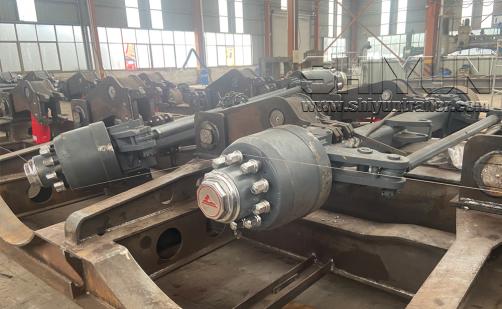

SHIYUN low loader trailers are equipped with renowned components, such as BPW, Fuwa, CTC, Jost,AN and others. These well-known brands feature high reliability, longer service life, and higher operating efficiency.

The loading platform can be made of checker plate or wooden planks, featuring sufficient thickness and high strength.

Lowbed trailer with checked plate

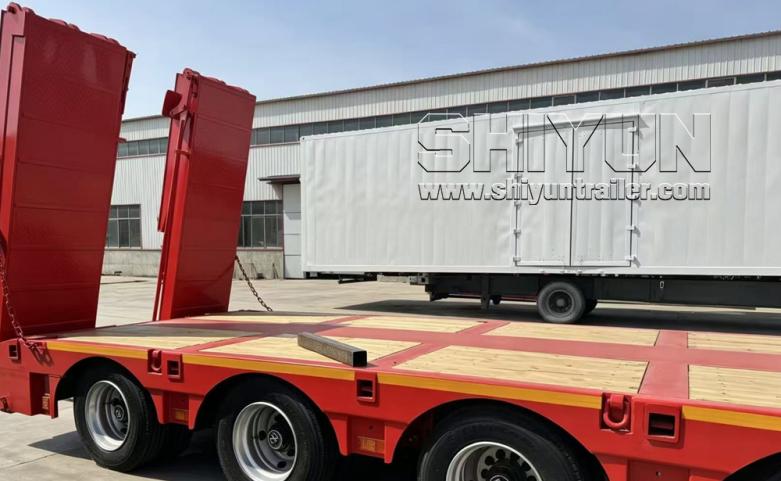

Lowbed trailer with wood deck plate

The low-bed semi-trailers manufactured by SHIYUN are available in a wide range of models, not limited to the above specifications. They can be fully customized according to your requirements to meet the regulatory standards and road access requirements of different countries.
Our low-bed semi-trailers are suitable for heavy-duty transportation in various scenarios, featuring a solid structure and stable operation. With professional performance, we help boost efficient logistics and are committed to creating greater value for customers with reliable quality.
