Drop Side/Fence Trailer

CARGO SEMI TRAILER

Based on flatbed trailers, we can equip various customized superstructures such as side boards, fences and livestock animals fence structures to meet diverse cargo/animals transportation requirements. The length and width are customizable, and the axle quantity can be flexibly selected according to different load tonnages.Materials can be carbon steel, stainless steel and aluminum alloy according to different cargo transportation requirements.

1. PARAMETERS

Item Specifications Remark
MaterialHigh strength Carbon steel T700 or manganese steel Q345B
Main beamH beambeam extendable optional

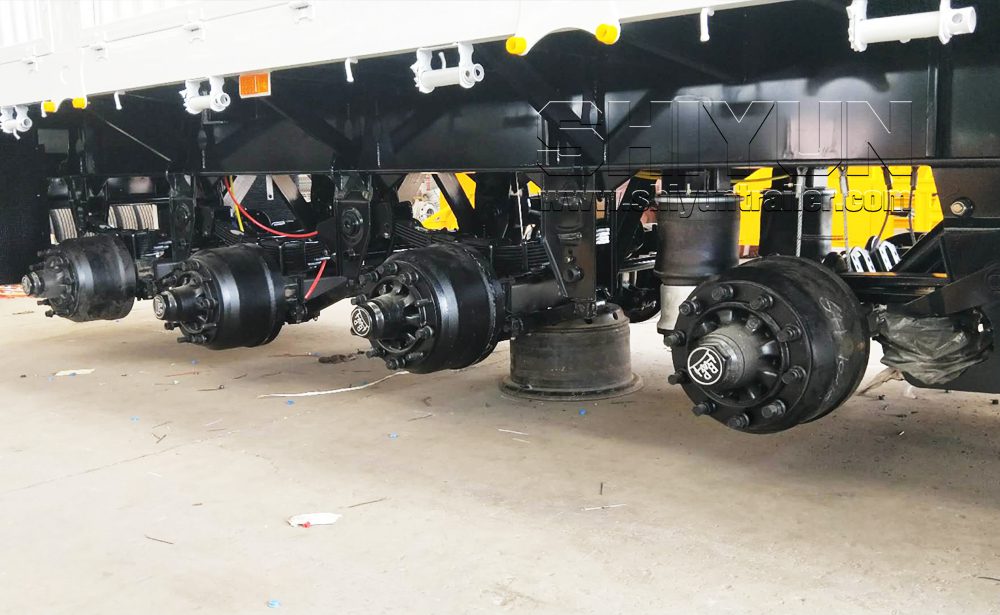

Axles11.5 ton, 13 ton (16 ton, 20 ton) capacityFUWA, BPW, AN, CTC or GT Brand
SuspensionMechanical suspensionAir suspension optional
Leaf springLeaf springAir bag lifting optional
Tire11R22.5, 12R22.5, 315/80R22.5, 385/65R22.5Other size and brand optional
King pin2” / 3.5” bolt type, SAE standardWelding on type optional (JOST)
Landing gear28 Ton two speedJOST or equivalent brand
PlatformChecked plate 3mmOther thickness optional
Side beam160mm
Twist locks4–14 pcs
Braking systemDual line brake system, double air chamber, brake valve, 40L air tanksABS optional
ElectricalLED light, 7 ways, 24V
PaintingBlasting and clean rust, 1 coat of prime painting, 2 coat of finish painting
AccessoryTool box, oil tank, spraying system optional

Above date can be customized per your local regulation and requirement

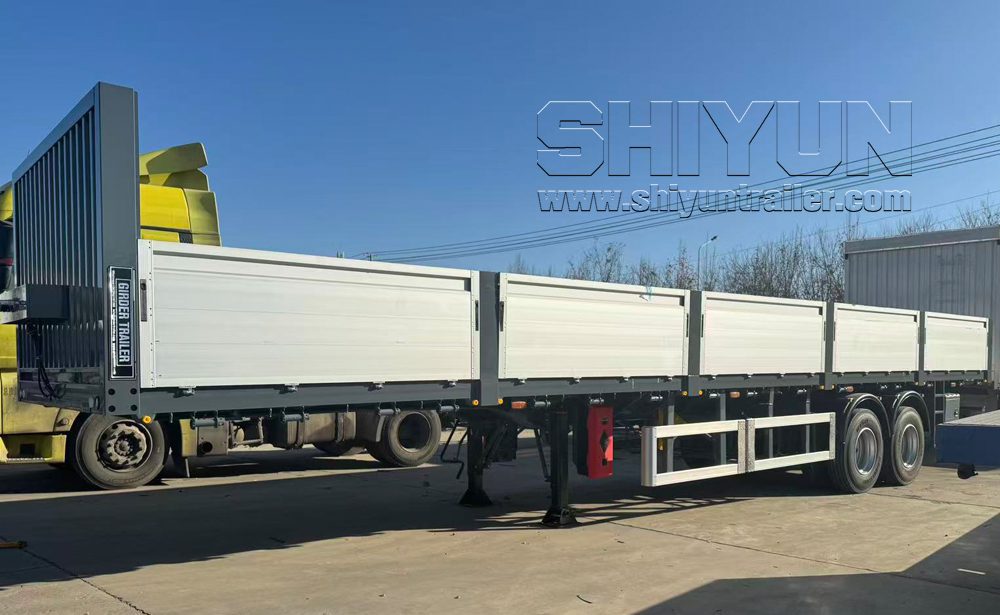

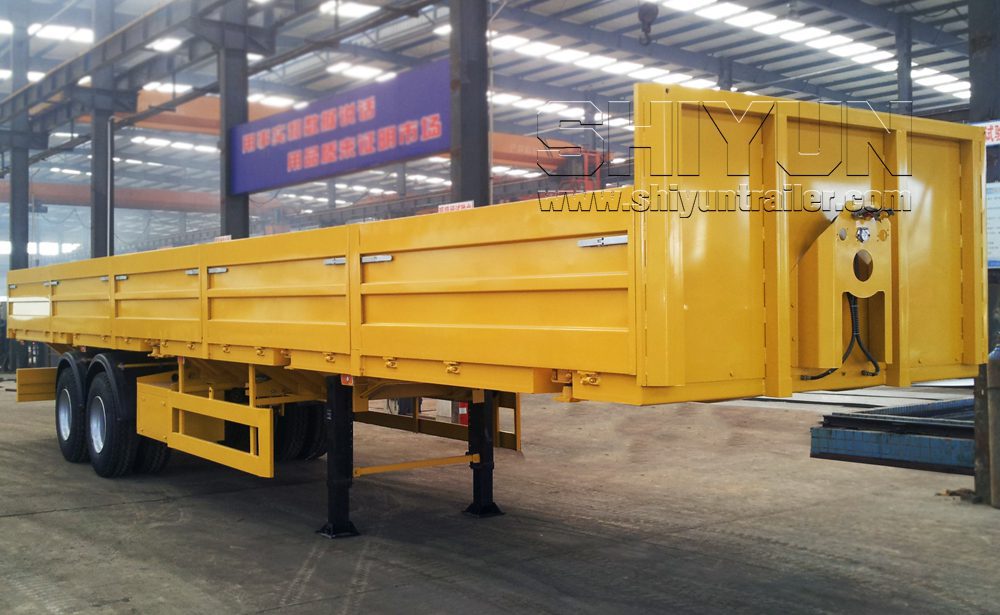

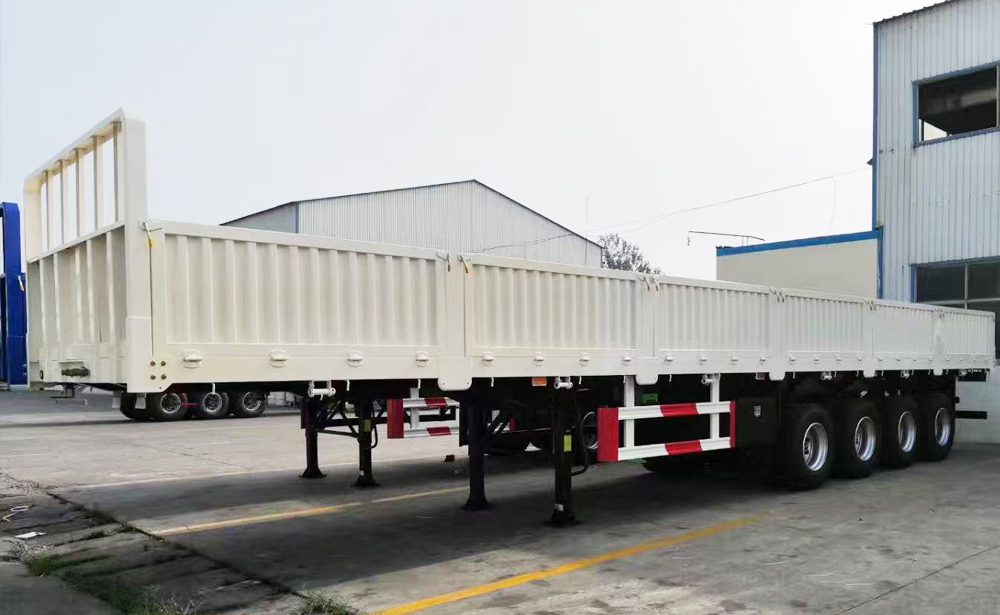

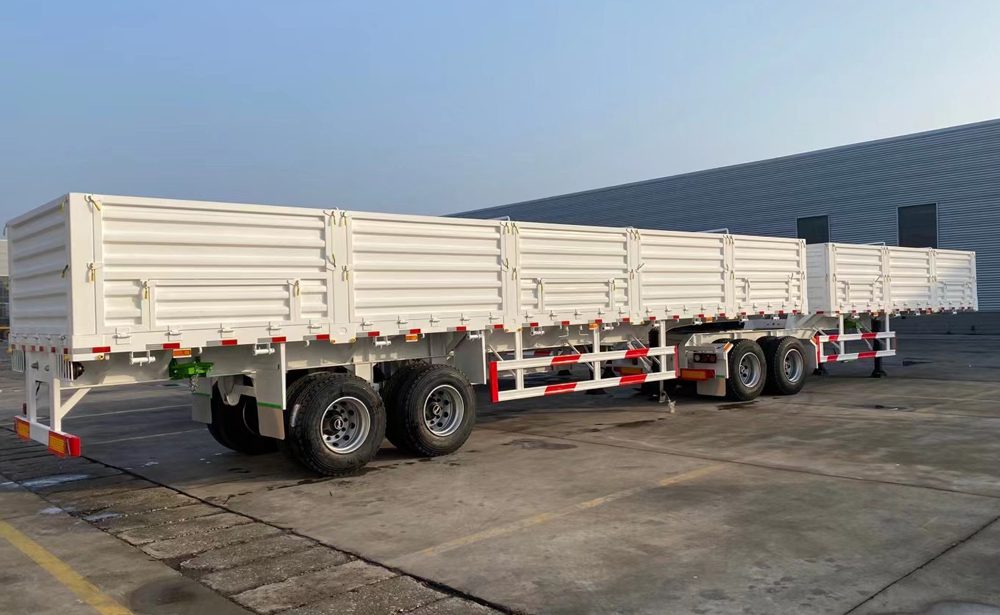

1. DROP SIDE SEMI TRAILER

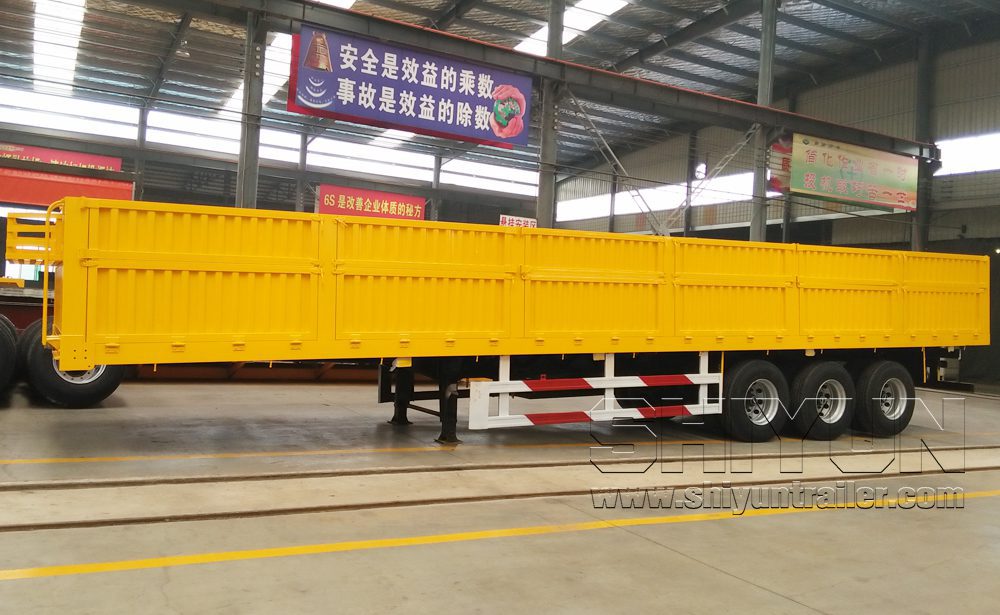

Drop side semi-trailers are more practical with side board installed on both sides.The height of the side panels can be customized as per customer requirements, normally ranging from 600mm to 2000mm.Container twist locks can be retained together with the side boards, allowing the trailer to achieve more diverse transportation functions.

  • It adopts an open side rail structure, enabling convenient and flexible loading and unloading. It is suitable for transporting various general cargo such as bulk goods, building materials, agricultural and sideline products, and daily necessities.
  • The trailer features high strength and strong load capacity. The frame is mostly designed with through beams for even stress distribution, making it ideal for heavy-duty transportation.
  • The height of the side rails and the length of the cargo body can be customized to meet different demands, providing strong versatility for a wide range of applications.
  • It has a simple structure, low maintenance cost, high reliability, and excellent operating economy.
  • Side-tipping and rear-tipping functions are optional. Some models are equipped with a self-dumping system to achieve high unloading efficiency.
  • SHIYUN customize carriage panels side wall in various styles, heights and thicknesses as required by customers.

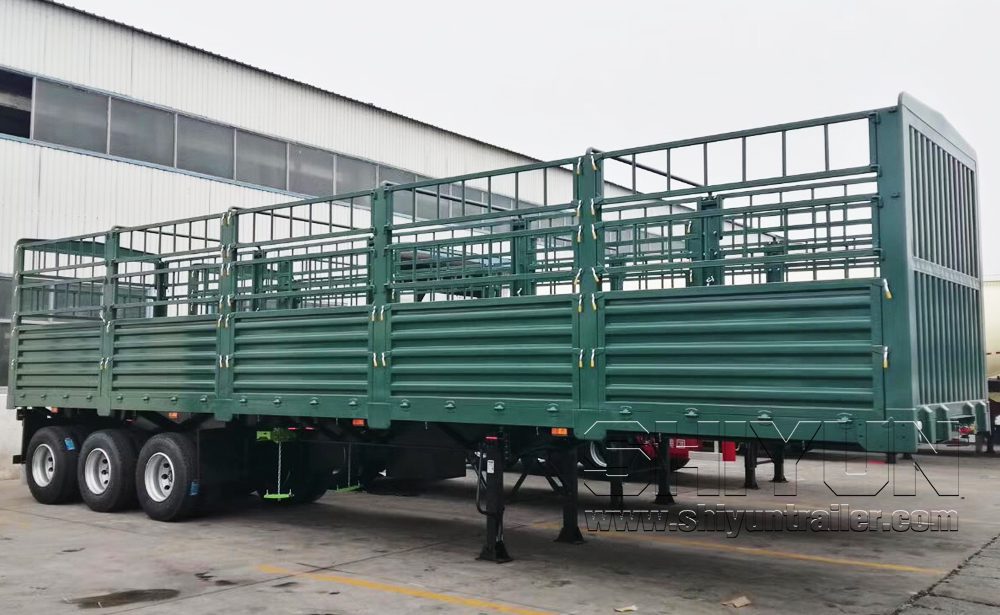

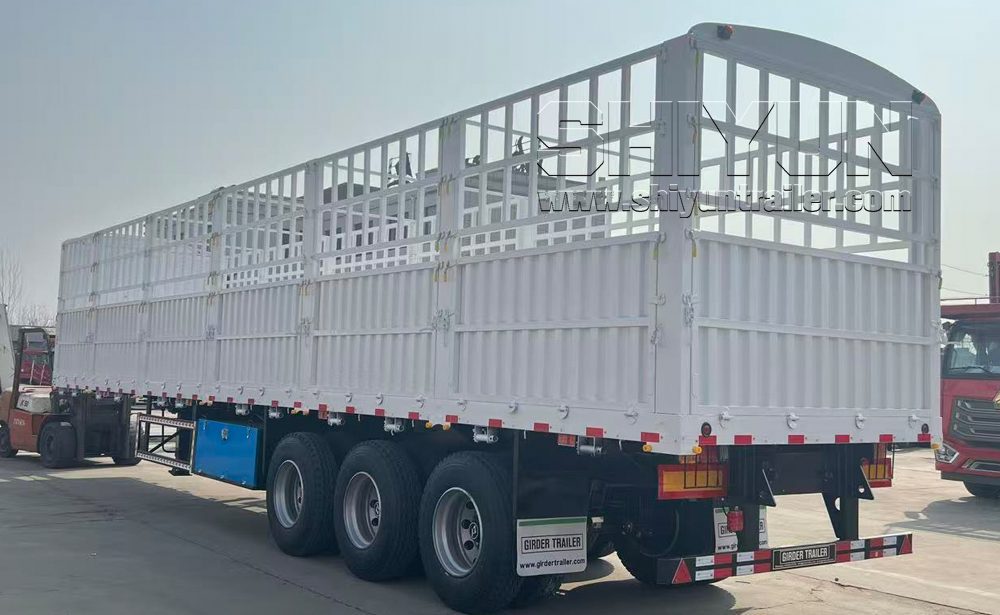

2.FENCE SEMI TRAILER

Fence semi-trailers generally have a higher protective structure, with a lower side board and an upper stake fence. Container twist locks can be retained, and both the side boards and stake fence are removable, making the vehicle more versatile for different transportation needs.

  • It features a column and fence-type cargo body structure with excellent ventilation, suitable for transporting livestock, poultry, fruits and vegetables, bamboo and wood materials, general cargo, and bulk goods.
  • The height of side rails and fences is adjustable, and the columns on some models are detachable for easy loading and unloading of over-height and over-width cargo, providing strong versatility.
  • It has a lighter dead weight and larger effective load capacity, delivering high transportation efficiency and good economy.
  • The trailer has high overall strength, strong resistance to torsion and impact, ideal for long-haul transportation.
  • It supports multiple opening modes including side opening and rear opening, making loading and unloading fast and convenient.
  • Waterproof tarpaulin can be added as needed to provide rain, sun and dust protection for different types of cargo.

3.LIVESTOCK SEMI TRAILER

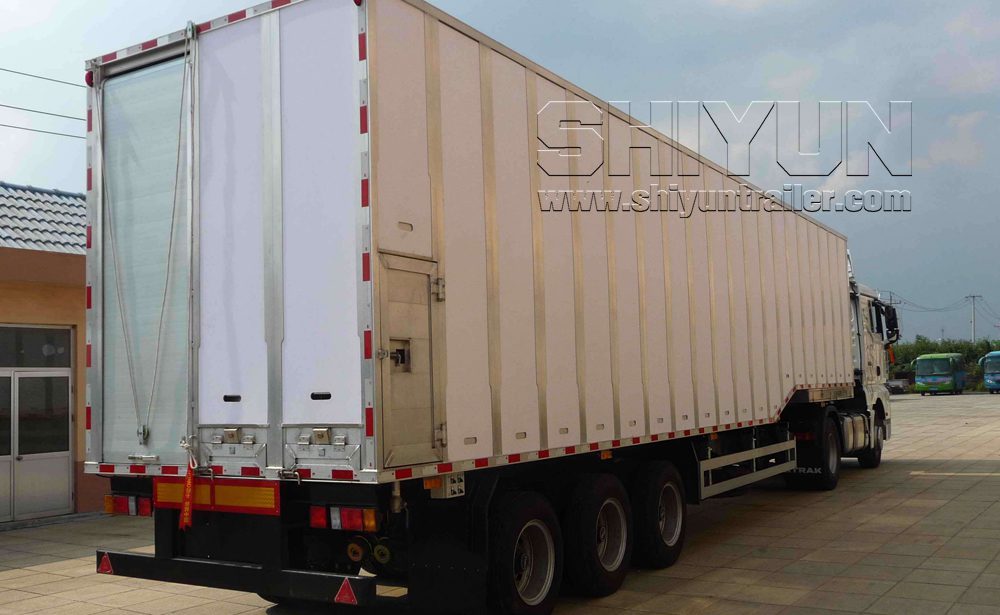

To transport various livestock and poultry, SHIYUN supplies livestock semi-trailers that meet biosafety standards. Available in fully enclosed and semi-enclosed structures, the trailers are leak-proof and spill-proof, and easy to thoroughly clean.It is suitable for transporting large livestock such as cattle, sheep, pigs and horses, as well as small poultry including chickens, ducks and geese.

  • Single-layer or multi-layer electric ventilation devices can be configured, equipped with professional ventilation and air conditioning systems, which can quickly discharge harmful gases such as ammonia in the carriage, effectively ensuring the safety of the livestock and poultry breathing environment and providing a comfortable transportation environment for livestock and poultry.
  • Equipped with a constant temperature control system, it can accurately adjust the temperature and humidity in the carriage. Air conditioning and heating equipment can be optionally installed, combined with spray devices to accurately control the temperature and humidity range, effectively reducing the stress response of animals during transportation and reducing transportation losses.
  • A high-quality thermal insulation layer is added on the top of the box, which has good sun protection and heat insulation performance, can stabilize the temperature in the carriage, and avoid the impact of external temperature changes on the state of livestock and poultry; it also supports an open structure design to flexibly adapt to different use needs.

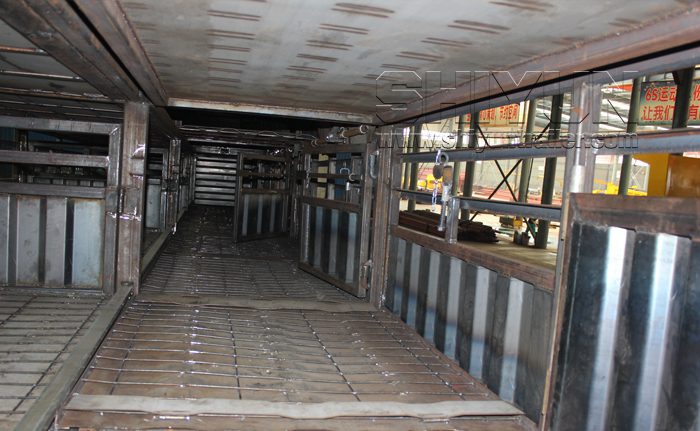

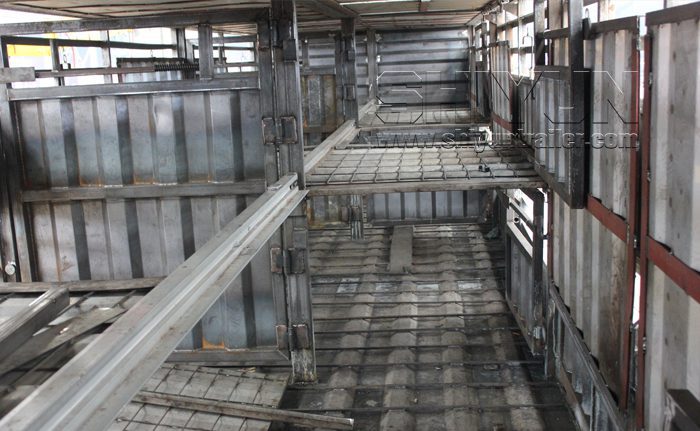

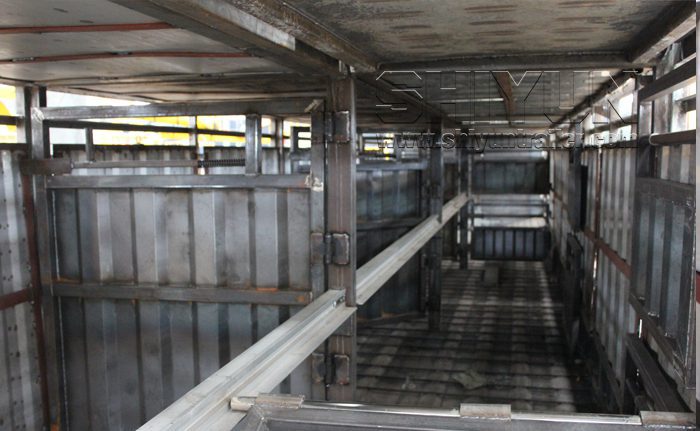

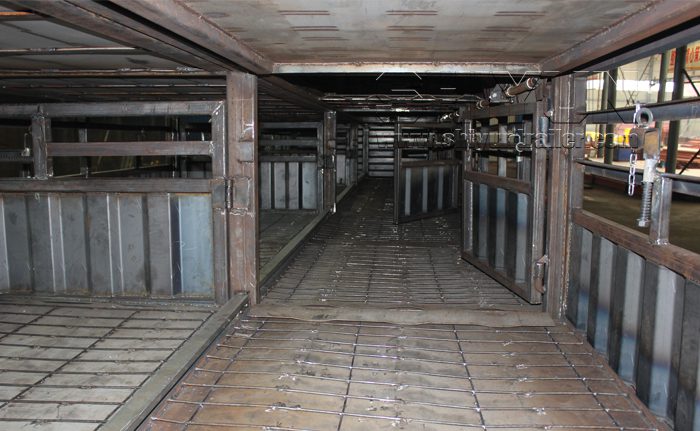

  • The carriage adopts a 1 to 4-layer layered design, and partitions can be added inside as needed. The top plate can be opened and turned over, which not only facilitates the loading and unloading of livestock, poultry and related goods, but also facilitates the comprehensive cleaning of the carriage by personnel. At the same time, the space can be flexibly divided to significantly improve the load capacity.
  • Considering that animal excreta has strong corrosiveness, the bottom plate is made of high-quality materials such as aluminum alloy and stainless steel, which has the advantages of high strength, corrosion resistance and good load-bearing performance. At the same time, it adopts a lightweight design to effectively reduce transportation energy consumption; the bottom plate is anti-slip treated, easy to rinse and clean, and convenient for daily maintenance.
  • Hydraulic tailgates and upper and lower ramps can be optionally equipped according to needs, allowing livestock to pass up and down the vehicle by themselves without too much manual intervention, greatly improving loading and unloading efficiency and reducing labor costs.
  • It is equipped with a self-contained sewage collection system, which can uniformly collect and centrally treat the feces and sewage generated during transportation, eliminating environmental pollution and secondary pollution caused by feces and sewage leakage, and meeting the requirements of environmentally friendly transportation.
  • Integrated integrated water supply system, equipped with water storage tank, spray device and drinking device, can provide clean drinking water for livestock and poultry at any time, and meet the cooling needs of livestock and poultry on the way, ensuring the physiological needs of livestock and poultry during transportation. This equipment is suitable for various livestock and poultry transportation scenarios such as long-distance trunk lines, cross-regional and cross-border transportation.
  • ABS braking system, driving recorder and real-time monitoring equipment can be optionally equipped according to needs to fully ensure driving safety. At the same time, it can real-time monitor the transportation status of livestock and poultry in the carriage, timely detect and handle abnormal situations, and improve transportation safety and controllability.

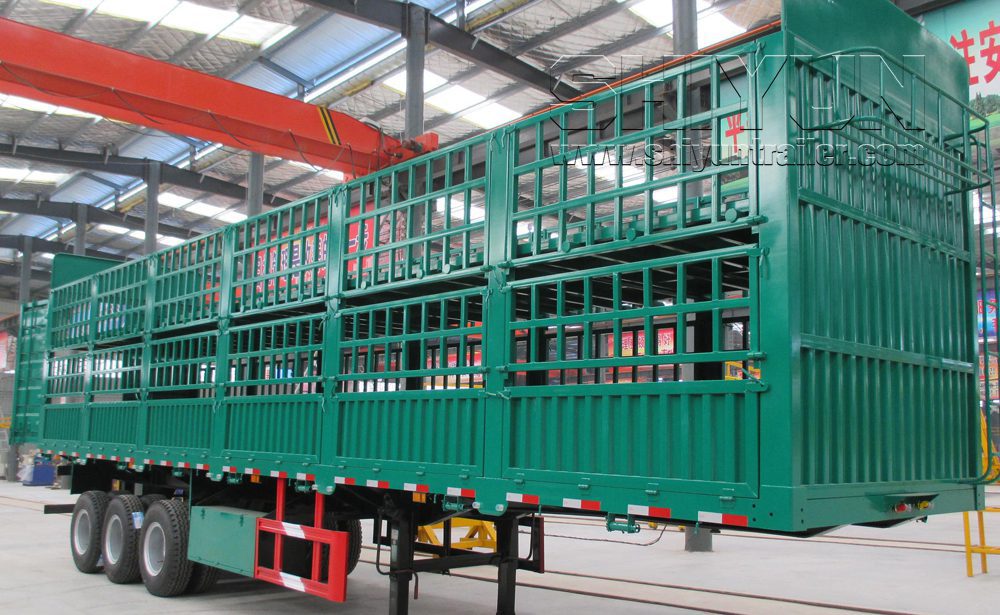

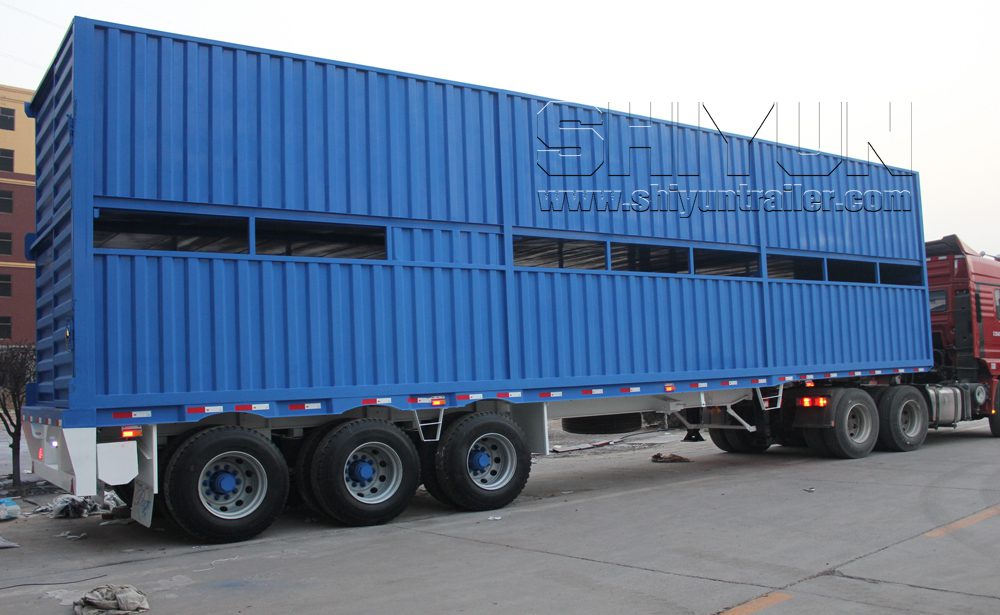

2 layers animal livestock transport trailer (for cattle ,cow ,horse )

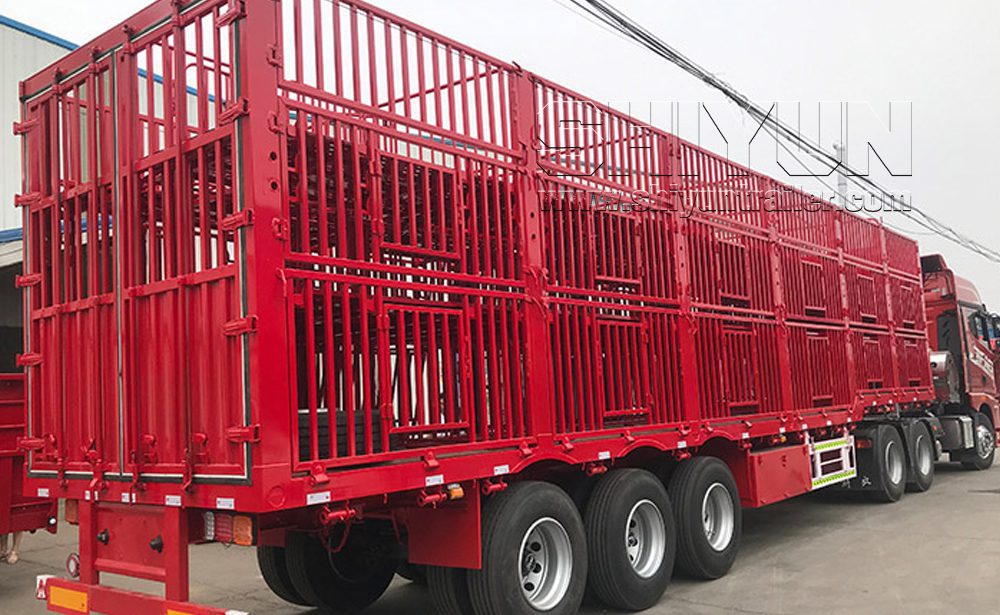

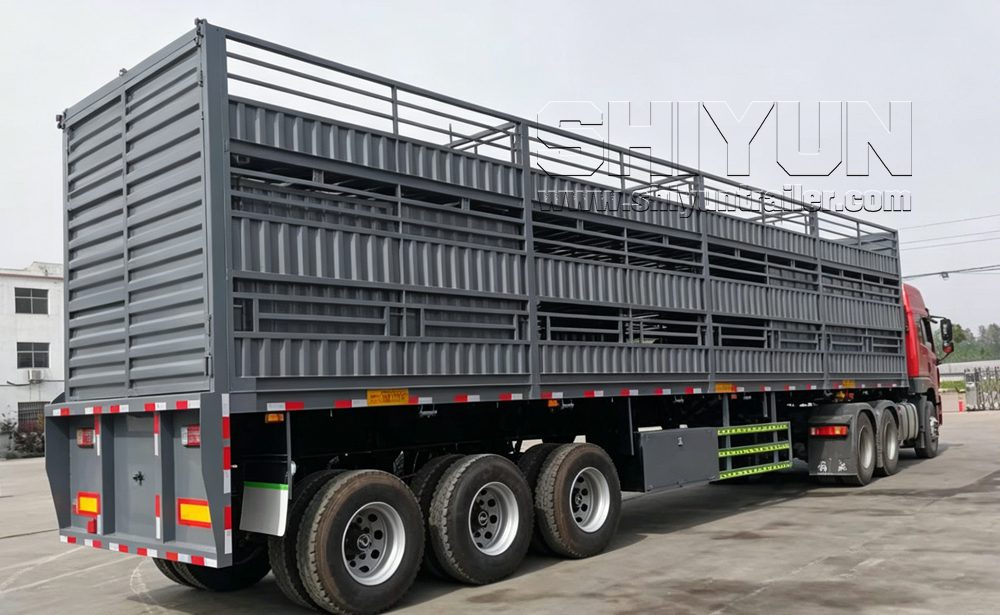

3 layers animal livestock transport trailer(for sheep,got,pig)

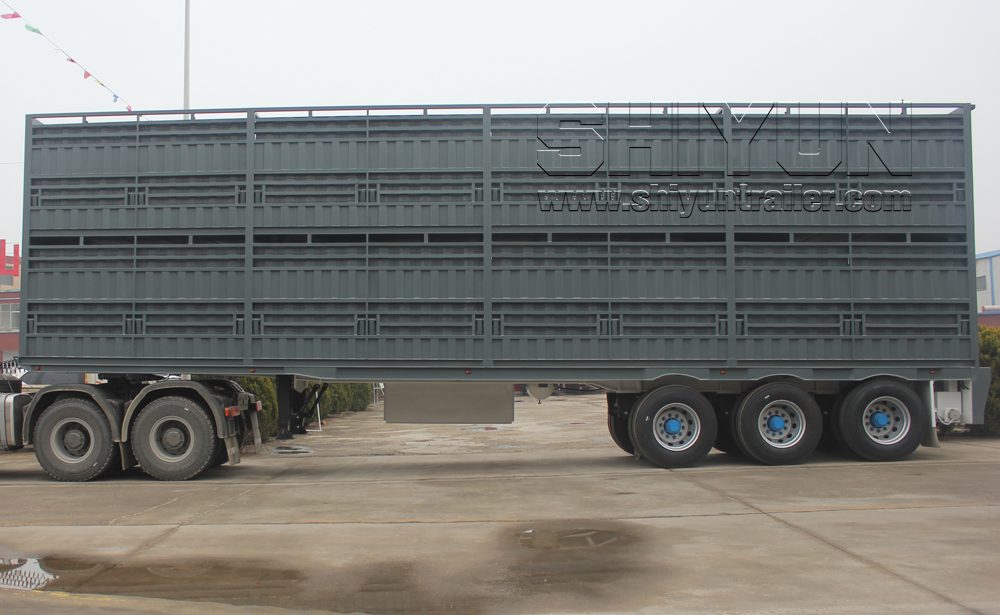

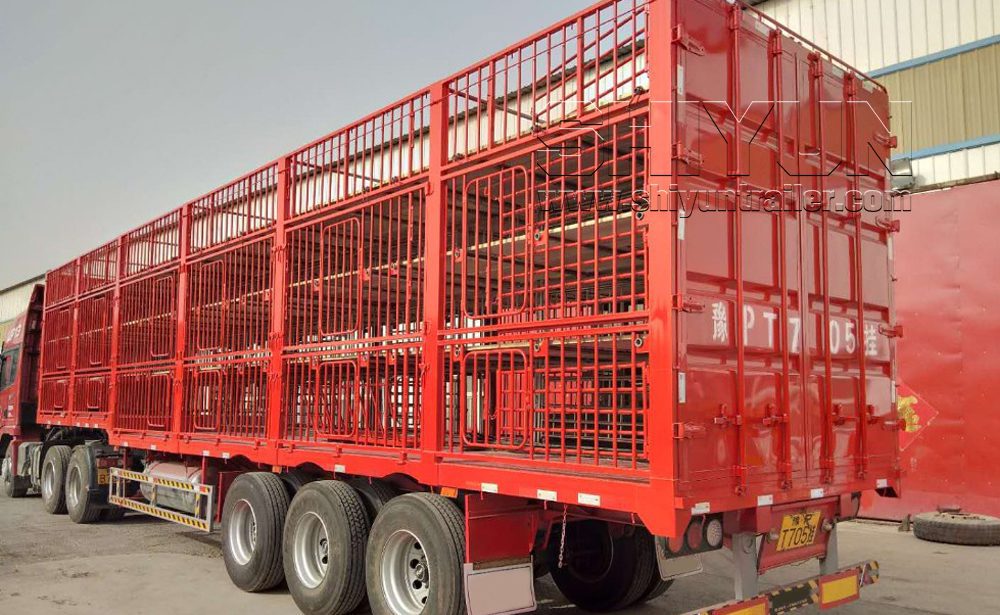

4 layers animal livestock/Poultry transport trailer(for piglet,lamb,pigling,duck,goose ,chicken,hen,cock)

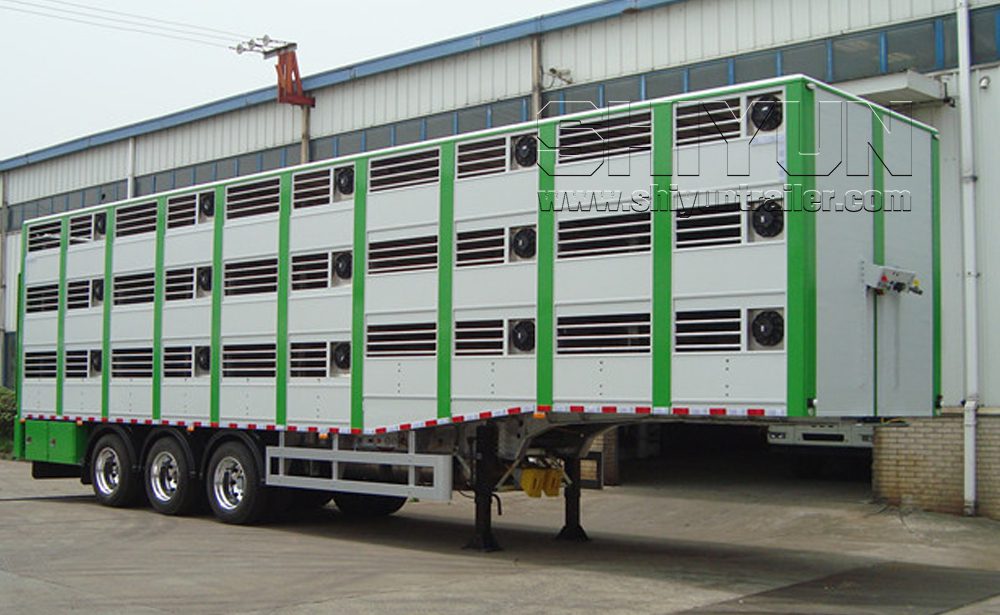

Aluminum alloy livestock and poultry transport semi-traile
