To meet the transportation requirements of standard shipping containers, SHIYUN TRAILER usually use skeletal semi-trailers or flatbed container semi-trailers for transshipment.Standard shipping containers come in a variety of sizes, including 20ft, 30ft, 40ft, 45ft, 48ft and 53ft. Among them, 20ft and 40ft containers are the most commonly used.The number of axles can be configured according to different load capacity requirements.With a general load range of 20 to 60 tons, SHIYUN usually use two, three or four axles to ensure safe transportation of various containers.For flatbed container semi-trailers, we also sometimes refer to them as trailer flat deck trailers or high bed trailer .A flat bed trailer is a type of semi-trailer not only specially designed for transporting containers，but also carry steel products, mechanical equipment, engineering components, bagged cement and various other goods.Therefore, its load capacity covers a wider range than conventional container transporters, ranging from 20 to 100 tons.In addition to the common 2, 3 and 4 axles, 5 or 6 axles can also be installed.The length of the trailer is also more flexible than skeleton trailers, and can be fully customized according to customer requirements.

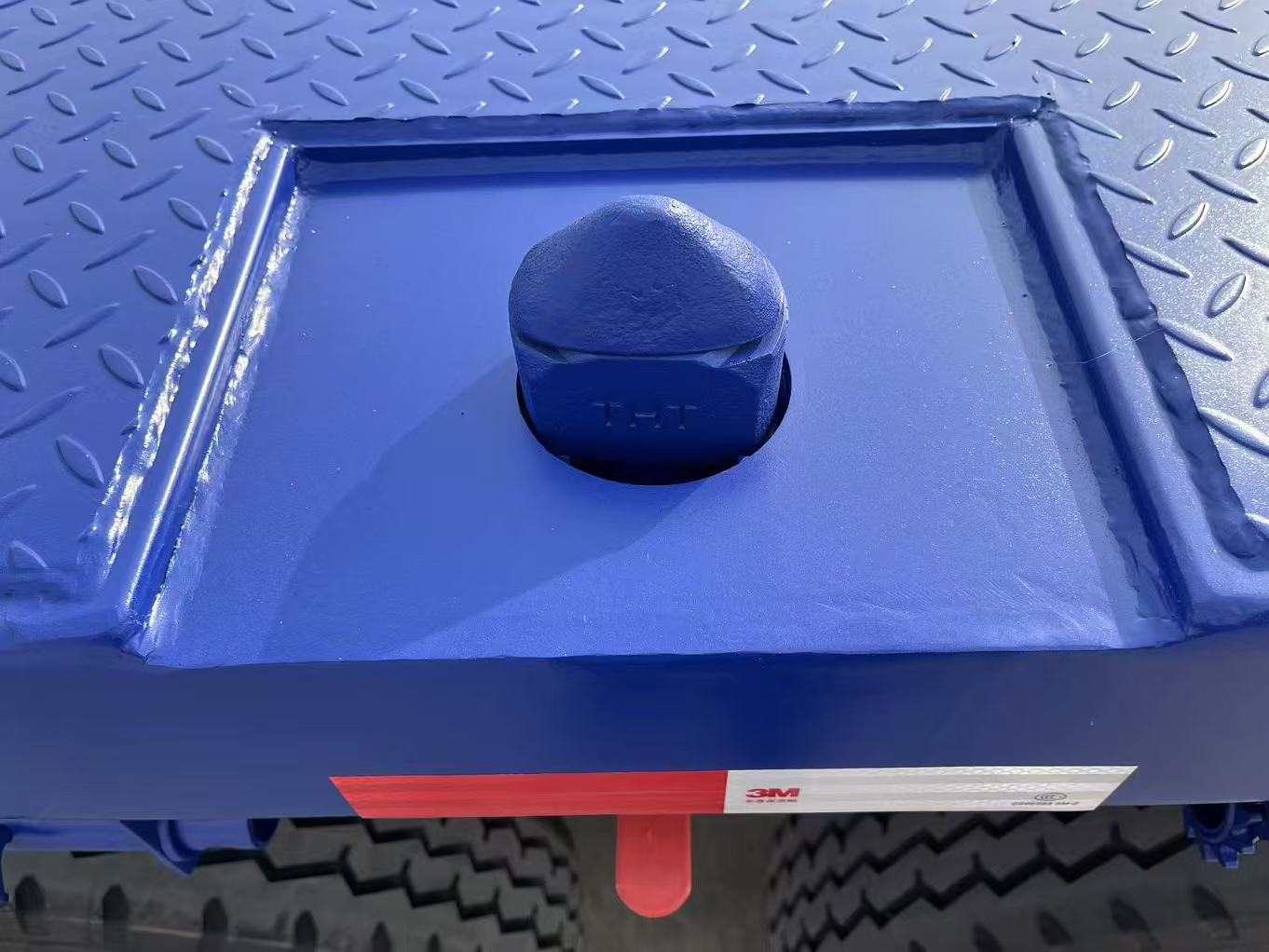

Customers can choose to install container twist locks for container transportation. If containers are not being transported, the twist locks can be omitted.
| Item | Specifications | Remark |
|---|---|---|
| Material | High strength Carbon steel T700 or manganese steel Q345B | |
| Main beam | H beam | beam extendable optional |
| Axles | 11.5 ton, 13 ton (16 ton, 20 ton) capacity | FUWA, BPW, AN, CTC or GT Brand |

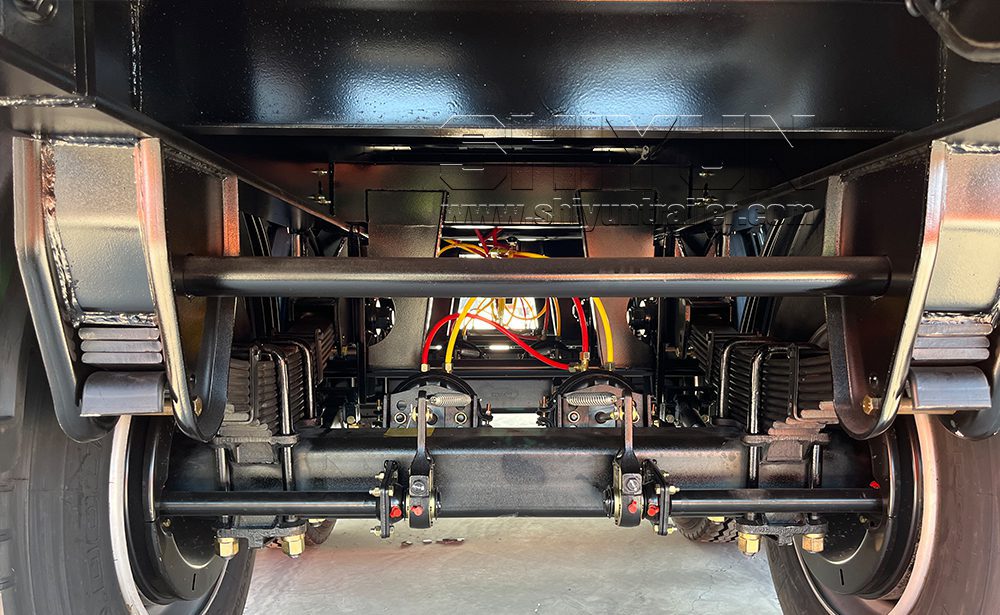

| Suspension | Mechanical suspension | Air suspension optional |
| Leaf spring | Leaf spring | Air bag lifting optional |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, 385/65R22.5 | Other size and brand optional |

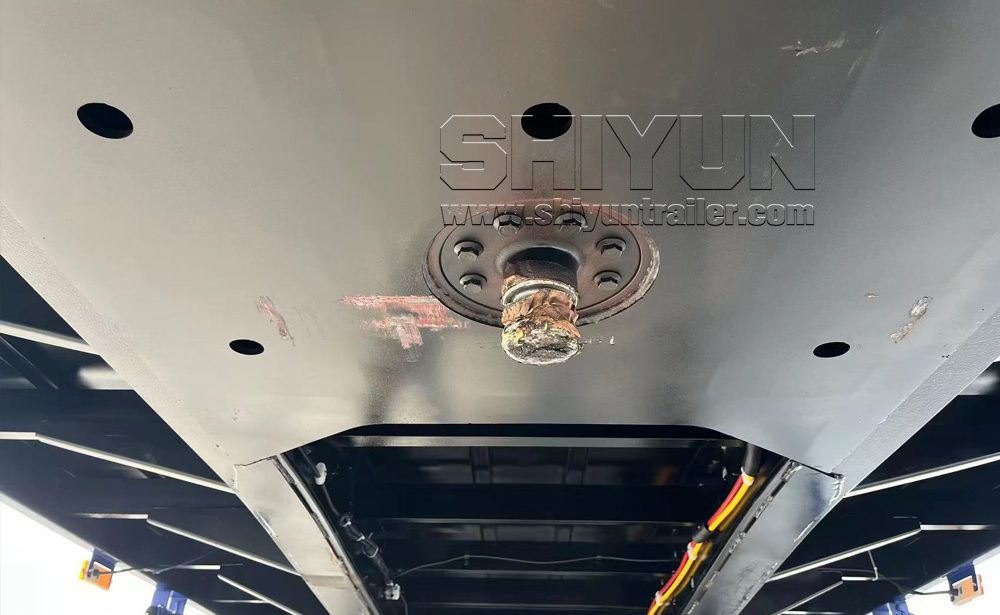

| King pin | 2” / 3.5” bolt type, SAE standard | Welding on type optional (JOST) |

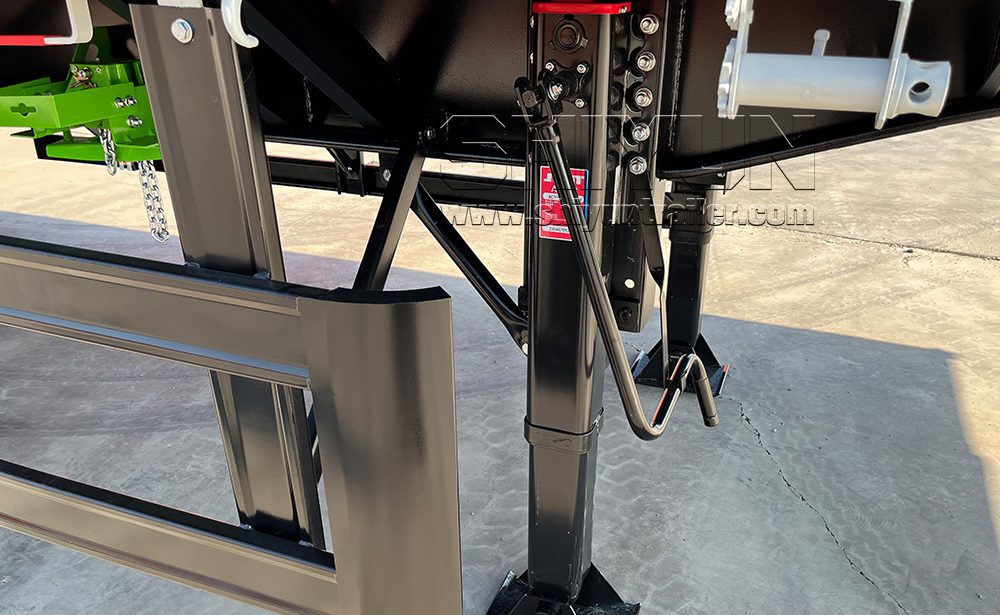

| Landing gear | 28 Ton two speed | JOST or equivalent brand |
| Platform | Checked plate 3mm | Other thickness optional |
| Side beam | 160mm | |
| Twist locks | 4–14 pcs | |
| Braking system | Dual line brake system, double air chamber, brake valve, 40L air tanks | ABS optional |
| Electrical | LED light, 7 ways, 24V | |

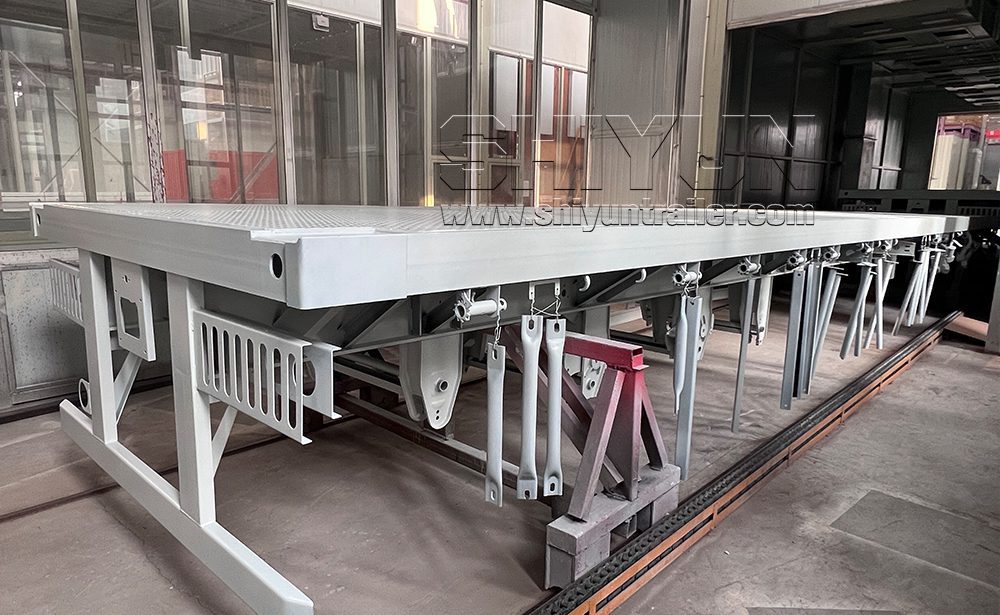

| Painting | Blasting and clean rust, 1 coat of prime painting, 2 coat of finish painting | |
| Accessory | Tool box, oil tank, spraying system optional |
Above date can be customized per your local regulation and requirement

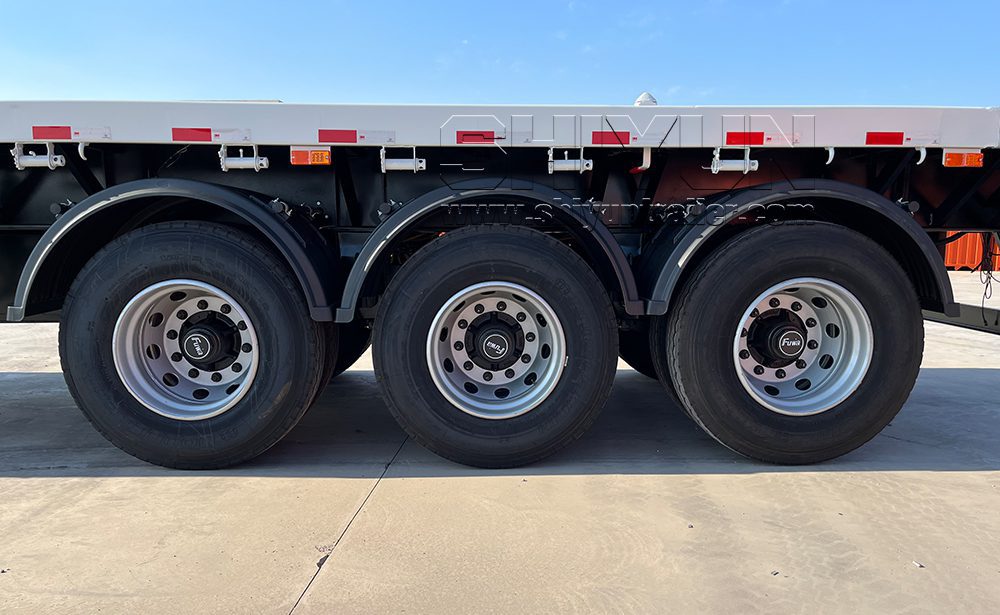

Shiyun flatbed semi-trailers are built for sturdiness and durability, typically equipped with Jost kingpins, Fuwa B axles or BPW axles.They feature an extended and thickened drawbar plate, with reinforced load-bearing sections and suspension components.

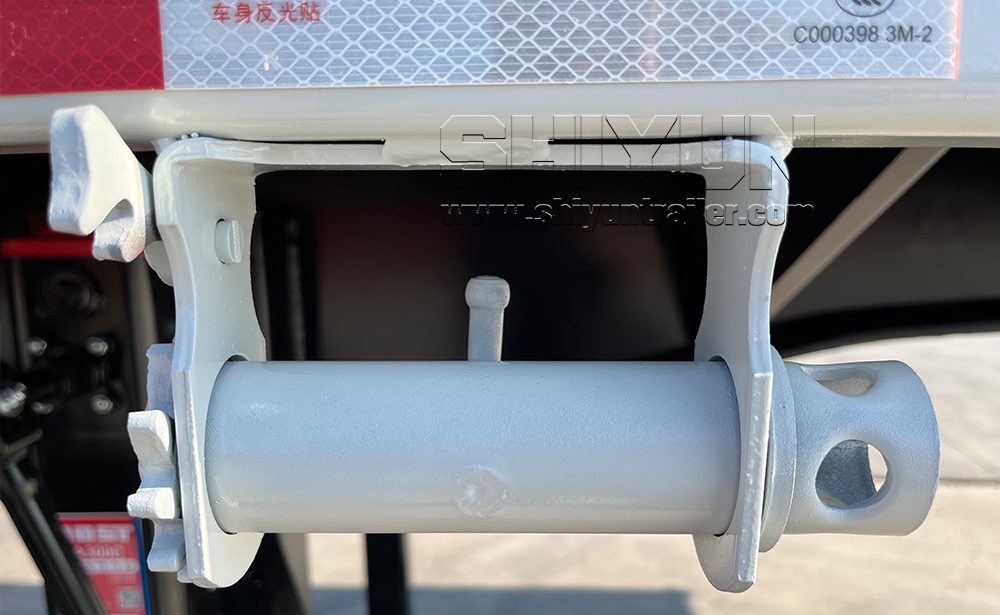

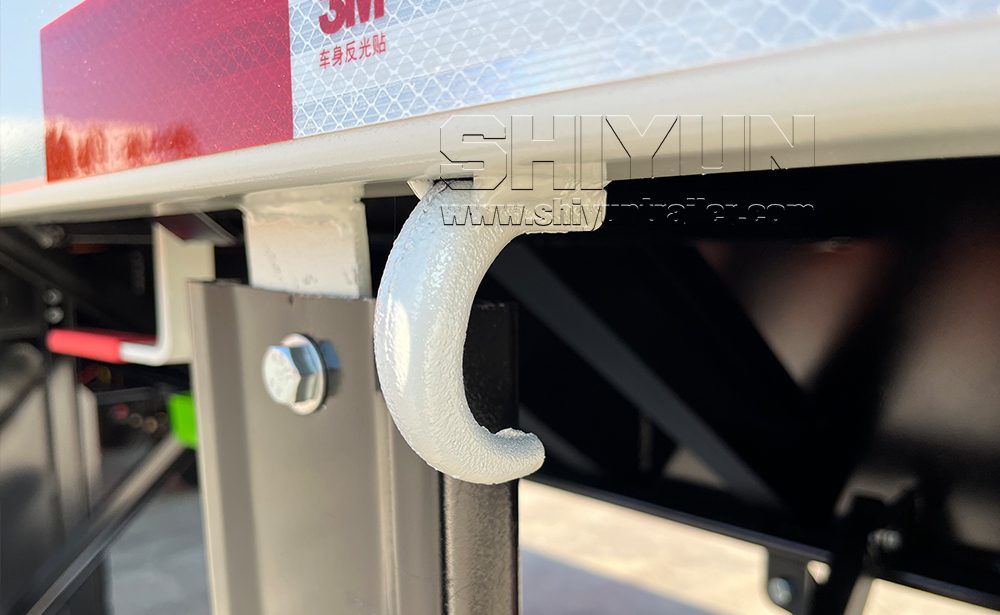

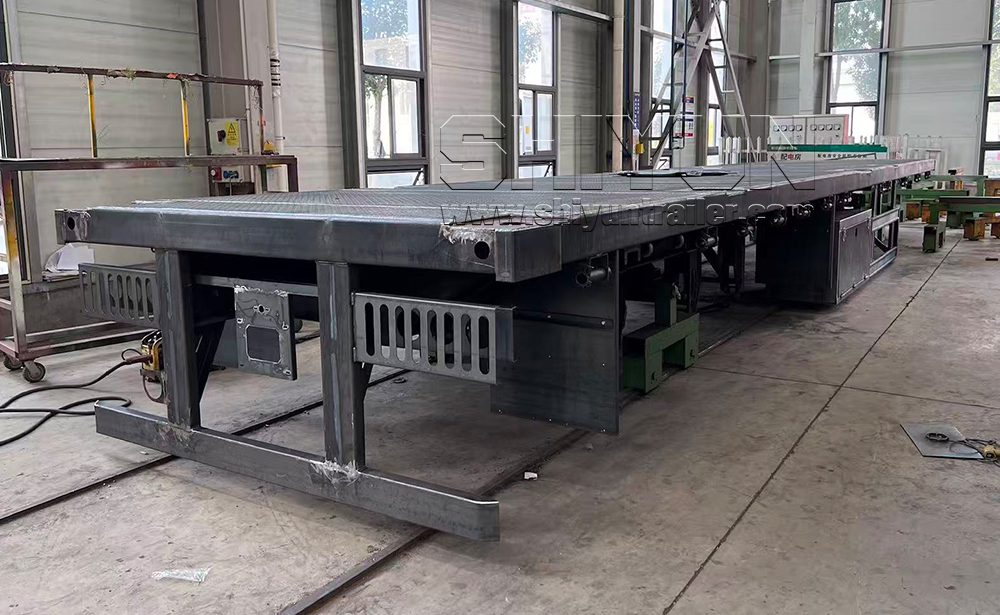

Channel steel and cross supports are installed under the floor to enhance structural stability, making the trailer more durable, longer-lasting and capable of higher payloads.We can also customize flatbed semi-trailers with different configurations and price ranges according to your specific requirements.The container flatbed semi-trailer is equipped with rope tighteners on both sides, which can meet the transportation and fixation needs of various goods. In addition to containers, it is also suitable for transporting a wide range of general cargo and large-sized goods.
According to the dimensions of ISO standard containers, the most common lengths for container flat deck semi-trailers are 20ft, 40ft and 45ft. （Others size also optional)Classified by different functions and design features, flat bed truck trailers can be divided into the following categories.:

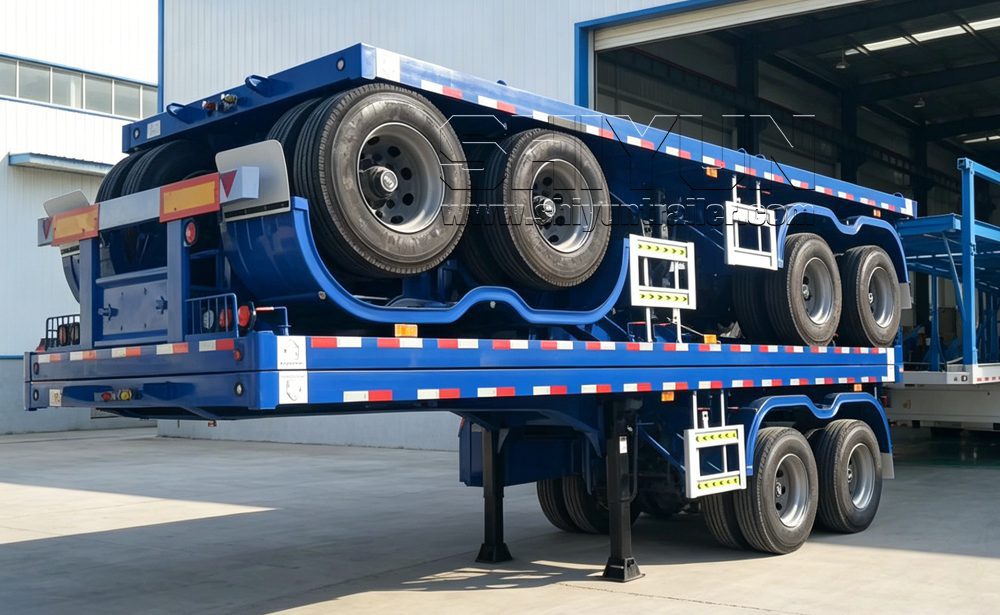

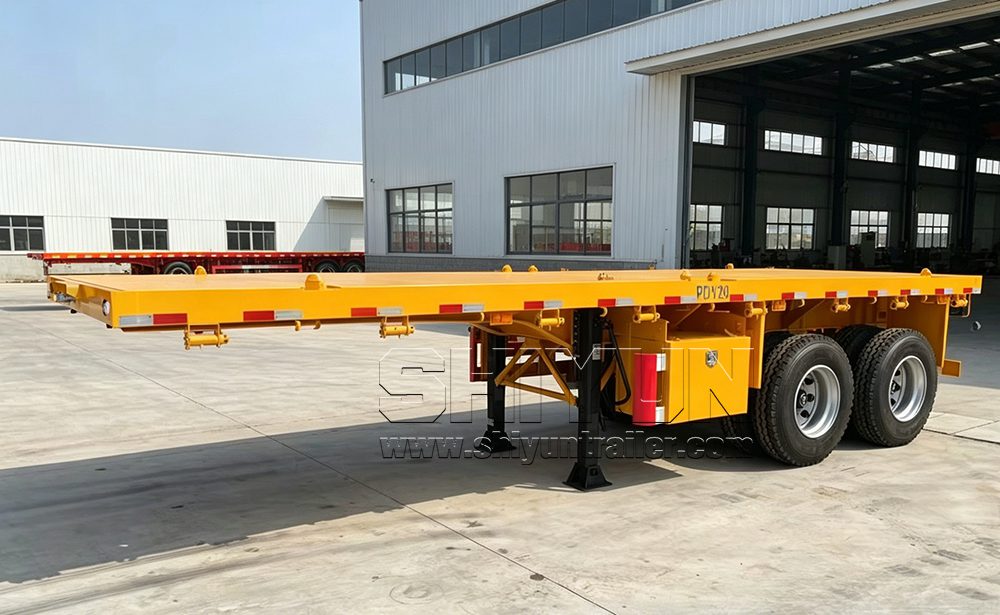

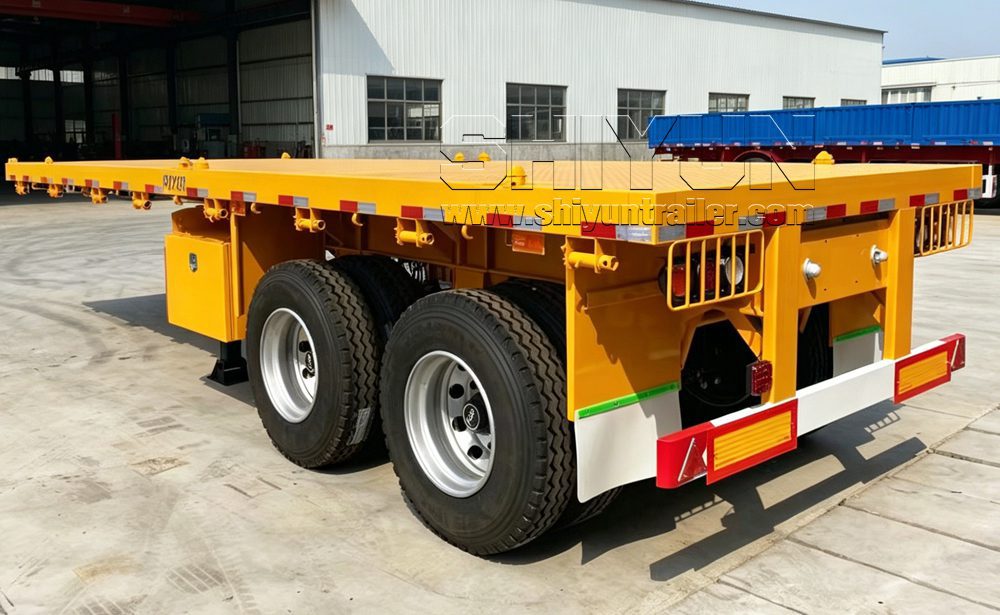

Similar to the 20ft skeleton semi-trailer, the 20foot flatbed semi-trailer can be used for transporting containers as well as various types of bulk and general cargo.It features a similar length to the skeleton trailer, usually equipped with a dual-axle setup as standard, although a tri-axle configuration is also available for customer selection.

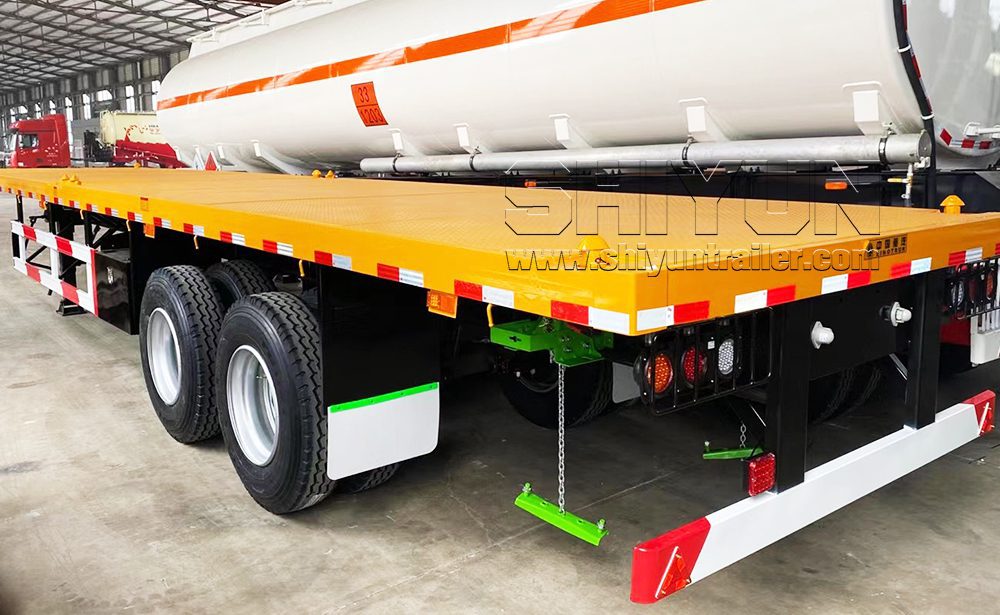

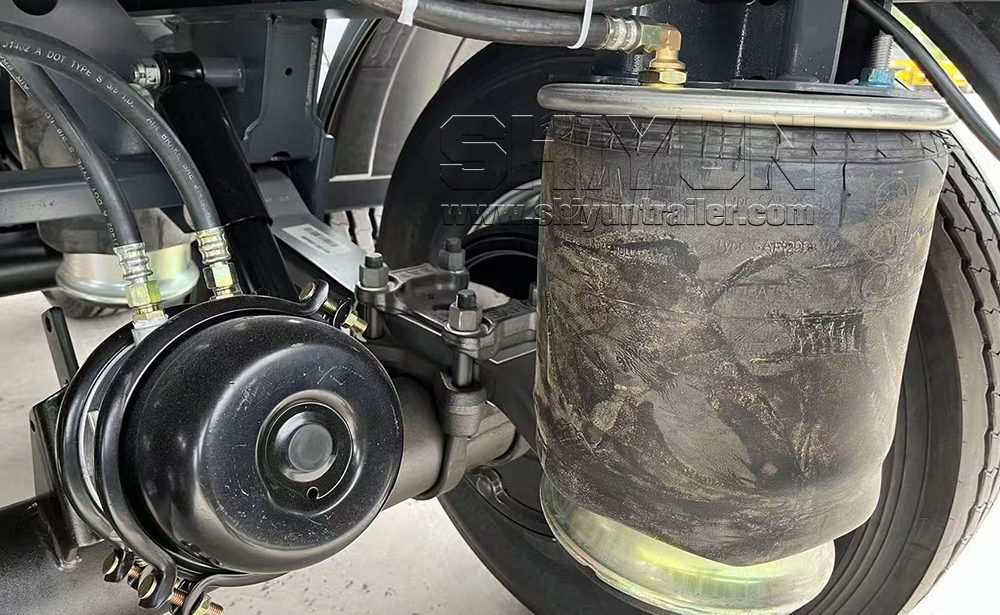

Most customers prefer the 40ft and 45footer trailers as it can carry two 20ft containers at the same time.Such trailers are generally equipped with three axles as standard, but we can also customize the number of axles according to customers’ special requirements.And is generally equipped with 4 to 14 twist locks.To reduce the overall weight, many customers also choose single-tire 385/65R22.5 flatbed trailer container ,air bag suspension flatbed trailer or aluminum alloy material flatbed trailer container trailer.
Dual axles flatbed semi trailer

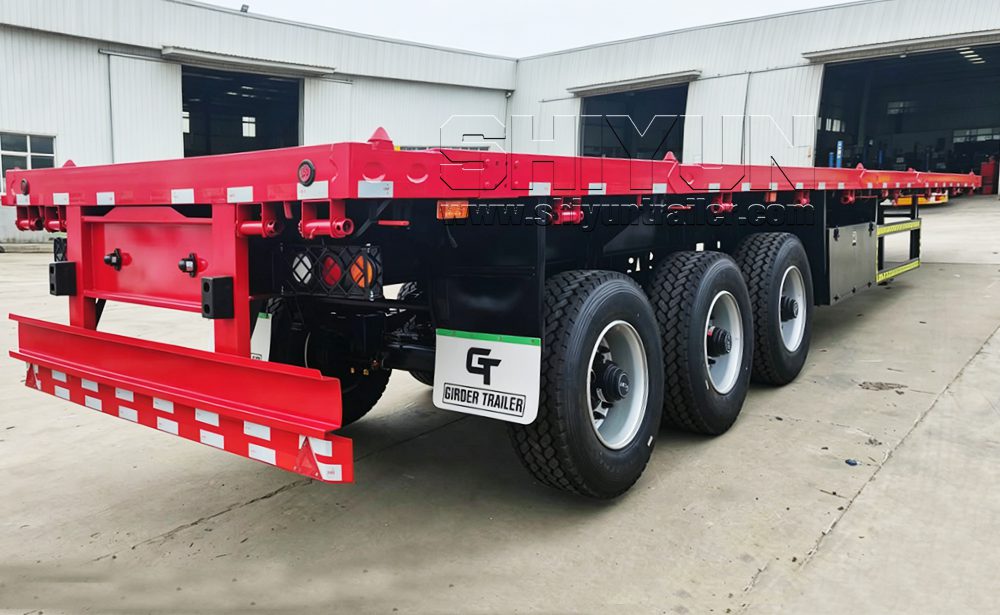

Triple axles single tires flatbed trailer

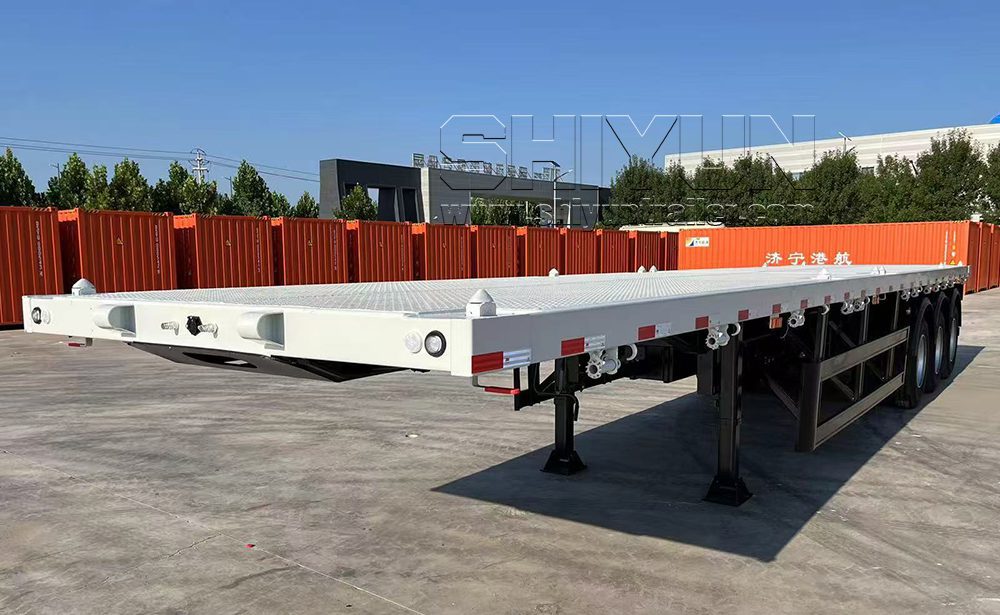

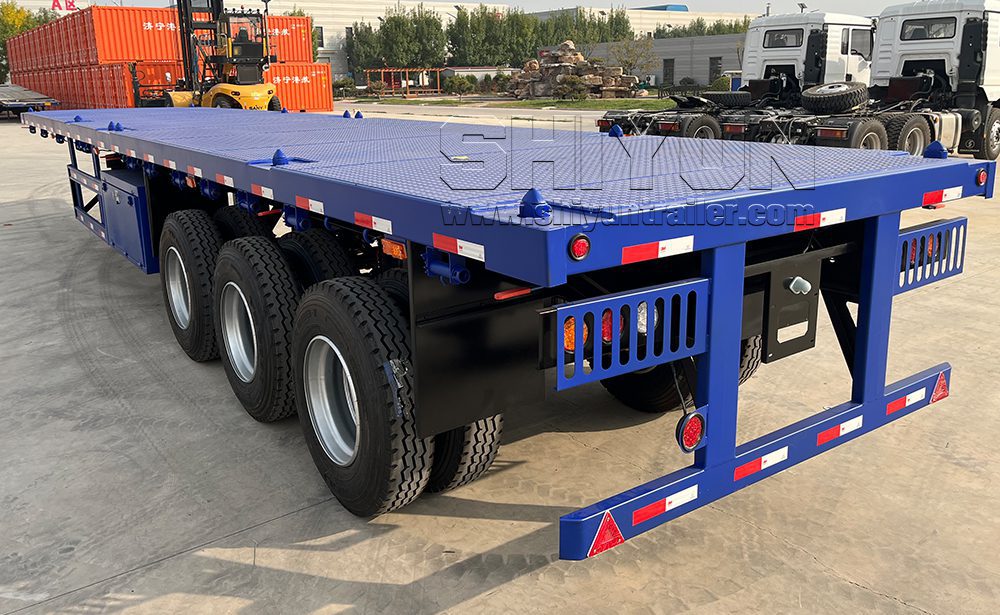

3 axles double tires flatbed trailer

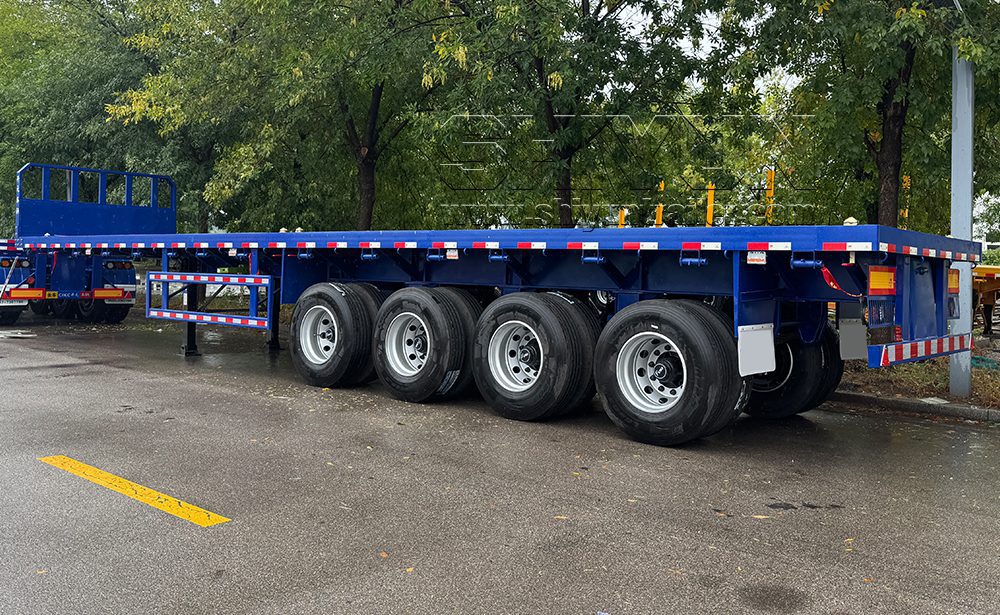

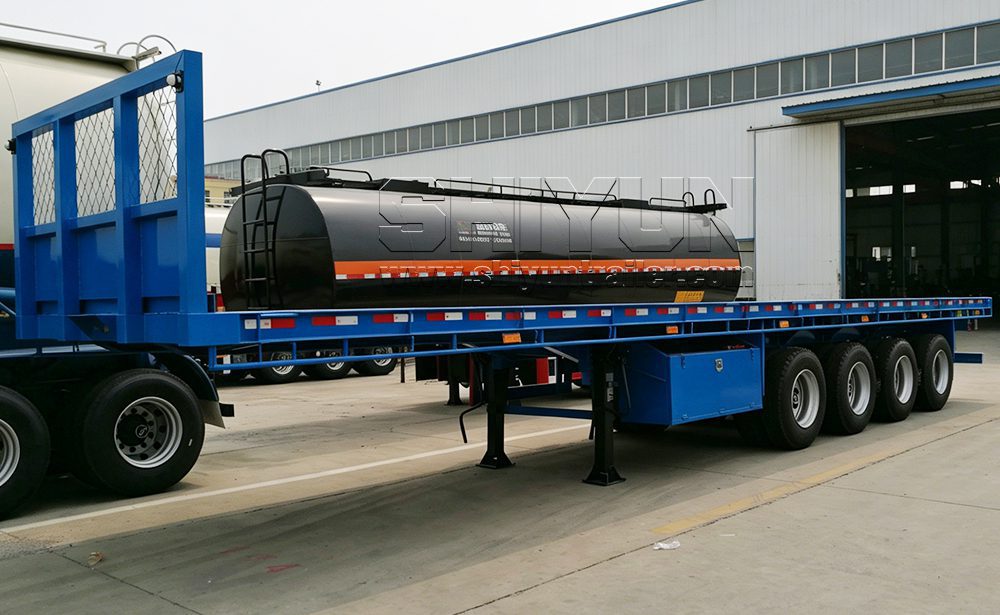

4 axles flatbed trailer

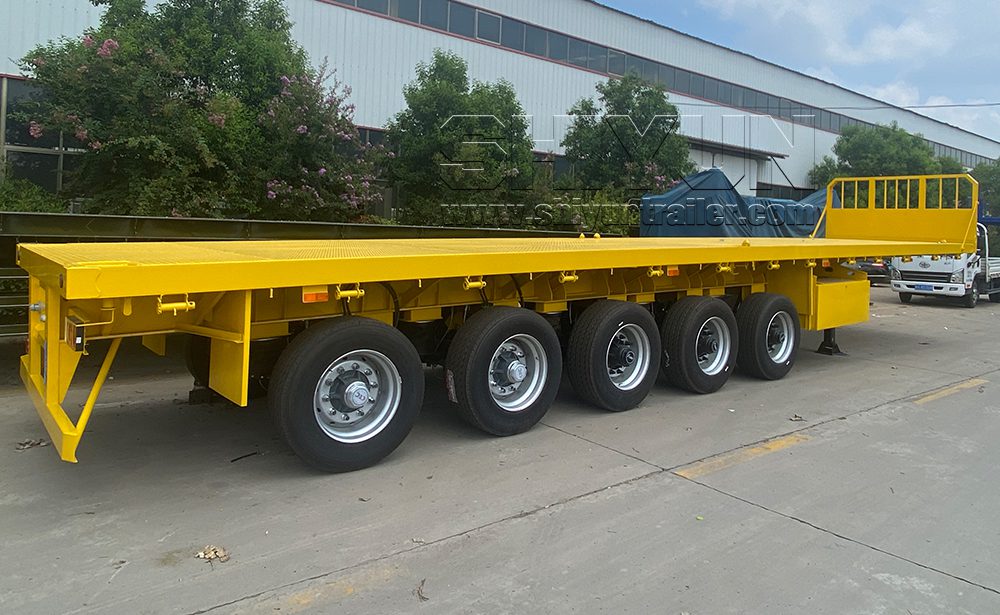

5 axles flatbed trailer

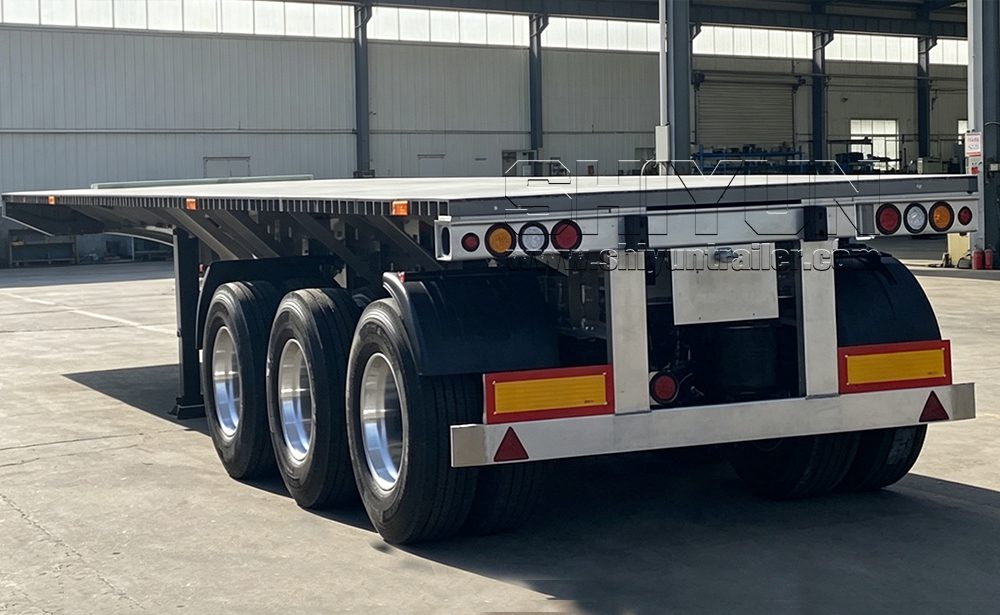

Aluminum flatbed semi trailer

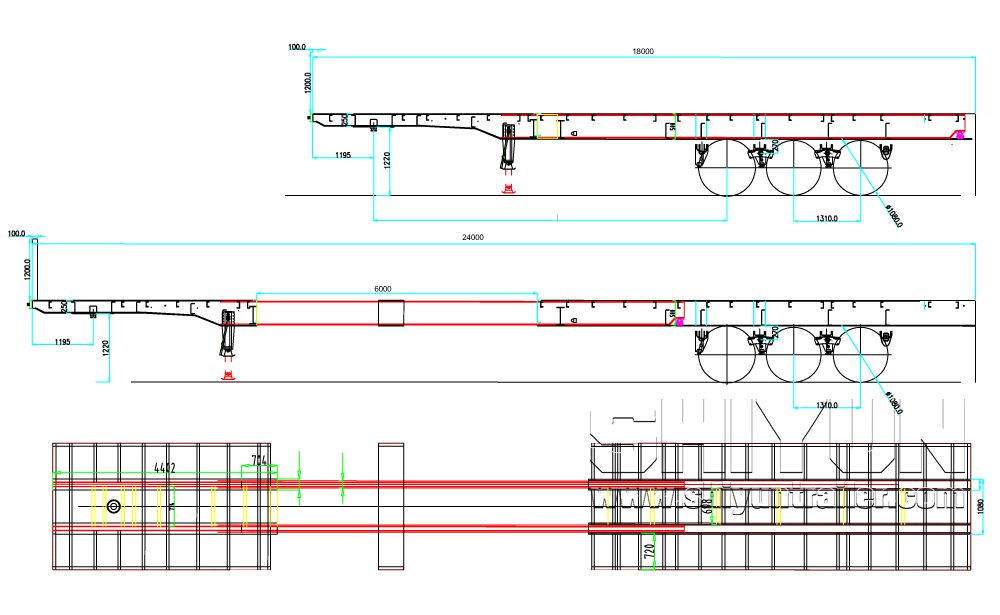

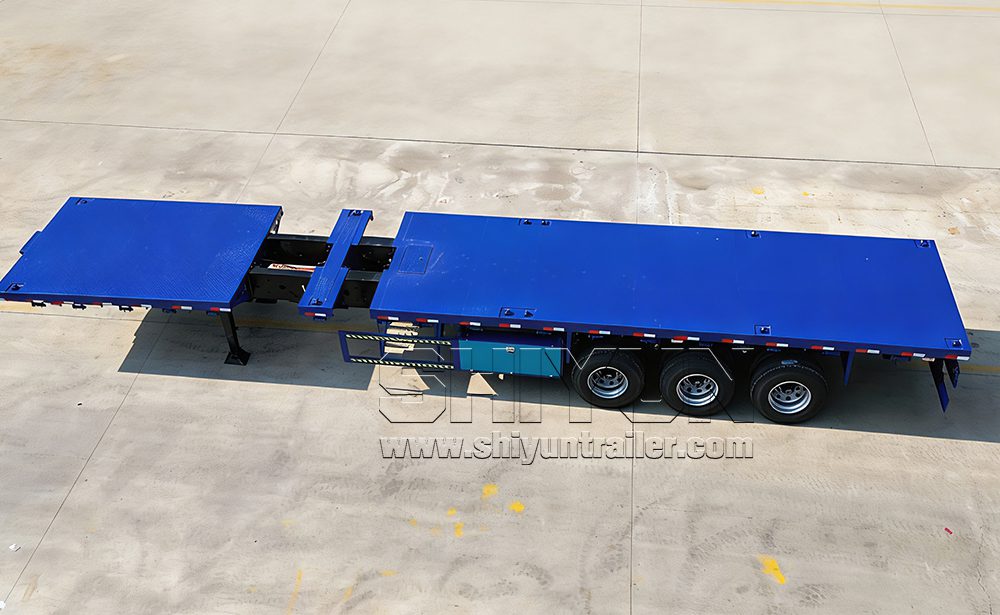

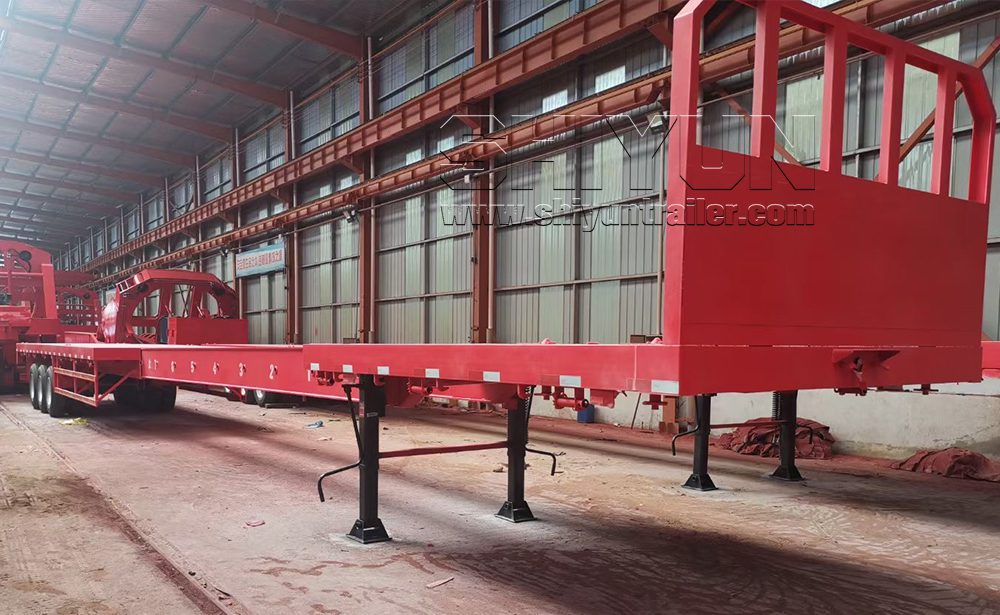

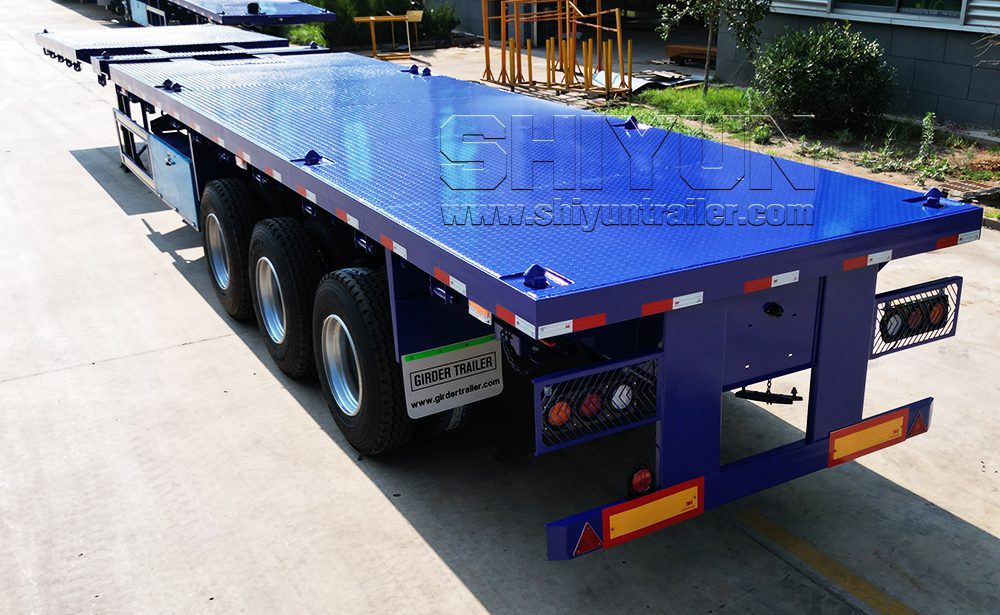

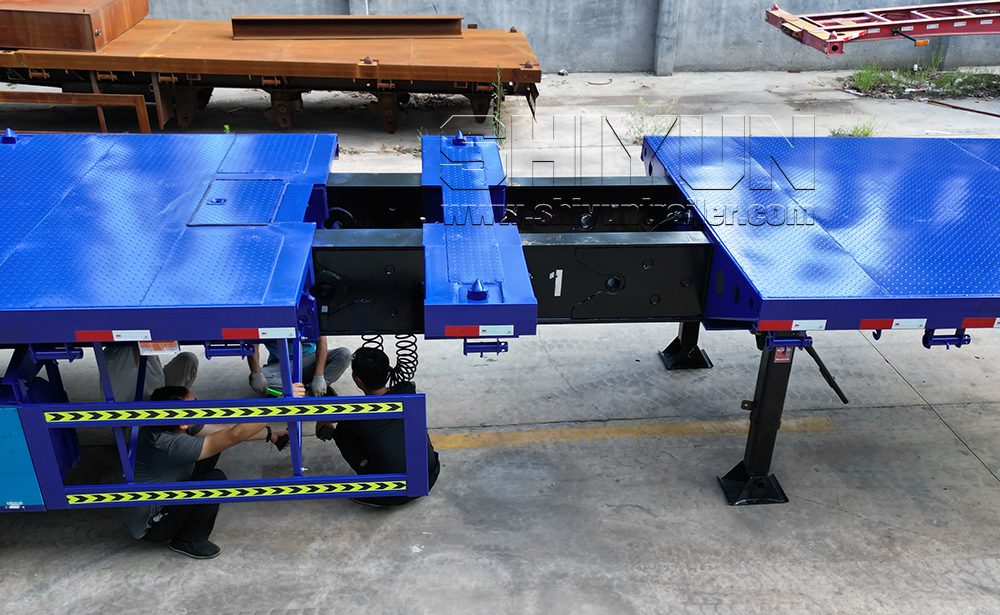

The extendable flatbed semi-trailer is also a very common model, and customized solutions can be provided according to the length required by customers.

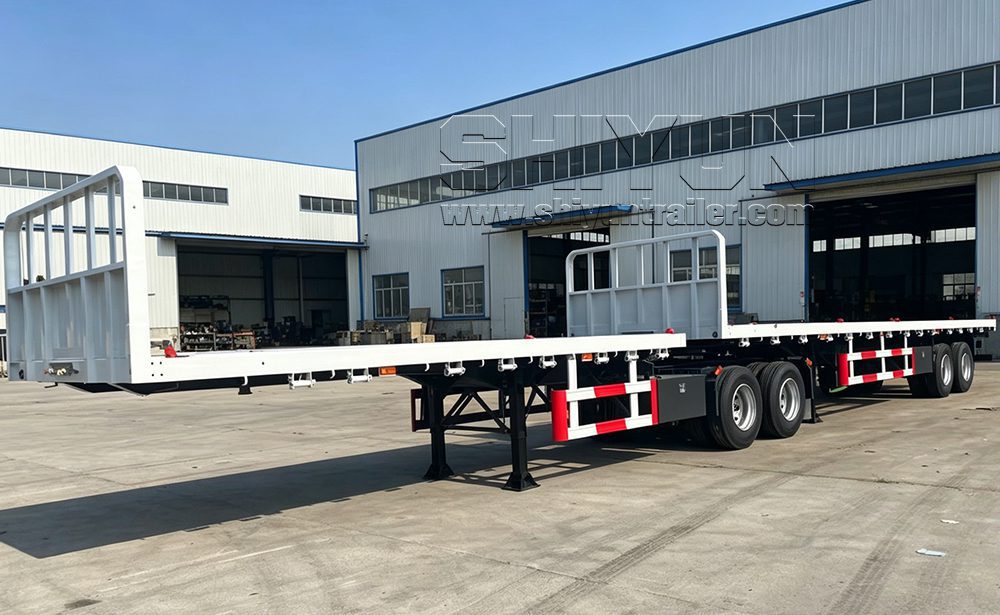

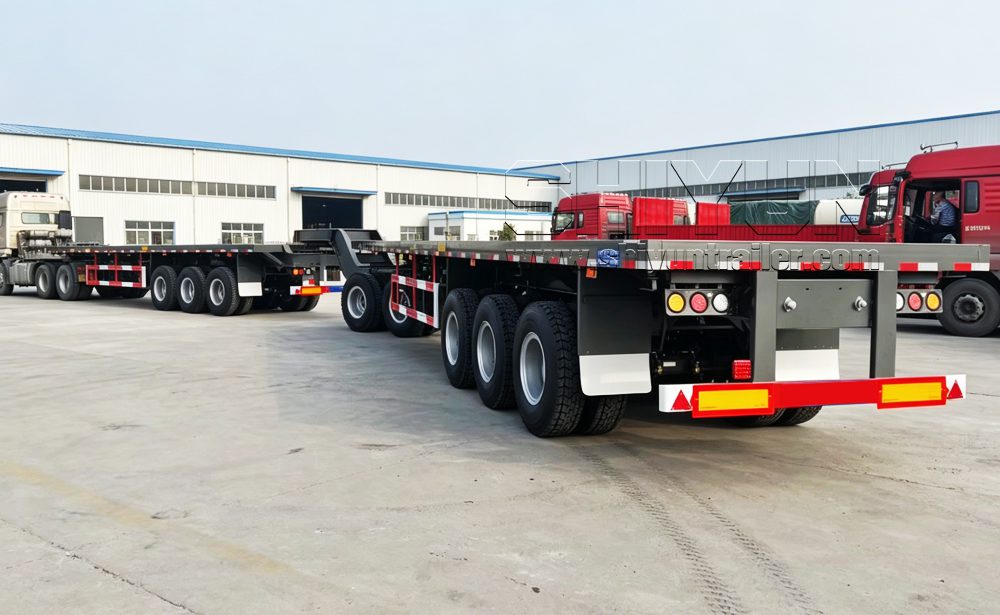

The Superlink tandem flatbed semi-trailer can be designed as a combination of a 20ft lead trailer and a 40ft rear trailer. It can also be configured with both 20ft or both 40ft sections, perfectly meeting the specialized transportation requirements of certain countries.low flatbed trailer with extensive application range.

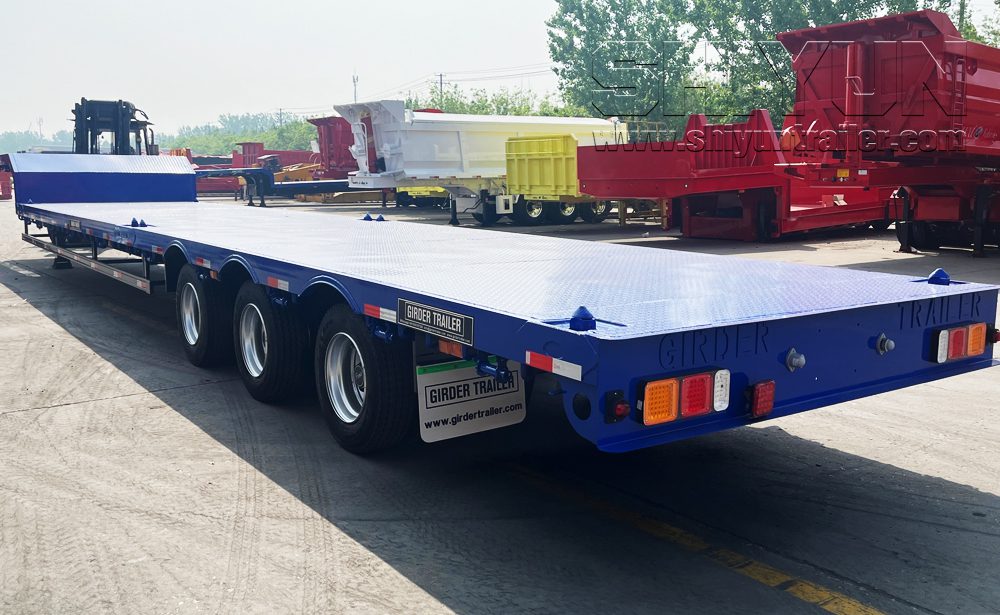

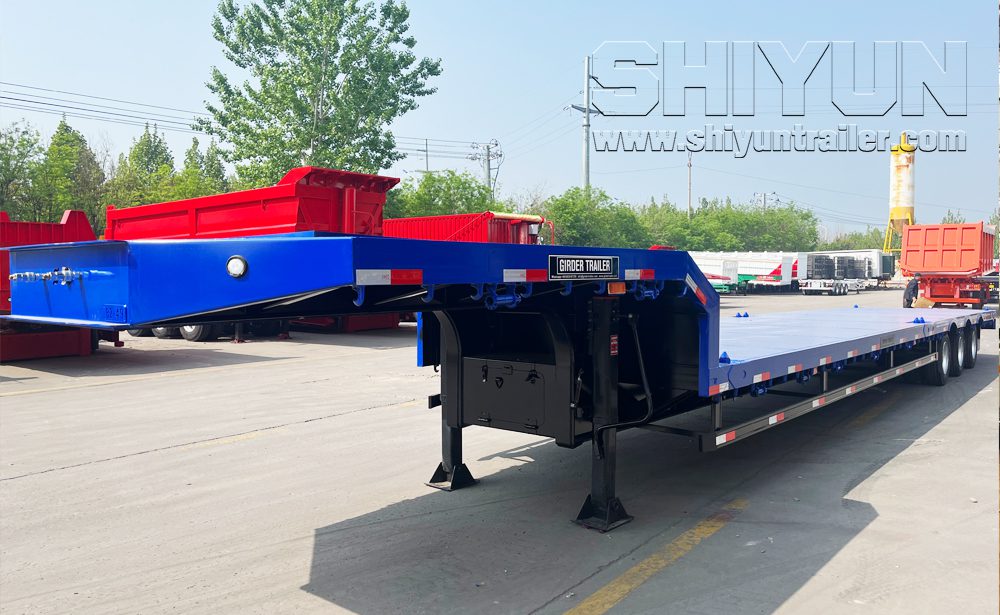

Step-wise, also known as drop deck low flatbed trailer, features a lower center of gravity. Its gooseneck design enables transportation of over-height cargos within height limits, greatly improving transportation safety.
To facilitate the unloading of goods inside containers, flatbed semi-trailers can perfectly meet this demand.
The container is fixed firmly by twist locks, and goods can be unloaded after opening the rear door of the container.

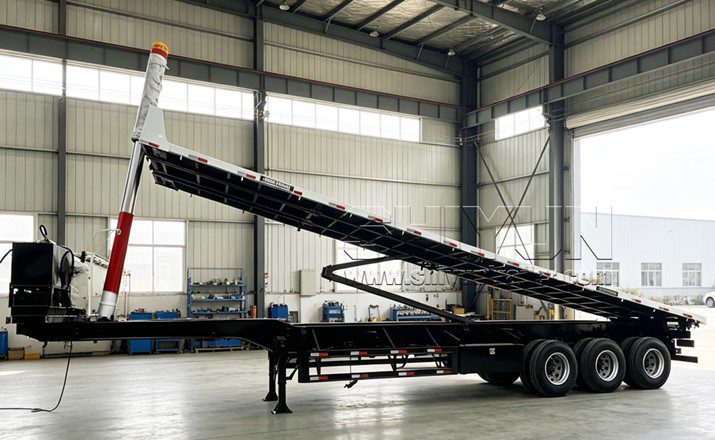

This type of vehicle can not only transport standard containers, but also directly unload the cargo inside the containers by self-discharging. It is convenient, efficient and multi-purpose with one vehicle for multiple applications.

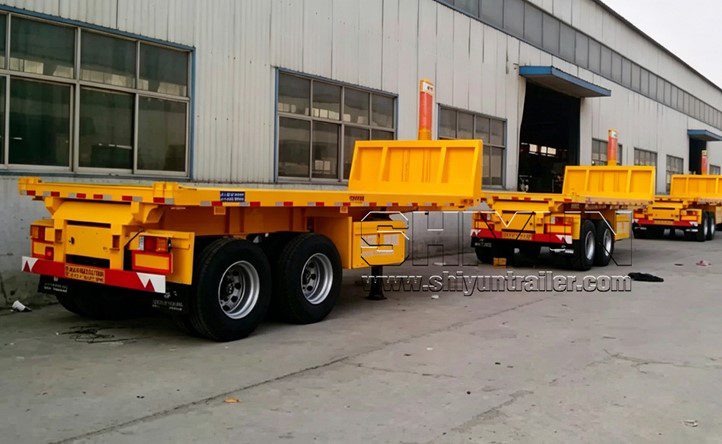

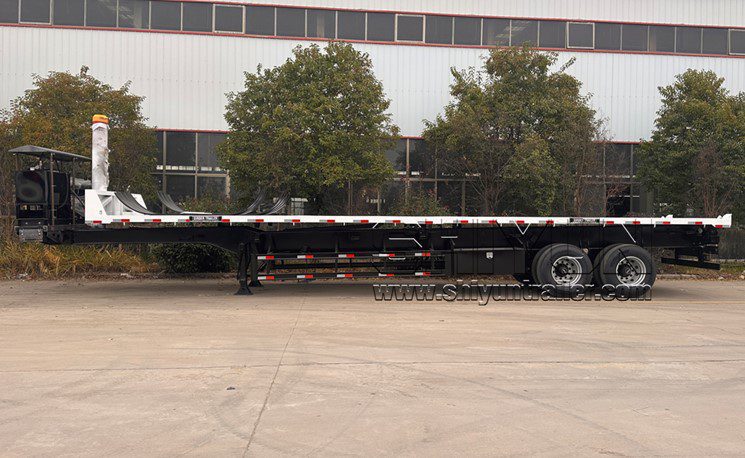

2 axles 20ft flatbed dump trailer
2 axles 40ft flatbed dump trailer
3 axles 40ft flatbed dump trailer
Based on the flatbed semi-trailer, we can add front head board ,side bars, drop side wall, or fences to meet the transportation needs of different types of cargo.

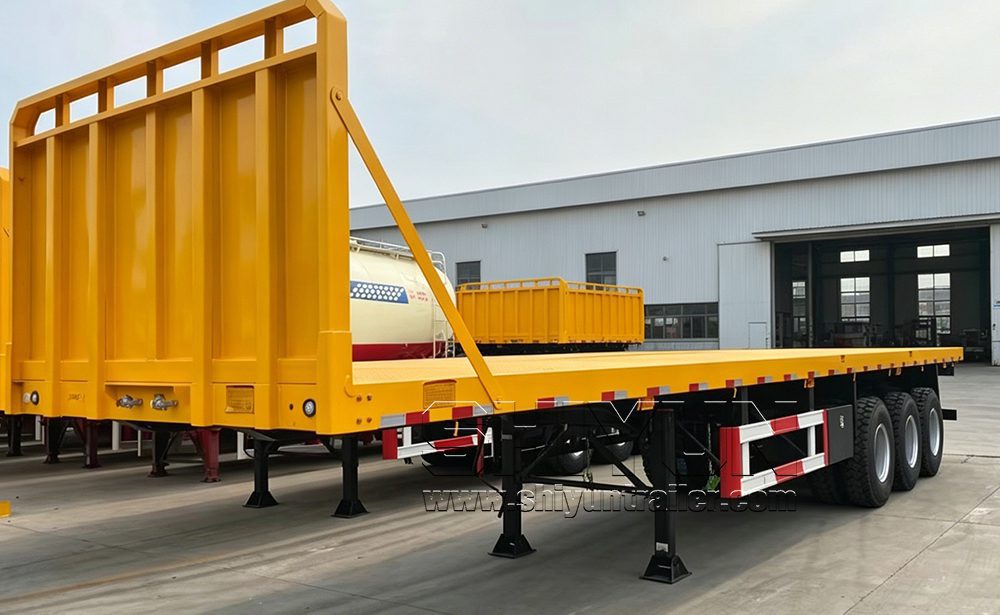

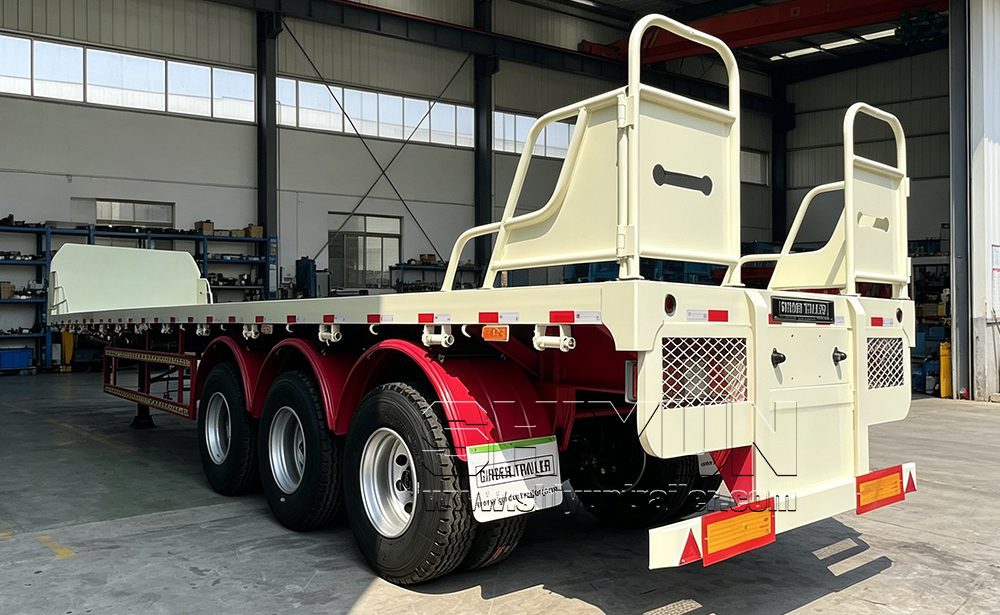

-Installing frond head board or rear head board of a flatbed semi-trailer can effectively prevent cargo from falling off, cushion inertia during transportation, and make operation safer and more convenient.

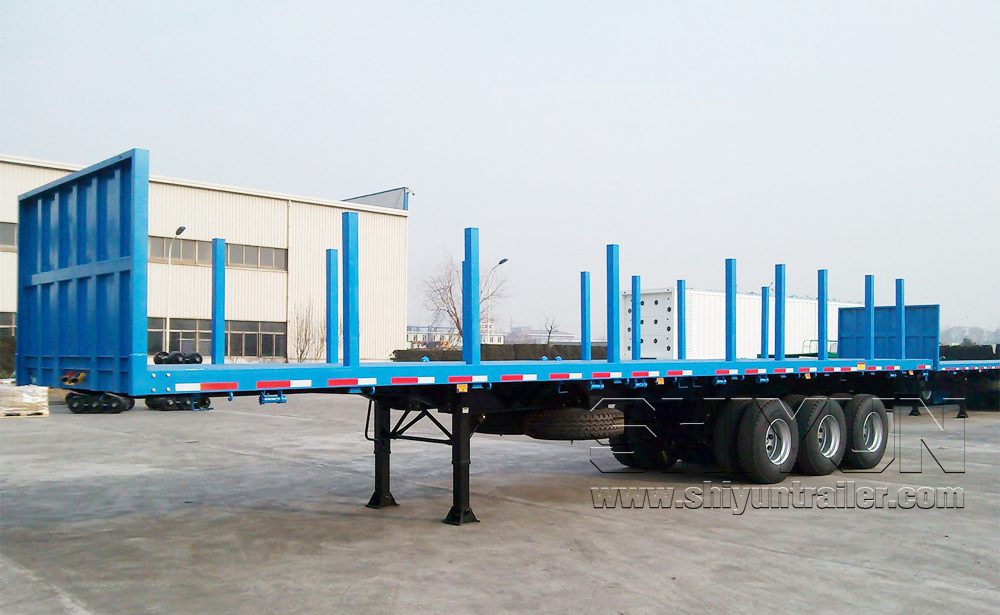

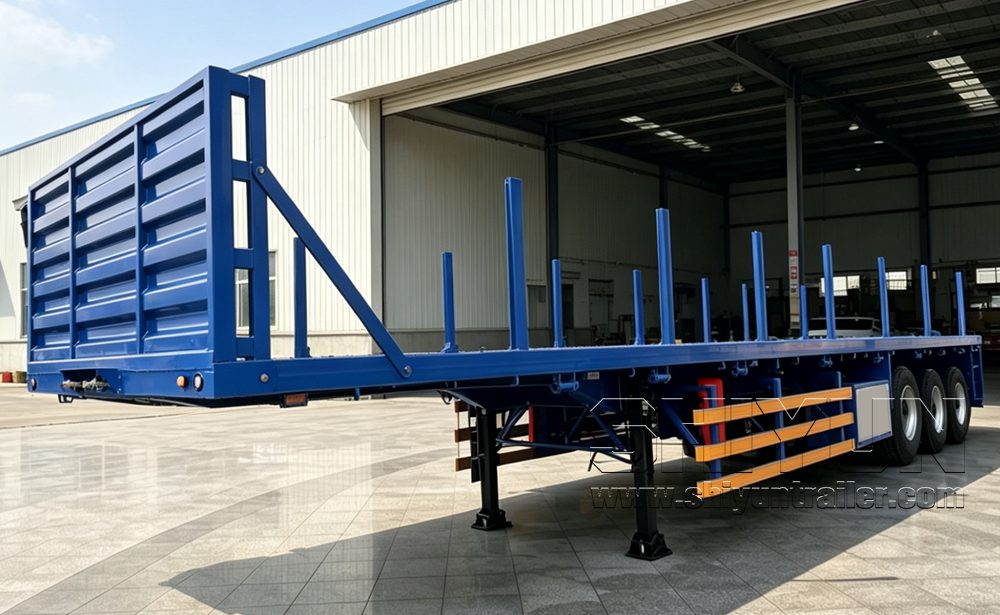

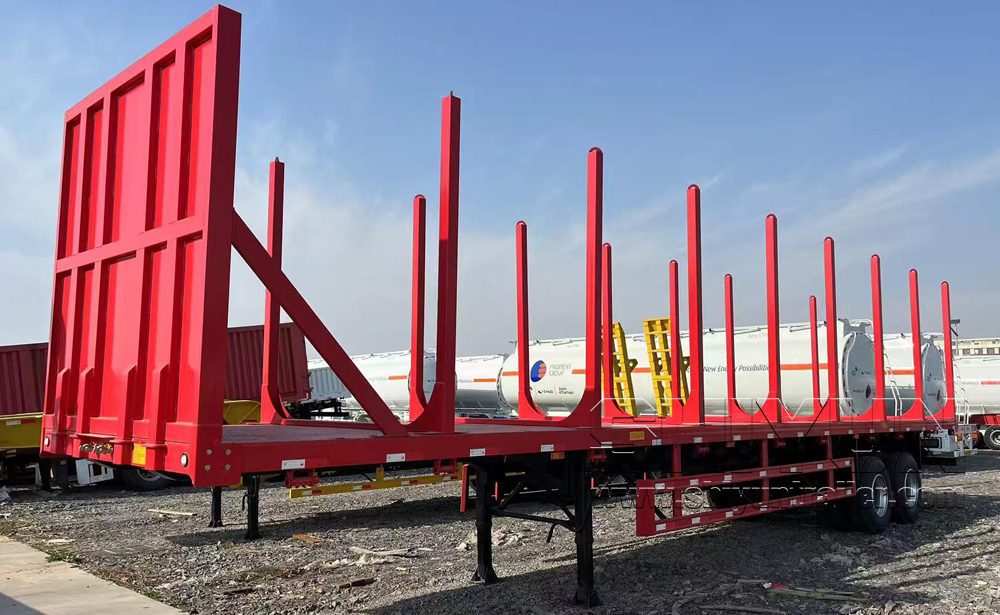

By installing stakes (side bars)on the flatbed semi-trailer, it can transport timber(log), bagged cement and other goods, effectively preventing cargo from falling off and making transportation safer and more stable.

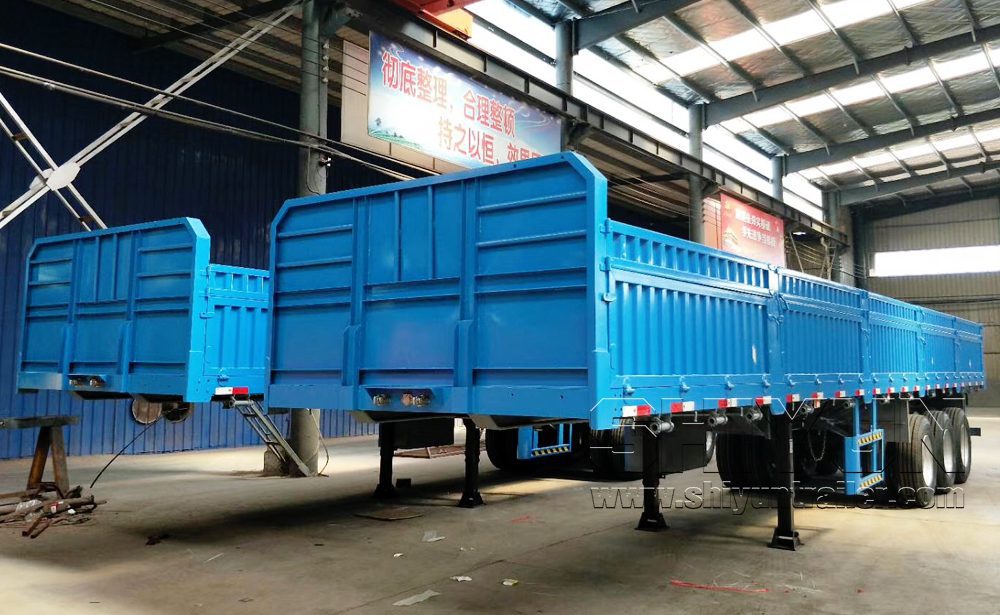

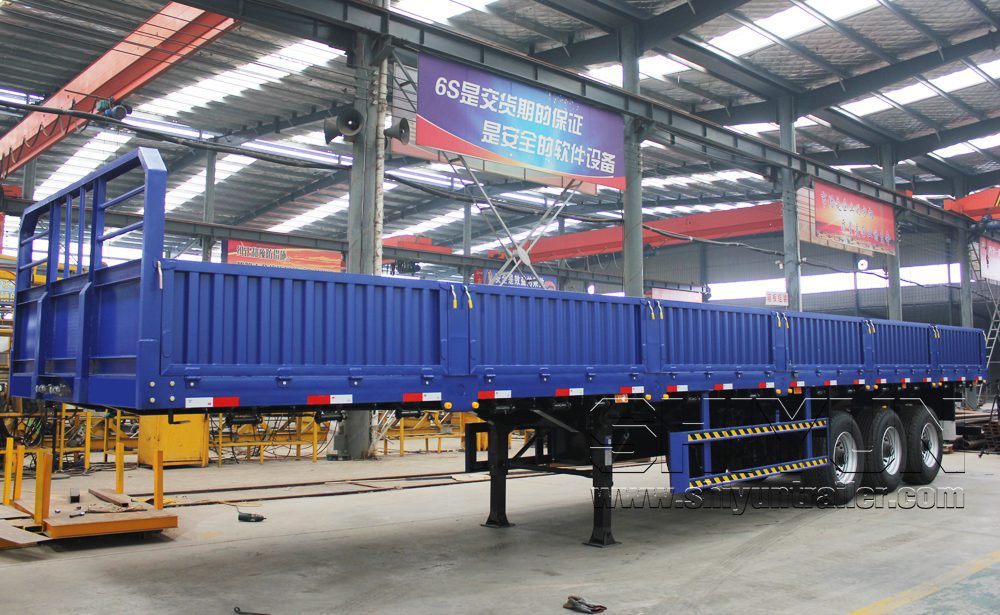

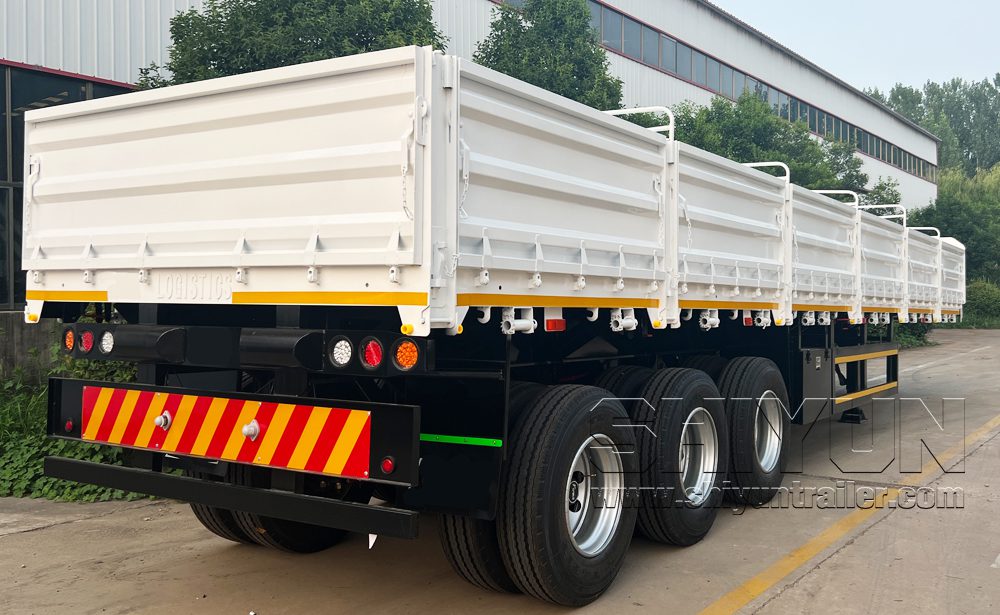

Drop side semi-trailers are more practical with side board installed on both sides.The height of the side boards can be customized as per customer requirements, normally ranging from 600mm to 2000mm.Container twist locks can be retained together with the side boards, allowing the trailer to achieve more diverse transportation functions.

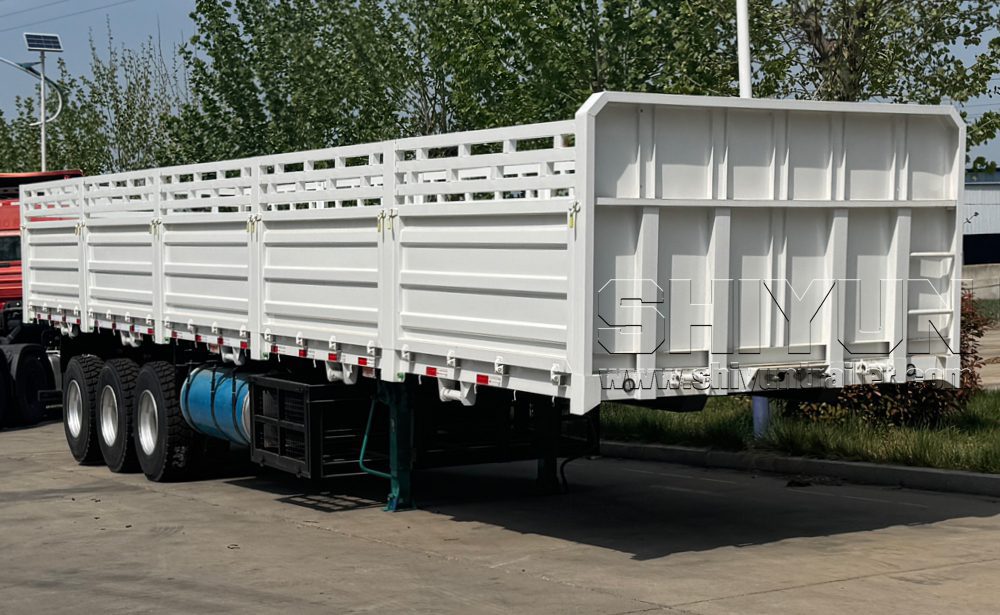

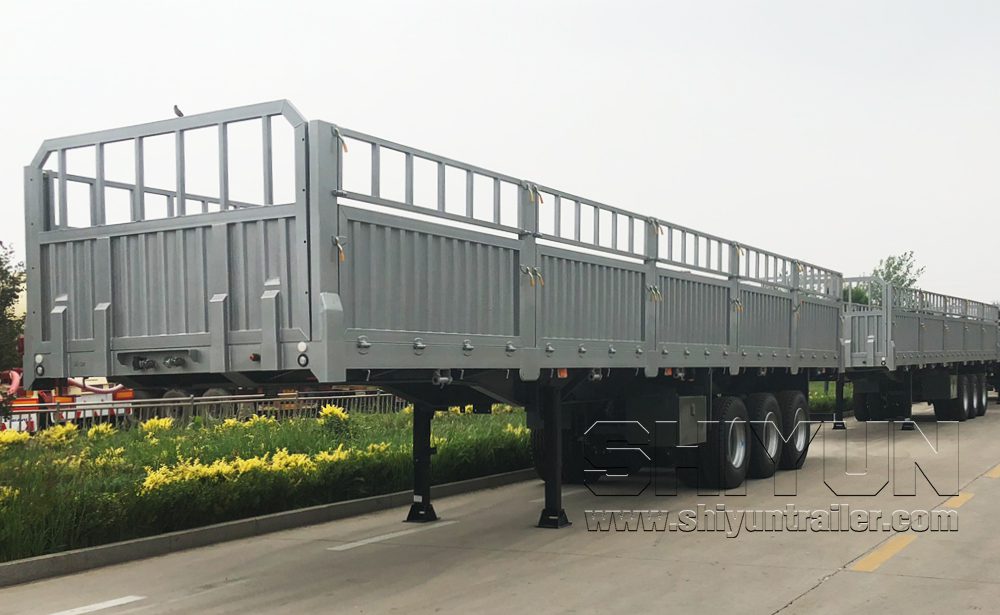

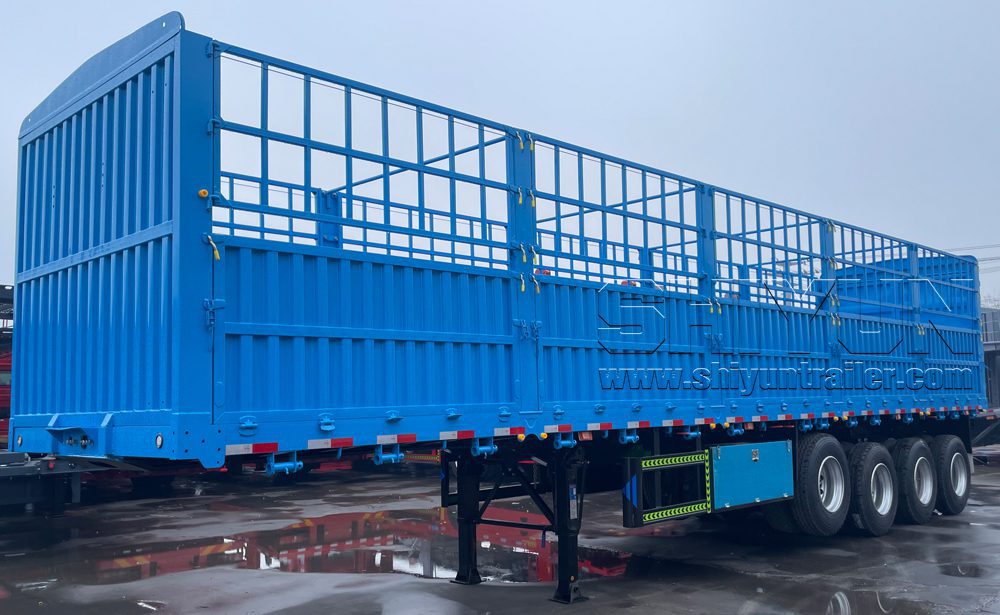

Fence semi-trailers generally have a higher protective structure, with a lower side board and an upper stake fence. Container twist locks can be retained, and both the side boards and stake fence are removable, making the vehicle more versatile for different transportation needs.

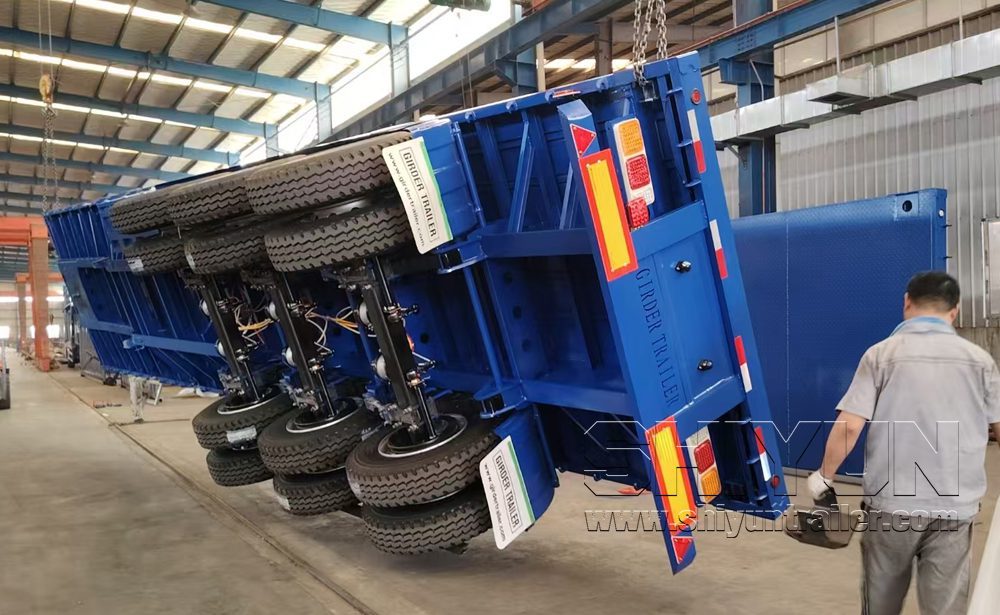

As the external dimensions of a flatbed semi-trailer exceed those of a standard 40-foot shipping container, it cannot be fully loaded into a 40-foot container under normal conditions. We generally use three methods to ship container semi-trailers:

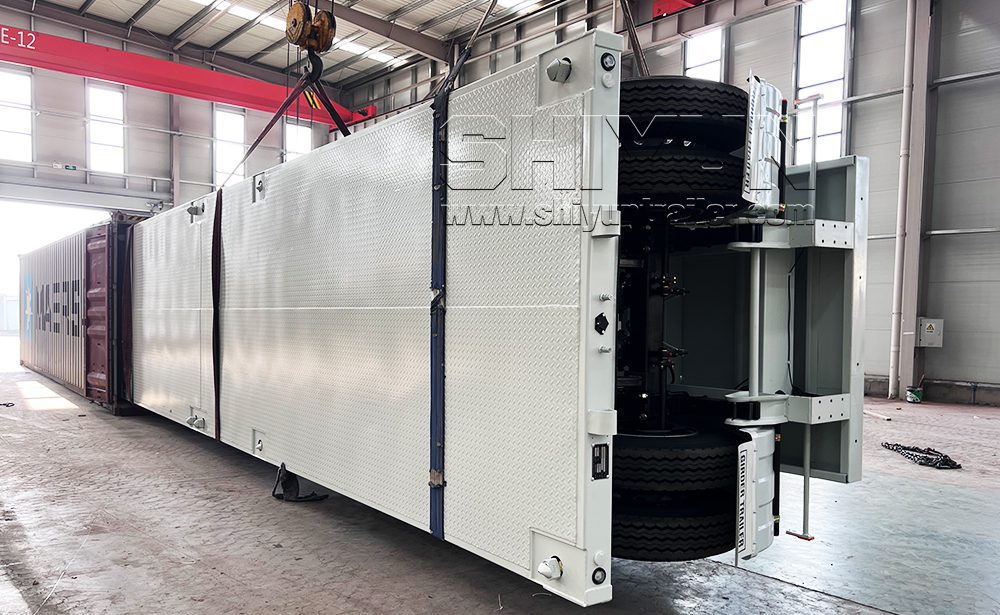

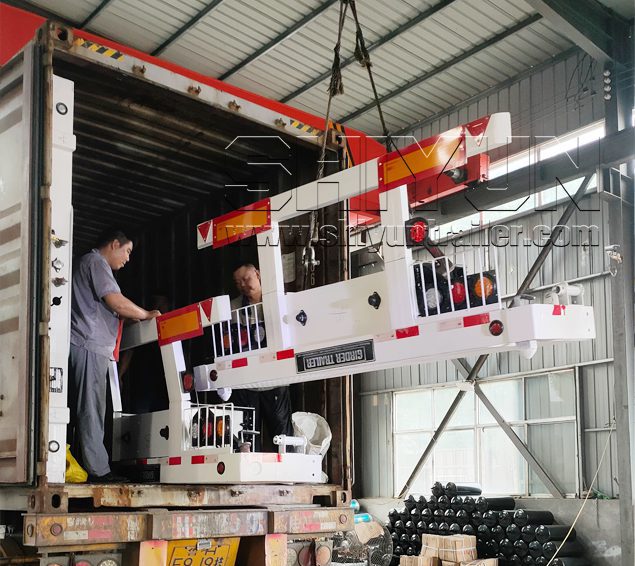

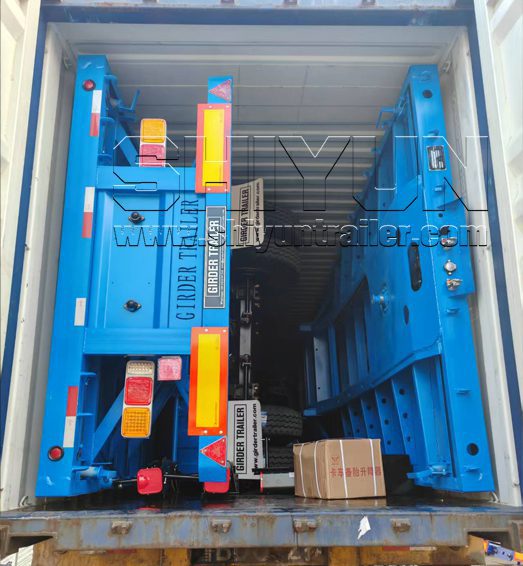

3.1 40-foot container shipping: The rear section of the semi-trailer must be cut off. After the customer receives the goods, they can reattach the rear section using high-strength bolts provided by us. One 40-foot container can hold 2 to 4 semi-trailers.
3.2 45-foot container shipping: If the customer accepts higher ocean freight, this is a better option, as no cutting of the trailer rear is required and you will receive a complete, intact unit. One 45-foot container can hold 2 to 4 semi-trailers.

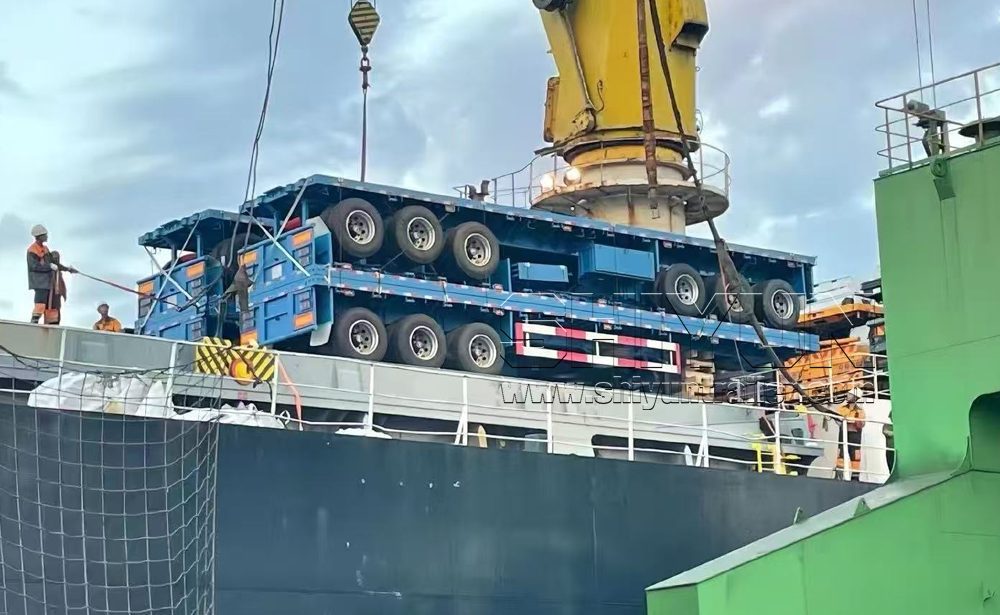

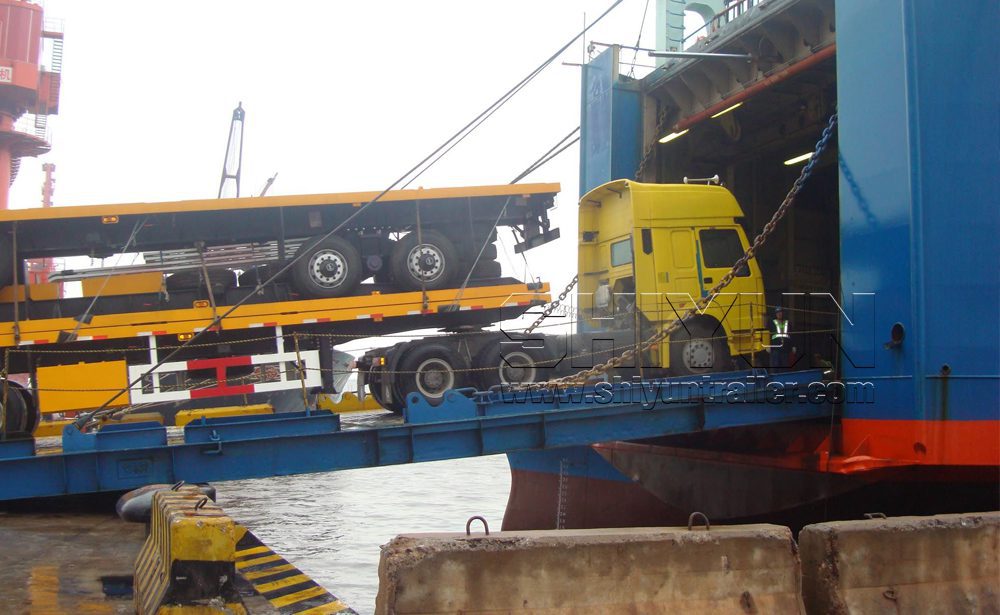

3.3 Roro ship / bulk carrier shipping: Some customers also choose to transport the vehicles to the destination port via roll-on ships or bulk cargo ships.
