Front Loading Lowbed Trailer

FRONT LOADING LOWBED SEMI TRAILER

A low bed semi-trailer adopts a drop deck design with a platform height of 0.8–1.2m. Its ultra-low center of gravity improves driving stability and avoids rollover, while the low-profile structure easily passes bridges and tunnels and lowers the cargo COG.
With a recessed deck under the front gooseneck and rear axles, it is also called lowboy or low loader semi-trailer in some regions. Standard load capacity ranges from 20 to 100 tons, and multi-axle models can exceed 300 tons.It features low gravity, large load capacity, stable running and easy loading/unloading, ideal for large construction machinery, heavy equipment, wind power parts, transformers, special vehicles and steel structural cargo.
Compared with ordinary rear-loading low beds, front-loading versions have a lower center of gravity and gentler loading ramp, ensuring safer handling for valuable and precision machinery.
SHIYUN recommends front-loading lowbed semi-trailers for high-value equipment transport, mainly including hydraulic detachable gooseneck and hydraulic folding gooseneck types. .

PARAMETERS

Item	Specifications	Remark
Material	High strength Carbon steel Q550
Main beam	Heavy duty H beam with beam extendable optional
Axles	11.5 ton, 13 ton (16 ton, 20 ton) capacity	FUWA, BPW, AN, CTC or GT Brand
Suspension	Mechanical suspension / Air suspension / Hydraulic lifting steering optional
Tire	245/70R17.5, 245/70R19.5, 12R22.5, 11.00R20	Other size and brand optional
King pin	2” / 3.5” bolt type, SAE standard	Welding on type optional (JOST)
Platform	Checked plate 4mm / 5mm or wood deck	Other thickness optional
Ladder	Front ladder or rear ladder optional
Side beam	I beam or U channel
Braking system	Dual line brake system, Double air chamber, brake valve, 40L air tanks	ABS optional
Electrical	LED light, 7 ways, 24V
Painting	Blasting and clean rust, 1 coat of prime painting, 2 coat of finish painting
Accessory	Tool box, oil tank, spraying system optional

Above date can be customized per your local regulation and requirement

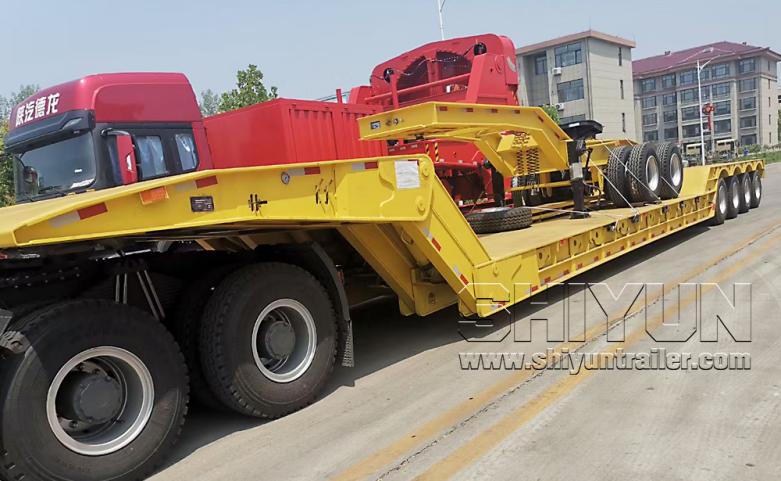

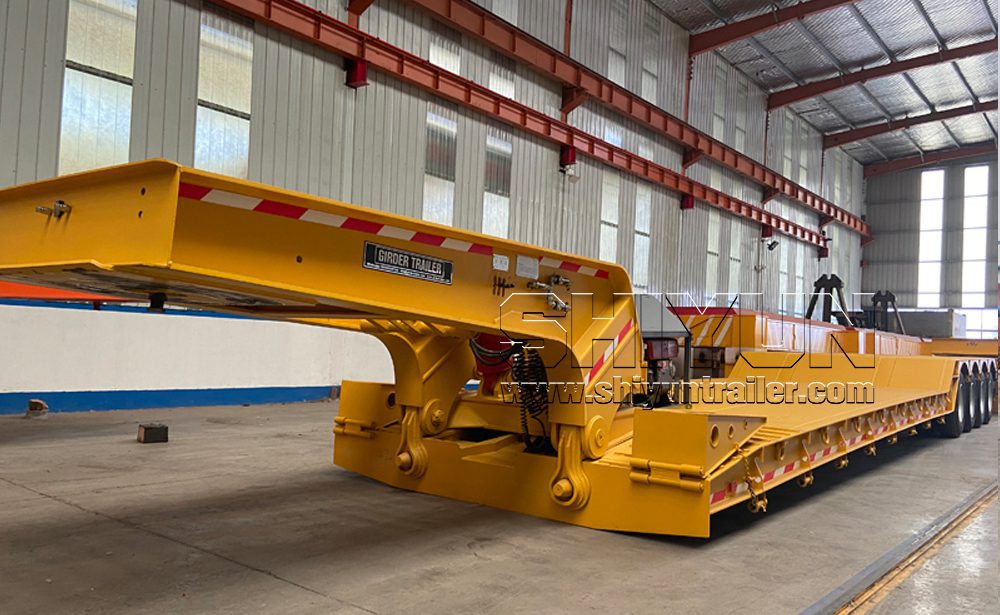

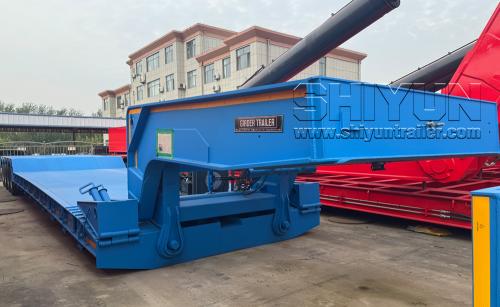

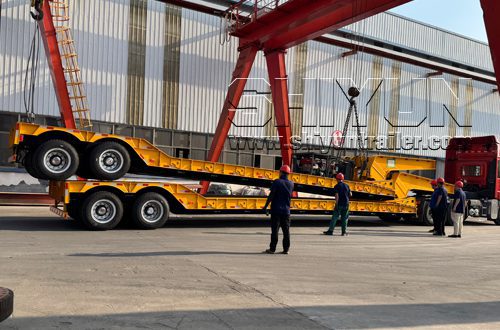

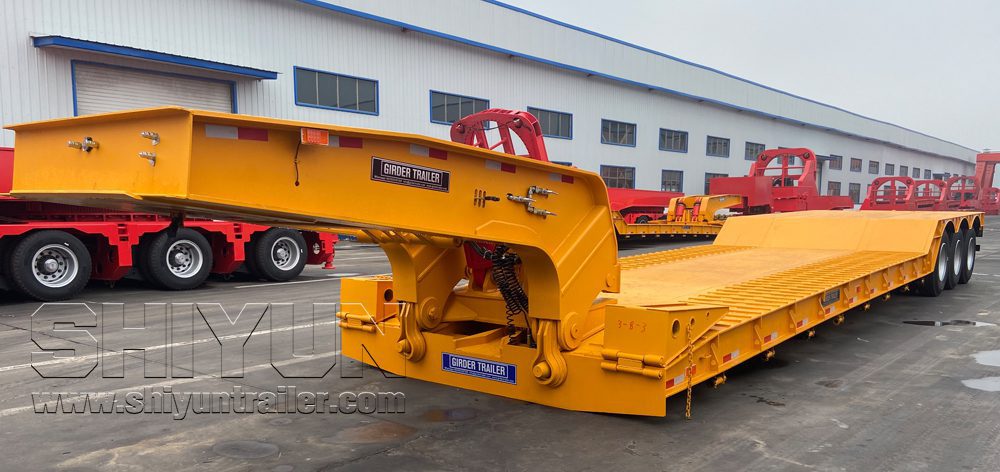

1.Detachable gooseneck lowbed trailer

In the semi-trailer industry, SHIYUN has achieved remarkable development and growth relying on the detachable gooseneck low-bed semi-trailer.
Detachable gooseneck lowbed semi trailer ,also know as removable gooseneck lowbed trailer,is commonly referred to as RGN lowbed semi trailer or Challenger type lowbed trailer .Based on numerous practical application cases of successful and failed operation from end users, SHIYUN keep making continuous innovation and structural optimization. Therefore, SHIYUN have outstanding professionalism in the design of this type of trailer, with our technical level ranking among the top in China’s industry.
Many manufacturers have tried to copy SHIYUN VEHICLE but ended in failure. They can only imitate the external appearance of the trailer, yet cannot replicate the precision and core technology of our gooseneck design.Most factories in the market can only realize simple disassembly and separation of the detachable gooseneck, but fail to achieve efficient alignment, assembly and connection between the gooseneck and the main body.SHIYUN detachable gooseneck low-bed semi-trailer can complete quick disassembly, assembly and precise docking of the gooseneck efficiently. This high-efficiency performance is not only the unique core advantage of Shiyun, but also an irreplicable highlight for other brands.

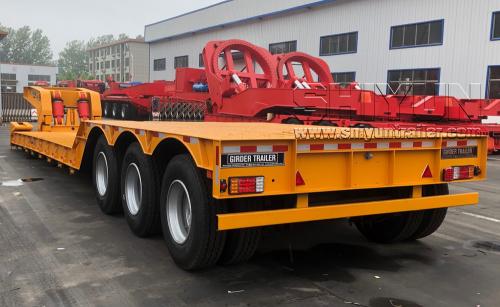

3 axles 80ton detachable gooseneck

4 axles 100ton detachable gooseneck lowbed trailer

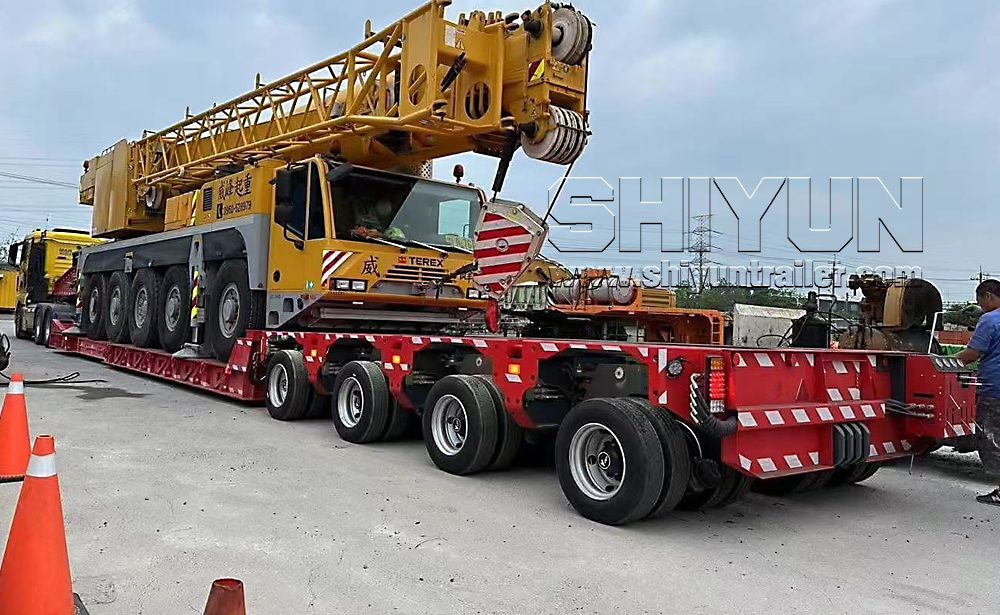

Axis lines cantilever suspension 120ton detachable goosenek lowbed trailer

Advantages of detachable gooseneck lowbed trailer :

1.1. Easy cargo loading and unloading.

Small ladders are equipped under the gooseneck and at the front of the loading platform.Large engineering machinery can drive onto the deck directly from the front after removing the gooseneck, safer and more efficient.

1.2. Adjustable Height

The hydraulic gooseneck can flexibly adjust the height of the front loading platform, greatly improving the trailer’s trafficability and enabling easy passage under bridges, tunnels and height-restricted sections.

1.3. Lower Cargo Center of Gravity

Adopting a hydraulic gooseneck and concave beam design,after the gooseneck is separated from the loading platform, equipment can be driven onto the loading platform from the front. It effectively lowers the cargo center of gravity, greatly improving driving stability and transportation safety.

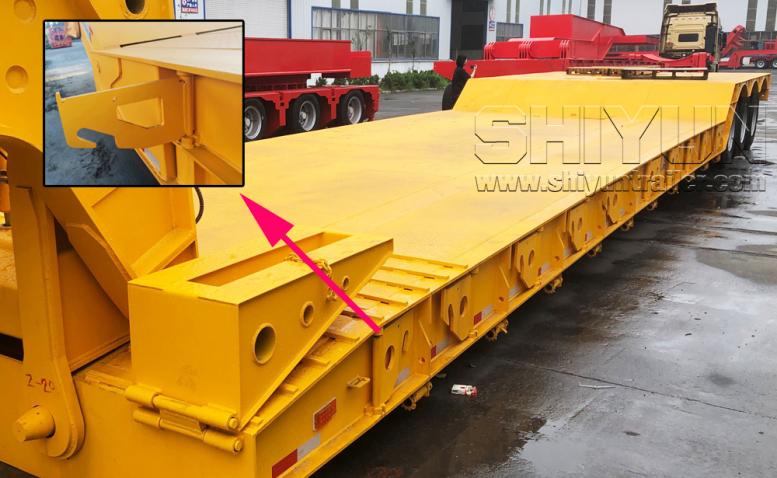

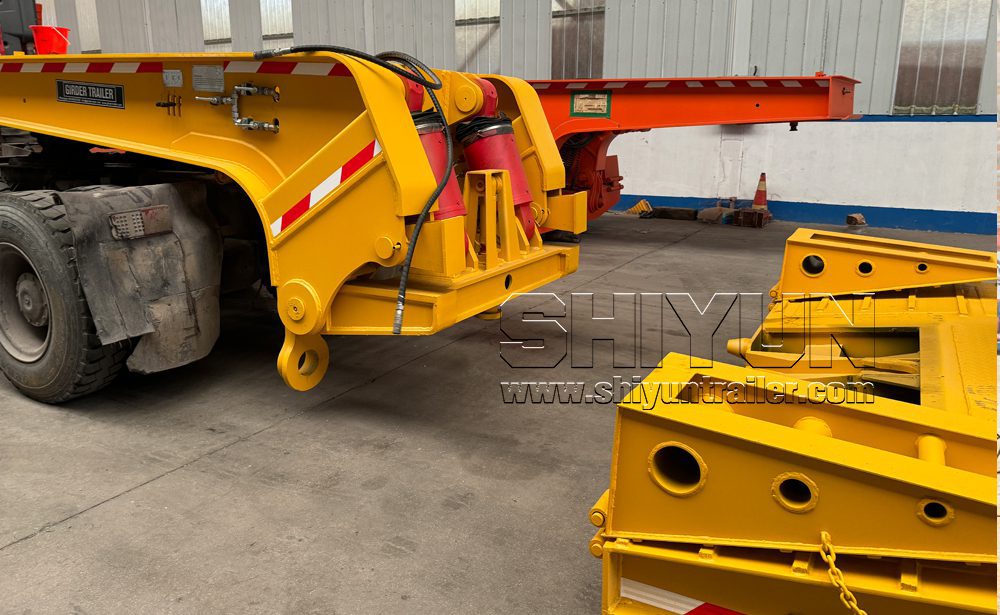

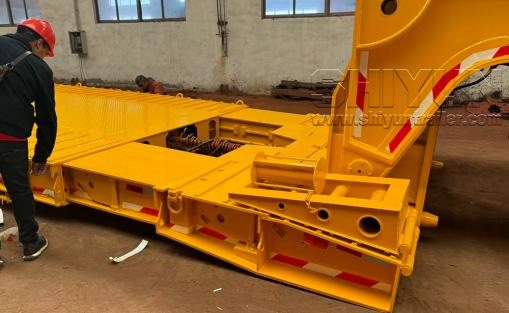

1.4 Precision Connection Pin Position

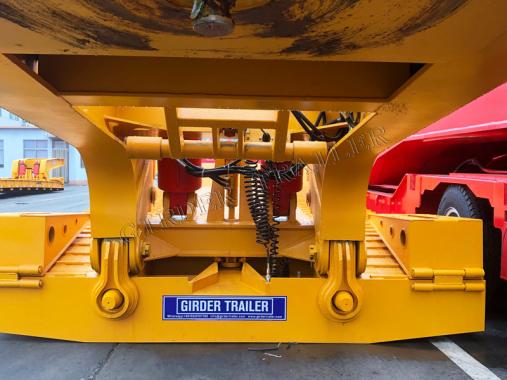

The detachable gooseneck low-bed semi-trailer manufactured by SHIYUN adopts high-precision craftsmanship for both positioning pins and load-bearing tandem pins. With accurate alignment and perfect fitting, it greatly improves assembly and docking efficiency and makes operation more efficient.

1.5 Great flexibility in application

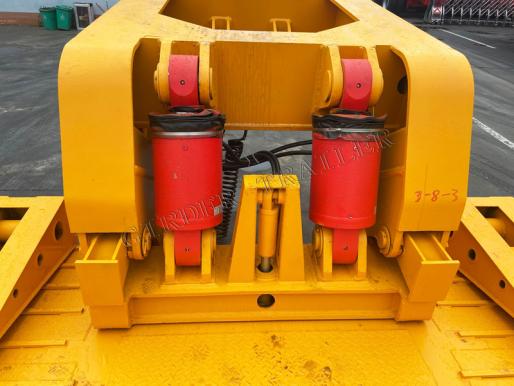

It is equipped with multi-functional hydraulic cylinders, including positioning cylinders, support cylinders and hydraulic lifting cylinders.The coordinated operation of multiple hydraulic cylinders realizes efficient manipulation of the detachable gooseneck.

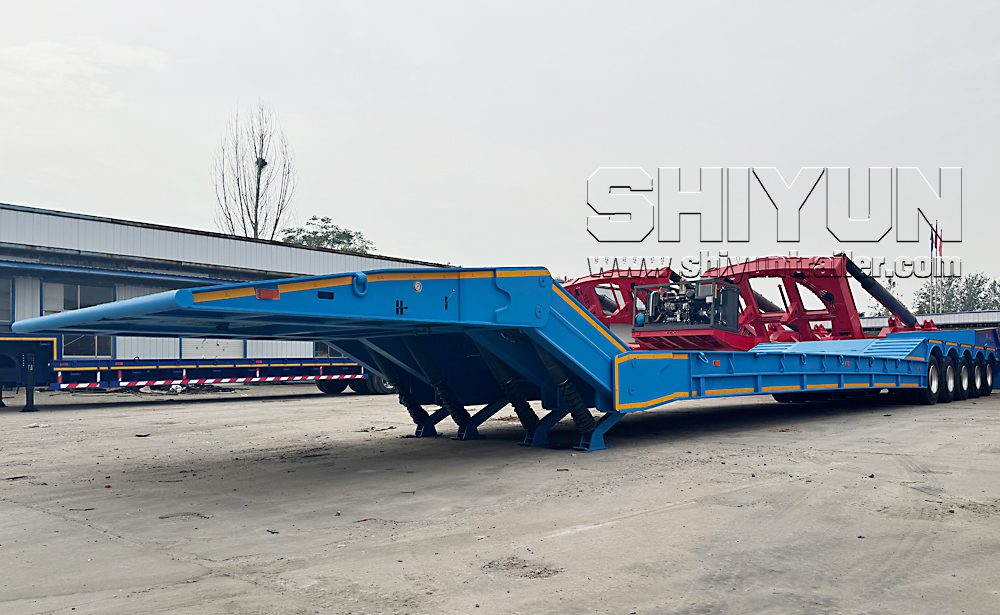

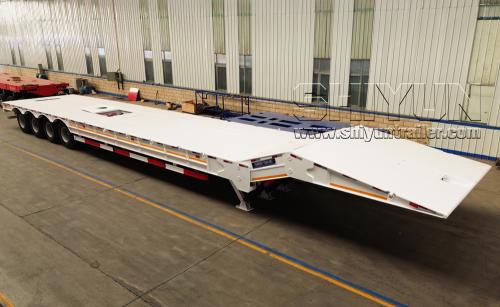

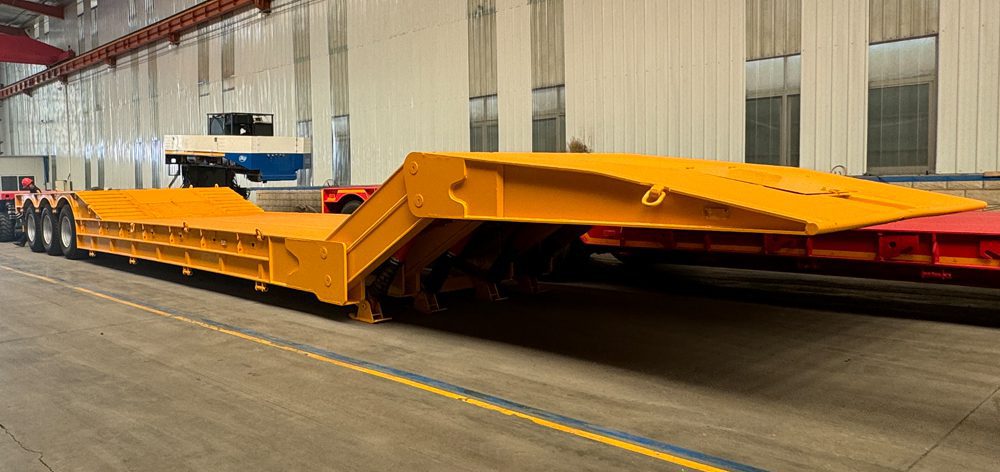

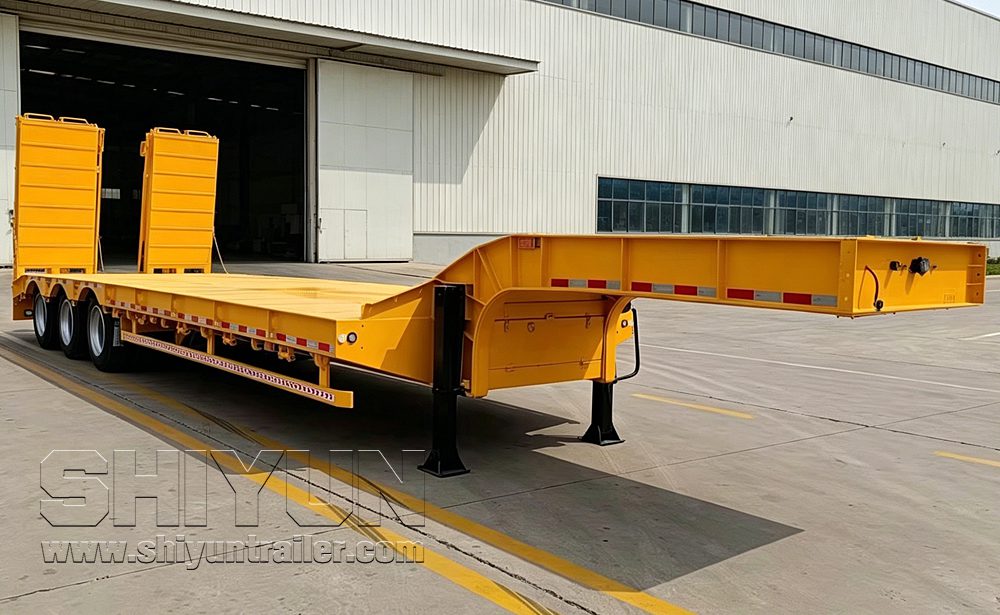

2.Folding gooseneck lowbed trailer

3 axles folding gooseneck trailer trailer

4 axles folding gooseneck lowbed trailer

5 axles folding gooseneck lowbed trailer

Advantages of folding gooseneck lowbed trailer :

2.1. No disassembly required

The folding gooseneck needs no integral disassembly or bolt removal. It can be operated easily by one person, saving time and labor.

2.2. Convenient machinery loading & unloading

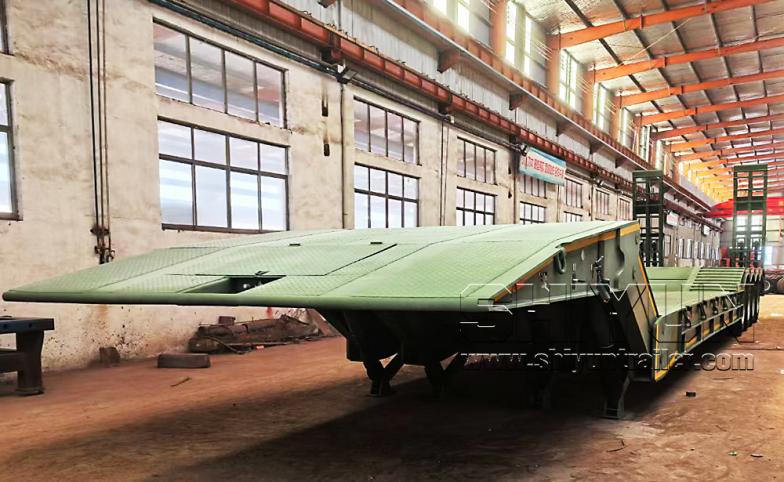

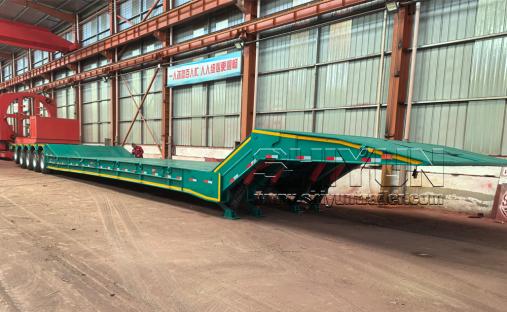

When the gooseneck is folded down, it forms a gentle slope. Excavators, road rollers and other engineering vehicles can drive on and off directly.

2.3 Greater flexibility in application

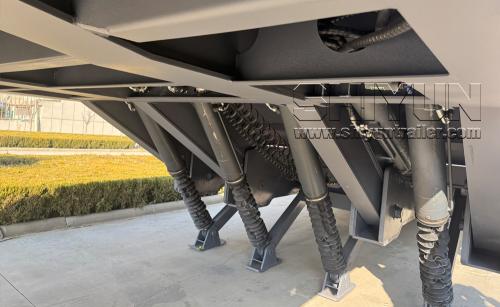

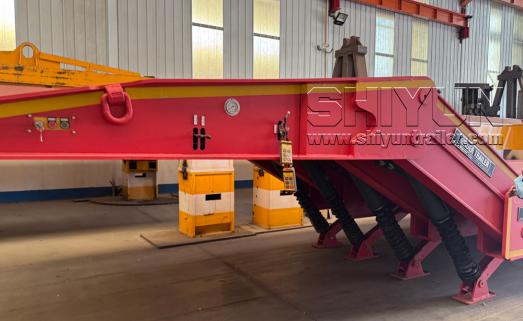

The folding gooseneck low-bed trailer is equipped with 6 hydraulic jacks under the gooseneck. Among them, 4 units realize the folding and lifting of the gooseneck, and the other 2 support the lifting of the loading platform, delivering dual functions.

During operation, the gooseneck height can be adjusted to match different fifth wheel heights. The loading platform height can also be regulated to adapt to height-limited areas such as roads, bridges and tunnels. Meanwhile, it maintains a lower cargo center of gravity for safer and more stable driving.

3.Features

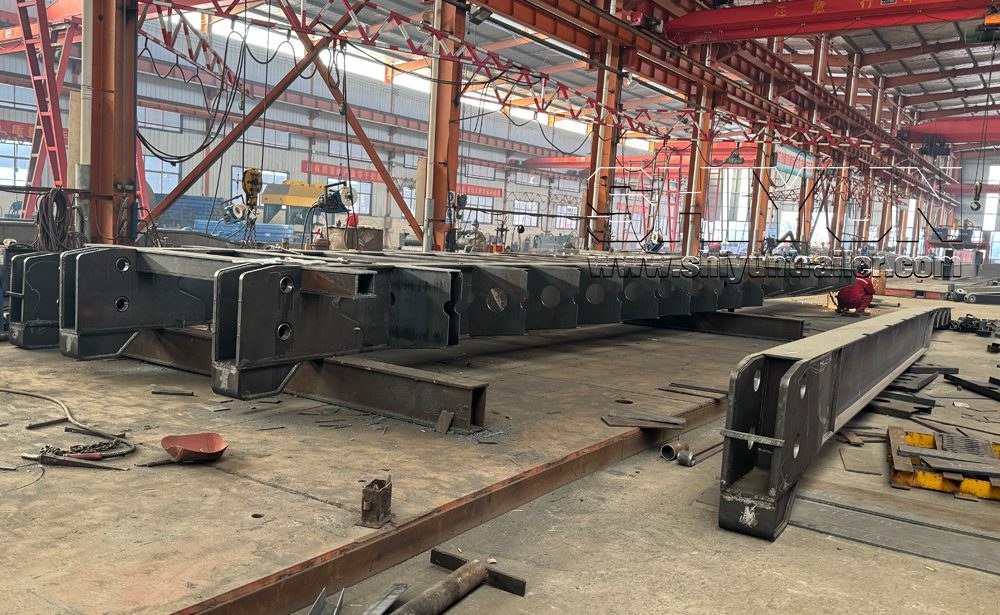

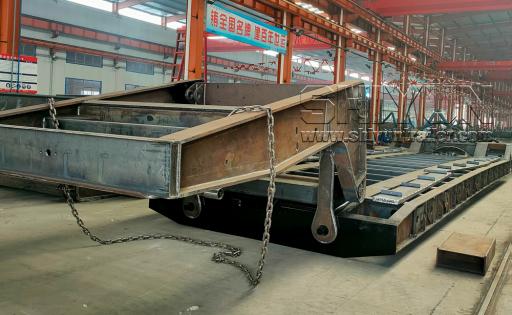

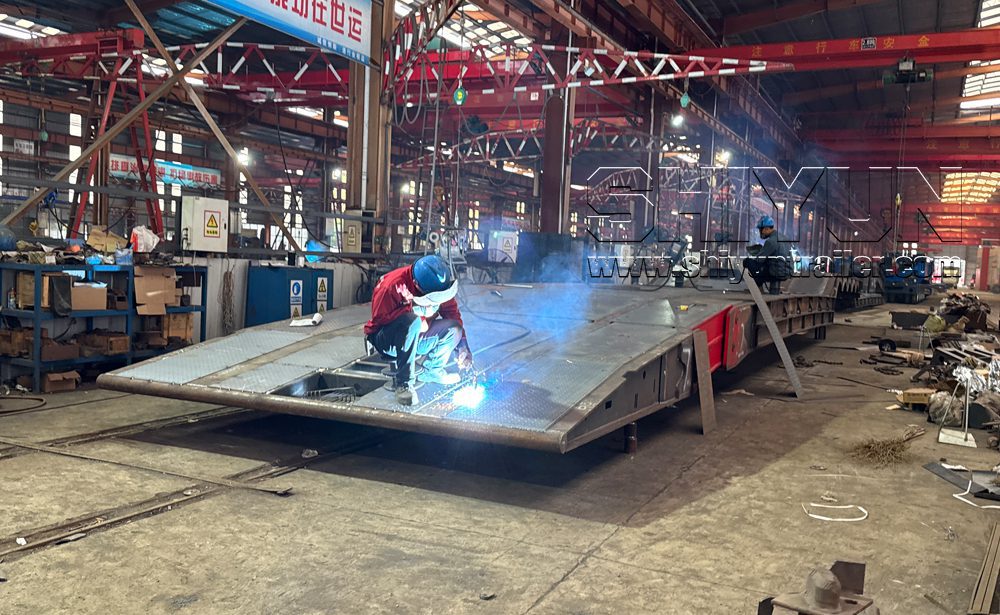

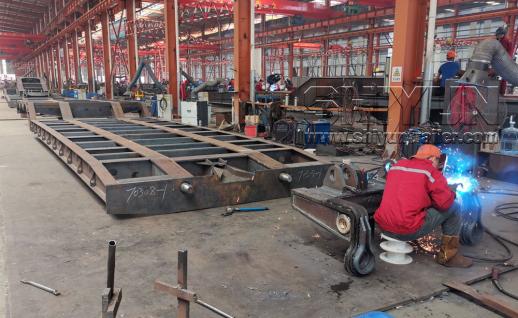

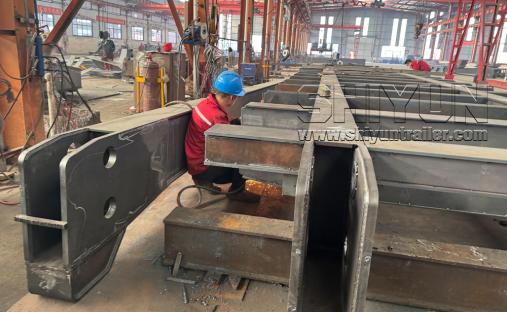

SHIYUN lowbed semi-trailers are mainly constructed from high-strength structural steel Q550 or Q460, with a yield strength> 620MPa.Compared with ordinary Q345 steel used for semi-trailers, our steel features higher strength and better durability, which greatly improves load capacity and life time while effectively reducing the overall weight.Reasonable structural design and precise camber fabrication have earned SHIYUN lowboy trailers a broad market and excellent reputation.

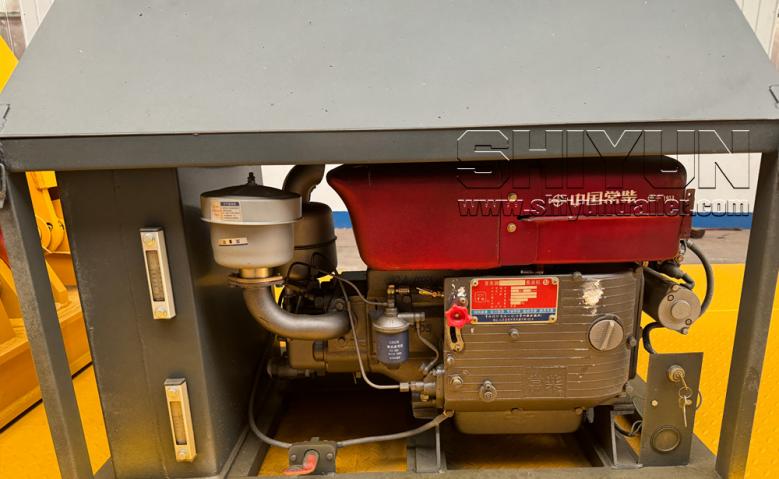

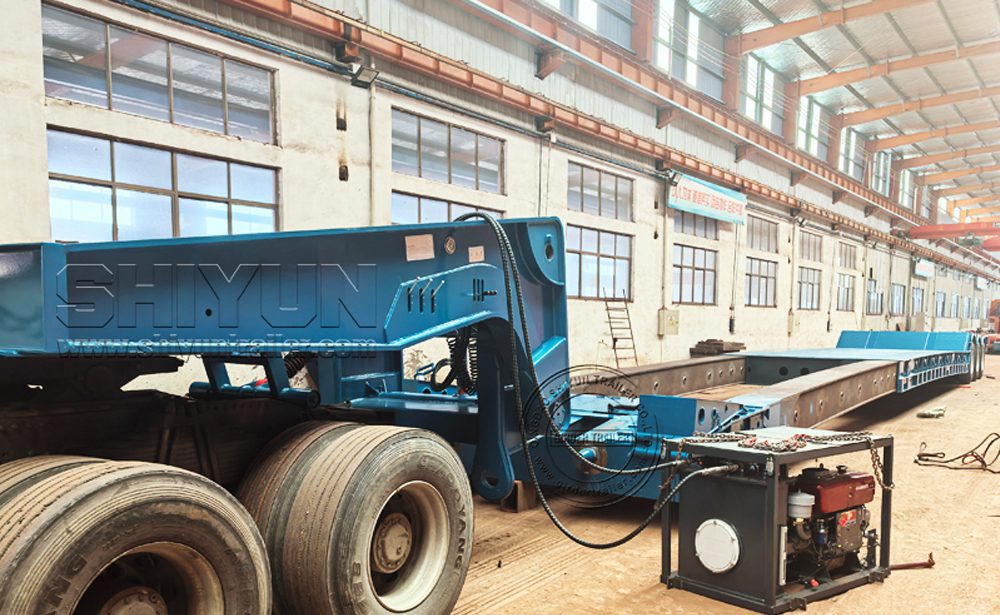

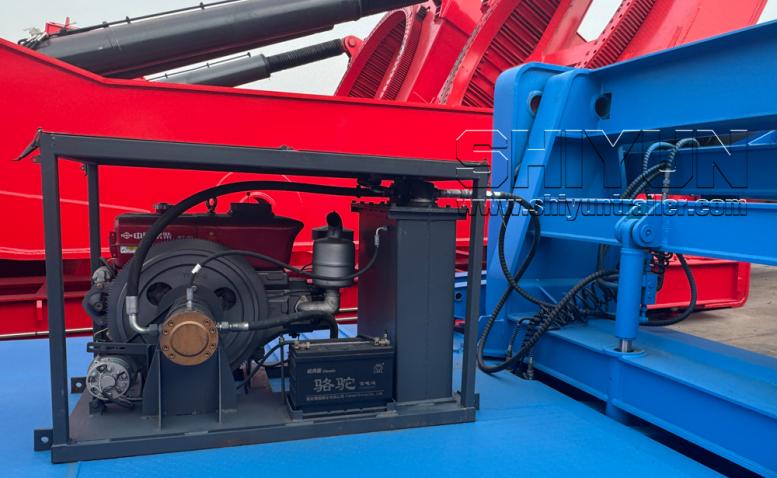

SHIYUN front loading lowbed semi-trailer is generally equipped with two types of power control systems: one is a hydraulic power unit, and the other is the PTO (Power Take-Off) of the tractor. Both can precisely control the hydraulic cylinder on the gooseneck to achieve lifting, disassembly, assembly, hoisting and other operations.

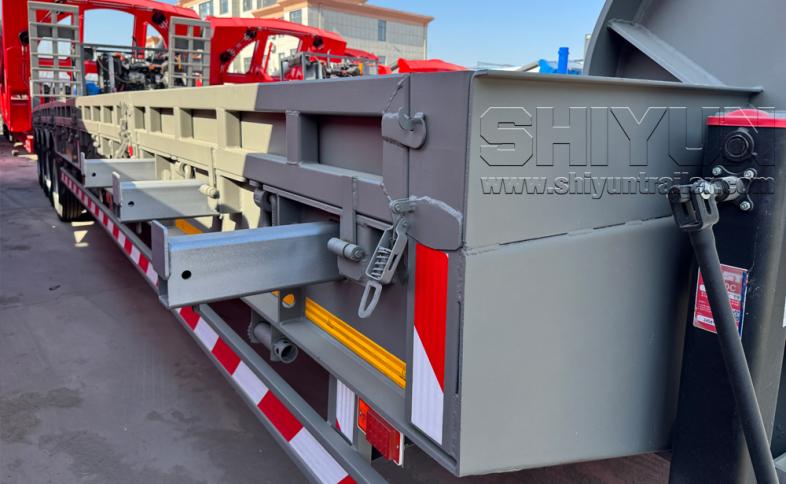

HIYUN lowbed semi-trailers can be designed with various widths to meet different requirements.The standard minimum width is 2 meters, while most customers choose a width between 2.5 meters and 3 meters.We can also customize trailers with a maximum width of up to 6 meters as per your needs.In addition to fixed-width designs, we can equip extendable brackets to achieve flexible conversion between different loading widths.

Due to the overall long length of multi-axle low-bed semi-trailers, equipped with a length telescopic structure can greatly improve the vehicle’s turning performance.The telescopic mechanism adopts pneumatic control pins. The pneumatic locking pins are used to adjust the telescopic length and fix the positioning. It supports single-section telescopic movement, as well as single and double-section combined telescopic operation.For the main beam, both double-beam telescopic type and single-beam telescopic type are available.The perfect telescopic extendable beam design is another key advantage of SHIYUN low bed semi-trailers.Unlike structures made of conventional Q345 steel, we use high-strength steel plates Q550, ensuring the telescopic beams resist deformation, extend and retract smoothly and efficiently, and completely eliminate the risk of failing to retract after extension.

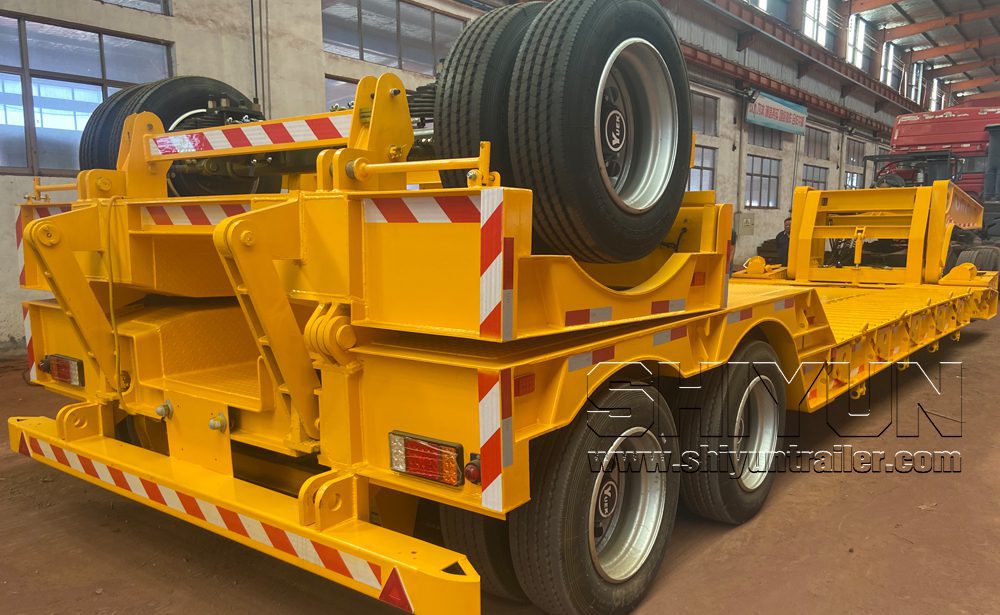

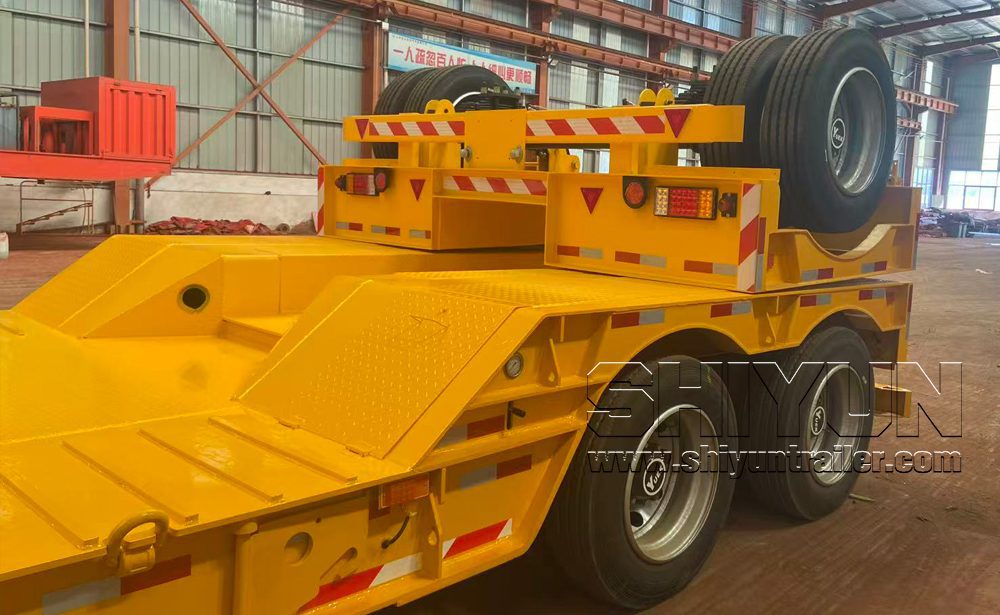

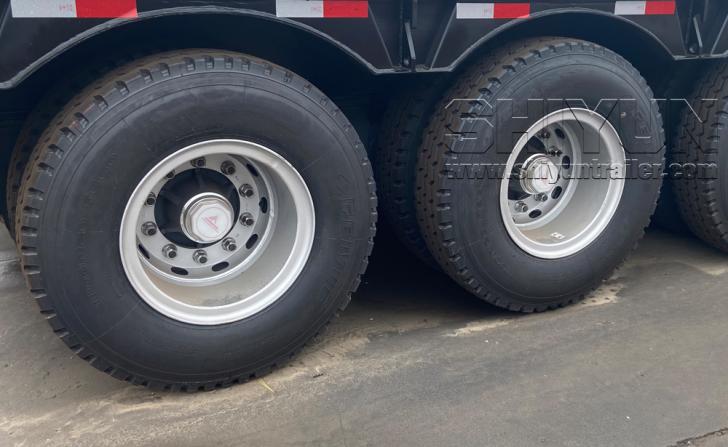

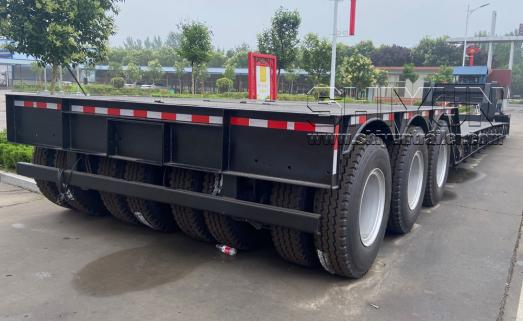

SHIYUN offer both fully enclosed tire design and exposed tire design to meet the transportation requirements of different cargoes.The exposed tire design has further lowers the platform height to accommodate taller cargo.
A wide range of suspension systems are available.SHIYUN lowbed trailers can be equipped with leaf spring suspension with equalizer beams , air suspension, cantilever suspension(bogie) ,hydraulic lifting suspension, as well as the dedicated suspension for hydraulic modular trailers.Air suspension can be equipped with WABCO lifting control handles, and hydraulic suspension can be equipped with dedicated hydraulic control handles.

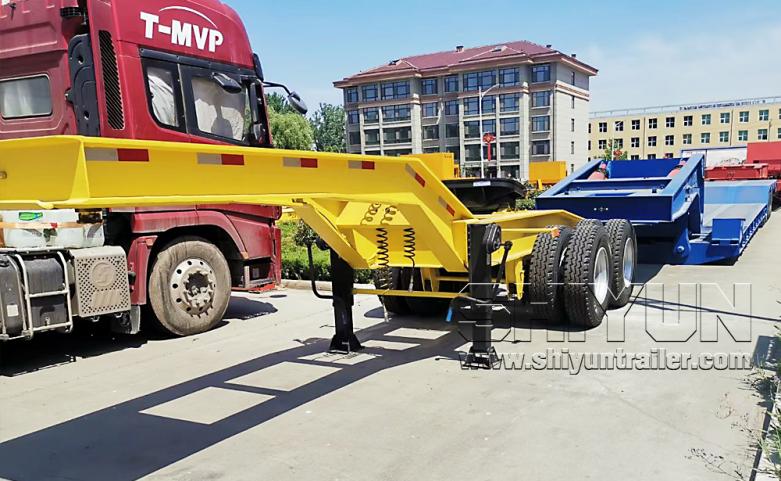

To increase the load capacity of the front kingpin, a front dolly can be equipped to improve the rated load and bearing capacity of the kingpin assembly.

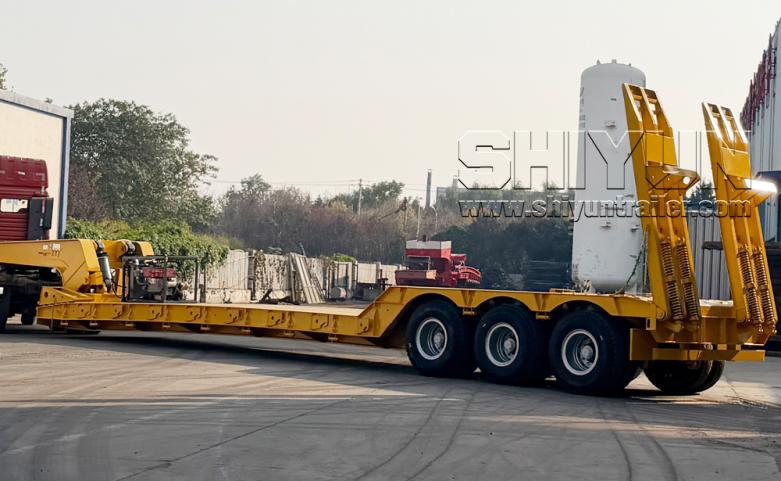

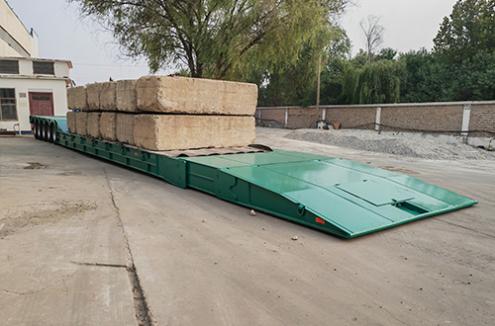

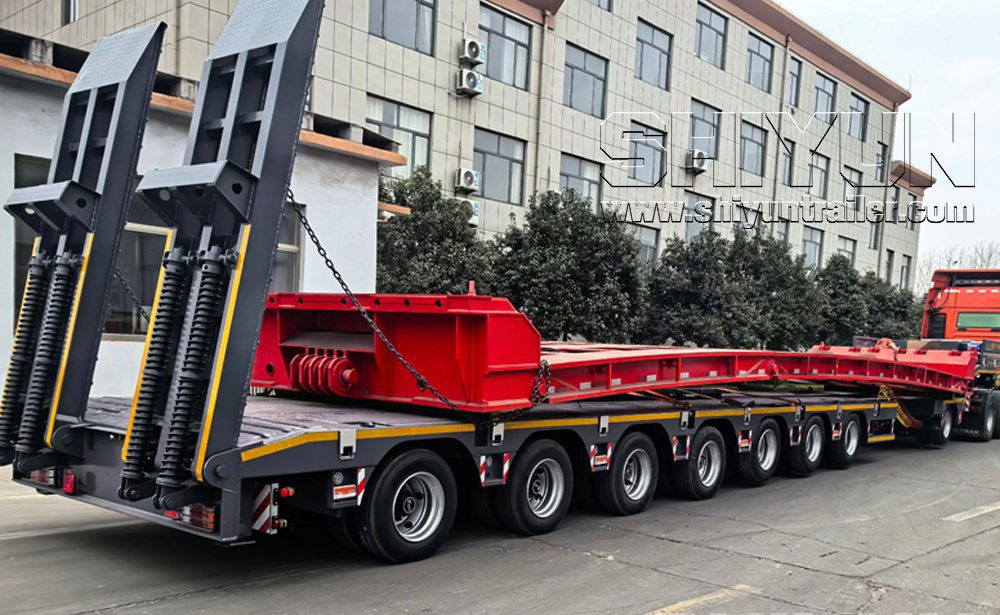

Normally, goods are loaded and unloaded via the front ramp of the front-mounted low loader. We can also customize low loaders with rear ramps according to customers’ requirements.

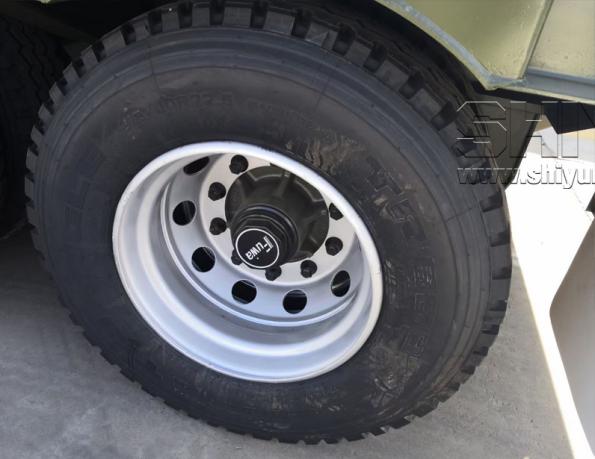

SHIYUN low loader trailers are equipped with renowned components, such as BPW, Fuwa, CTC, Jost,AN and others. These well-known brands feature high reliability, longer service life, and higher operating efficiency.

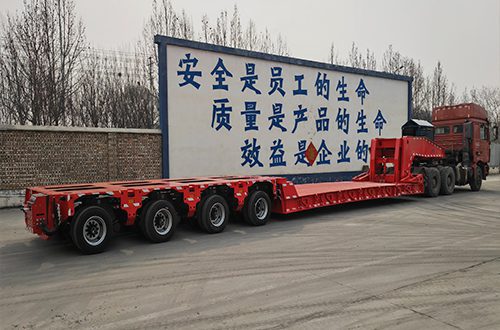

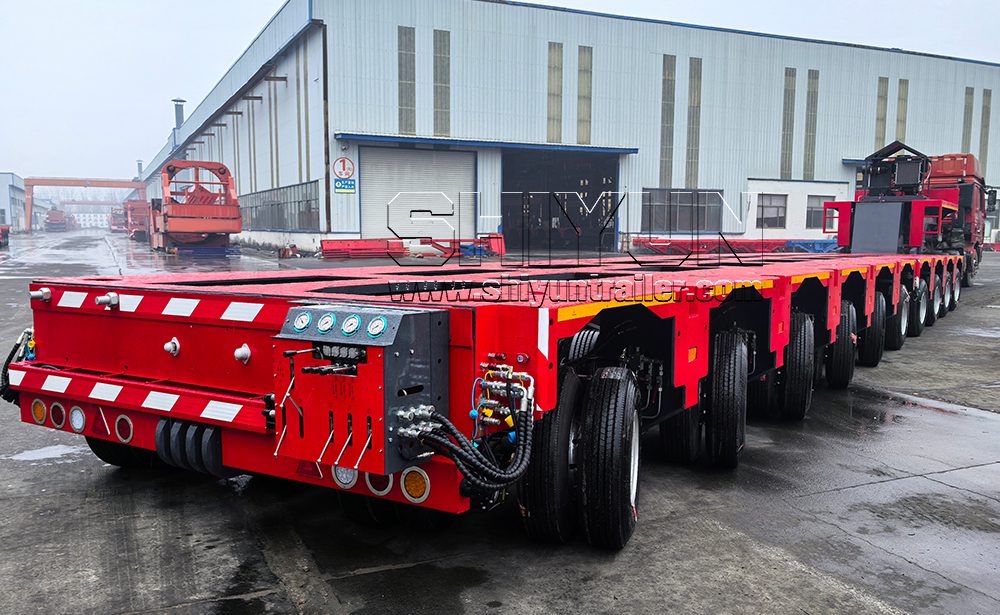

For axle suspension, standard through axles are available in 2-axle, 3-axle, 4-axle, 5-axle and even 6-axle configurations. Optional choices also include line axles, modular axles and modular hydraulic steering axles.

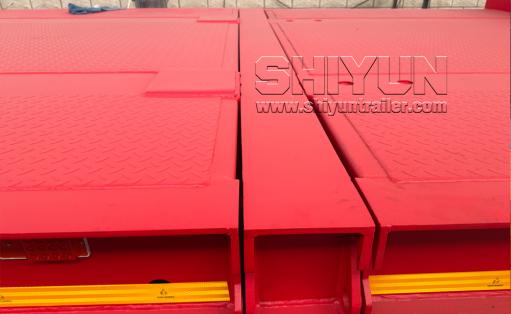

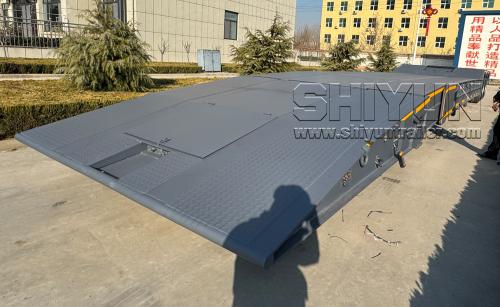

The loading platform can be made of checker plate or wooden planks, featuring sufficient thickness and high strength.
Flip-type axle splicing structure can be adopted to flexibly add or reduce axles and adjust axle load capacity.

The low-bed semi-trailers manufactured by SHIYUN are available in a wide range of models, not limited to the above specifications. They can be fully customized according to your requirements to meet the regulatory standards and road access requirements of different countries.

Our low-bed semi-trailers are suitable for heavy-duty transportation in various scenarios, featuring a solid structure and stable operation. With professional performance, we help boost efficient logistics and are committed to creating greater value for customers with reliable quality.
