Lowbed Trailer

LOWBED SEMI TRAILER

A low bed semi-trailer is designed with an low cargo loading platform, namely the drop deck. Platform height is typically 0.8–1.2m, providing an extremely low center of gravity for enhanced driving stability and reduced rollover risk.Its low-profile configuration grants superior road adaptability for navigating bridges and tunnels, and reduces the center of gravity (COG) of loaded goods.With its recessed drop deck positioned beneath the front gooseneck and rear wheel sets, this trailer is structurally equipped with an integrated gooseneck, hence its widely adopted name: low bed semi trailer.In some countries, lowbed semi trailers are also referred to as lowboy semi trailers or low loader semitrailers.Standard load rating from 20 to 100 tons, with multi-axle versions capable of over 300 tons.

1. PARAMETERS

Name	Module
Material	High strength Carbon steel Q550
Main beam	Heavy duty H beam	beam extendable optional
Axles	11.5ton, 13 ton (16ton,20ton) capacity	FUWA, BPW, AN CTC or GT Brand
Suspension	Mechanical suspension	Air /cantilever suspension optional
Leaf spring	Leaf spring	Air bag lifting /cantilever optional
Tire	245/70R17.5, 245/70R19.5, 12R22.5, 11.00R20	Other size and brand optional
King pin	2” / 3.5” bolt type, SAE standard	Welding on type optional (JOST)

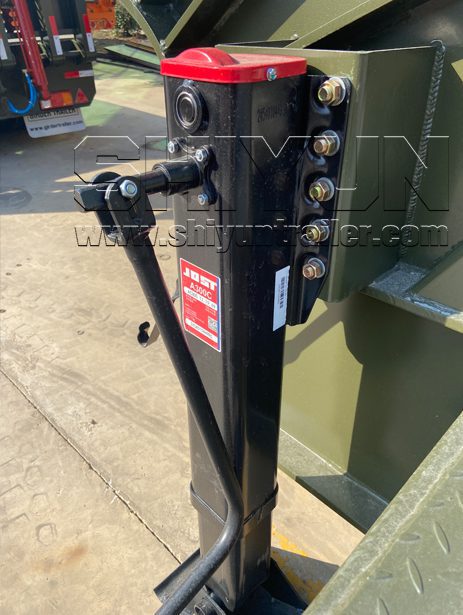

Landing gear	28 Ton two speed	JOST or equivalent brand
Platform	Checked plate 4mm/5mm	Other thickness optional
Ladder	1 pair spring mechanical ladder	Hydraulic ladder optional
Side beam	I beam or U channel
Braking system	Dual line brake system, double air chamber, brake valve, 40L air tanks	ABS optional
Electrical	LED light, 7 ways, 24V
Painting	Blasting and clean rust, 1 coat of prime painting, 2 coat of finish painting
Accessory	Tool box, oil tank, spraying system optional

Above date can be customized per your local regulation and requirement

2.Functions and features:

Lowbed semi trailers feature a low center of gravity, high load capacity, stable performance and convenient loading/unloading, specially designed for transporting large construction machinery, heavy equipment and oversized cargo such as：

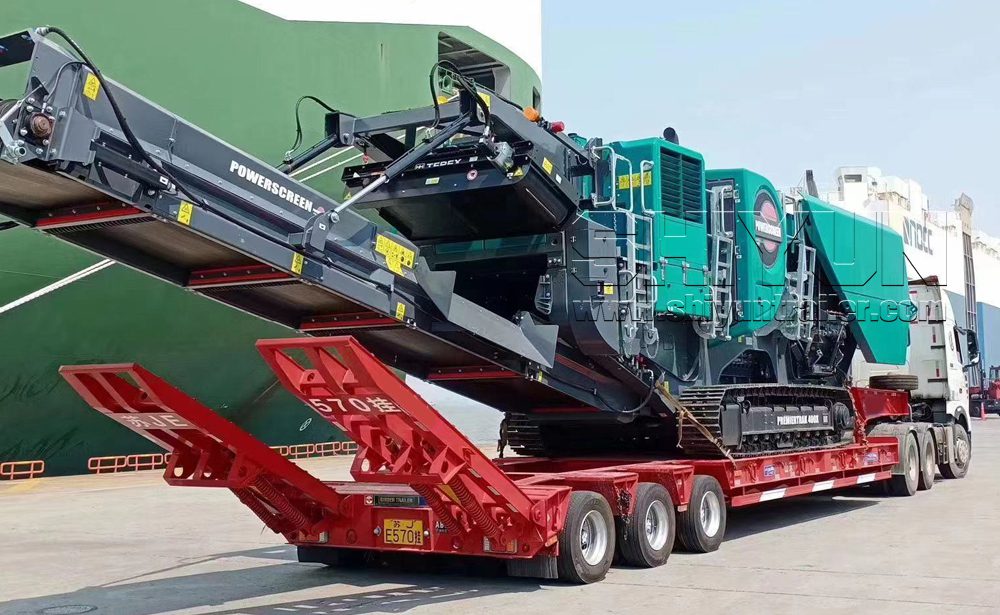

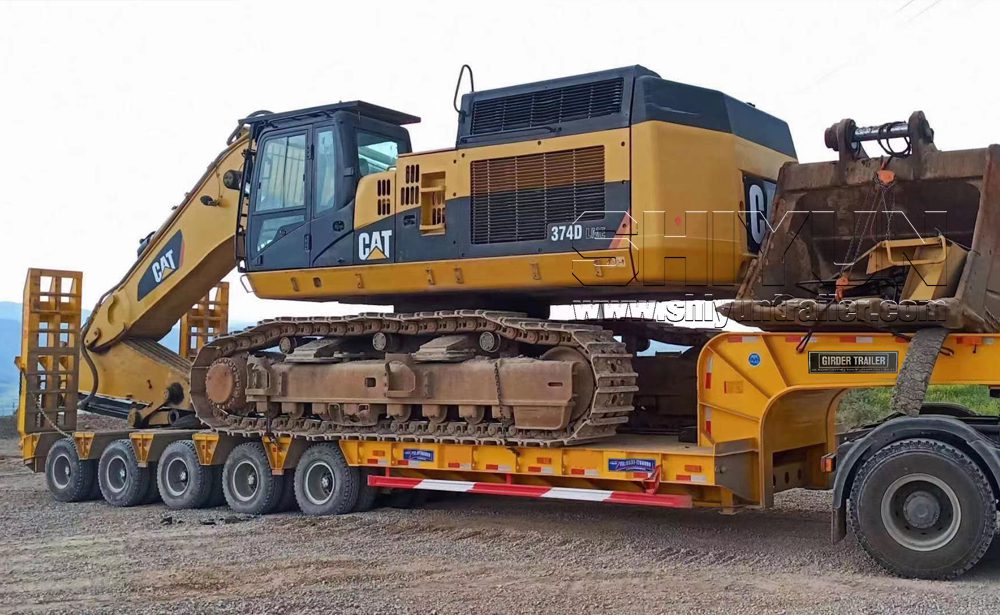

Transportation of construction machinery (excavators, bulldozers, road rollers, etc.)

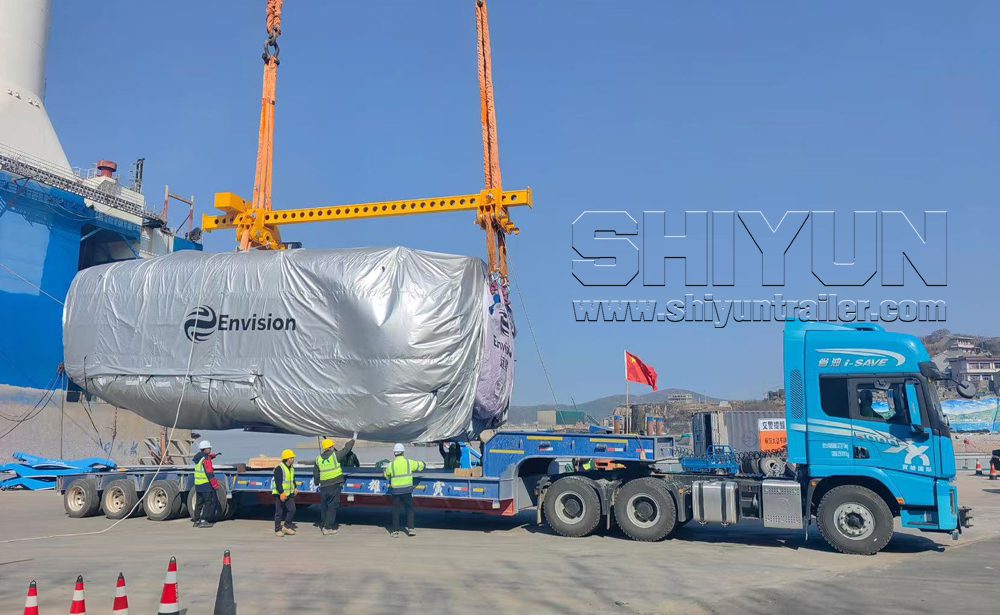

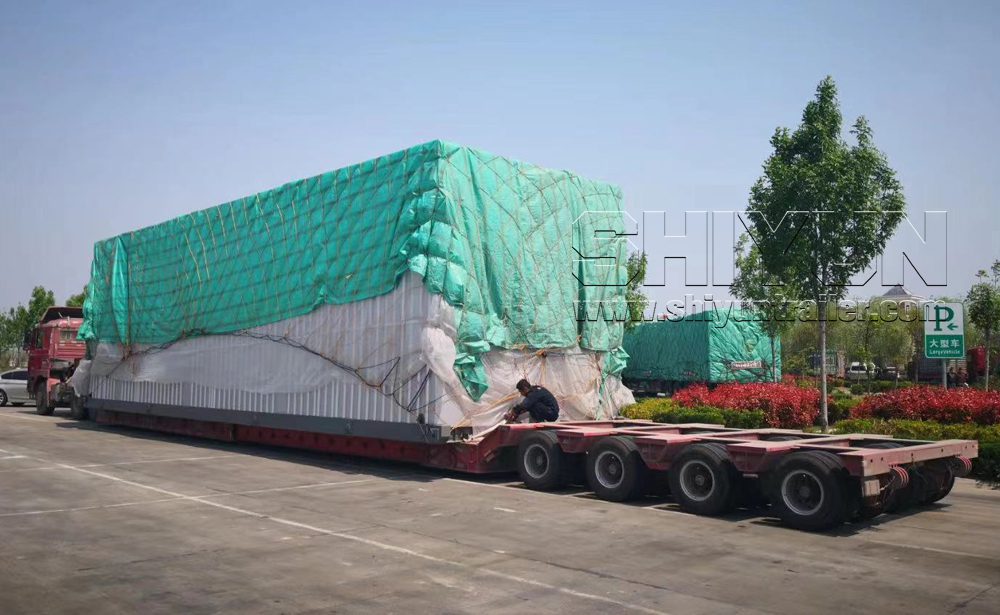

Heavy equipment, tanks, wind power components, transformers and oversized goods
Heavy-duty trucks, buses and special vehicles
Steel products, structural parts and other heavy loads

As a leading semi-trailer manufacturer in China, SHIYUN provides a full range of lowbed semi-trailers with the following features and optional configurations:

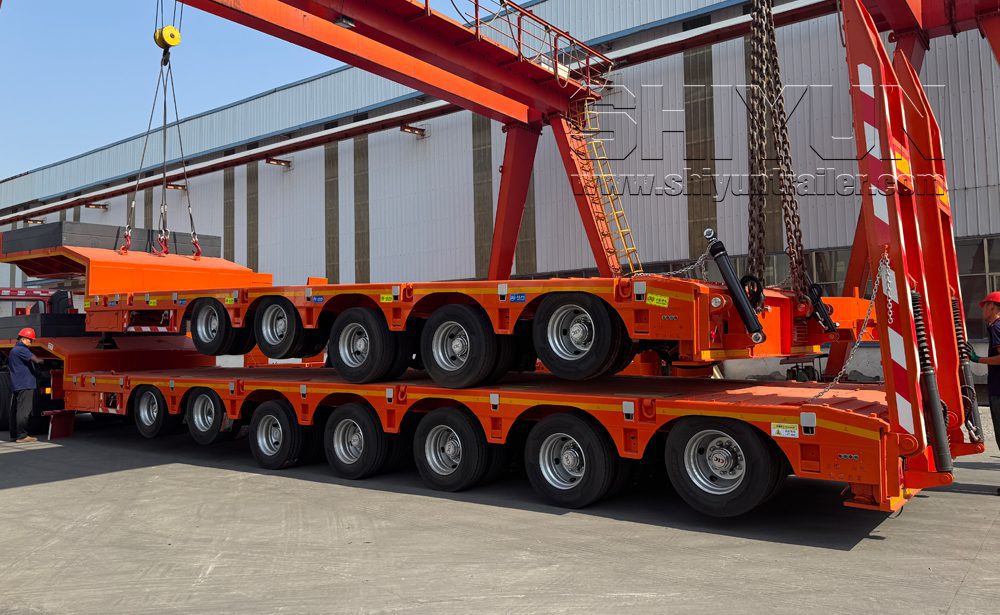

2 axles,3 axles,4 axles, 5 axles,6 axles ,7 axles,8 axles,9 axles ,10 axles optional.Additional axles can be customized according to customer requirements.Multi-line axle configurations, such as two lines four axles, three lines six axles, four lines eight axles, are available to meet various load capacity demands.

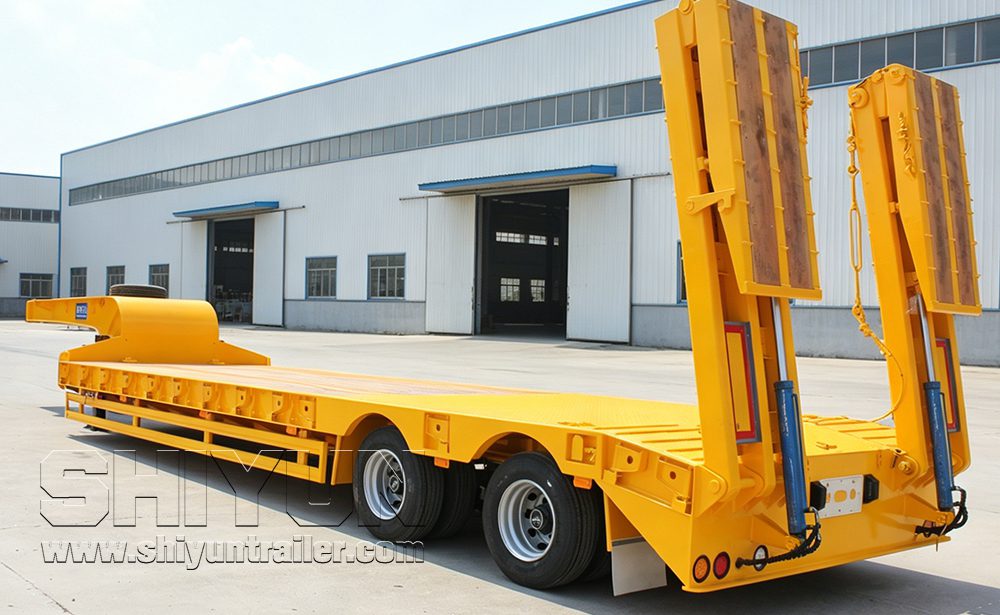

2 axles 30 tons lowbed trailer

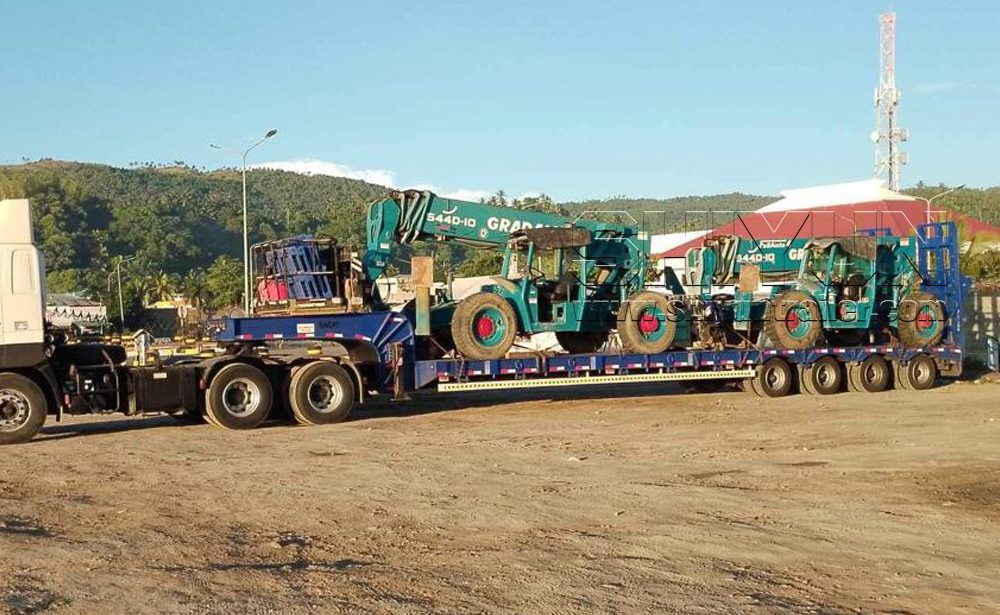

4 axles 80 tons lowbed trailer

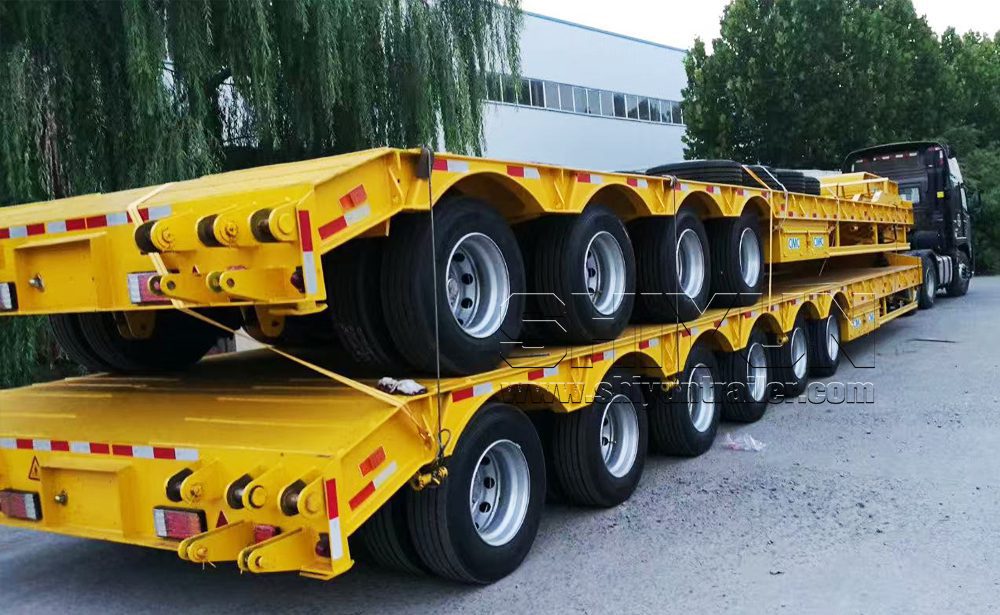

6 axles 100T lowbed trailer

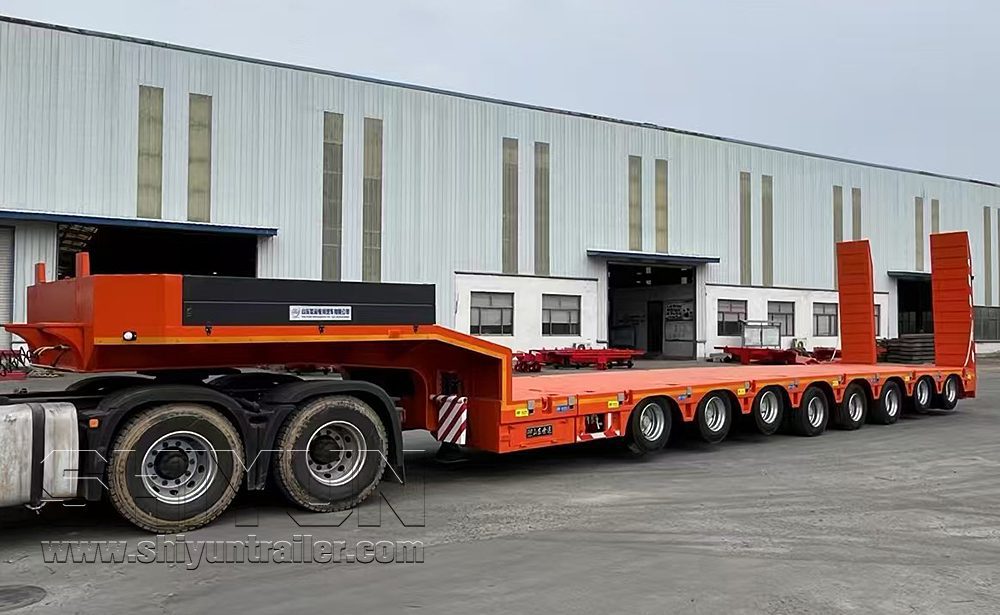

8 axles 110TON lowbed trailer

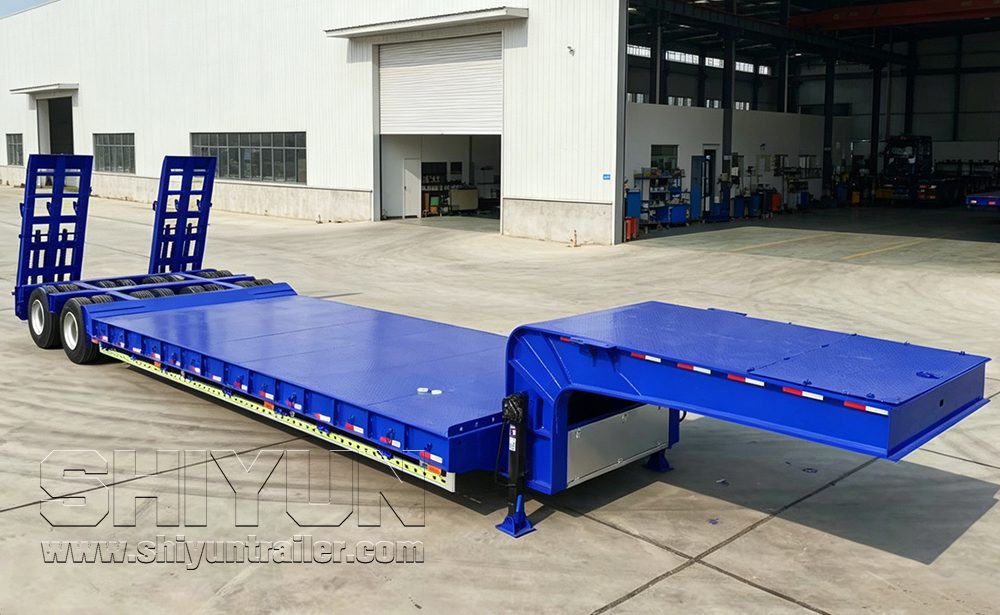

2 lines 4 axis lowbed trailer

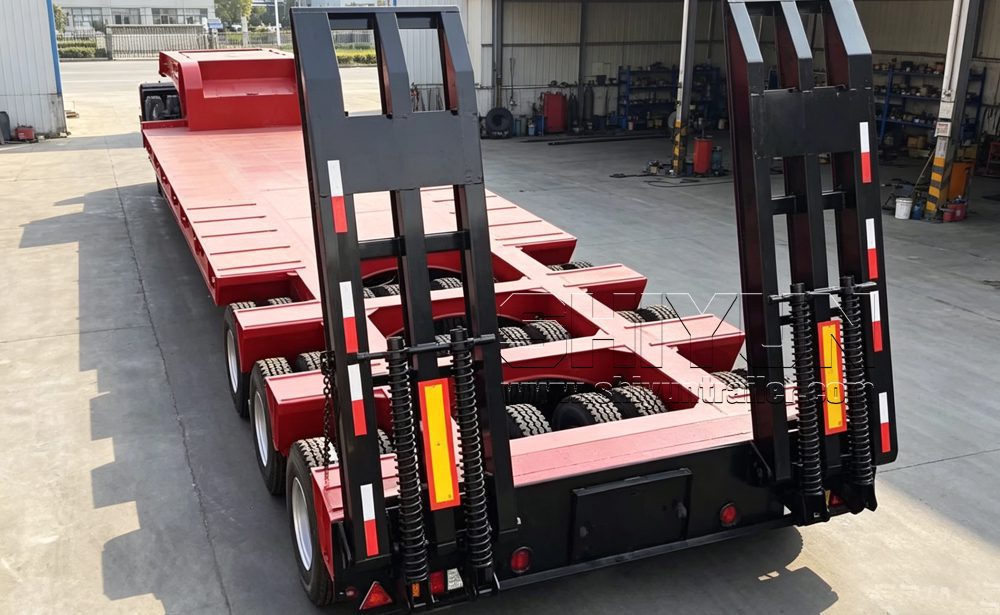

3 lines 6 axis lowbed trailer

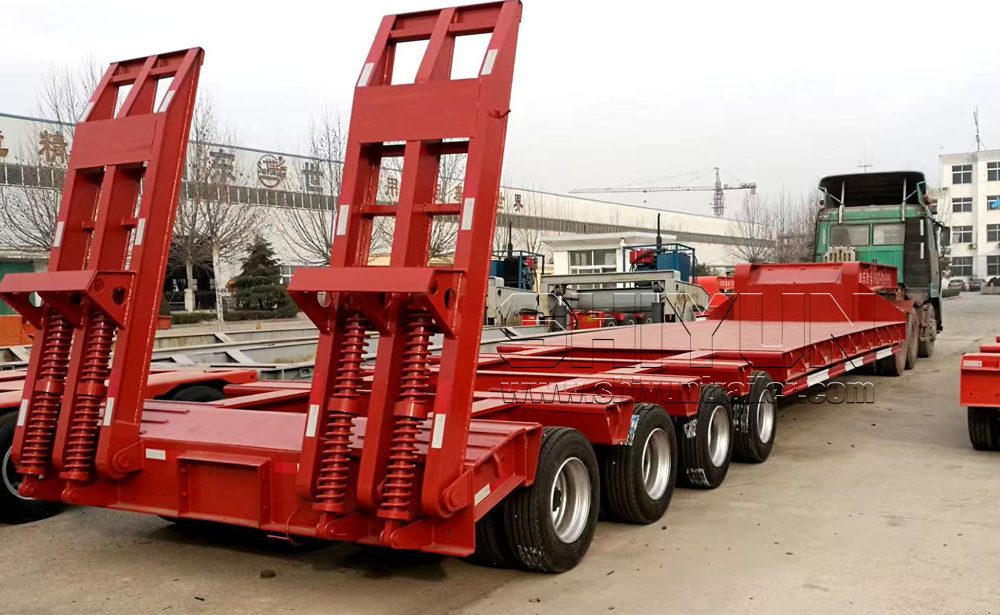

4 lines 8 axis lowbed trailer

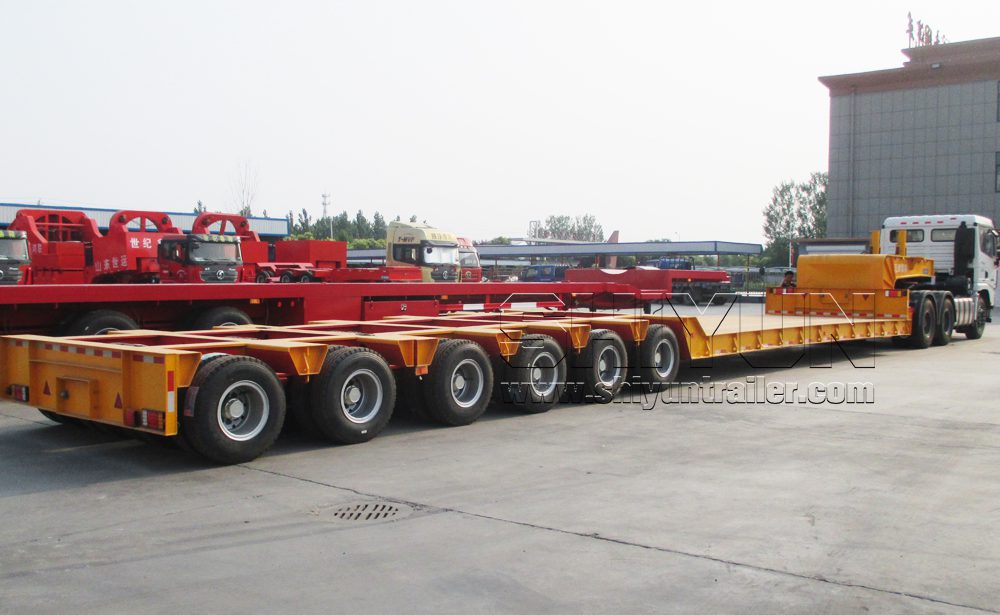

6 lines 12 axis lowbed trailer

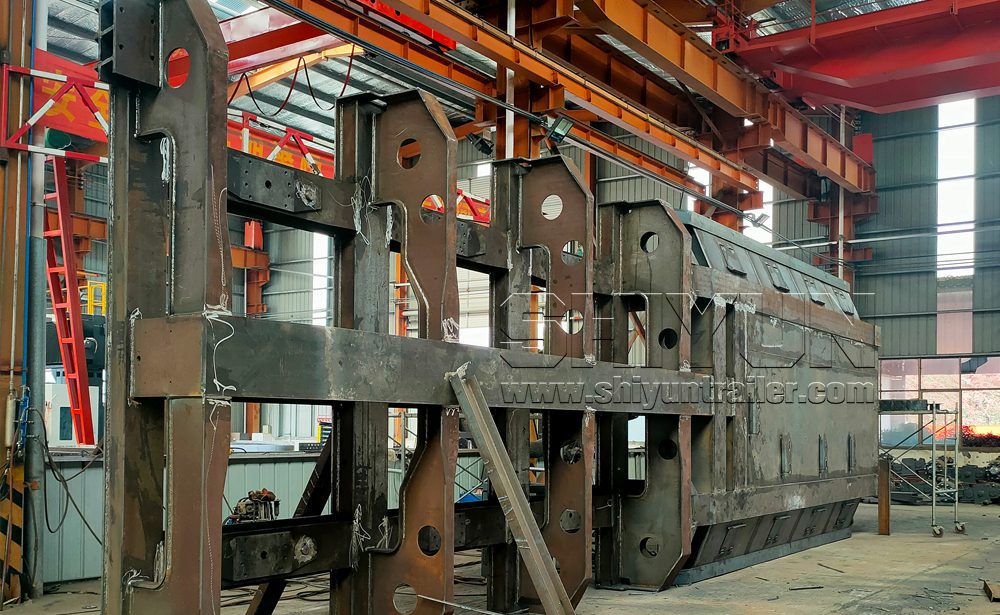

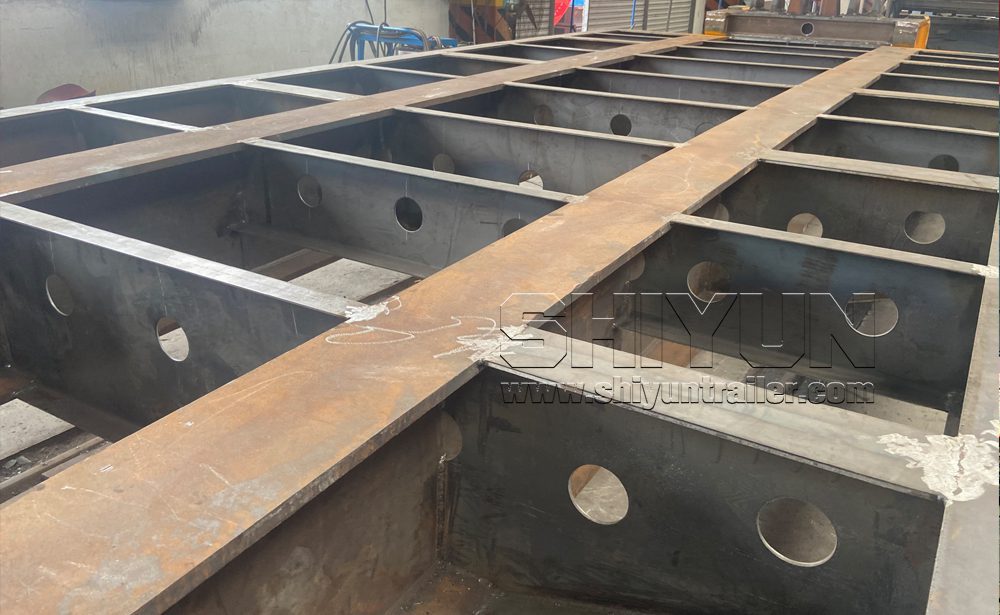

SHIYUN lowbed semi-trailers are mainly constructed from high-strength structural steel Q550 or Q460, with a yield strength> 620MPa.Compared with ordinary Q345 steel used for semi-trailers, our steel features higher strength and better durability, which greatly improves load capacity and life time while effectively reducing the overall weight.Reasonable structural design and precise camber fabrication have earned SHIYUN lowboy trailers a broad market and excellent reputation.

The loading platform can be designed with either straight beam or concave beam structure.For the straight beam type, the platform height is consistent and level with the tires.The concave beam type features a lower loading platform, which sits below the tire level, providing a lower loading height.You can choose the appropriate design based on your specific transportation requirements.

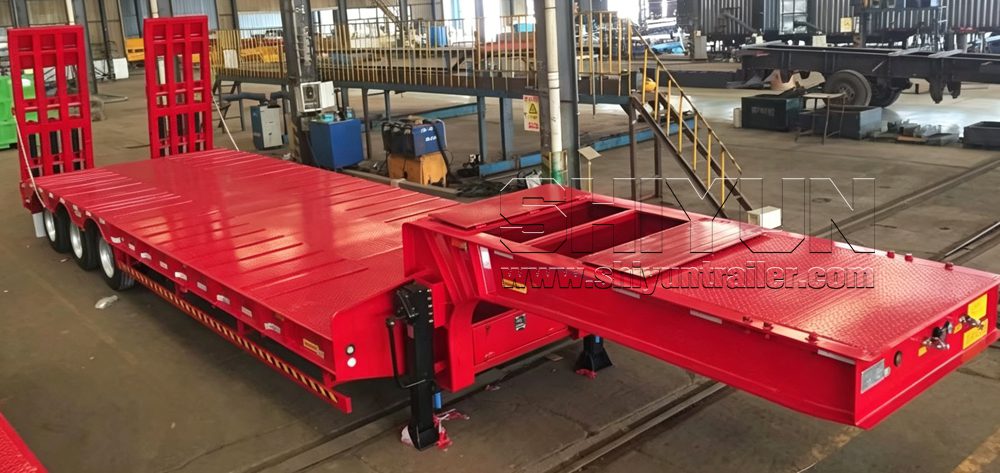

60tons Straight beam low bed semi trailer

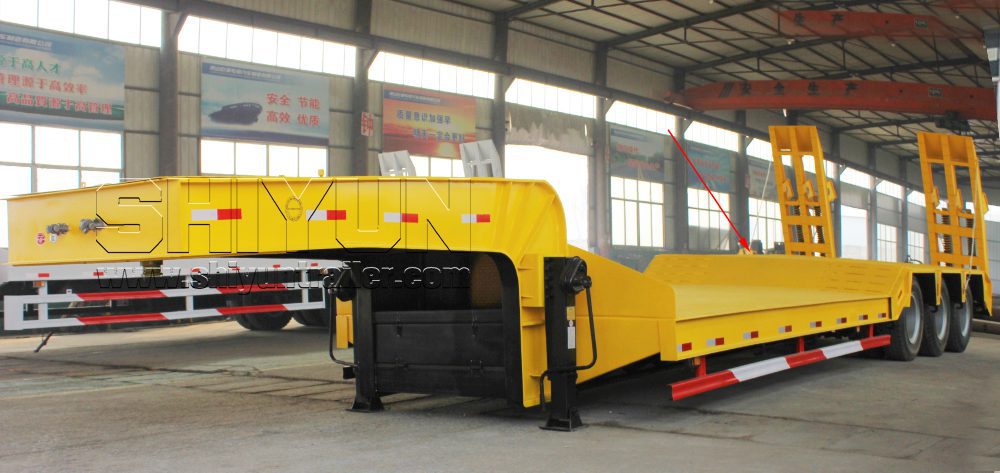

Concave beam low low bed semi trailer

In addition, SHIYUN offer both fully enclosed tire design and exposed tire design to meet the transportation requirements of different cargoes.The exposed tire design has further lowers the platform height to accommodate taller cargo.

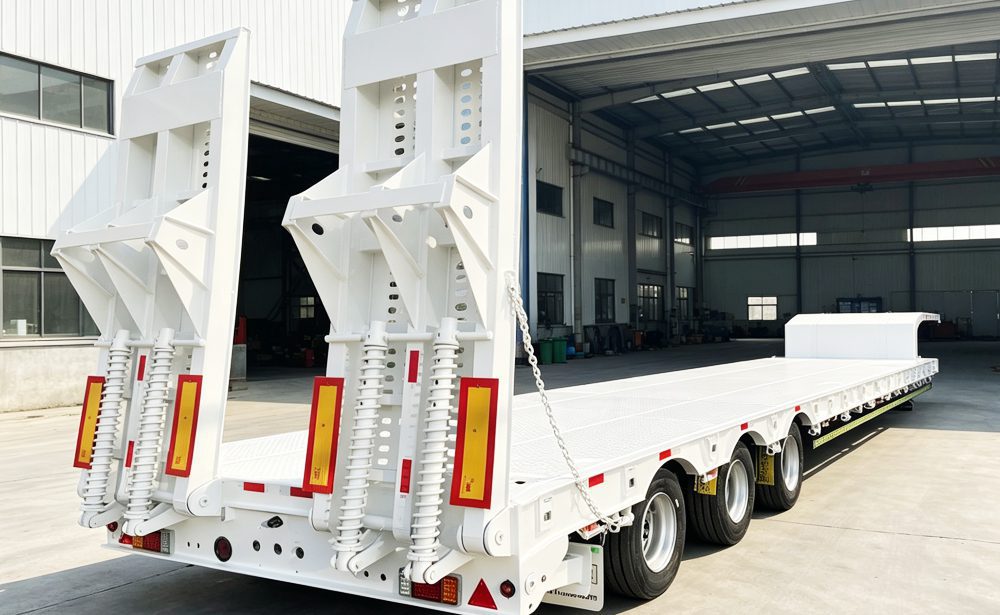

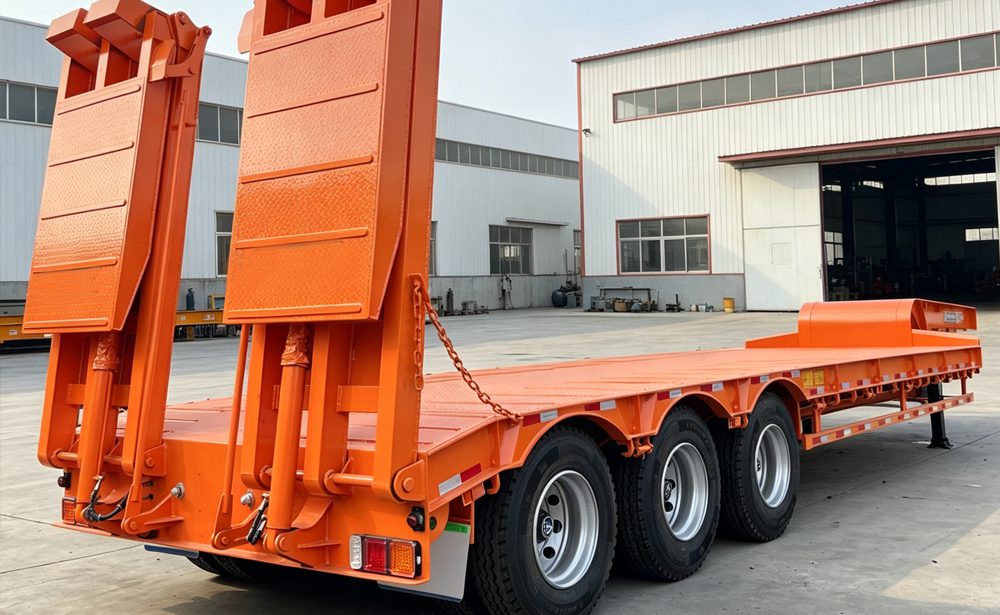

50tons Lowbed trailer with covered tires

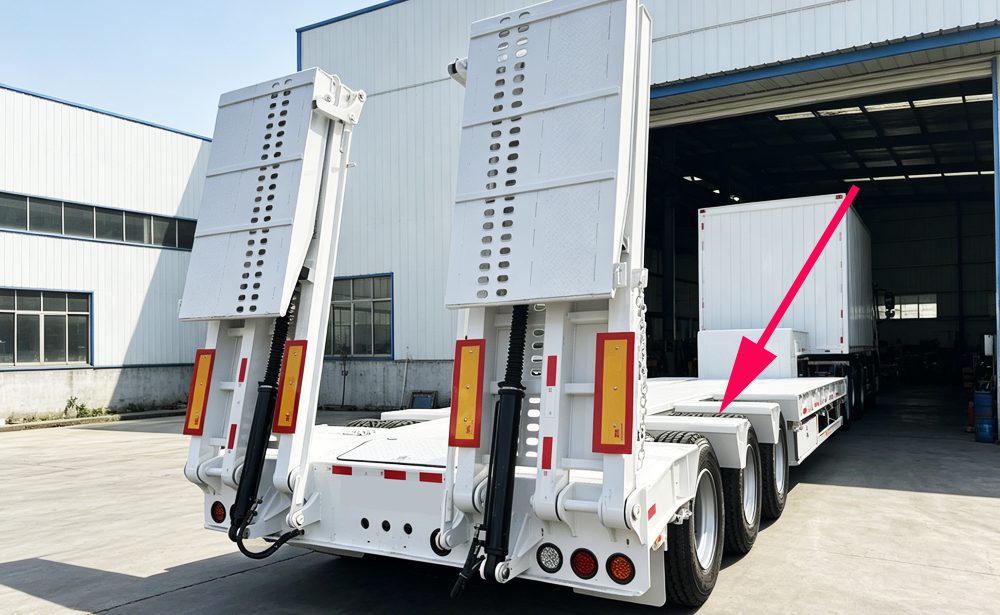

50tons Lowbed trailer with expose tires

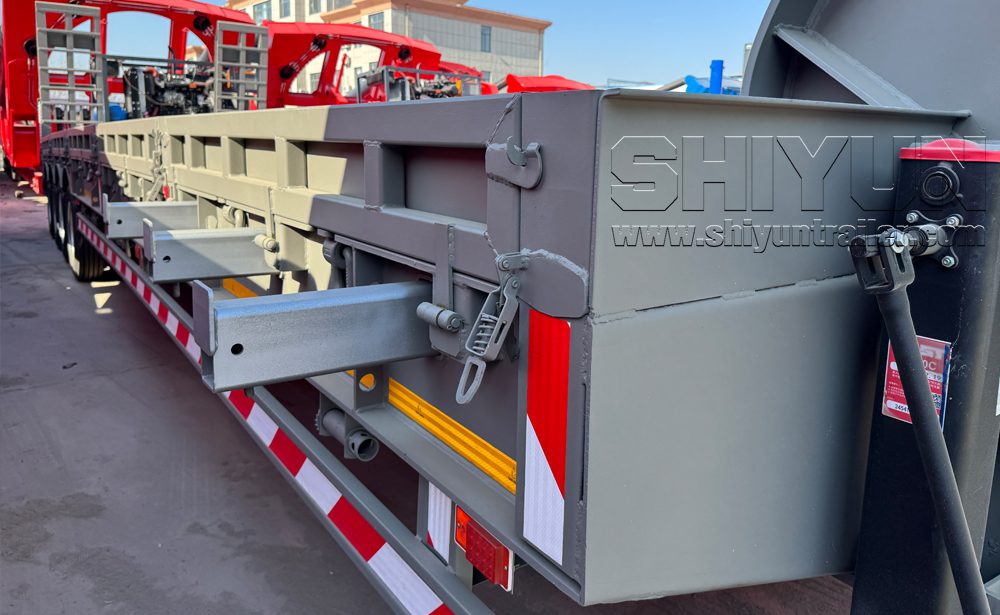

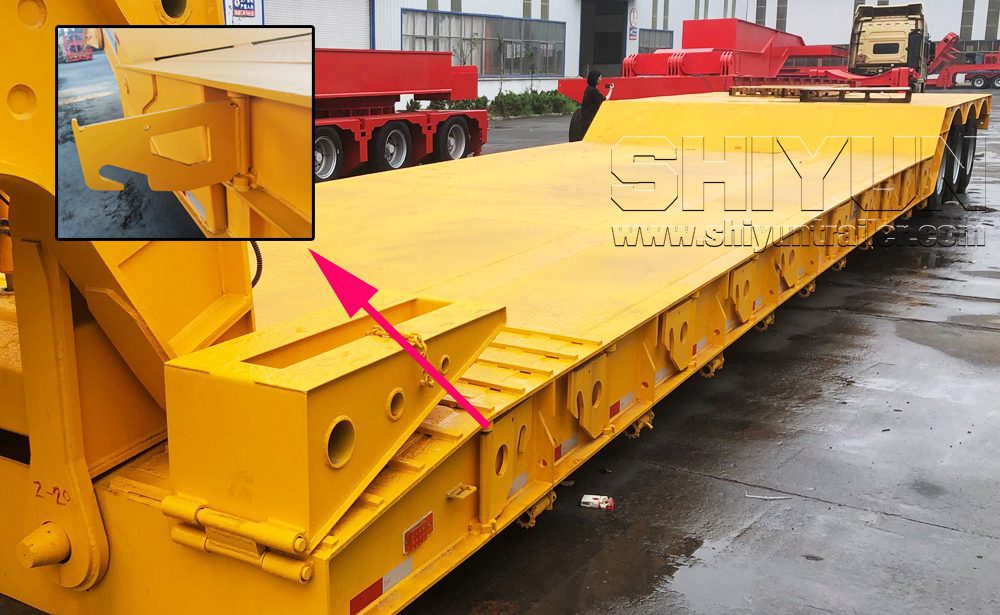

SHIYUN lowbed semi-trailers can be designed with various widths to meet different requirements.The standard minimum width is 2 meters, while most customers choose a width between 2.5 meters and 3 meters.We can also customize trailers with a maximum width of up to 6 meters as per your needs.In addition to fixed-width designs, we can equip extendable brackets to achieve flexible conversion between different loading widths.

A wide range of suspension systems are available.SHIYUN lowbed trailers can be equipped with leaf spring suspension with equalizer beams , air suspension, cantilever suspension(bogie) ,hydraulic lifting suspension, as well as the dedicated suspension for hydraulic modular trailers.Air suspension can be equipped with WABCO lifting control handles, and hydraulic suspension can be equipped with dedicated hydraulic control handles.

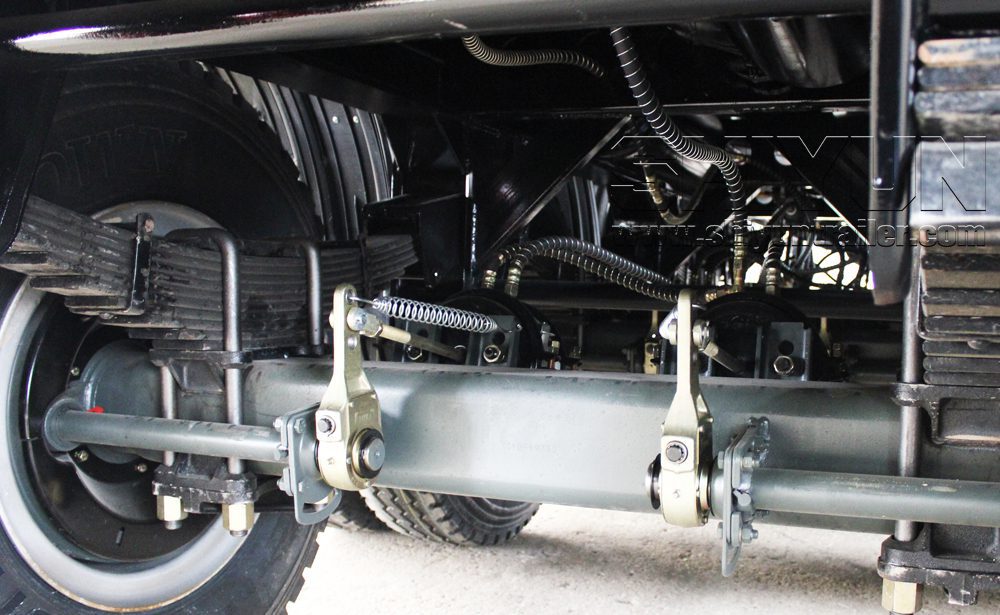

Mechanical leaf spring suspension

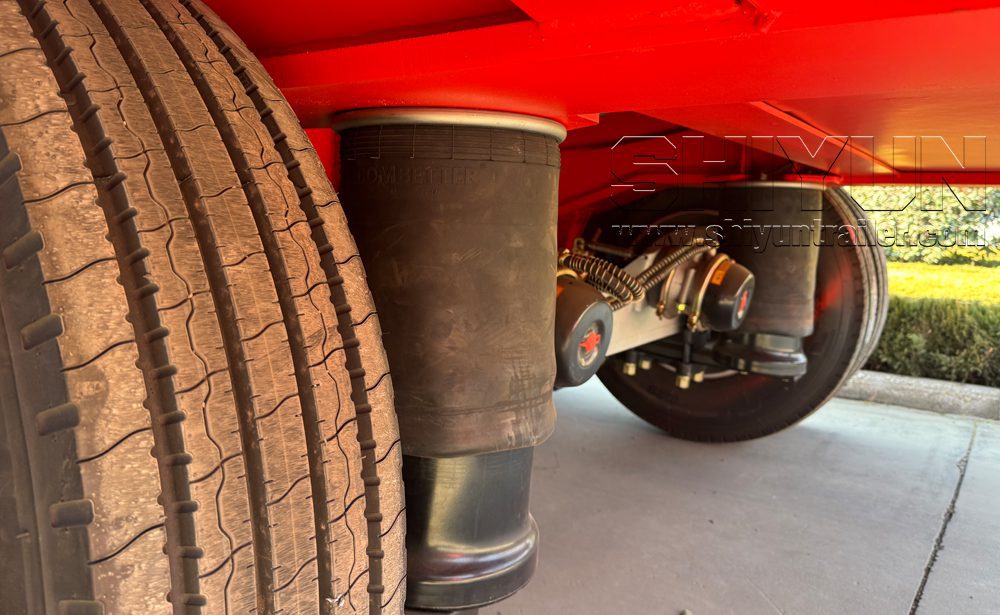

Air bag suspension

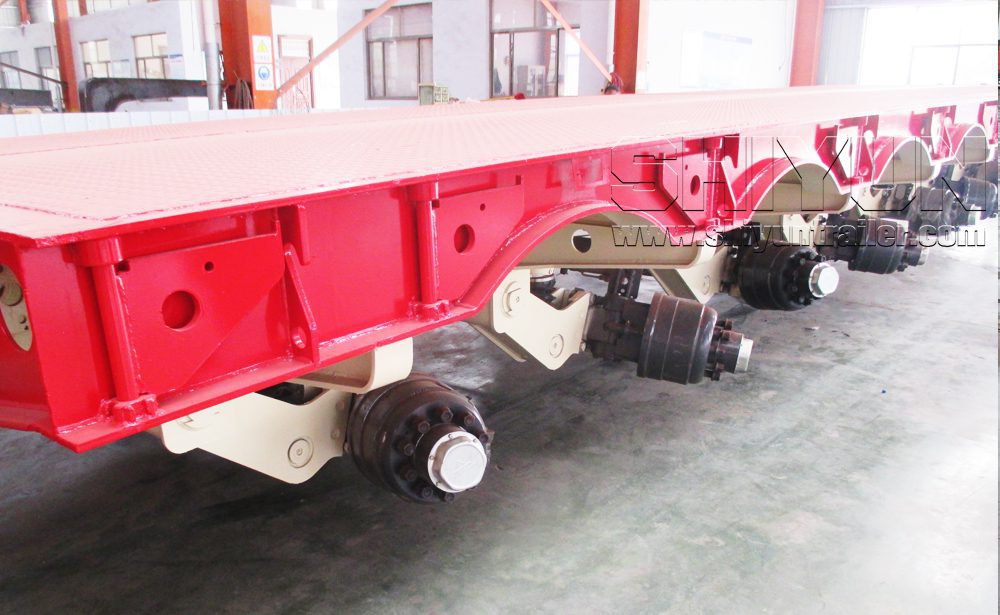

Hydraulic lifting steering suspension

Various types of ramps are available,Allows self-propelled equipment such as excavators and bulldozers to drive and climb on and off directly. Including mechanical ramps, hydraulic ramps and hydraulic folding ramps.Mechanical ramps are equipped with assist springs, while hydraulic ramps come with an independent power unit, control buttons and a remote controller, which greatly improves customers’ loading, unloading and transportation efficiency.

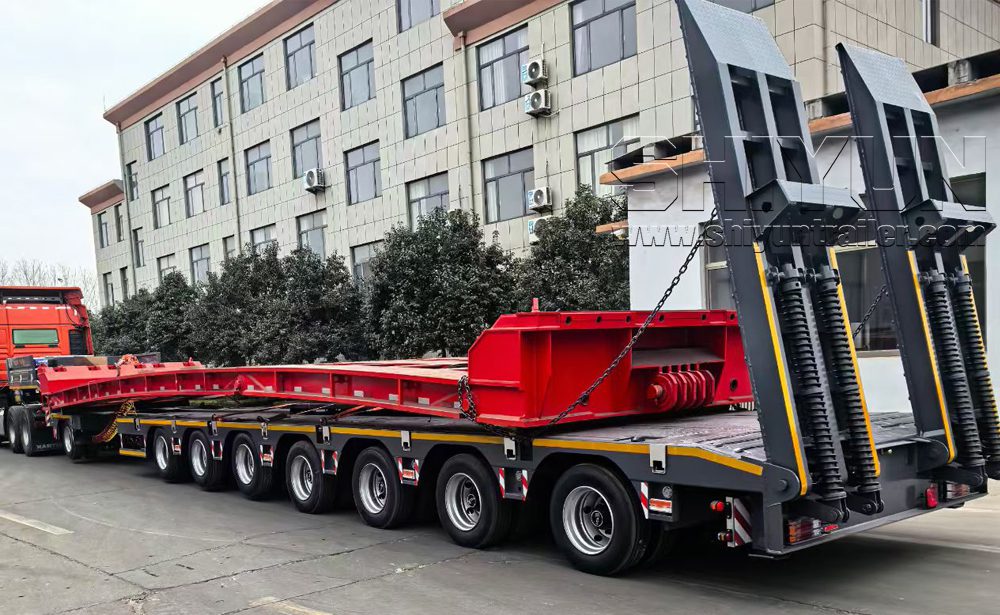

Mechanical ramp

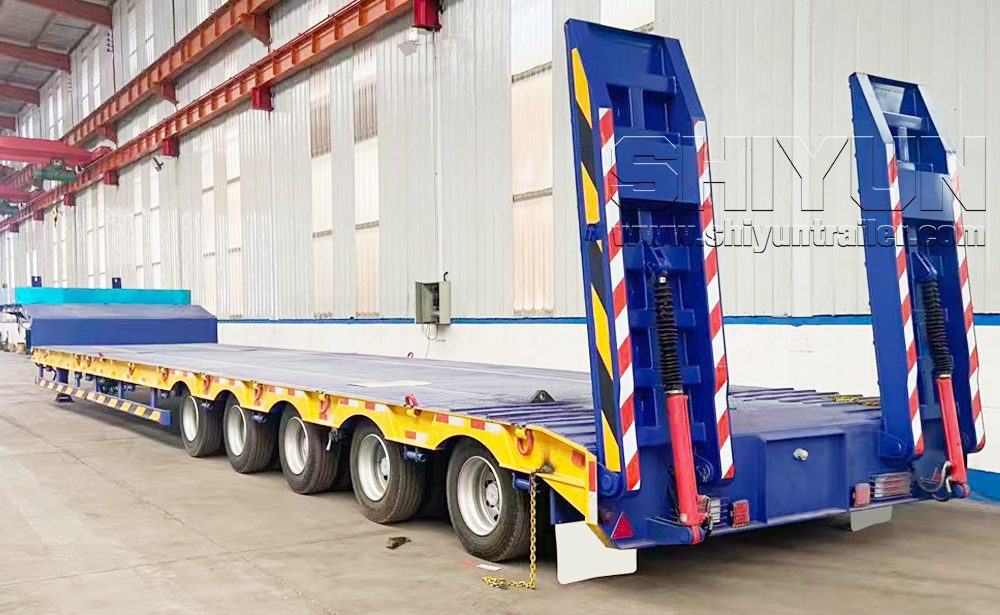

Hydraulic ramp

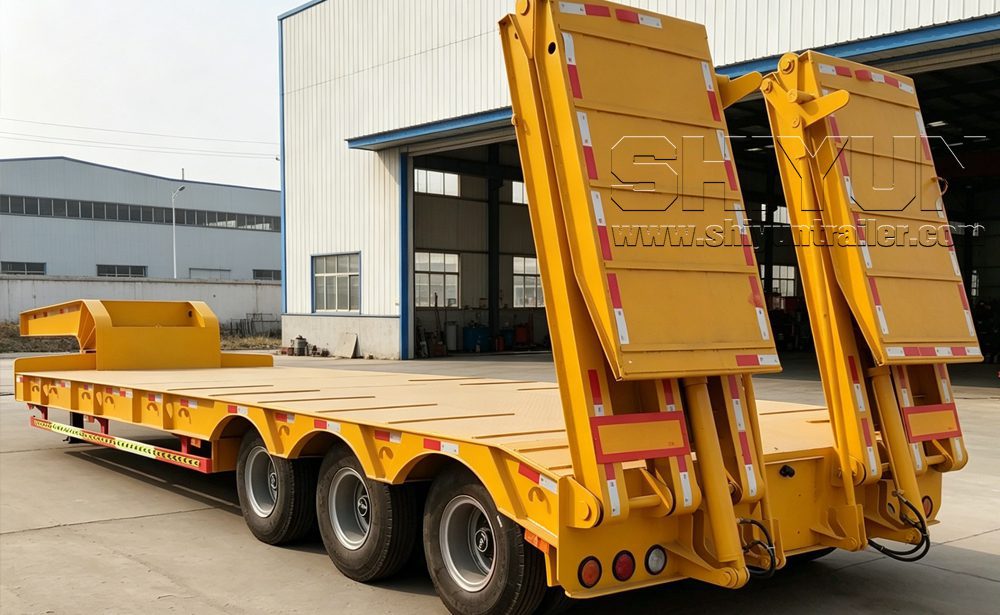

Hydraulic folding ramp

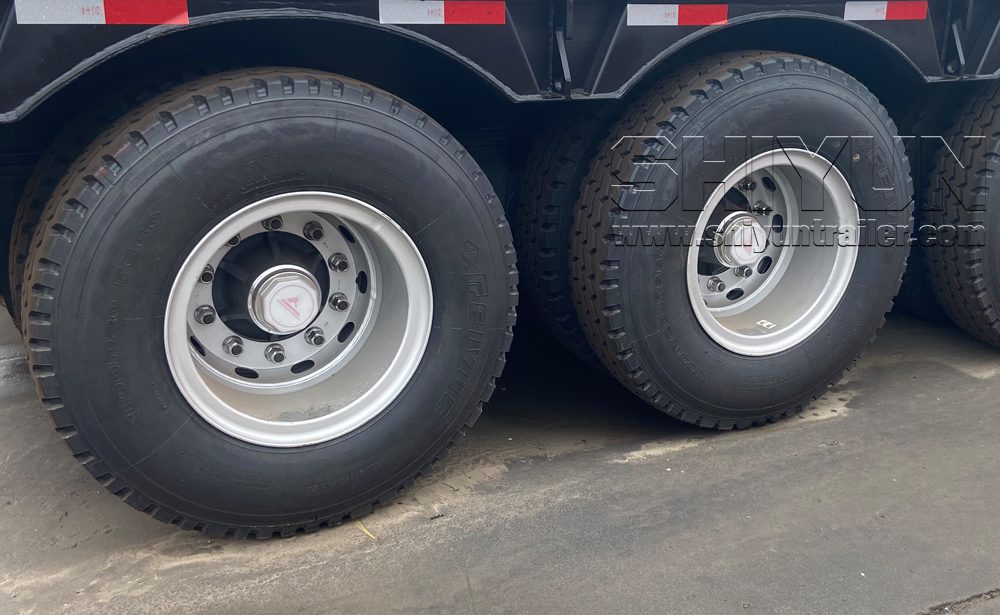

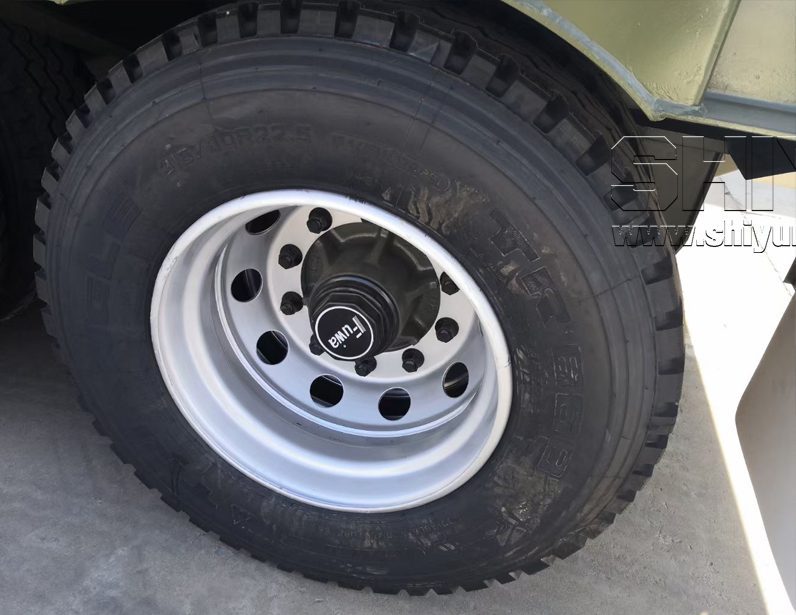

SHIYUN low loader trailers are equipped with renowned components, such as BPW, Fuwa, CTC, Jost,AN and others. These well-known brands feature high reliability, longer service life, and higher operating efficiency.

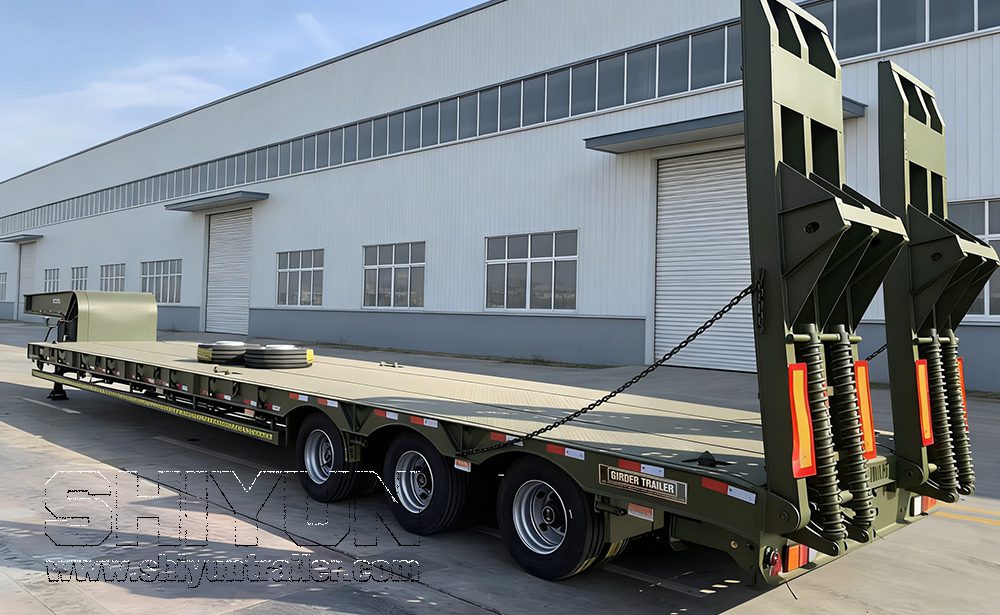

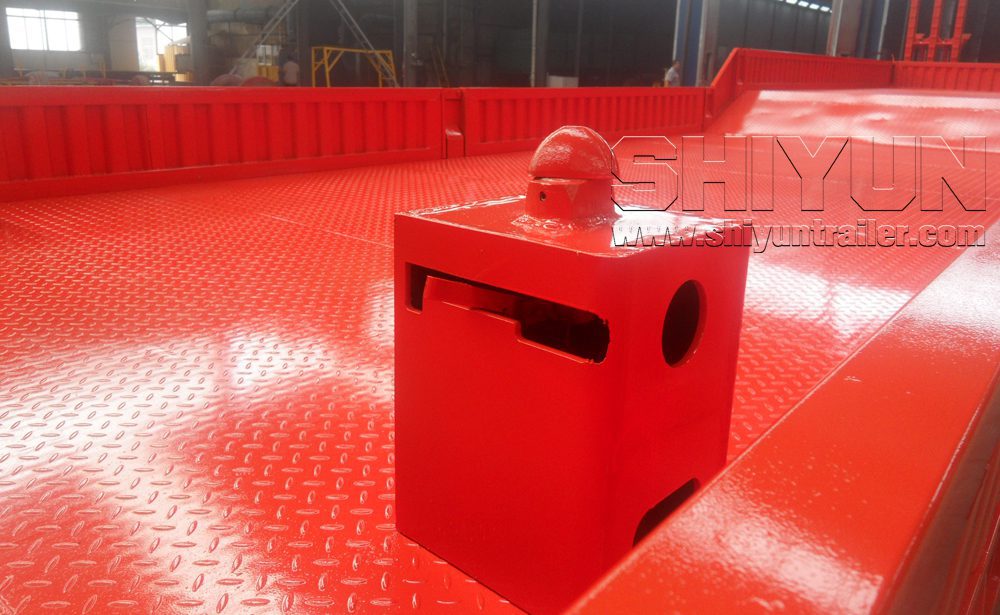

To meet the needs of customers transporting containers, SHIYUN can install container twist locks on lowbed semi trailers to ensure secure and stable loading.The loading platform can be designed to a length of 20ft or 40ft, and can also be made telescope extendable to accommodate container transportation.

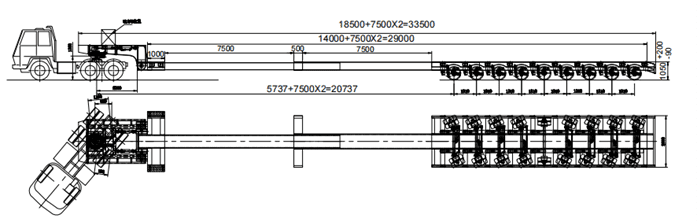

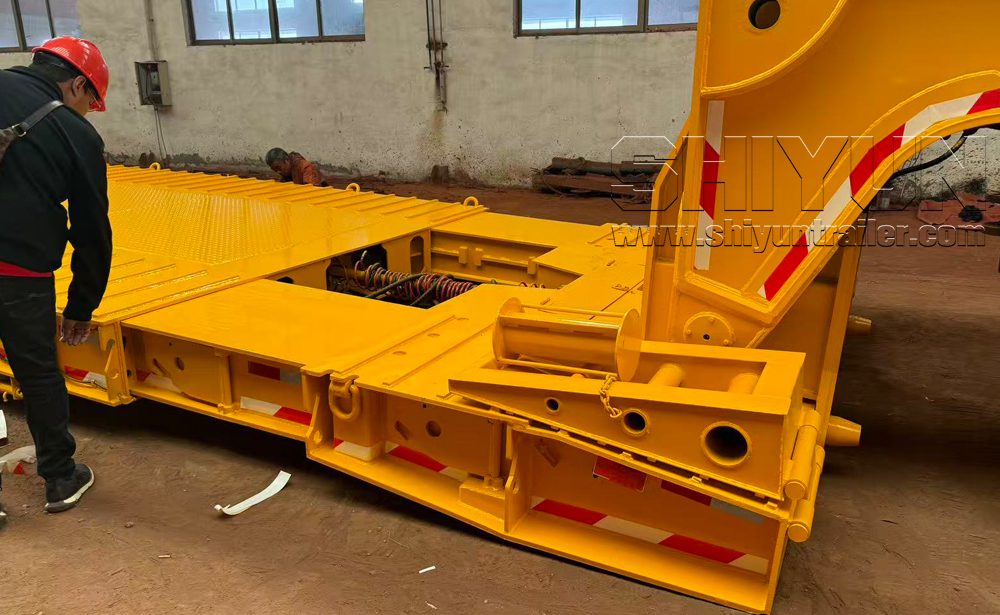

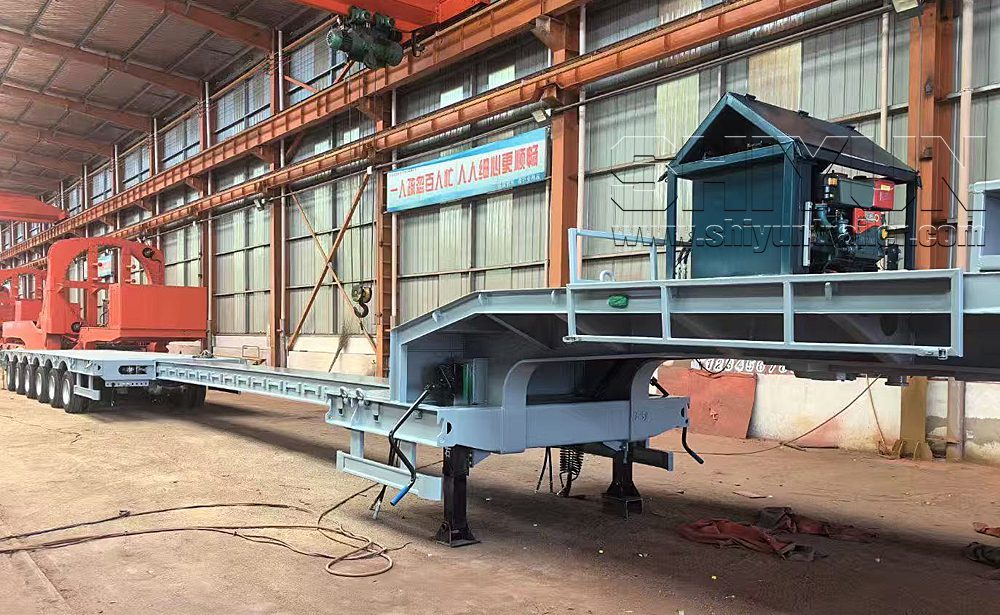

The perfect telescopic extendable beam design is another key advantage of SHIYUN low bed semi-trailers.Unlike structures made of conventional Q345 steel, we use high-strength steel plates Q550, ensuring the telescopic beams resist deformation, extend and retract smoothly and efficiently, and completely eliminate the risk of failing to retract after extension.

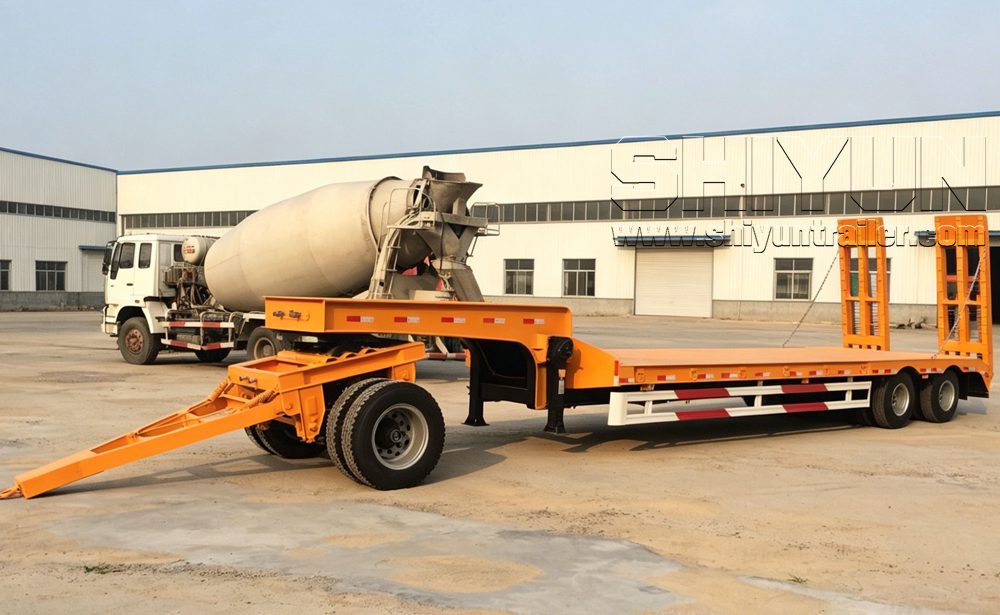

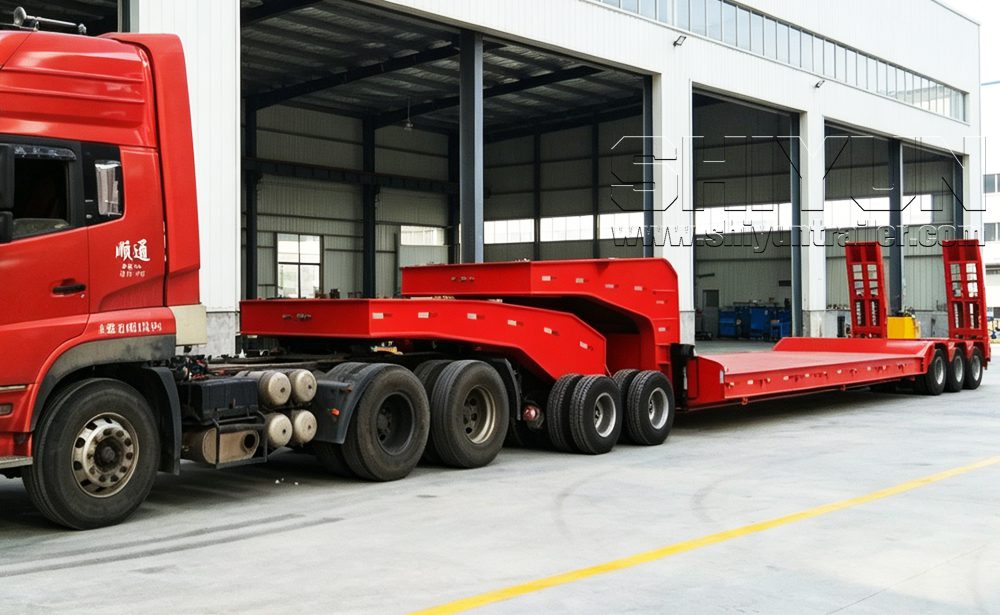

To increase the load capacity at the fifth wheel position, we recommend using a dolly trailer, which provides higher payload and stronger stability.

The loading platform can be made of checker plate or wooden planks, featuring sufficient thickness and high strength.

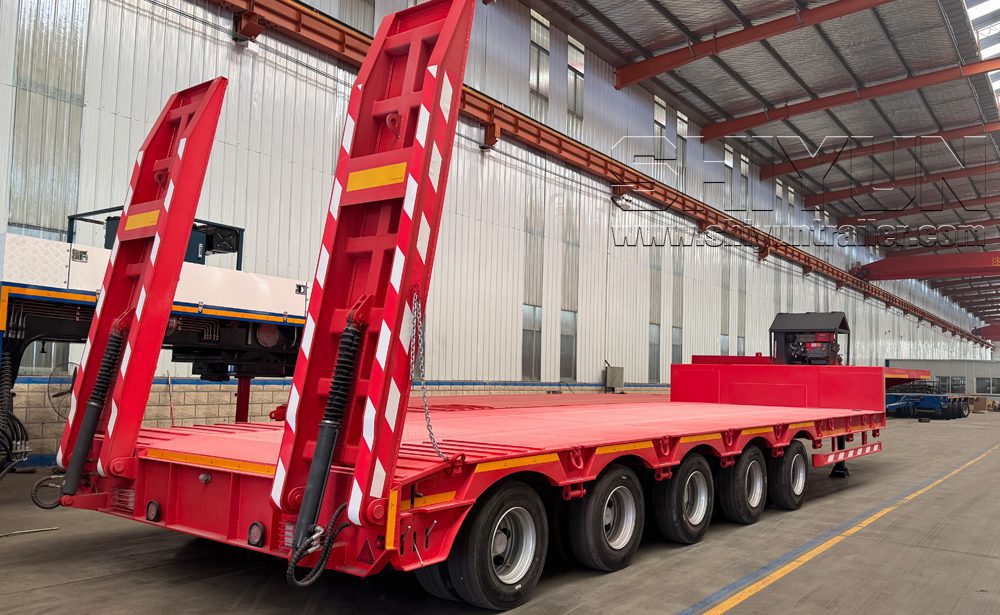

Lowbed trailer with checked plate

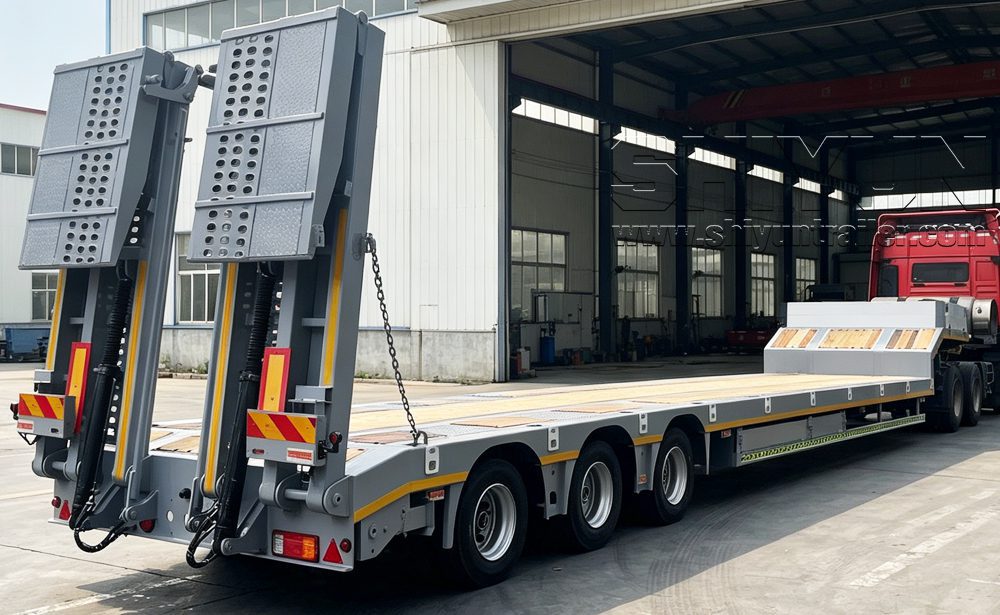

Lowbed trailer with wood deck plate

For the transportation of high-value equipment and construction machinery, SHIYUN recommend front-loading lowbed semi-trailers for a lower center of gravity, ensuring safer and more efficient delivery.They are mainly divided into hydraulic detachable gooseneck lowbed trailers and hydraulic folding gooseneck lowbed trailers.This semi-trailer is generally equipped with two types of power control systems: one is a hydraulic power unit, and the other is the PTO (Power Take-Off) of the tractor. Both can precisely control the hydraulic cylinder on the gooseneck to achieve lifting, disassembly, assembly, hoisting and other operations.

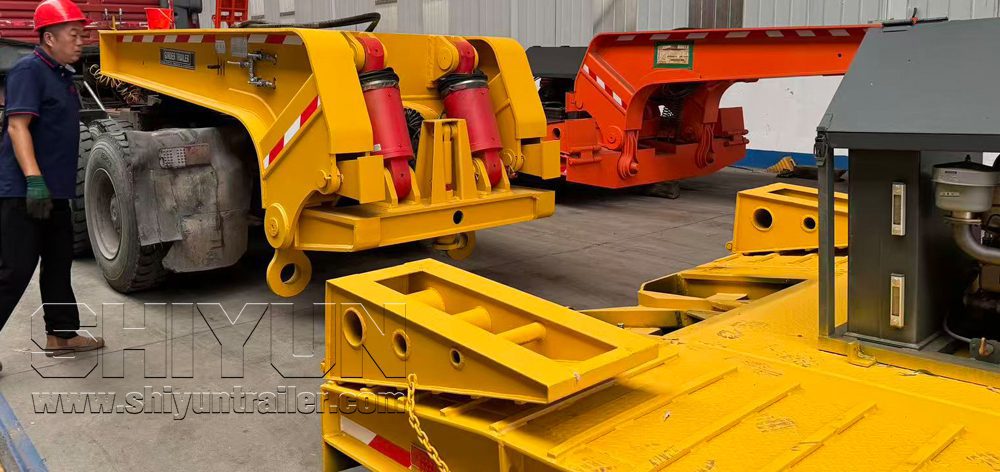

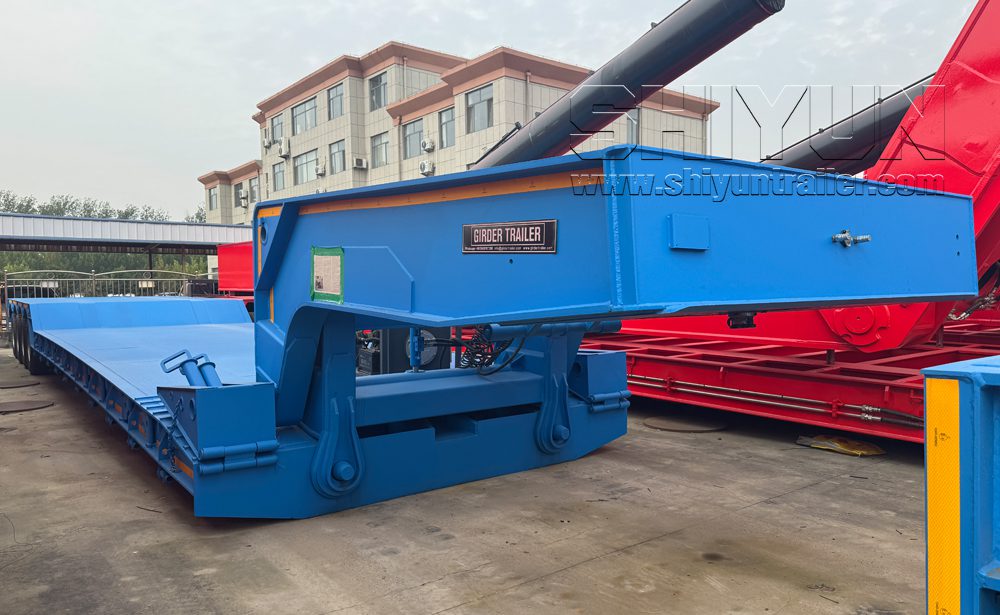

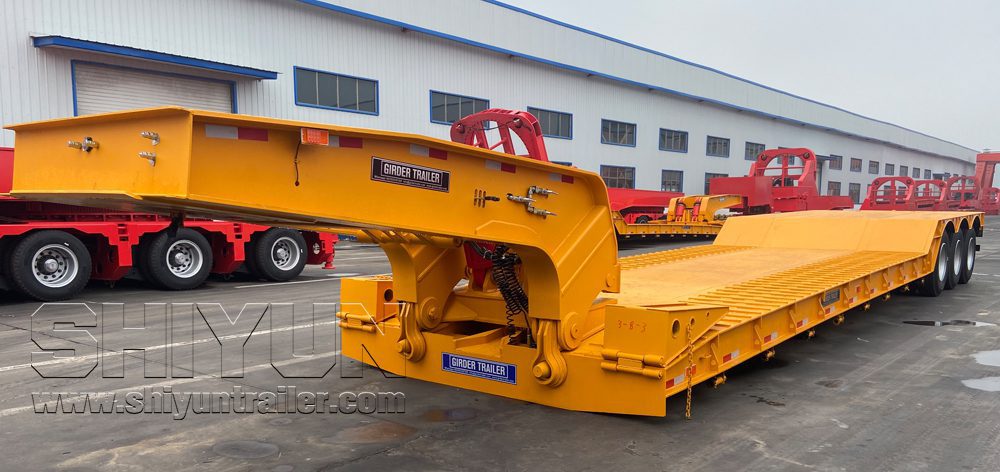

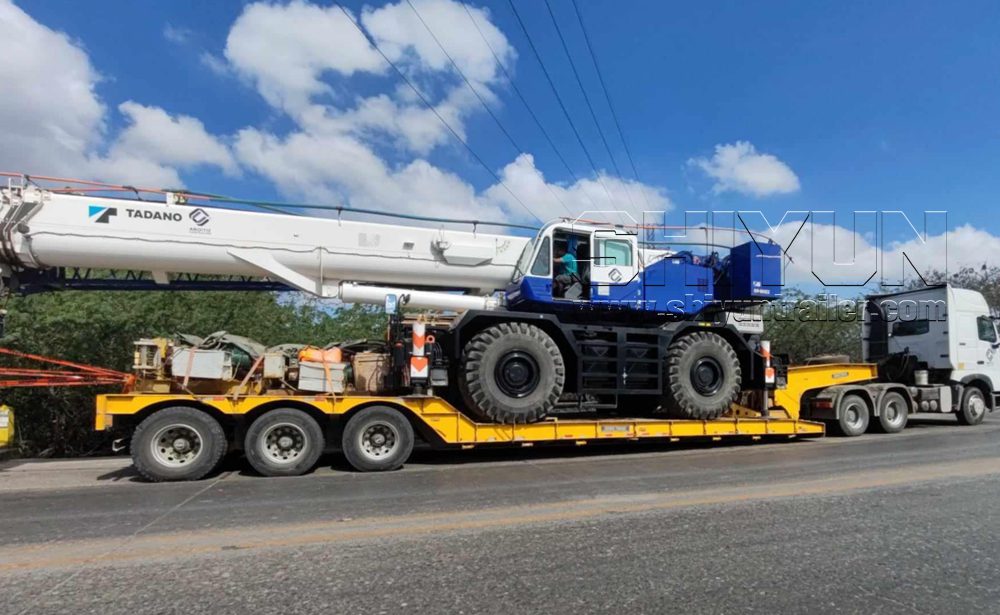

Detachable gooseneck lowbed semi trailer

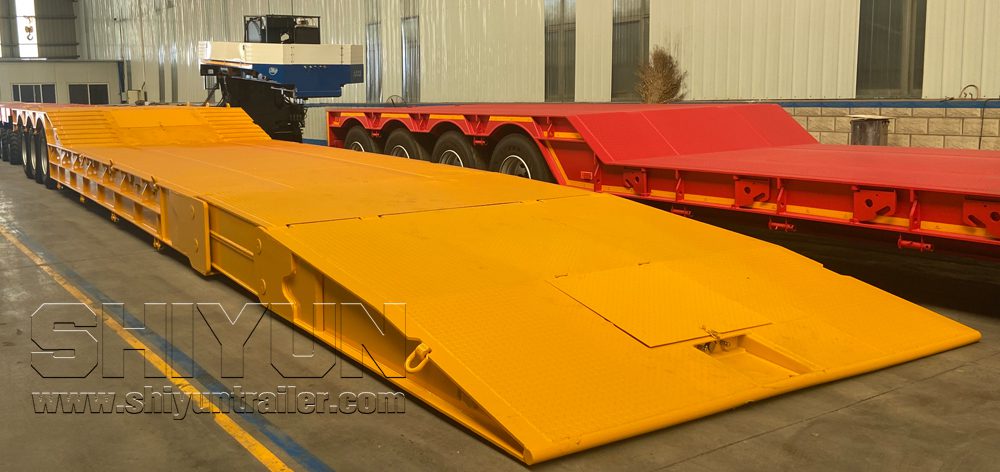

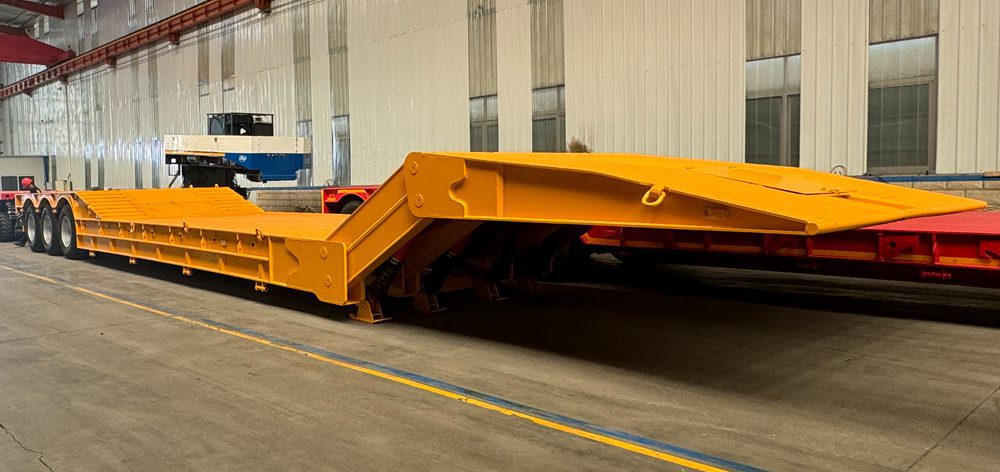

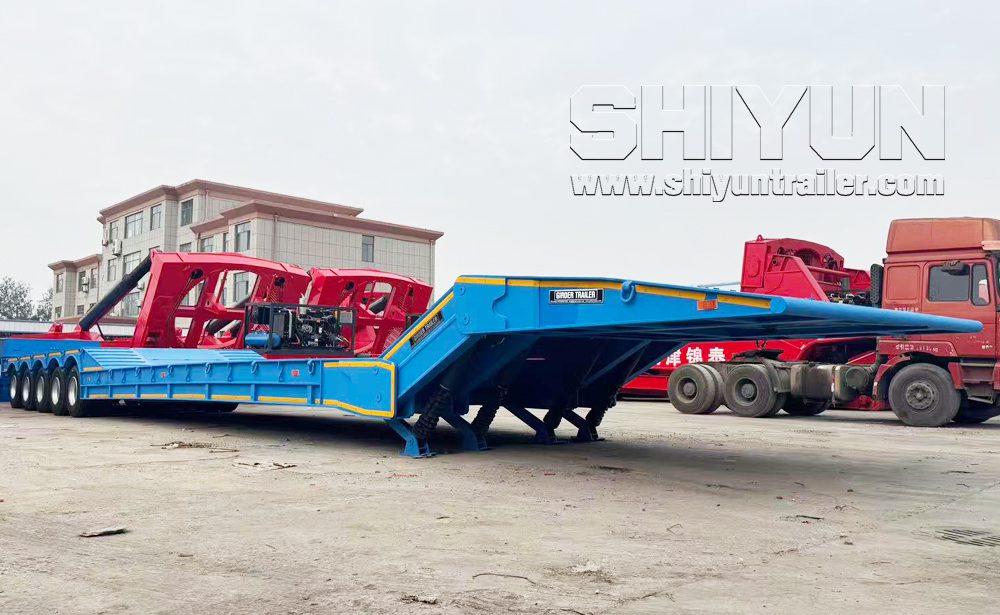

Folding gooseneck lowbed semi trailer

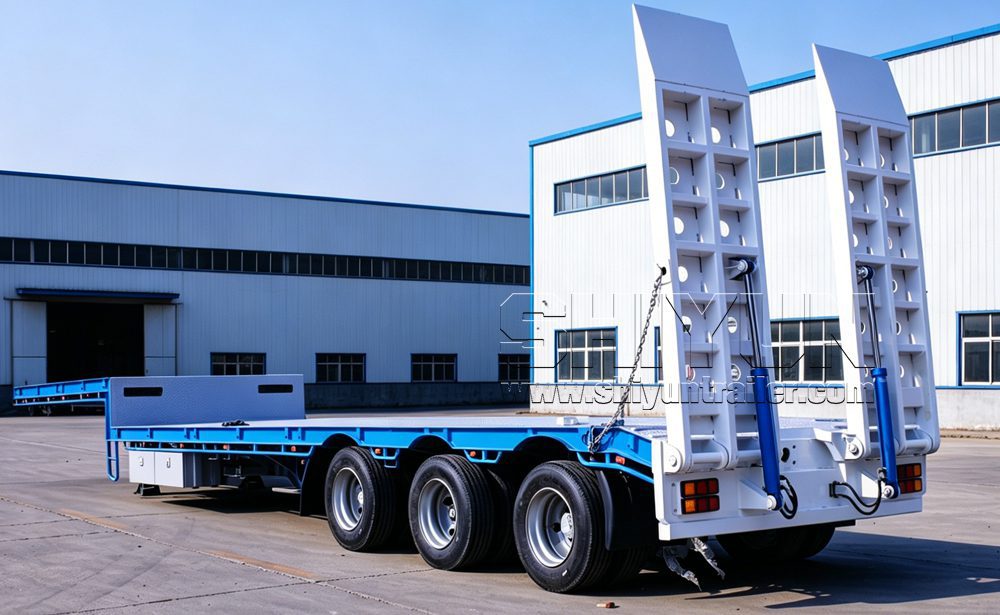

SHIYUN can manufacture low-bed semi-trailers tailored to the requirements of specific countries, such as the Australian design specifications. The entire trailer will be built in compliance with the Australian ADR certification for road use.

The low-bed semi-trailers manufactured by SHIYUN are available in a wide range of models, not limited to the above specifications. They can be fully customized according to your requirements to meet the regulatory standards and road access requirements of different countries.
Our low-bed semi-trailers are suitable for heavy-duty transportation in various scenarios, featuring a solid structure and stable operation. With professional performance, we help boost efficient logistics and are committed to creating greater value for customers with reliable quality.

3.Delivery and Shipment

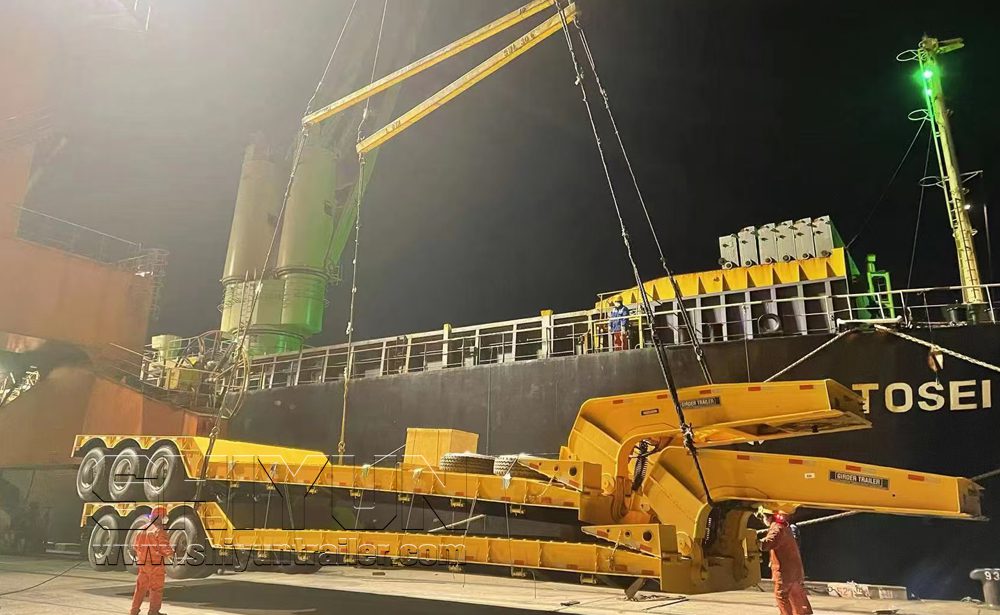

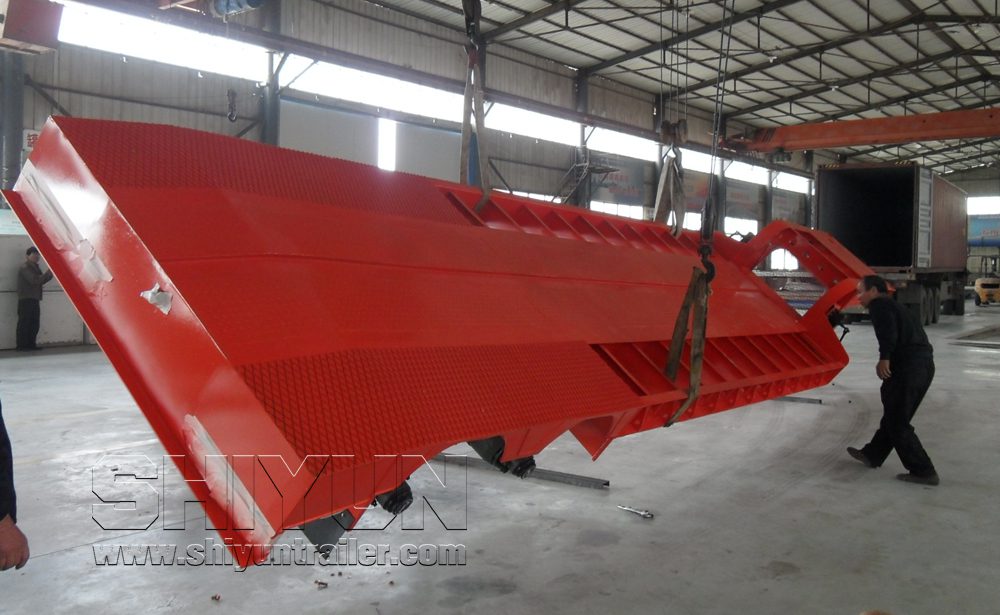

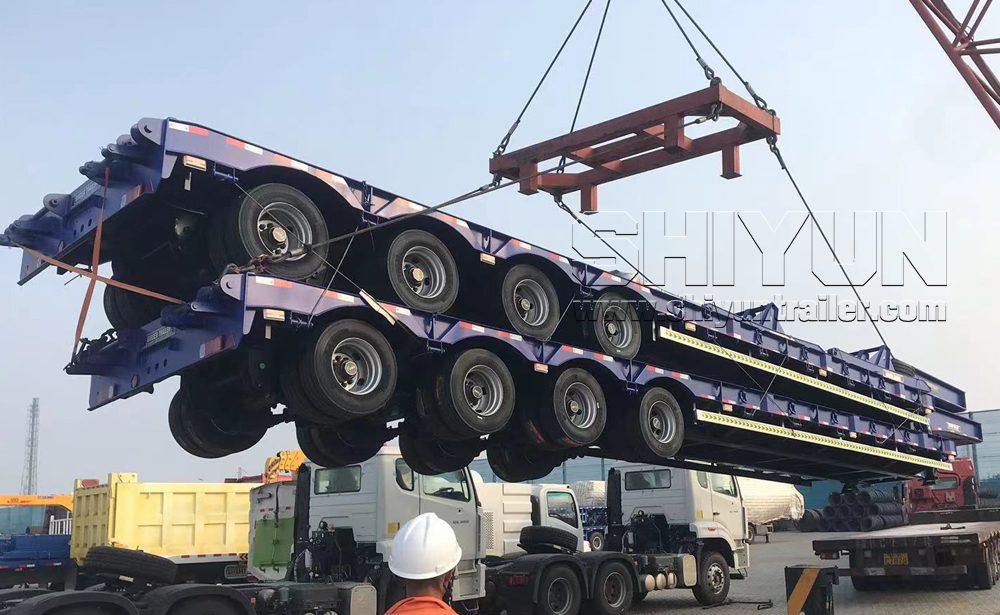

As the overall dimensions of a low-bed semi-trailer are usually larger than those of a standard container, it cannot be shipped inside a container under normal circumstances.We generally transport the trailer via Ro-Ro vessels or bulk ship vessels directly to your designated port.To save on ocean freight, some customers also choose smaller-sized low-bed semi-trailers that can be loaded into containers, which is another practical shipping method.
