WIND BLADE EXTENDABLE TRAILER

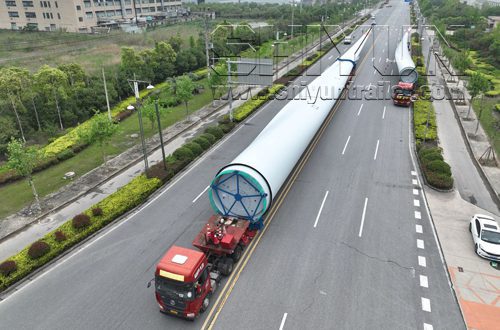

Suitable for long distance transportation of wind turbine blades

With the widespread popularization and large-scale application of wind power generation technology, SHIYUN, a leading top brand in wind power transportation vehicles, keeps pace with industrial development and continuously upgrades special transport vehicles for wind power equipment.For long-distance transportation of wind turbine blades, we recommend telescopic low flat bed semi-trailers to ensure safe and efficient delivery.Boasting lighter dead weight and higher driving speed compared with adapter vehicles, this product is perfectly suitable for highway and long-distance transportation. The core design objective is to protect the blades from damage during transportation while enabling performance on narrow curves, steep slopes, and unpaved roads.It helps customers seize market opportunities and steadily boost the high-quality development of China’s wind power industry.

SHIYUN has been deeply involved in the wind power transportation field for two decades, providing comprehensive support for wind power transportation projects. Through continuous product upgrades and technological innovation, our product performance has achieved a qualitative leap, and our core quality and overall strength remain firmly at TOP 1 in the domestic industry for more than 20 years .

In the future,SHANDONG SHIYUN will continue to focus on innovative research and development, iterate and upgrade special wind power transportation equipment, benchmark international advanced standards, strive to manufacture high-quality wind power transport vehicles, and boost the high-quality and international development of the industry.

In the field of wind power logistics and transportation, our company provides full-category transportation services for wind turbine nacelle, wind turbine blades and wind tower , offering integrated and complete logistics solutions covering the entire wind power industry chain.

1. Steering axles wind blade extendable trailer for sale:

This long-haul telescope extendable trailer for wind rotor turbine blade transportation is equipped with through-type axles and a turntable hydraulic steering system.With outstanding heavy-load capacity, SHIYUN trailer is fully optimized for the long-haul transportation of large, heavy windmill turbine blades in complex mountainous regions.Equipped with flexible dimension tuning capability, it delivers universal compatibility with windmill rotor turbine blades across a wide range of sizes and all mainstream brands.

Item	Specifications
Material	High strength Carbon steel HG60 and Q550
Main beam	Telescope extendable beam with 2-4 beams
Axles	FUWA, AN, CTC or GT Brand
Suspension	Mechanical suspension / Air suspension optional with turntable hydraulic steering
Power pack	12KW engine
Gooseneck	Fix or hydraulic optional, a concave platform can be reserved at the rear of the gooseneck
Tire	11R22.5, 275/80R22.5, 245/75R19.5 Other size and brand optional
King pin	2” / 3.5” bolt type, SAE standard
Landing gear	JOST mechanical suspension and hydraulic landing gear
Platform	Checked plate 3-4mm Other thickness optional
Braking system	Dual line brake system, Double air chamber, brake valve, 40L air tanks, ABS optional
Electrical	LED light, 7 ways, 24V
Painting	Blasting and clean rust, 1 coat of prime painting, 2 coat of finish painting
Accessory	Tool box, oil tank, spraying system optional

Features:

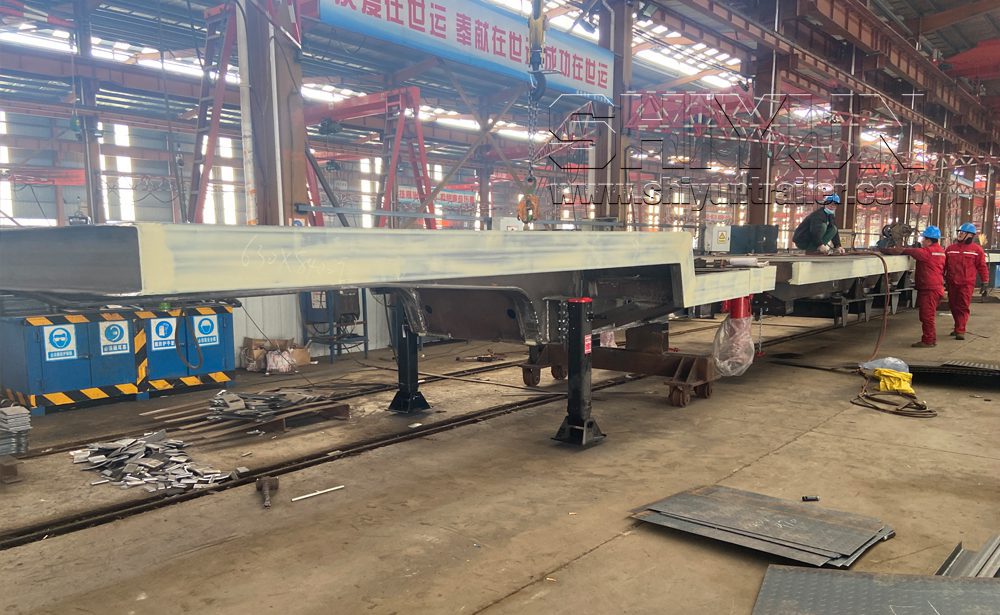

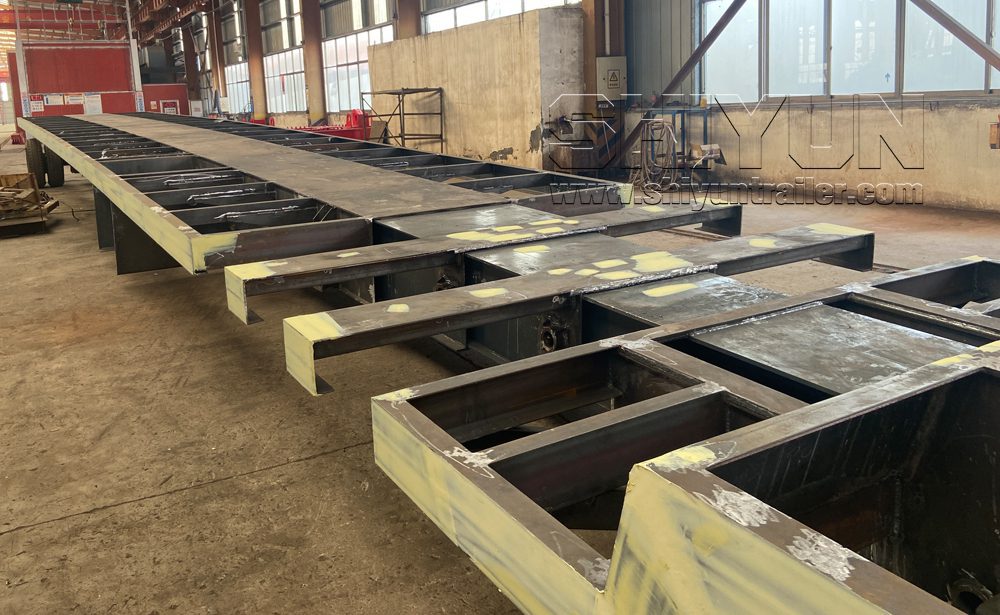

The frame structure is made of high-strength steel HJ60 and Q550, ensuring stable transportation performance and excellent load capacity.With a distinctive telescopic design and high-strength materials, the main beam remains resistant to collapse during extension and retraction, achieving smooth sliding and high operating efficiency.

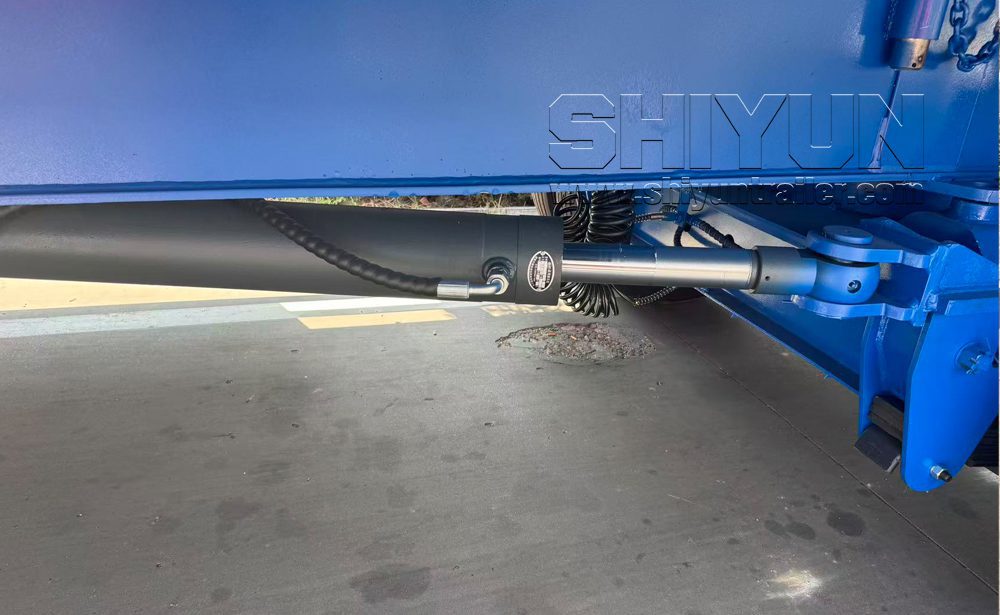

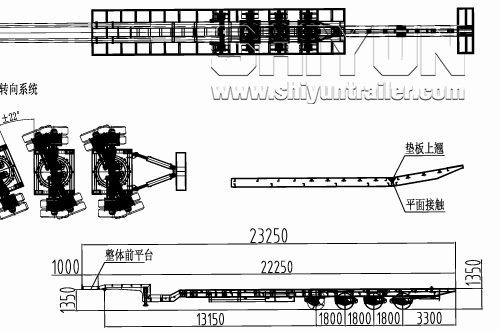

The most prominent feature of the wind turbine blade transport semi-trailer is its extra-long design with longitudinal telescopic function.Due to its overlength overall dimension, the vehicle has a much higher difficulty in turning.To overcome the challenge of curve driving and minimizes the turning radius,wind blade transport trailers are generally equipped with a hydraulic steering system to increase the flexibility of the whole trailer.

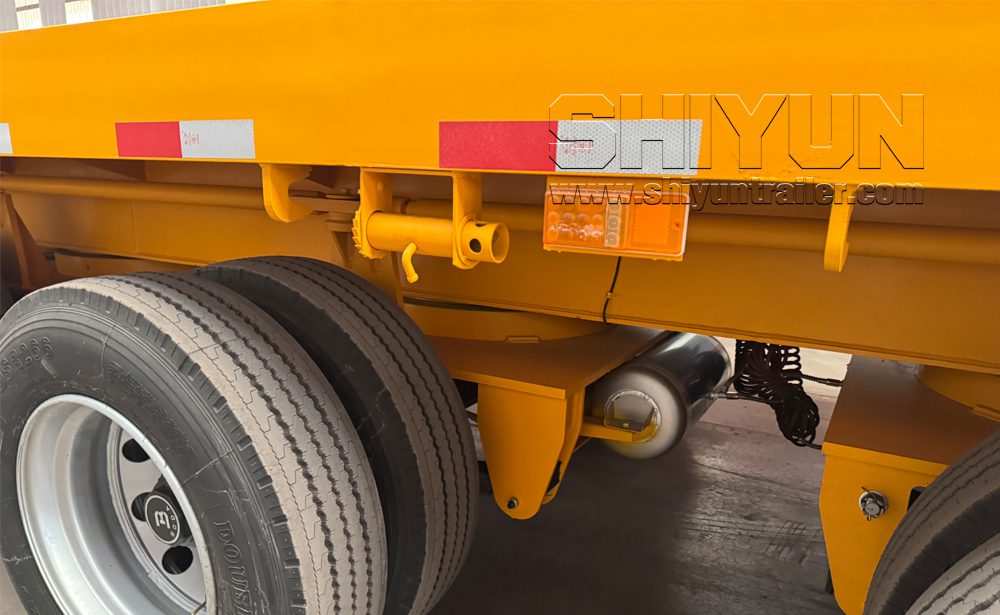

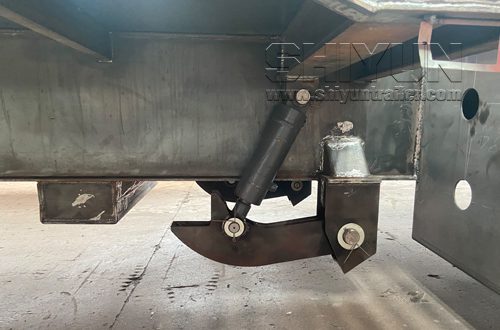

The vehicle can be optionally equipped with a dedicated hydraulic turntable automatic steering system.It automatically keeps all axles concentric and perfectly aligned with the main center of rotation. The axles steer independently and synchronously during travel, greatly enhancing driving safety and transportation efficiency, while delivering highly flexible and convenient overall maneuverability.The steering axles automatically adjust synchronously in real time following the kingpin angle.

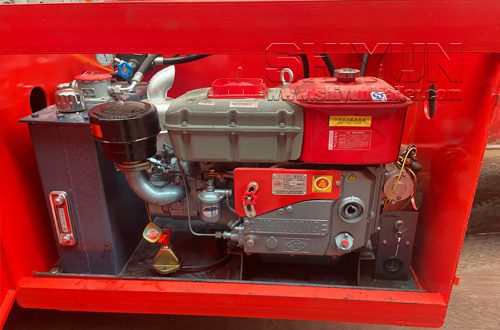

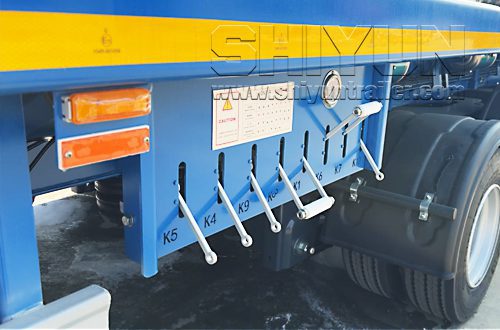

SHIYUN extendable windmill vehicle can be fitted with a compact 12KW power station equipped with an engine and a hydraulic pump to drive the on-board hydraulic system for steering operation. Steering can be controlled either by manual valves or a remote control system.

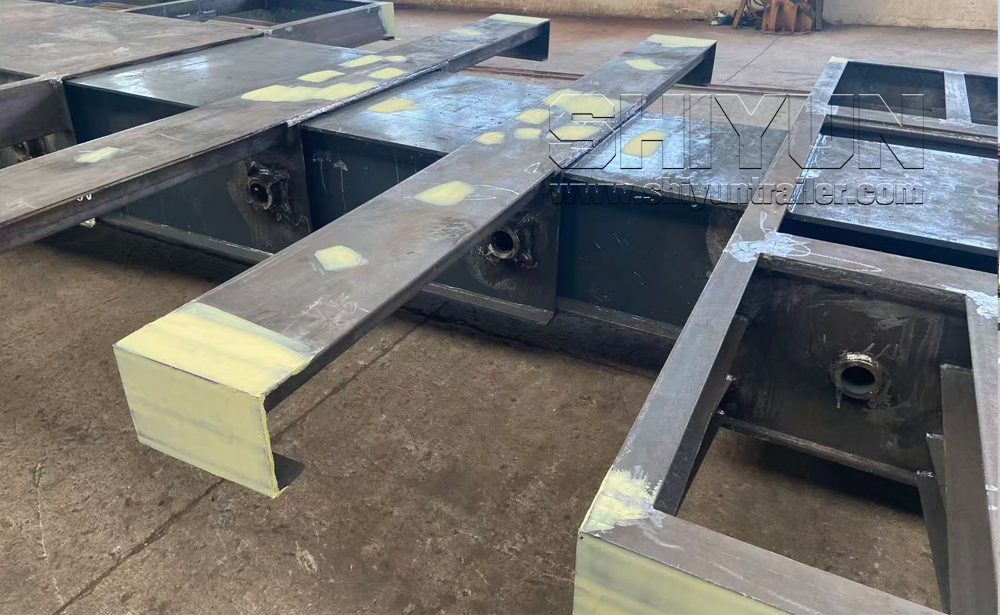

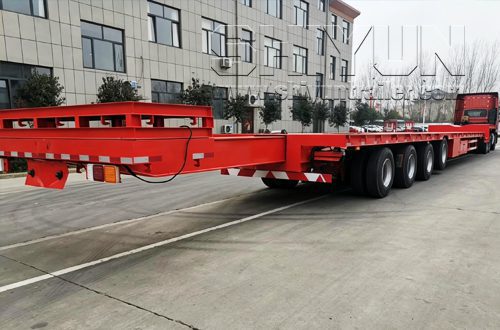

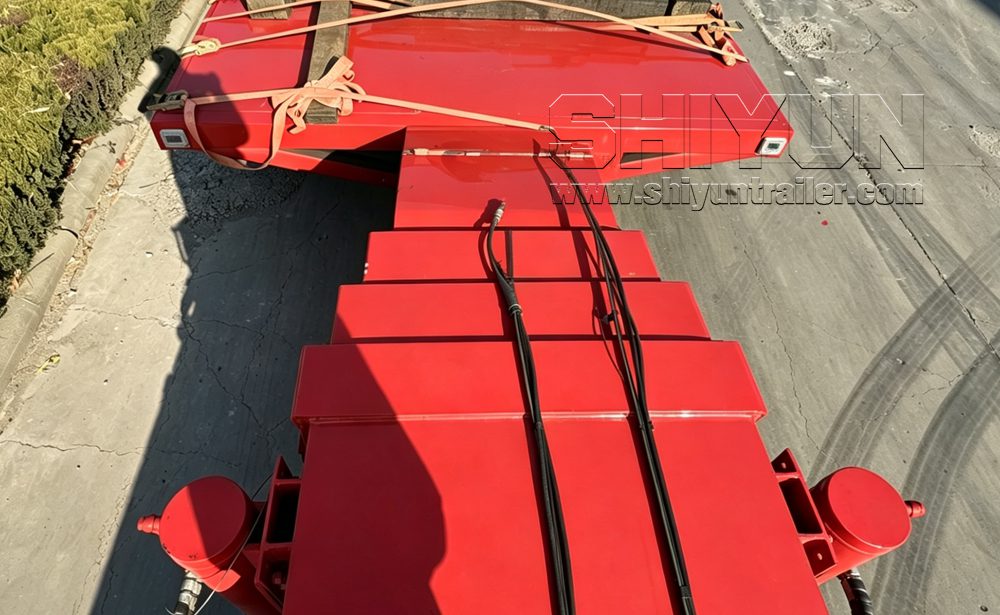

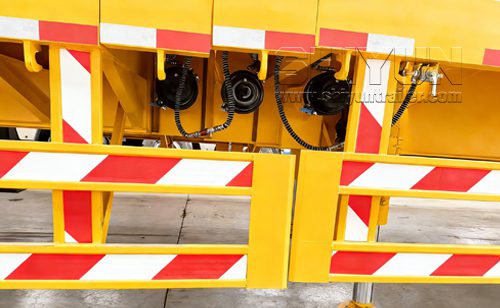

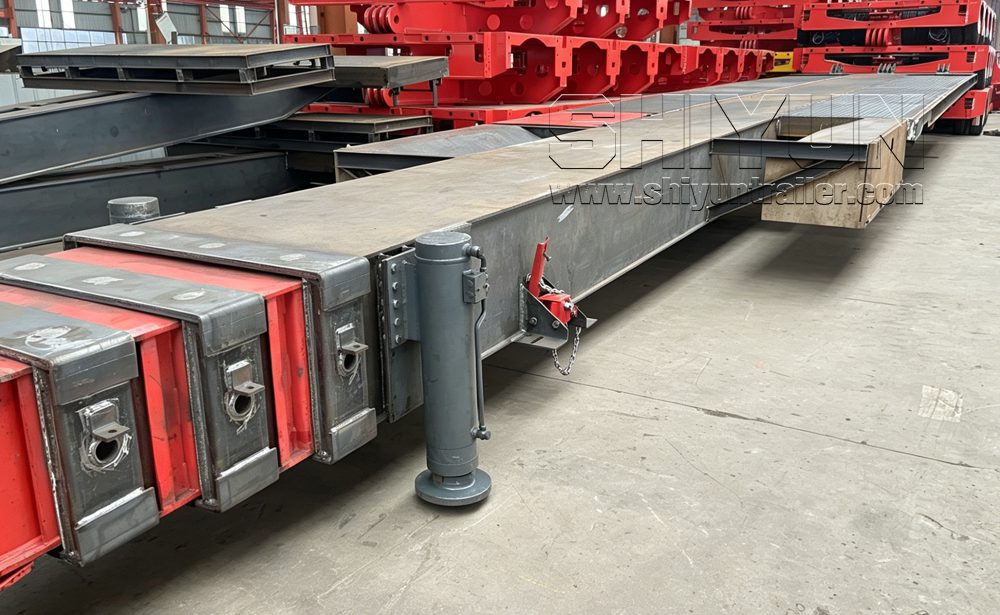

Featuring a four-beam structure, all telescopic cross beams and extendable rear bumpers adopt reliable SHIYUN telescopic technology, enabling smooth and effortless extension and retraction.When retracted, the trailer has a compact overall length.When unloaded, the telescopic beam can be retracted to shorten the overall length of the trailer. Its maximum telescopic extension reaches 72 meters, capable of transporting extra-long wind turbine blades with a support span of around 70 meters. The telescopic operation is stable and smooth.Mounting points are reserved at 1-meter intervals along the trailer body for fixing blades of various specifications. A 6-meter telescopic rear bumper/folding rear bumper can be additionally installed on request.

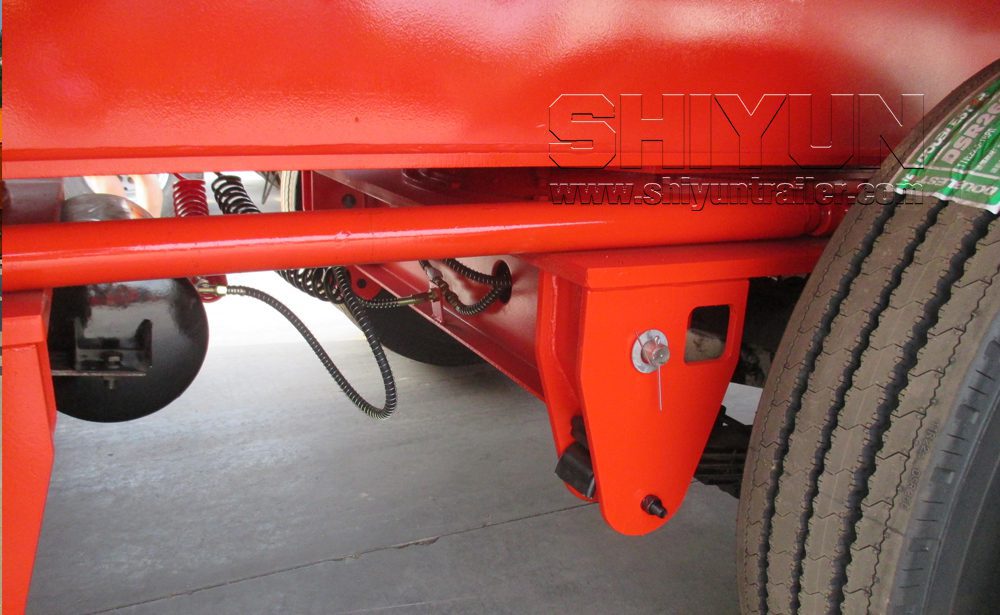

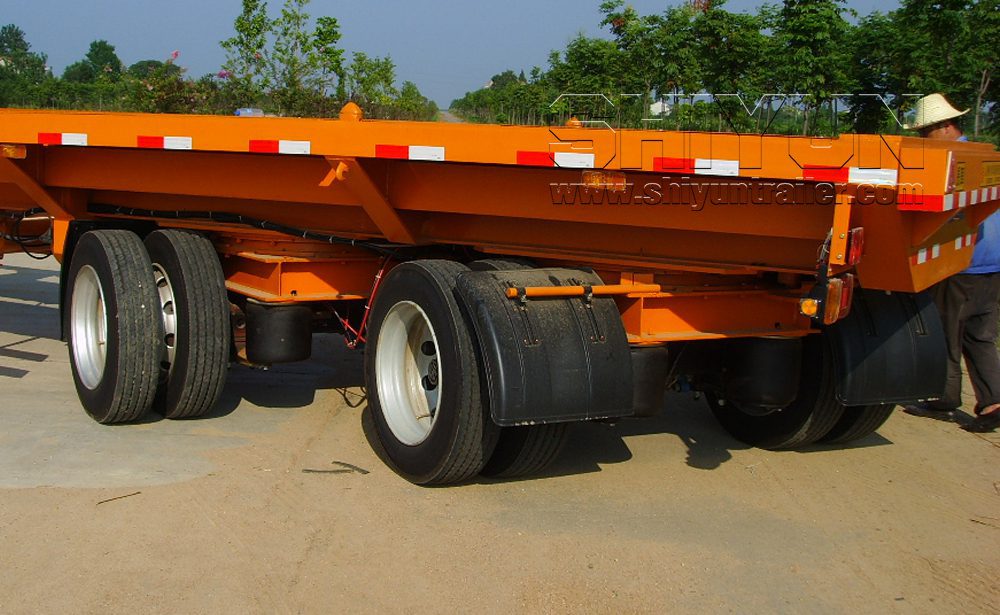

The suspension system is designed with multi-axle independent steering.Air suspension is available to protect sensitive and precision cargo stablization, while mechanical suspension is an ideal option for carrying heavy-duty moulds and heavy loads.

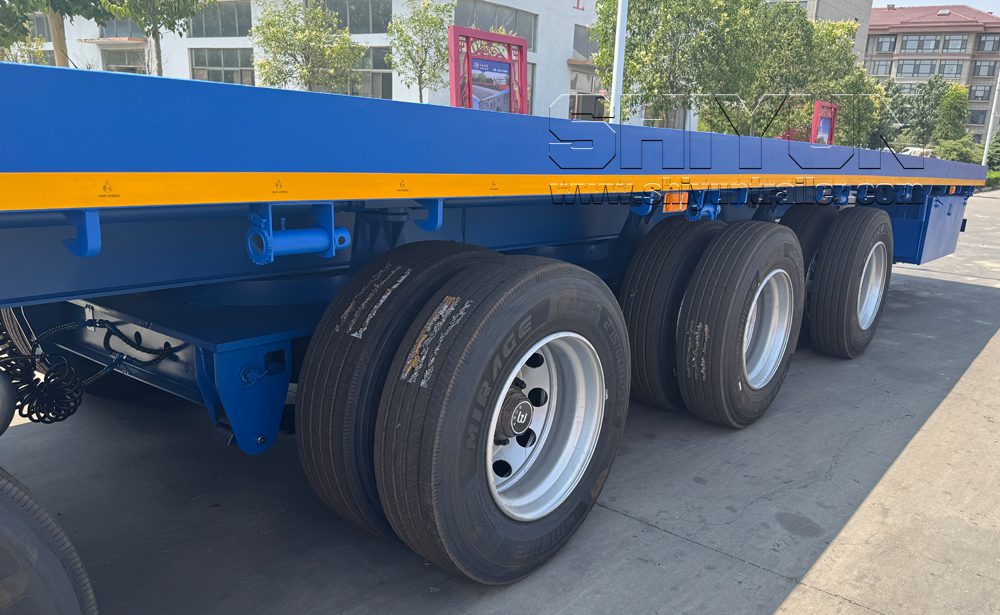

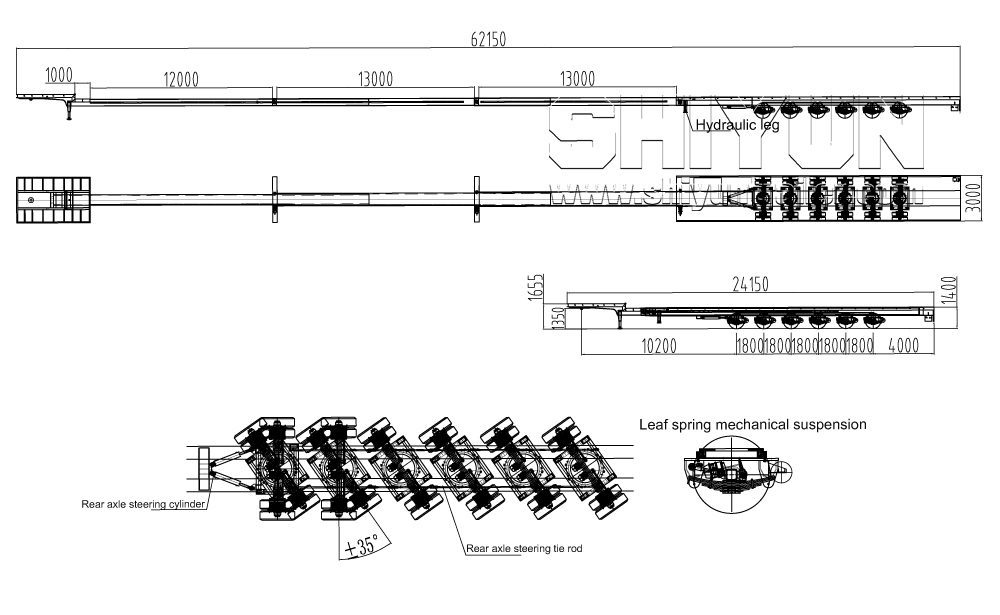

Custom 3, 4, 5, 6 and 7 axles are available. The vehicle adopts through-span axles equipped with rotary hydraulic steering system, providing a steering angle of ±35°. It supports both manual operation and remote control operation.

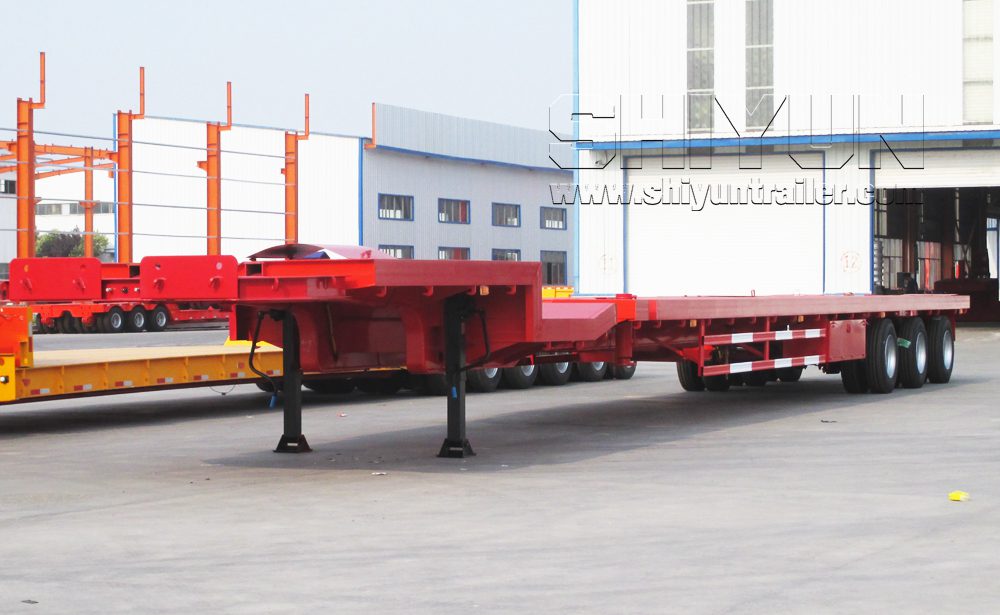

3 axles 48M wind rotor blade trailer

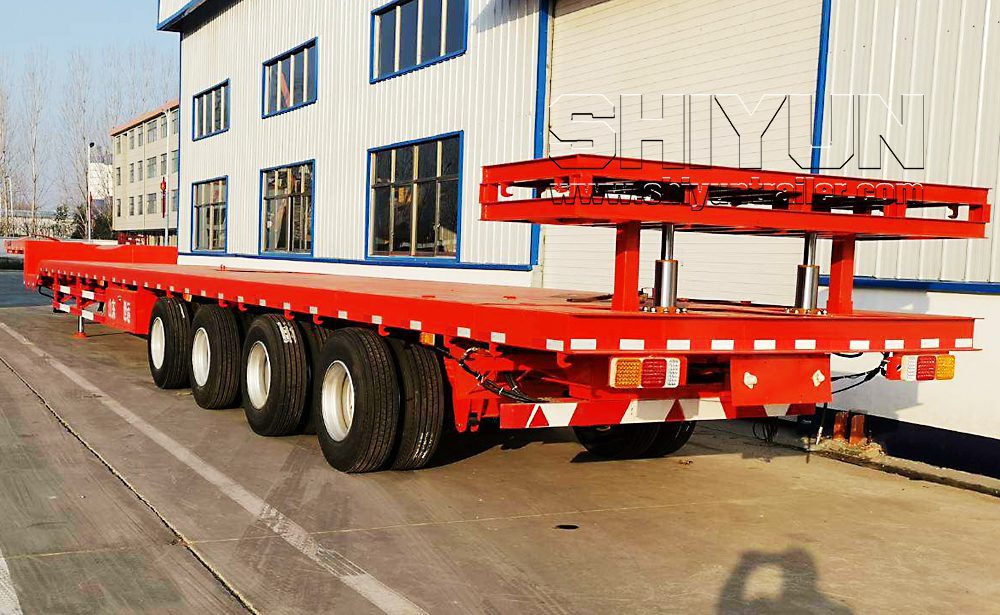

4 axles 56M wind rotor blade trailer

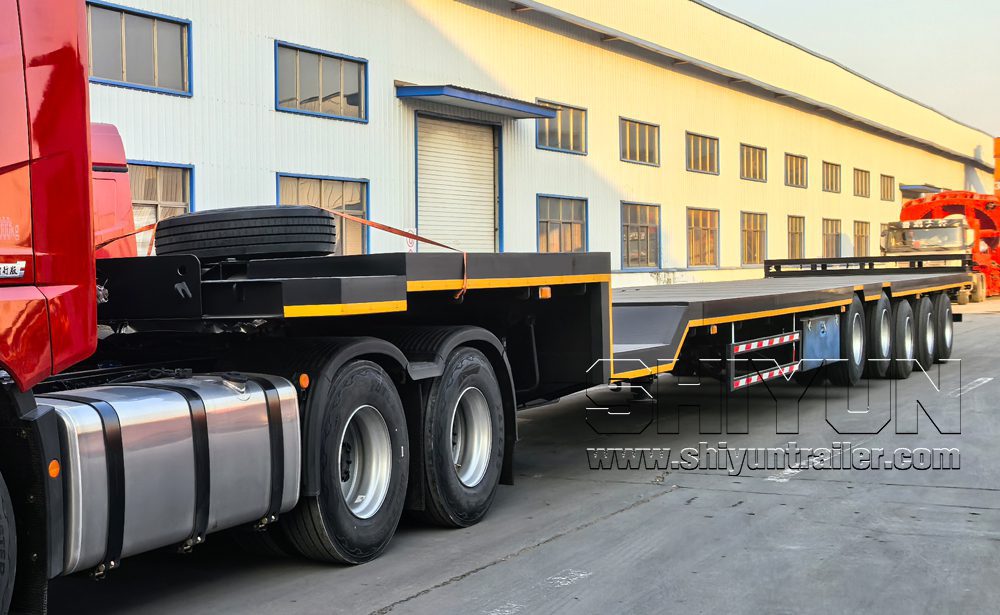

5 axles 54M wind rotor blade trailer

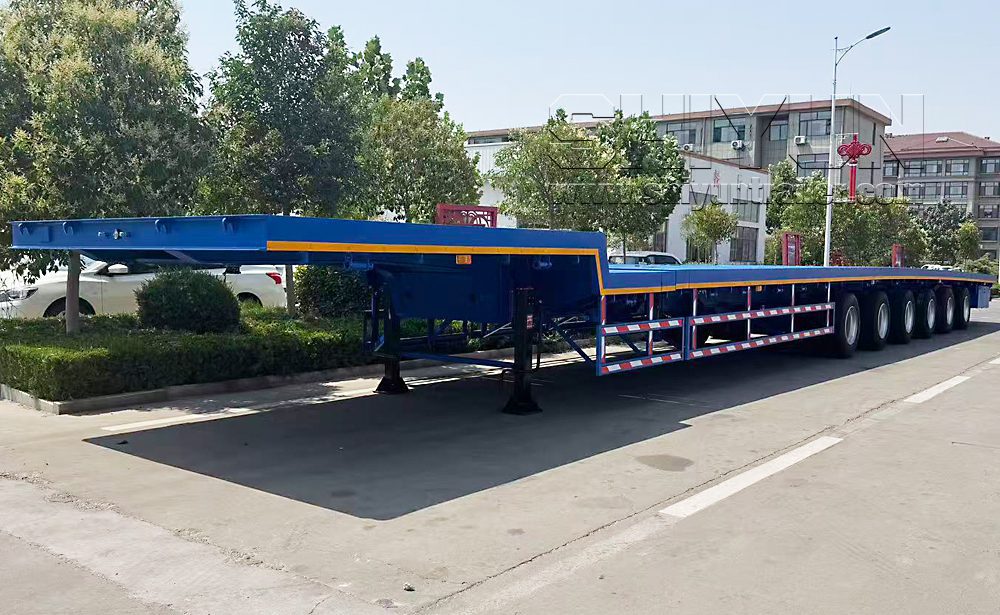

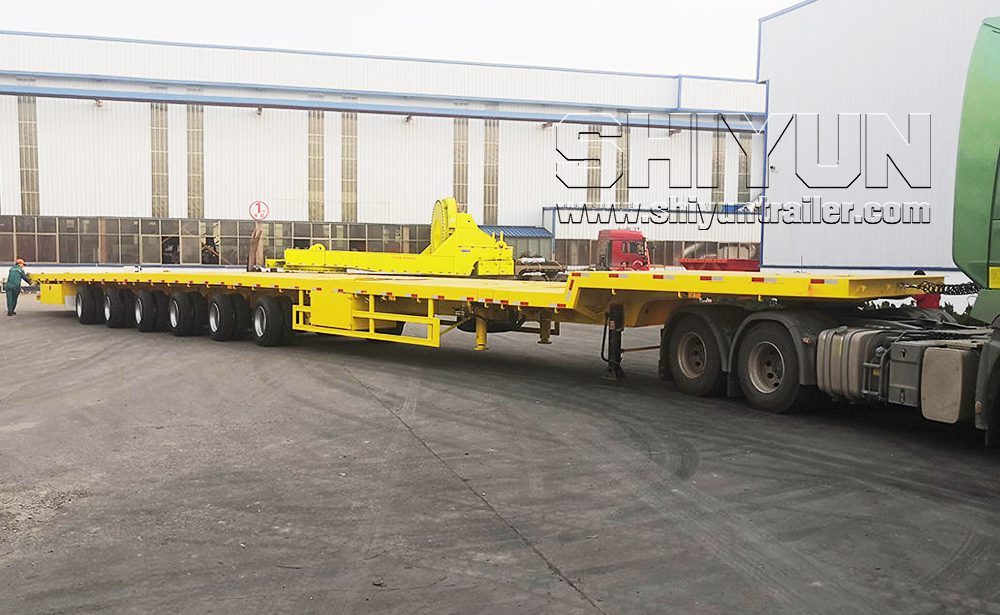

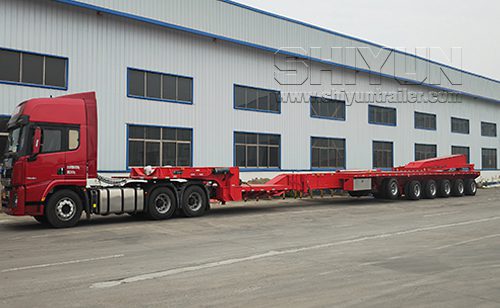

6 axles 62M wind rotor blade trailer

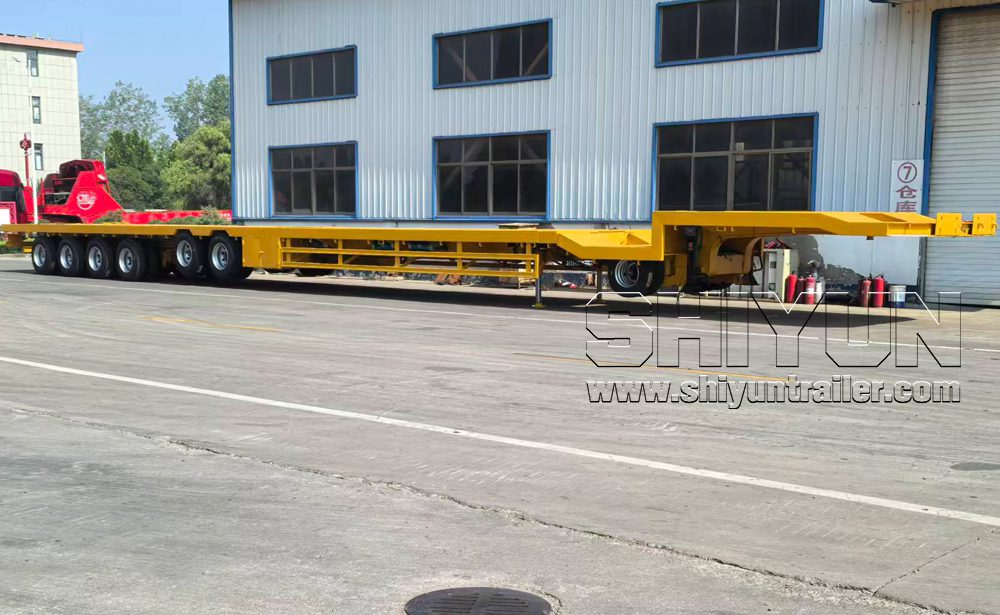

7 axles 61.2M wind rotor blade trailer

SHIYUN vehicle is equipped with well-known domestic brand axles, front supports and air brake assembly components, ensuring the overall quality and performance of the frame.The front support is equipped with both hydraulic outriggers and JOST mechanical landing legs.The frame adopts integral shot blasting treatment to eliminate internal stress and improve structural fatigue resistance.The whole vehicle features reasonable structural layout, elegant appearance, superior performance, easy maintenance, high transportation efficiency and excellent cost performance

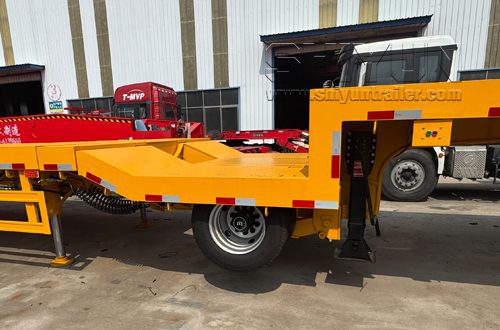

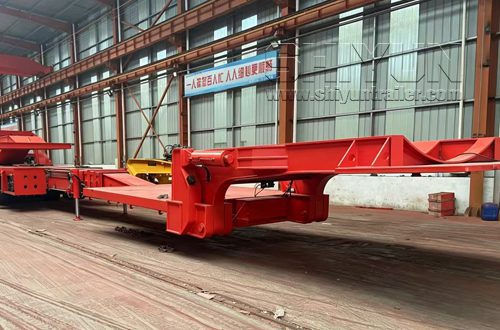

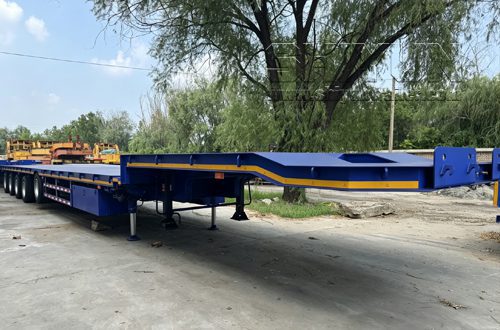

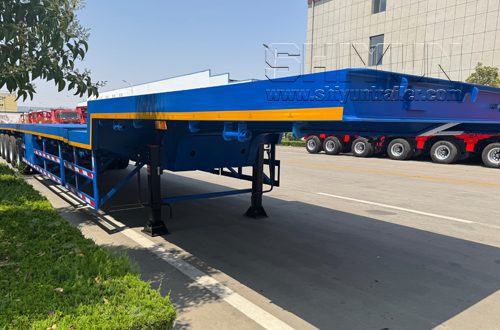

The gooseneck can be optional fixed type or hydraulic lifting type, allowing flexible height adjustment to adapt to diverse working conditions.

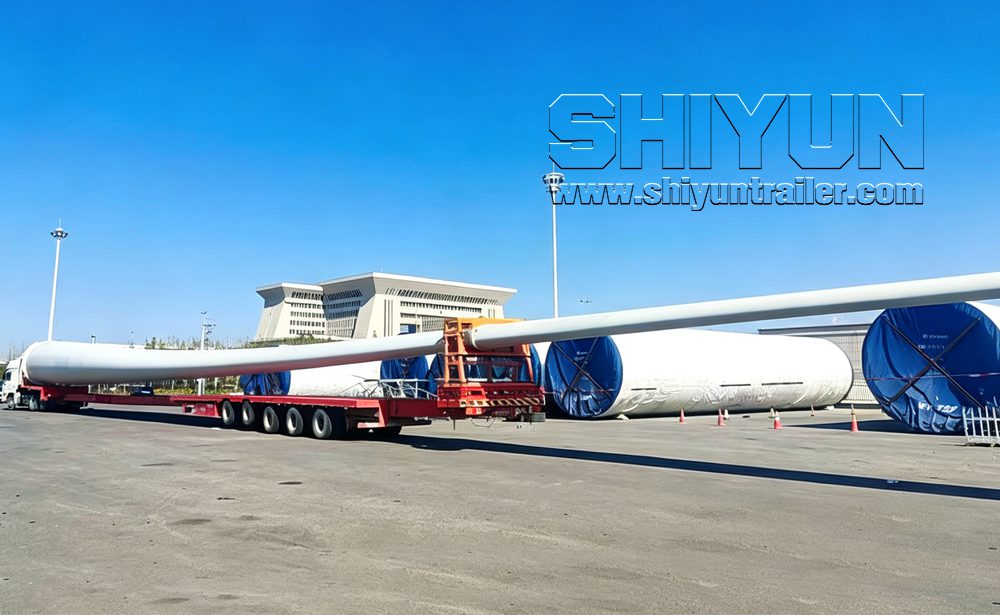

Equipped with professional wind turbine blade locks to improve driving stability.Blade supports can also be optionally fitted, and customized supports can be coordinated and supplied by the blade factory as well.

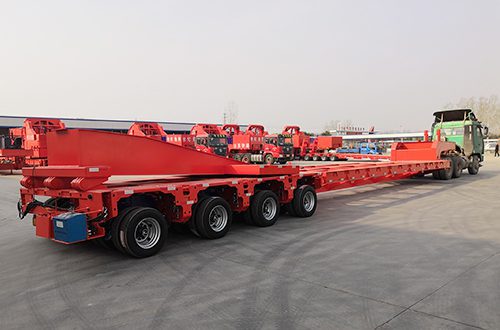

2. Hydraulic modular wind blade extendable trailer for sale:

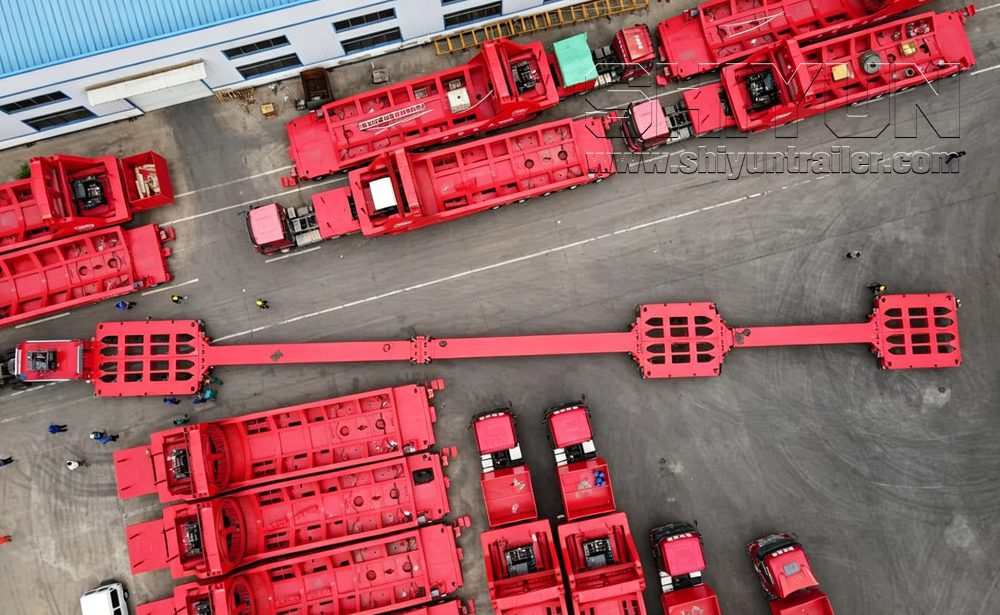

Hydraulic modular axles are well-suited for transporting large-scale wind turbine blades. Boasting superior maneuverability, they are particularly ideal for oversized offshore wind blade transportation.

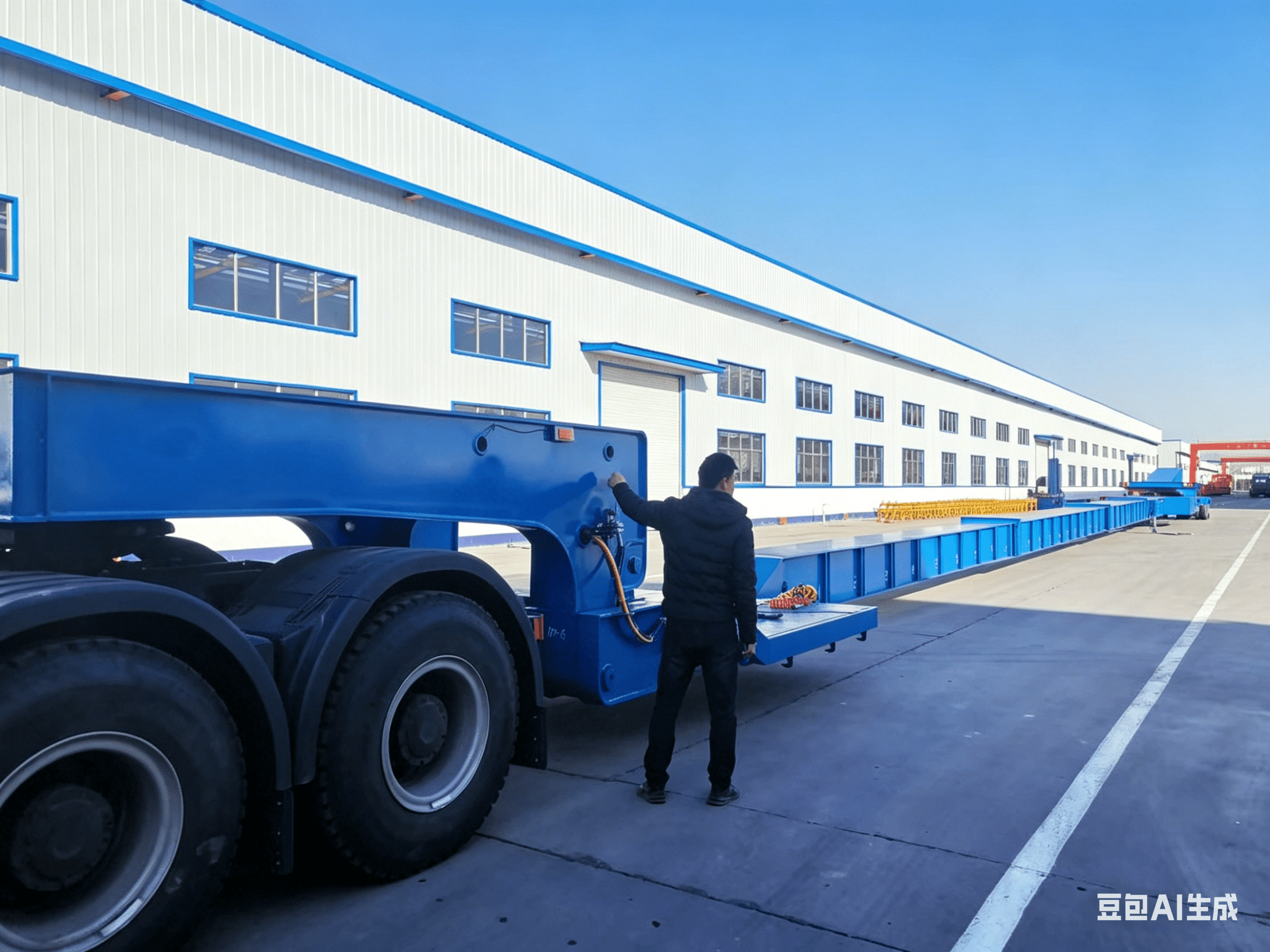

SHANDONG SHIYUN VEHICLE also produces heavy-duty extendable telescopic beams, engineered for compatibility with Goldhofer hydraulic trailers. They can be seamlessly interfaced with other heavy-haul specialist trailers such as Scheuerle and Nicolas units. Designed to link the gooseneck and rear axles, these beams also provide robust top-surface load-bearing capacity.

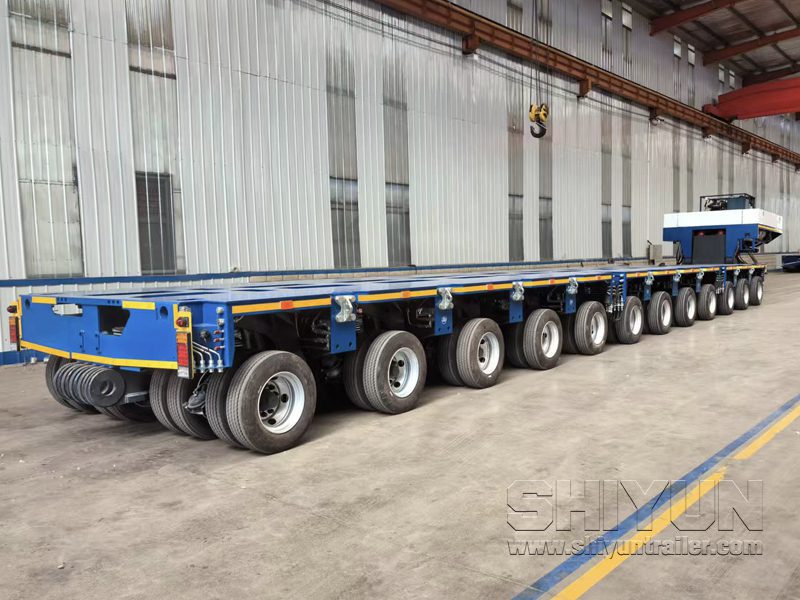

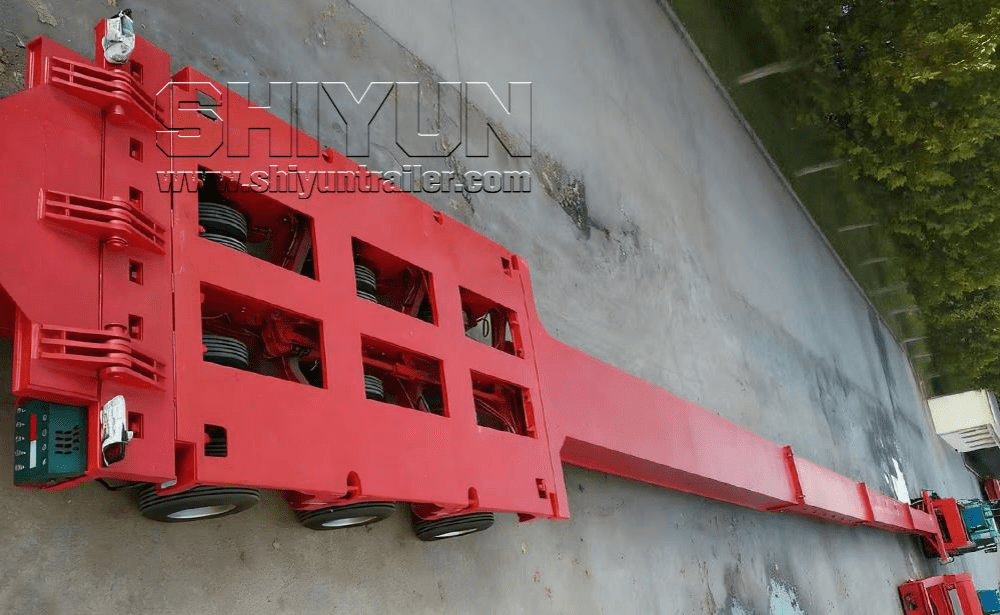

Adopting a hydraulic modular design, it features higher flexibility compared with conventional through axles. It can be equipped with hydraulic axle-line suspension, and the whole vehicle supports hydraulic lifting and steering.
The multi-axle tires greatly enhance the vehicle’s load capacity.

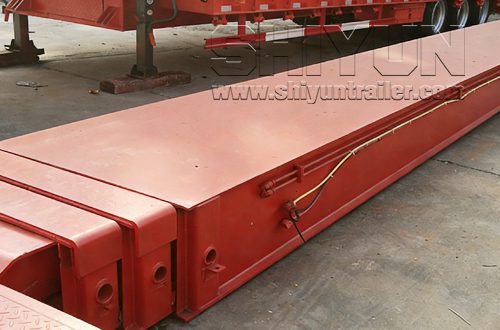

The telescopic extendable spacer beam is detachable and connectable to different modular trailers to realize multi-functional transportation.After the modular trailer is separated from the extendable spacer unit, it can also be used independently for transporting other cargoes.The intermediate platform spacer can also be installed between modular axle lines for wind blade transportation.

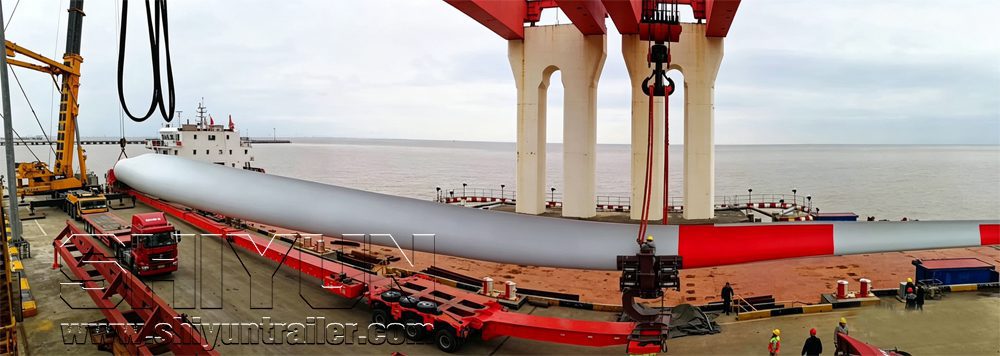

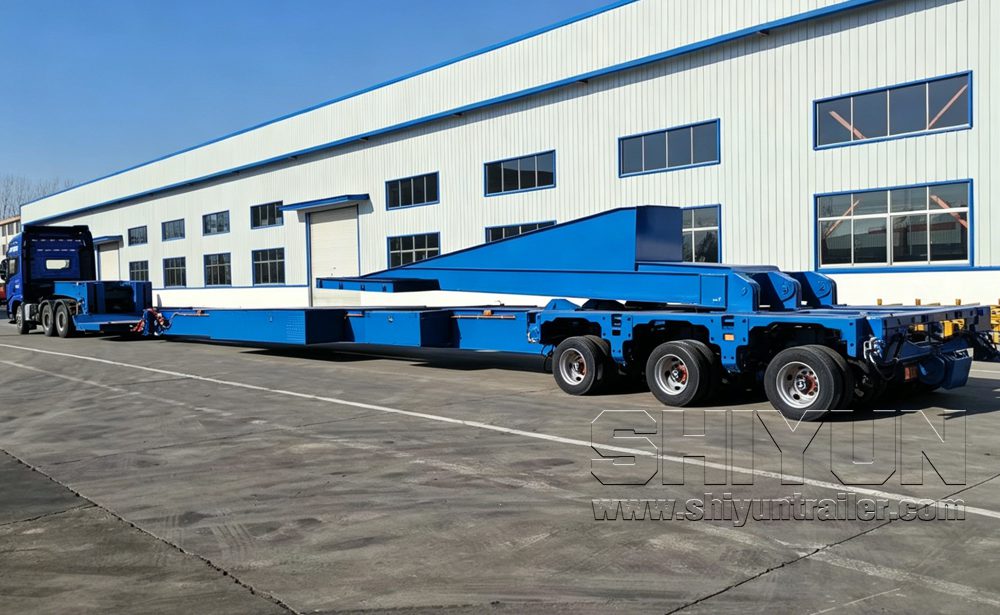

100Meters wind rotor blade transporting hydraulic modular trailer

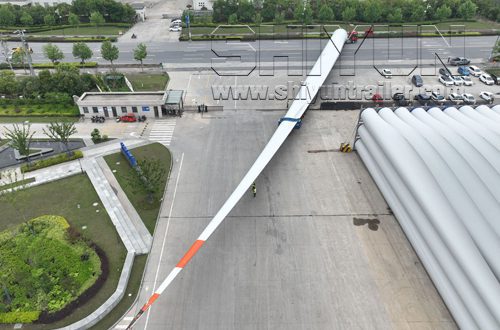

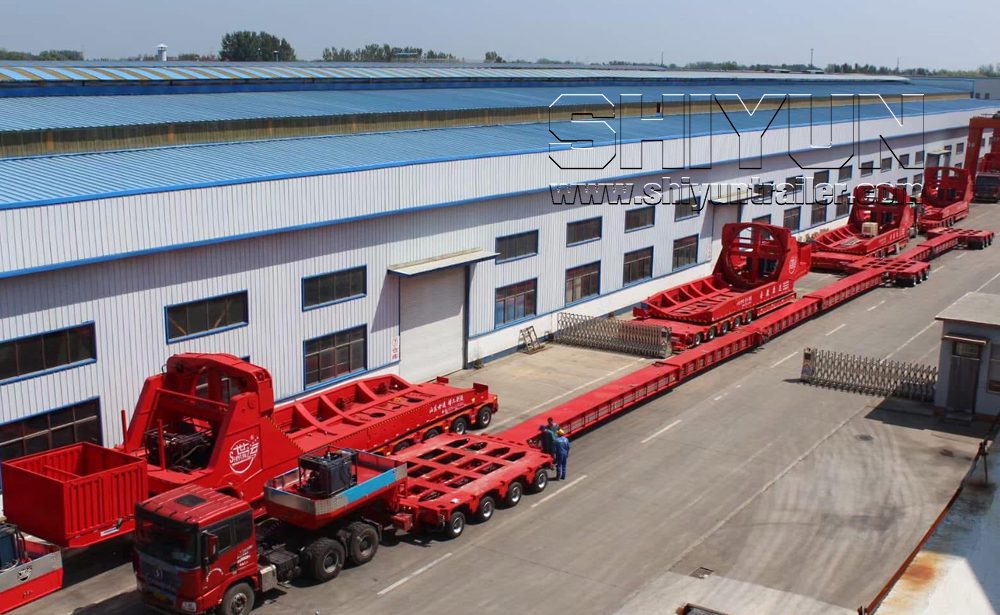

4.Successful cases:

Our clients have long been professionally engaged in cargo transportation for well-known domestic wind turbine blade brands, including Sinoma Blade, Times New Material, Titan Wind Energy, Aeolon Technology, Shuangyi Tech, Sinoma Lianzhong, AVIC Huiteng, Guangwei Composites, Goldwind, Mingyang Smart Energy, Sany Renewable Energy, Envision Energy and Dongfang Electric. With rich experience in oversized wind power equipment transportation, we provide efficient, safe and fully controllable logistics transportation services for major wind turbine blade manufacturers on a stable basis.
