Introduction
Understanding what are the dimensions of a semi truck trailer is essential for freight transportation, logistics planning, cargo loading, and fleet management. Semi truck trailers come in various sizes and configurations depending on the type of cargo being transported. Whether you are involved in trucking, shipping, construction, manufacturing, or supply chain operations, knowing the exact dimensions of a semi trailer helps maximize cargo capacity, ensure regulatory compliance, and improve transportation efficiency.
The most commonly used trailer in North America is the 53-foot semi truck trailer, but there are also dry vans, flatbeds, refrigerated trailers, lowboy trailers, step deck trailers, and other specialized trailer types available for different hauling requirements.
What Are the Standard Dimensions of a Semi Truck Trailer?
A standard semi truck trailer is typically designed to provide maximum cargo space while complying with highway regulations.

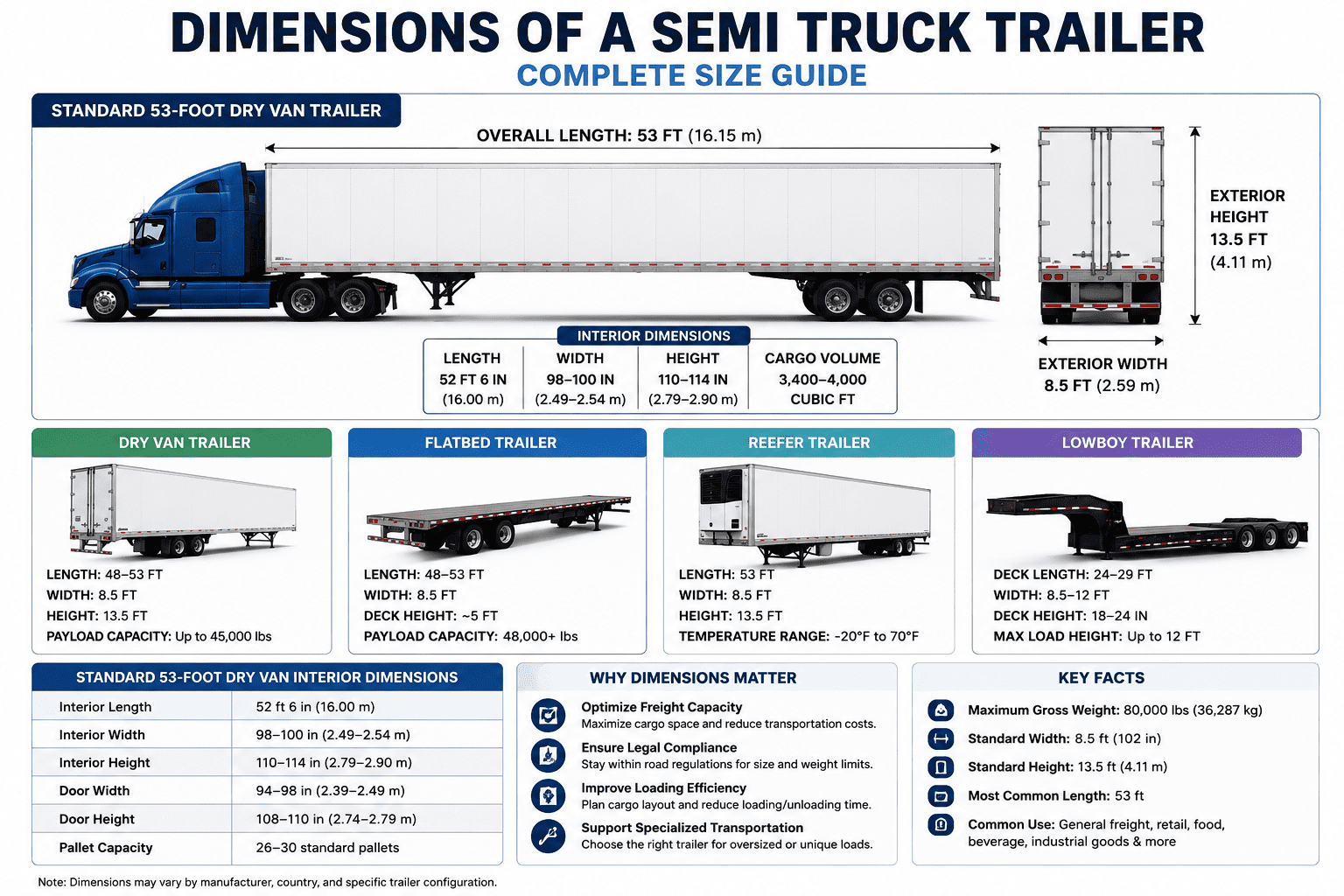

Standard 53-Foot Semi Truck Trailer Dimensions
| Dimension | Measurement |
|---|---|
| Overall Length | 53 ft (16.15 m) |
| Exterior Width | 8.5 ft (102 inches) |
| Interior Width | 98–100 inches |
| Exterior Height | 13.5 ft (4.11 m) |
| Interior Height | 110–114 inches |
| Cargo Volume | 3,400–4,000 cubic feet |
| Maximum Gross Vehicle Weight | 80,000 lbs (36,287 kg) |
These dimensions make the 53-foot trailer the preferred choice for long-haul freight transportation and commercial logistics operations.
Why Semi Truck Trailer Dimensions Matter
Knowing the dimensions of a semi truck trailer helps businesses improve operational efficiency and transportation planning.
Optimize Freight Capacity
Proper trailer dimensions allow companies to maximize cargo space and reduce shipping costs.
Improve Loading Efficiency
Warehouse personnel can plan pallet arrangements and loading configurations more effectively.
Ensure Regulatory Compliance
Federal and state transportation authorities regulate trailer length, width, height, and weight limits.
Support Specialized Transportation
Different trailer dimensions accommodate different cargo types, including oversized equipment, refrigerated goods, and construction materials.
Interior Dimensions of a 53-Foot Semi Trailer
The interior dimensions determine the actual usable cargo space.
Interior Measurements
| Interior Specification | Measurement |
|---|---|
| Interior Length | 52 ft 6 in |
| Interior Width | 98–100 in |
| Interior Height | 110–114 in |
| Rear Door Width | 94–98 in |
| Rear Door Height | 108–110 in |
These measurements allow a standard 53-foot trailer to carry approximately 26–30 pallets, depending on pallet size and loading arrangement.
Common Types of Semi Truck Trailers and Their Dimensions
Different industries require different trailer configurations. Below are the most common semi truck trailer dimensions used throughout the transportation industry.
Dry Van Trailer Dimensions
A dry van trailer is the most common type of semi trailer used for general freight.
Dry Van Specifications
- Length: 48–53 ft
- Width: 8.5 ft
- Height: 13.5 ft
- Cargo Capacity: Up to 45,000 lbs
Common Uses
- Consumer goods
- Electronics
- Retail products
- Packaged freight
Refrigerated Trailer Dimensions
A refrigerated trailer, also known as a reefer trailer, is designed to transport temperature-sensitive products.
Reefer Trailer Specifications
- Length: 53 ft
- Width: 8.5 ft
- Height: 13.5 ft
- Interior Temperature Range: -20°F to 70°F
Common Uses
- Food transportation
- Pharmaceuticals
- Frozen products
- Agricultural products
Flatbed Trailer Dimensions
Flatbed trailers feature an open platform that allows easy loading from multiple sides.
Flatbed Specifications
- Length: 48–53 ft
- Width: 8.5 ft
- Deck Height: Approximately 5 ft
- Payload Capacity: 48,000 lbs or more
Common Uses
- Steel
- Lumber
- Construction materials
- Machinery
Lowboy Trailer Dimensions
Lowboy trailers are specifically designed for heavy equipment and oversized loads.
Lowboy Specifications
- Deck Length: 24–29 ft
- Width: 8.5–12 ft
- Deck Height: 18–24 inches
- Maximum Load Height: Up to 12 ft
Common Uses
- Excavators
- Bulldozers
- Industrial equipment
- Large construction machinery
How Wide Is a Semi Truck Trailer?
The standard width of a semi truck trailer is:
Exterior Width
- 8.5 feet
- 102 inches
- 2.59 meters
Interior Width
- Approximately 98–100 inches
This width allows trailers to safely operate on highways while maximizing cargo space.
How Tall Is a Semi Truck Trailer?
The maximum legal trailer height in many regions is:
Standard Trailer Height
- 13.5 feet
- 162 inches
- 4.11 meters
Specialized trailers may exceed this height but often require special permits.
How Long Is a Semi Truck Trailer?
The most common trailer lengths include:
Typical Trailer Lengths
| Trailer Type | Length |
|---|---|
| Pup Trailer | 28 ft |
| Standard Trailer | 48 ft |
| Dry Van Trailer | 53 ft |
| Refrigerated Trailer | 53 ft |
| Flatbed Trailer | 48–53 ft |
| Lowboy Trailer | 24–29 ft Deck |
The 53-foot trailer remains the industry standard for freight transportation.
How Much Cargo Can a Semi Truck Trailer Hold?
Cargo capacity depends on trailer design and weight restrictions.
Average Cargo Capacity
- Cargo Volume: 3,400–4,000 cubic feet
- Payload Capacity: Up to 45,000 lbs
- Maximum Gross Combination Weight: 80,000 lbs
These specifications allow efficient transportation of large freight volumes across long distances.
Factors That Affect Semi Trailer Dimensions
Several factors influence trailer size and cargo capacity.
Cargo Type
Heavy equipment requires lowboy trailers, while consumer goods typically use dry vans.
Transportation Regulations
Federal and state laws determine maximum legal dimensions.
Industry Requirements
Different industries require specialized trailer configurations for specific freight needs.
Route Restrictions
Bridge clearances, road widths, and weight limits may impact trailer selection.
Advantages of Standard 53-Foot Semi Truck Trailers
Maximum Freight Capacity
Provides one of the largest legal cargo spaces available.
Improved Fuel Efficiency
Optimized trailer dimensions help reduce transportation costs.
Industry Compatibility
Most shipping facilities are designed to accommodate 53-foot trailers.
Versatile Cargo Handling
Suitable for retail goods, manufacturing products, industrial equipment, and consumer shipments.
Frequently Asked Questions About Semi Truck Trailer Dimensions
What are the dimensions of a semi truck trailer?
A standard semi truck trailer typically measures 53 feet long, 8.5 feet wide, and 13.5 feet high.
How wide is a 53-foot trailer?
A 53-foot trailer is generally 102 inches (8.5 feet) wide externally.
How tall is a semi trailer?
Most semi trailers have a legal maximum height of 13.5 feet.
How many pallets fit in a semi truck trailer?
A standard 53-foot trailer can accommodate approximately 26–30 pallets.
What is the cargo capacity of a semi trailer?
Most semi trailers can carry up to 45,000 pounds of payload depending on configuration and regulations.
Are all semi truck trailers 53 feet long?
No. Semi truck trailers are available in multiple lengths, including 28-foot, 48-foot, and 53-foot configurations.
Conclusion
Understanding what are the dimensions of a semi truck trailer is essential for transportation planning, logistics management, and cargo optimization. The standard 53-foot semi trailer offers the ideal combination of cargo capacity, efficiency, and regulatory compliance, making it the most widely used trailer in the trucking industry. Whether transporting retail products, refrigerated goods, industrial equipment, or construction materials, selecting the right trailer dimensions helps improve productivity and reduce shipping costs.
